Pontiac
>>
2005
>>
Grand Prix GXP
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper System & Washer System
>>
Schematic and Routing Diagrams
>>
Wiper/Washer System Schematics
Wiper/Washer System Schematics

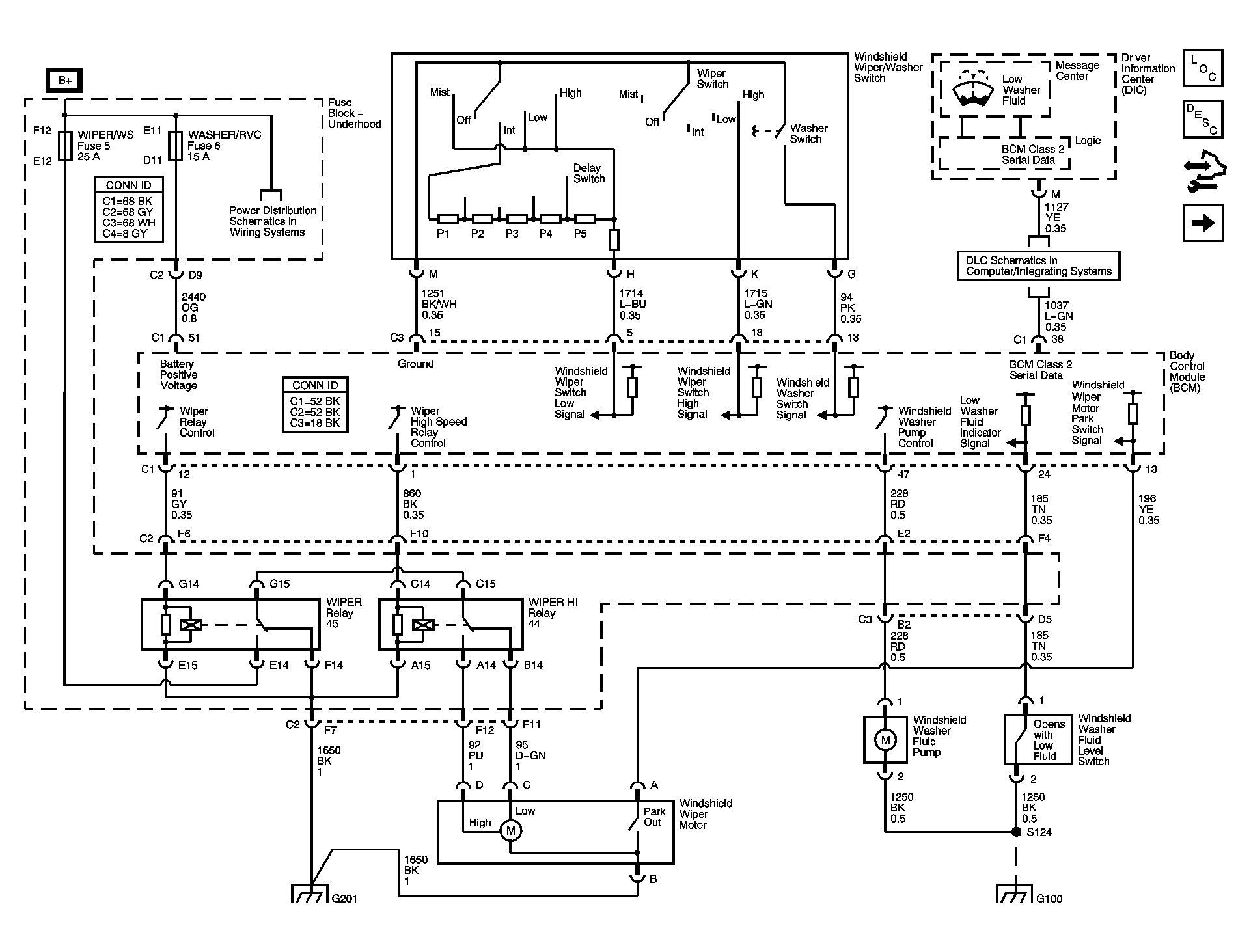

Fig 1: Wiper/Washer System Schematics (L26, L32)
Courtesy of GENERAL MOTORS CORP.

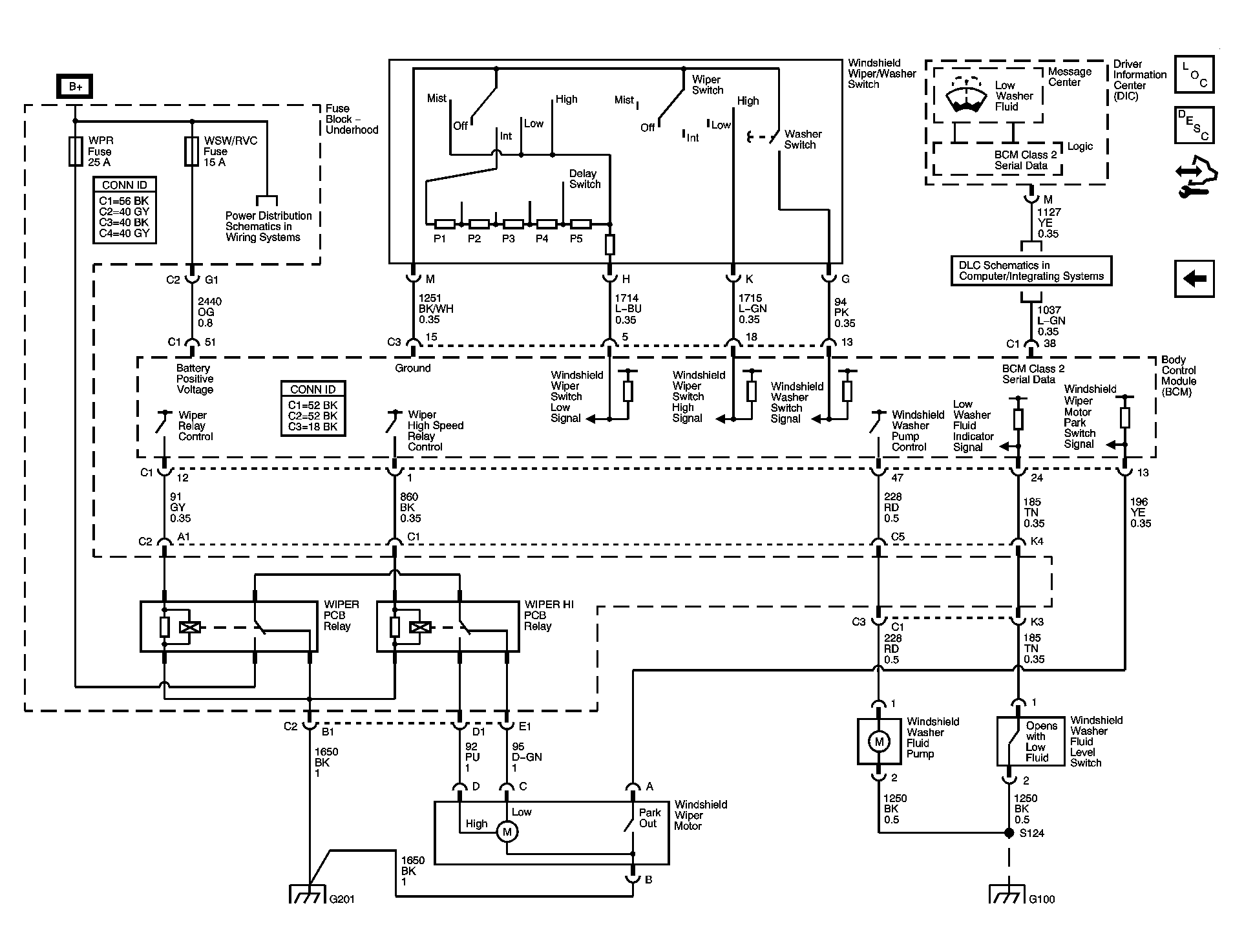

Fig 2: Wiper/Washer System Schematics (LS4)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
