Exterior Lights Schematics

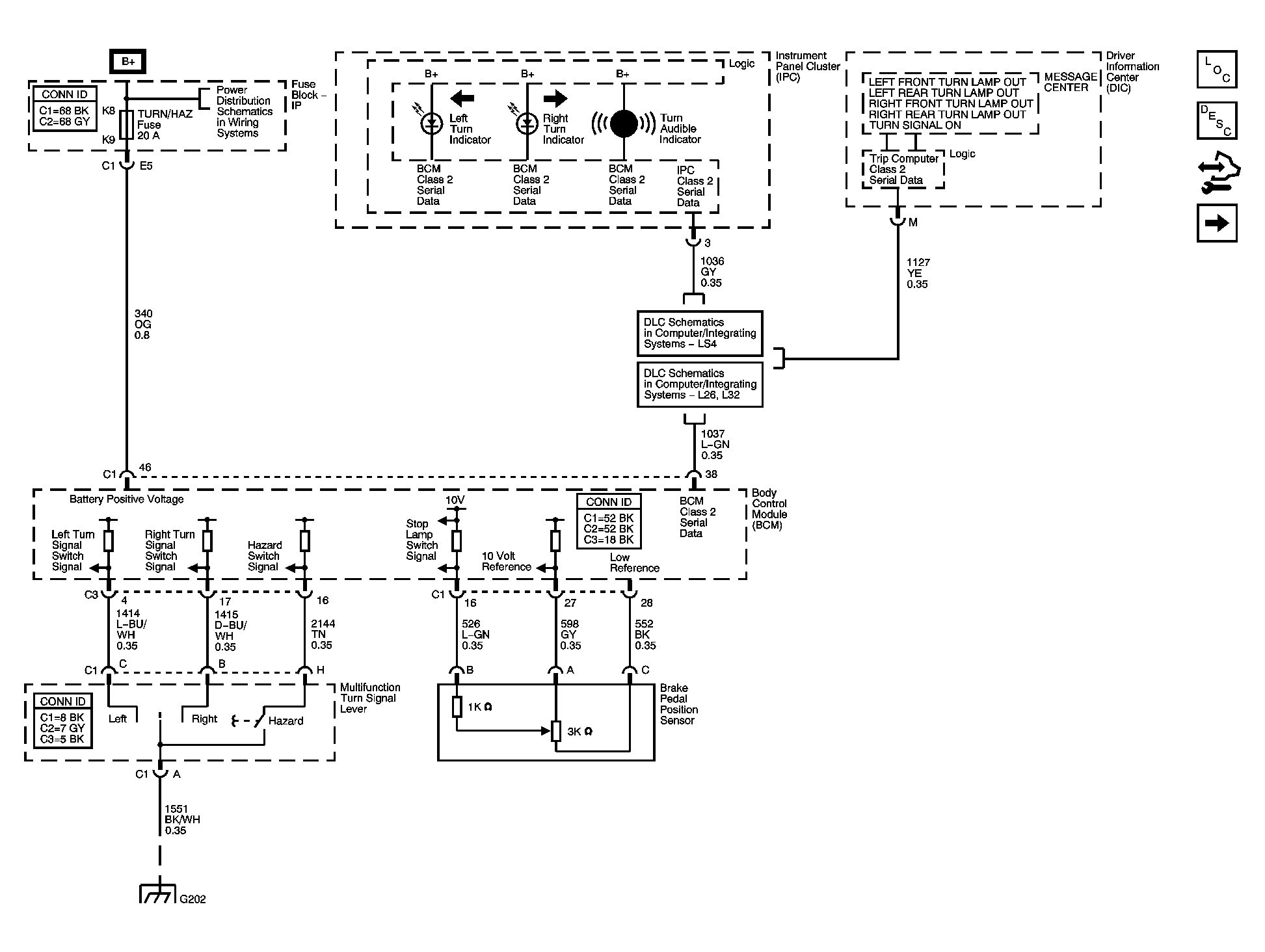

Fig 1: Turn Signal, Hazard, and Stop Lamps Inputs Schematics
GM1457836Courtesy of GENERAL MOTORS CORP.

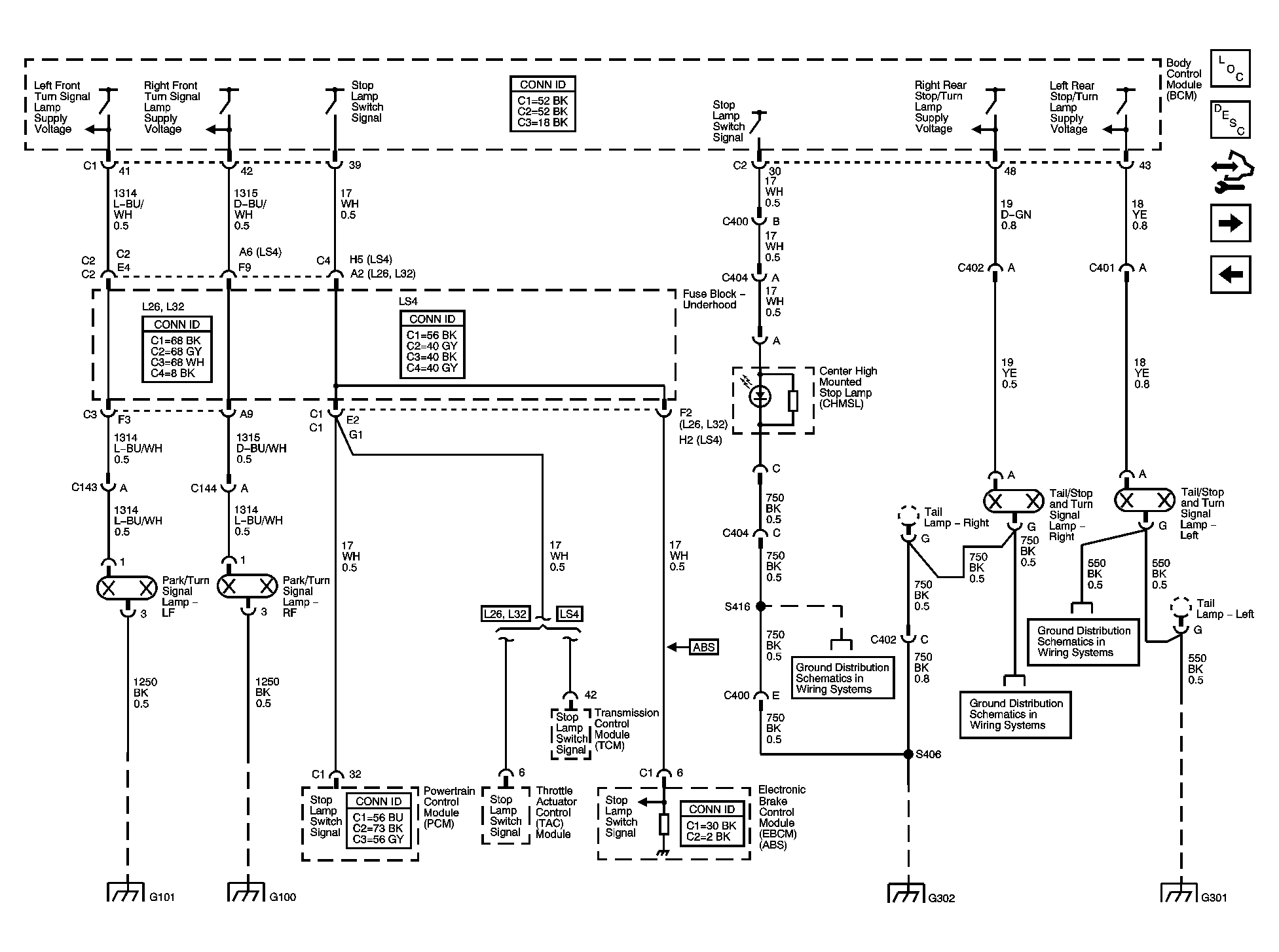

Fig 2: Turn Signal, Hazard, and Stop Lamps Outputs Schematics
GM1457840Courtesy of GENERAL MOTORS CORP.

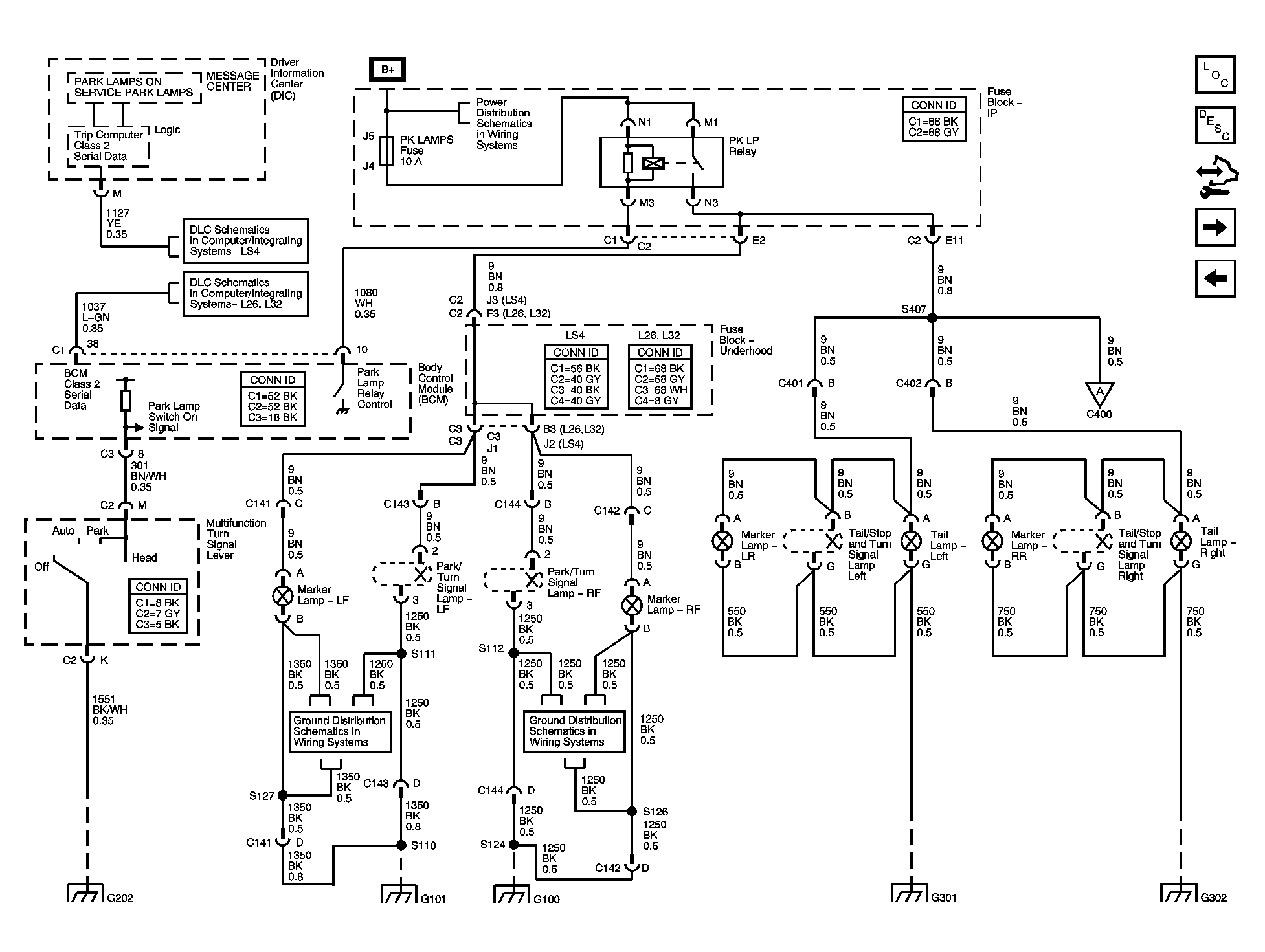

Fig 3: Park Lamps Schematics
GM1457841Courtesy of GENERAL MOTORS CORP.

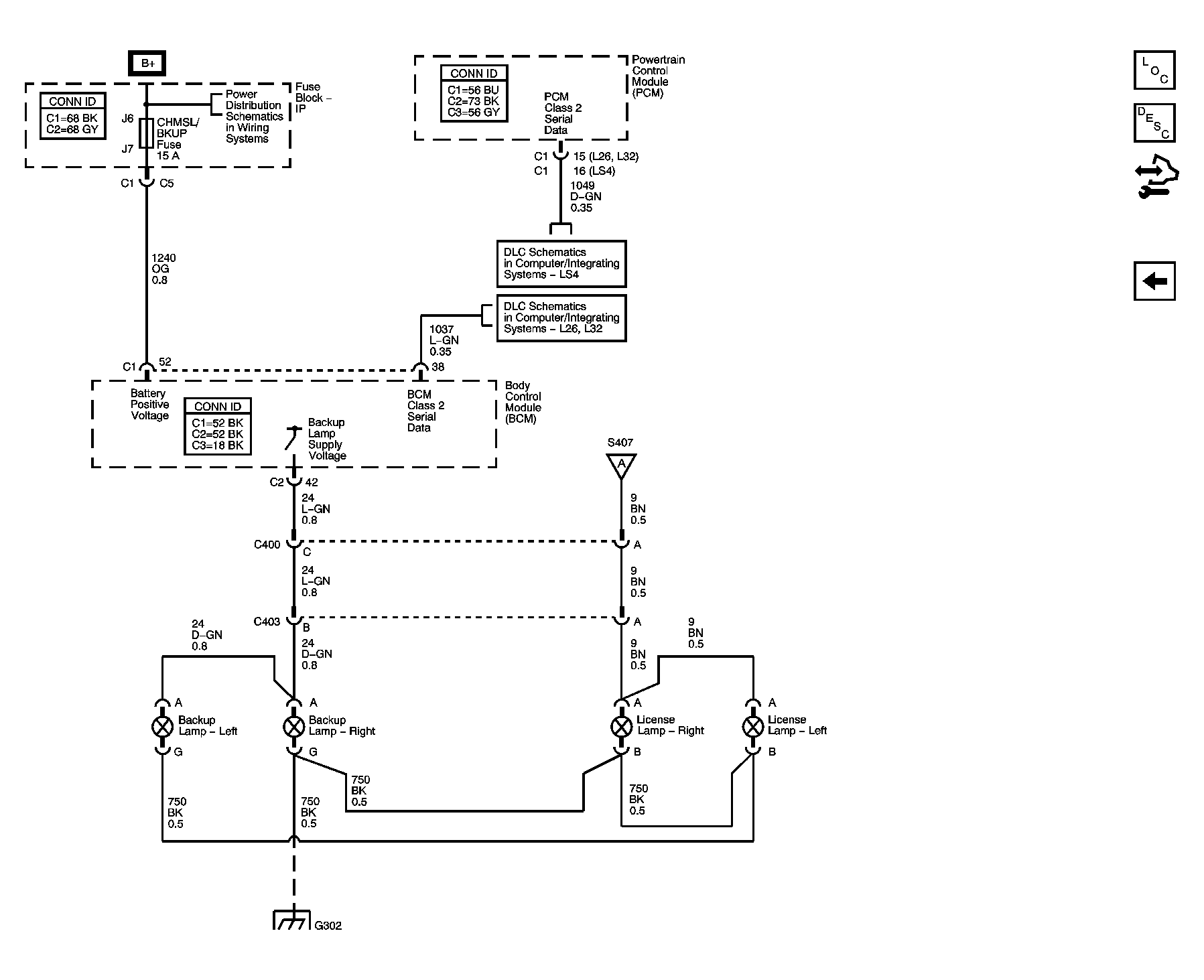

Fig 4: Backup and License Lamps Schematics
GM1457842Courtesy of GENERAL MOTORS CORP.
