Radio/Audio System Schematics

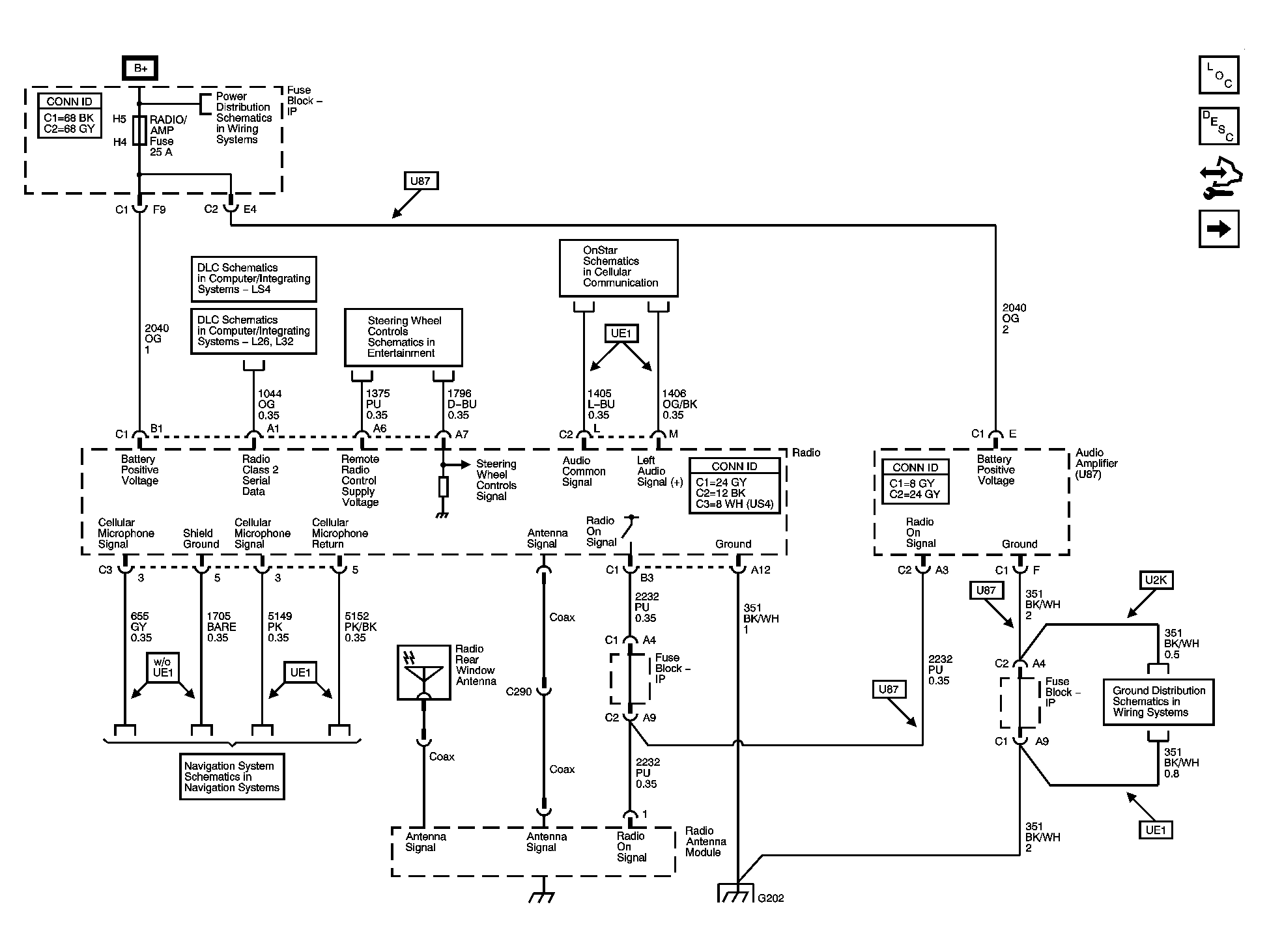

Fig 1: Power, Ground, and References

Courtesy of GENERAL MOTORS CORP.

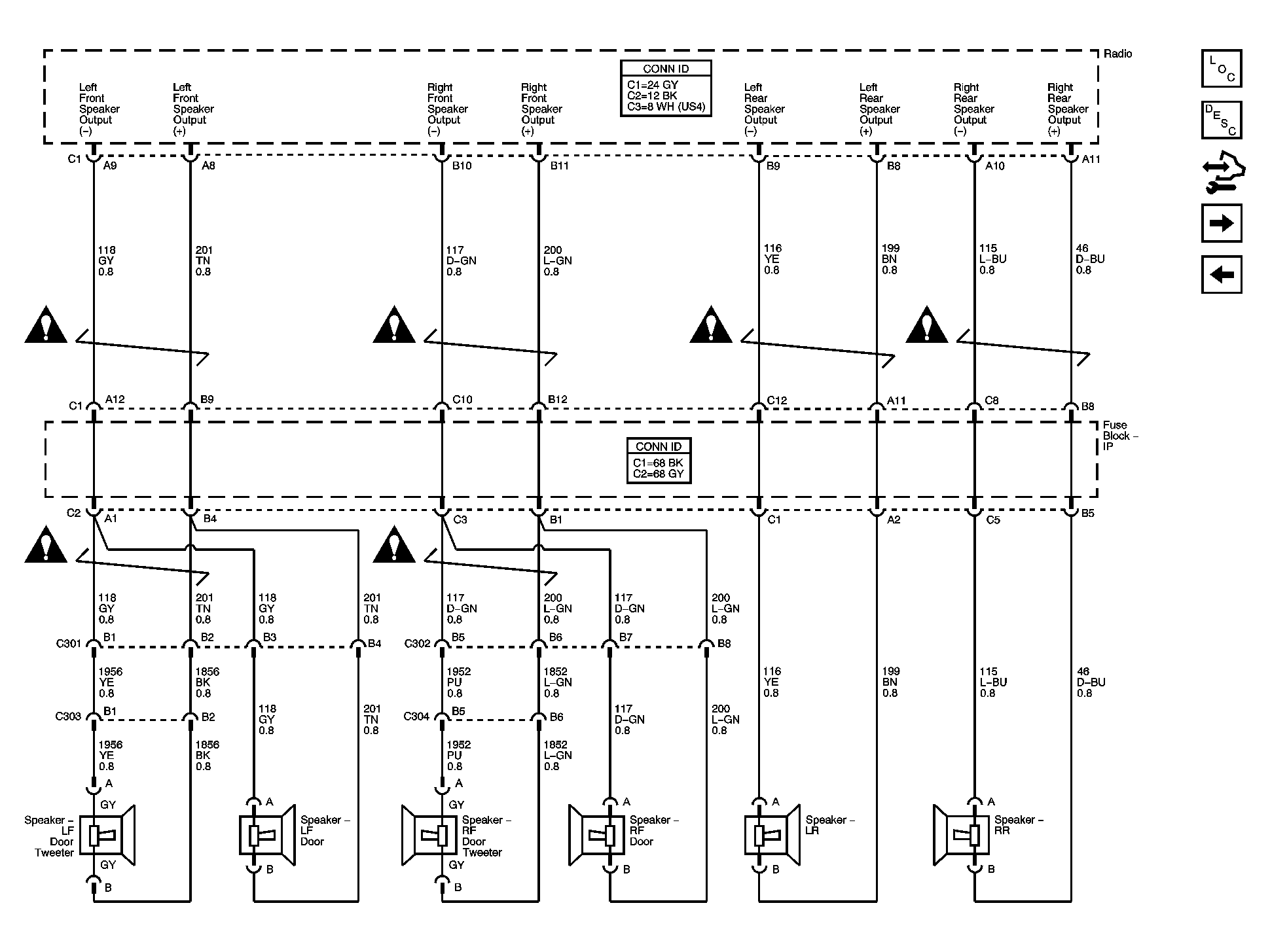

Fig 2: Radio to Speakers - UW6 Schematics

Courtesy of GENERAL MOTORS CORP.

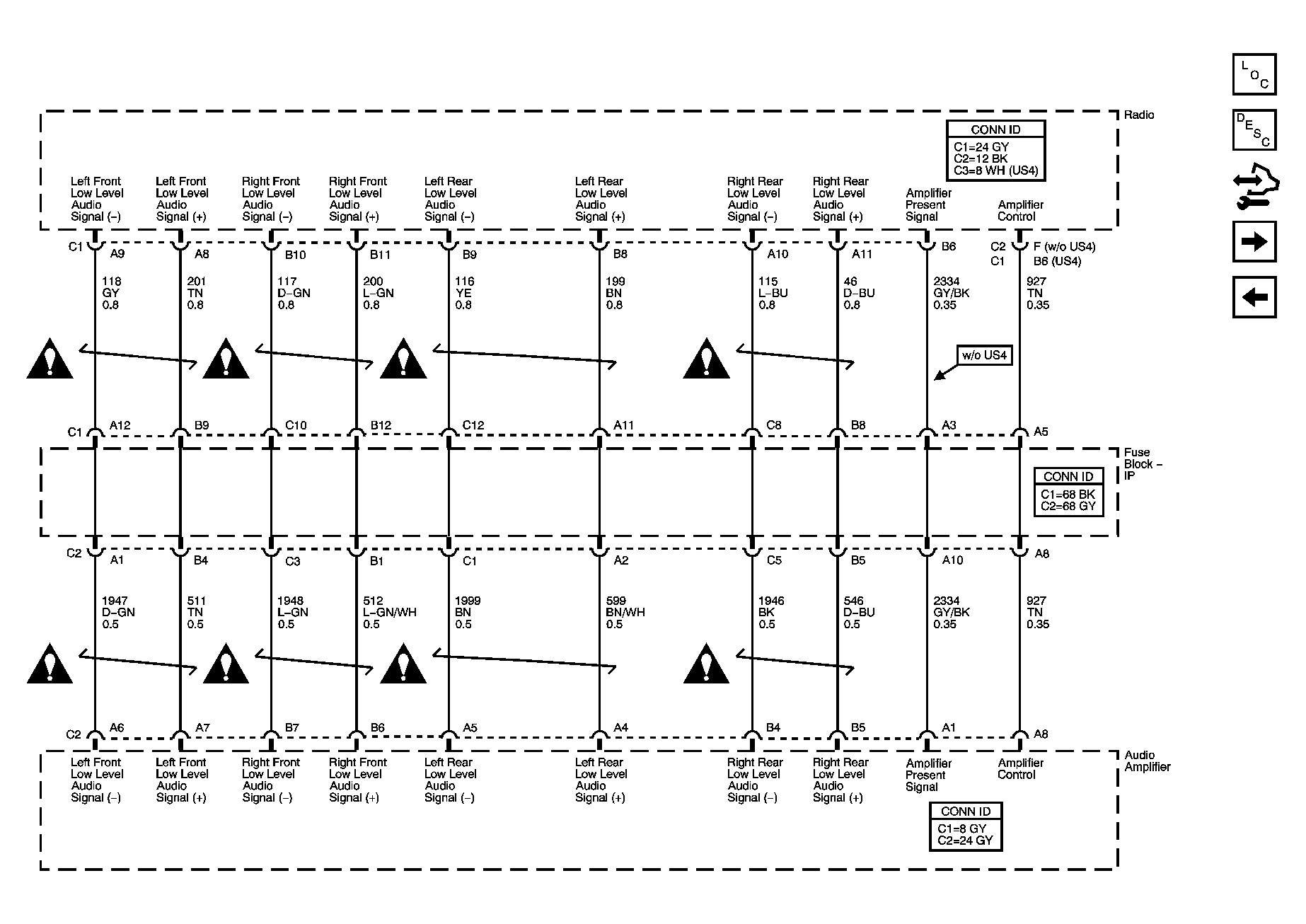

Fig 3: Audio Signal Communication - U87 Schematics

Courtesy of GENERAL MOTORS CORP.

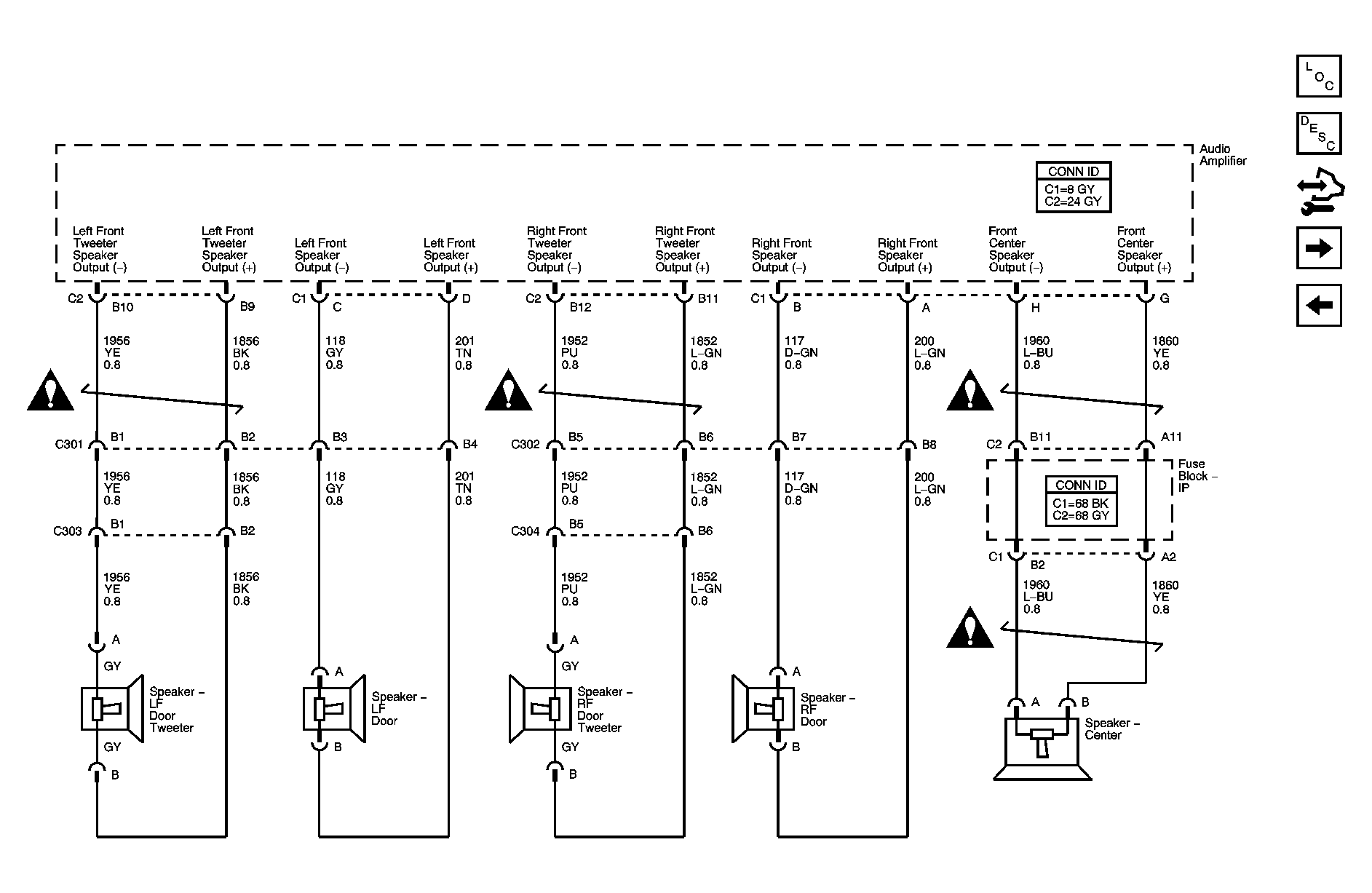

Fig 4: Speakers - Front - U87 Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 5: Speakers - Rear - U87 Schematics

Courtesy of GENERAL MOTORS CORP.

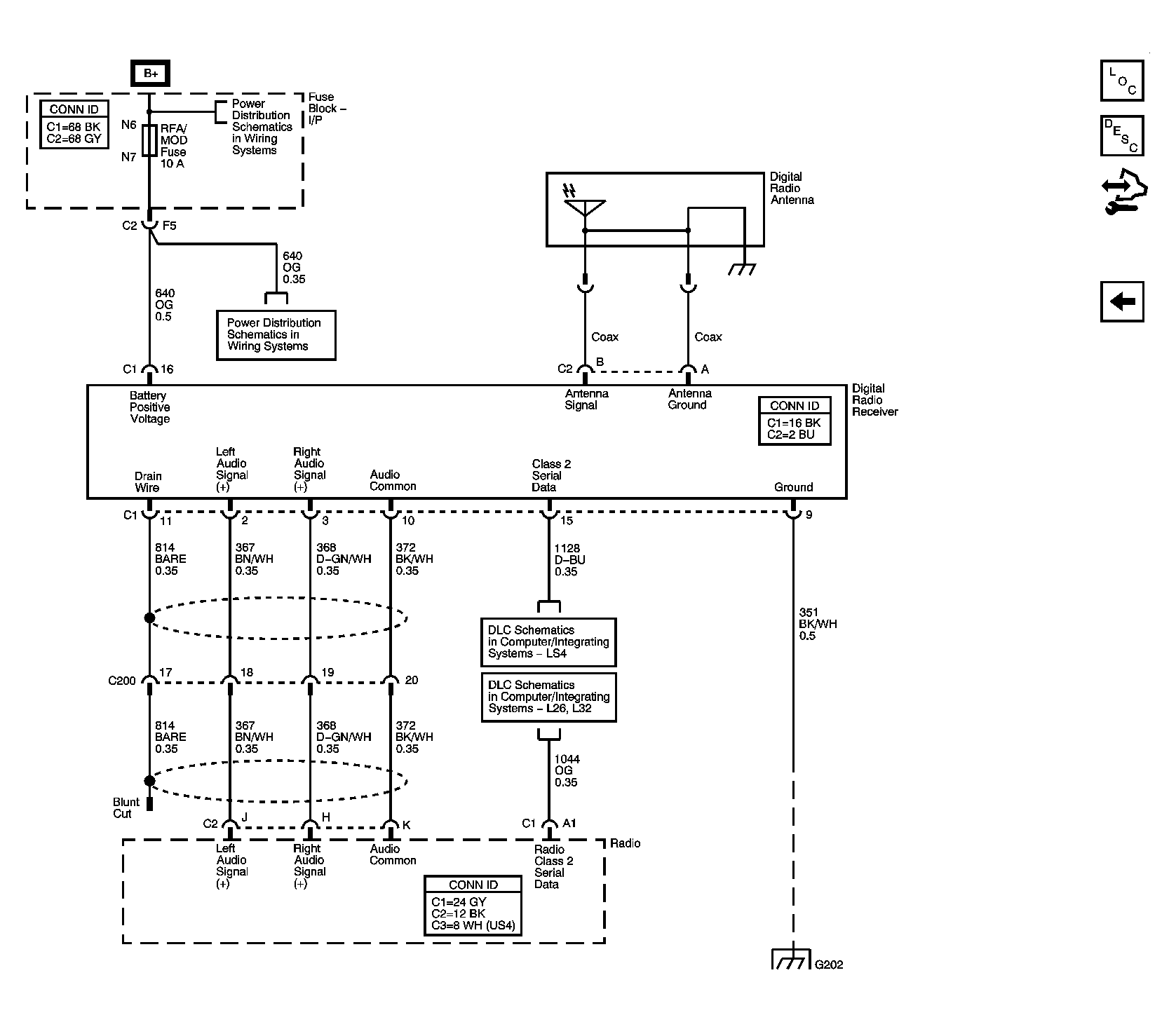

Fig 6: Satellite Radio - U2K Schematics

Courtesy of GENERAL MOTORS CORP.
