Home >> Pontiac >> 2005 >> Grand Prix GTP >> Repair and Diagnosis >> Electrical >> Instrument Panel System Displays, Gauges And Console >> Schematic and Routing Diagrams >> Audible Warnings Schematics

Audible Warnings Schematics

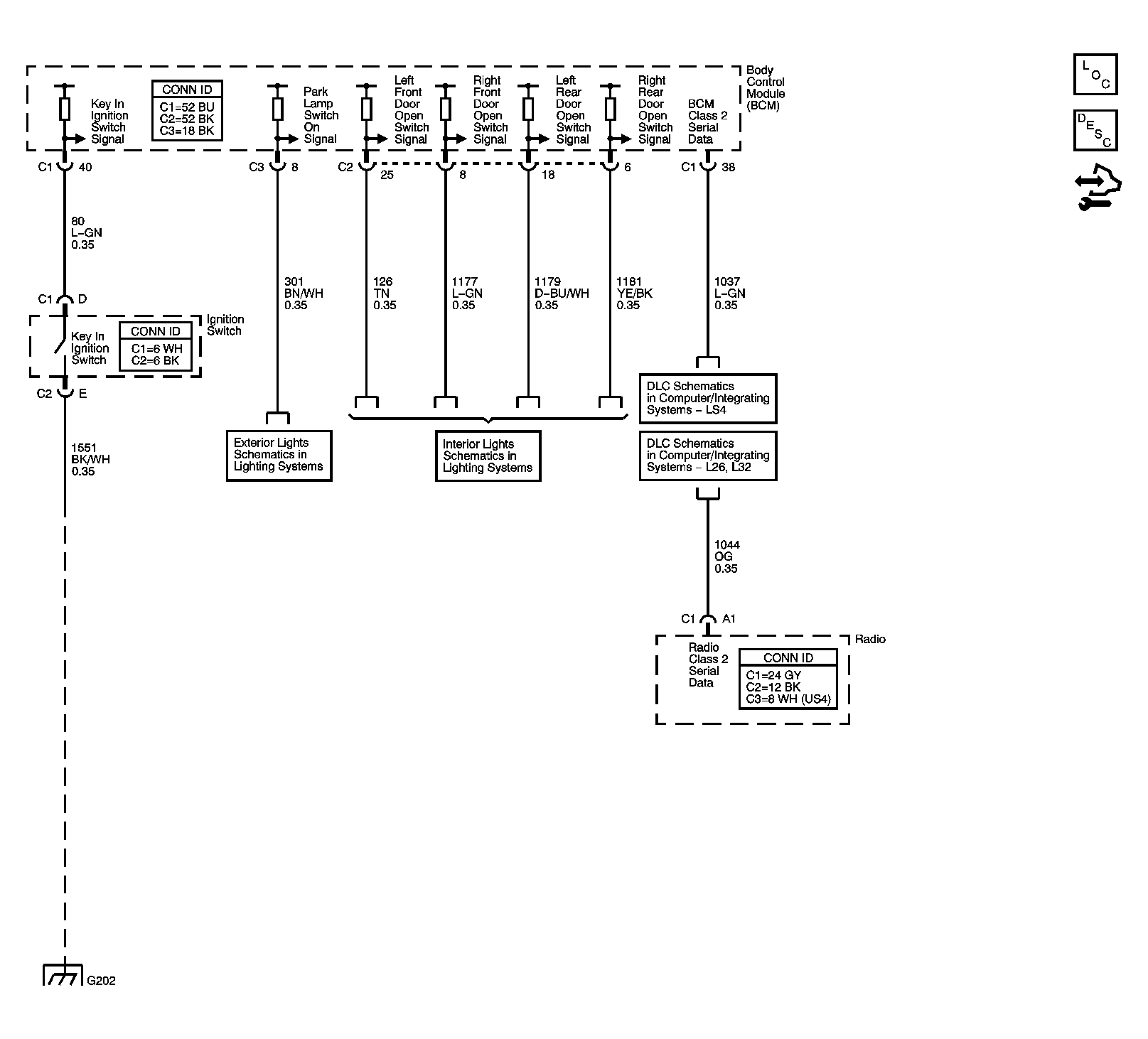

Fig 1: Audible Warnings Schematics

GM1457736

Courtesy of GENERAL MOTORS CORP.
