Interior Lights Schematics

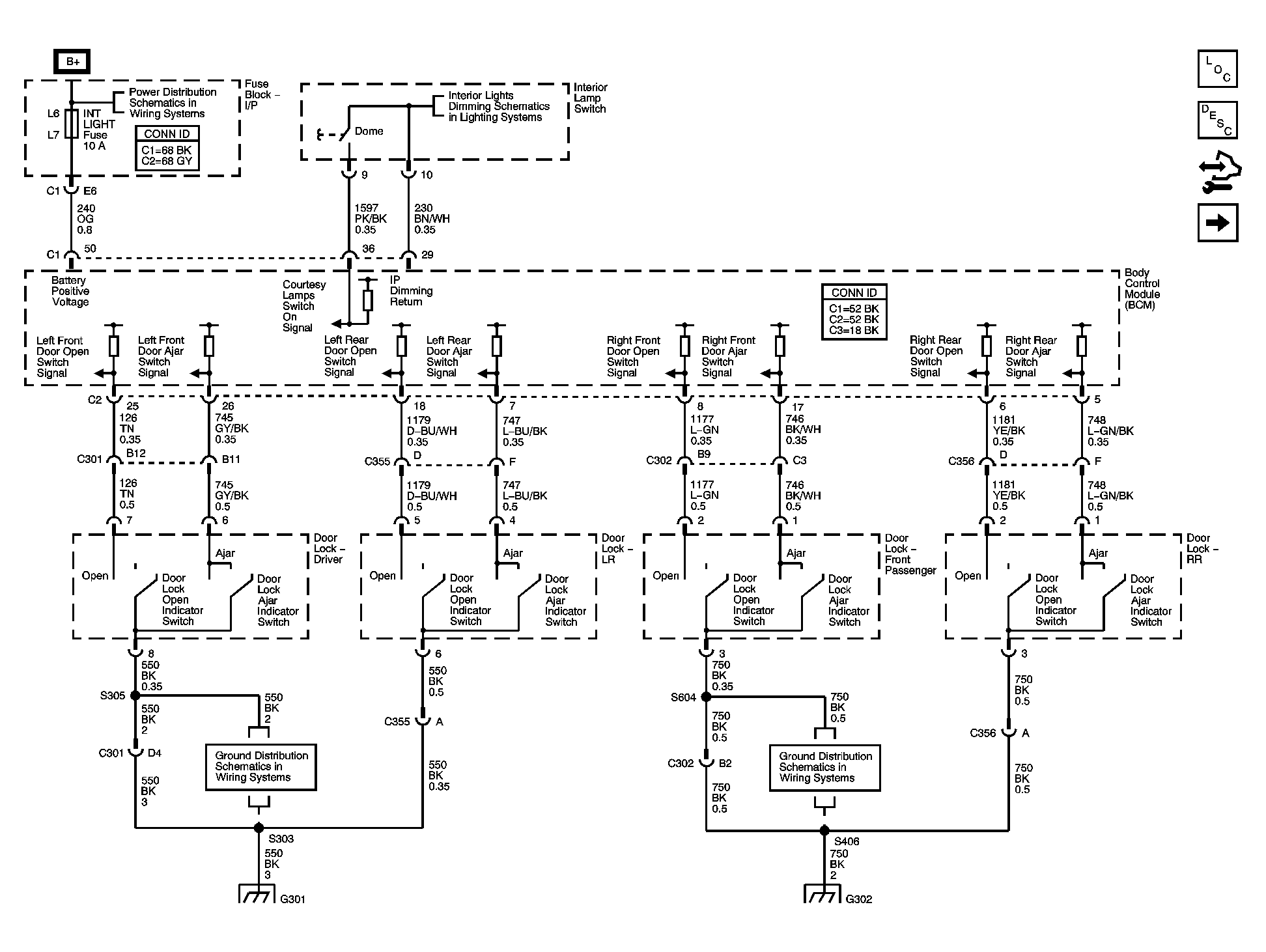

Fig 1: Interior Lights Schematics (Switches)
GM1457845Courtesy of GENERAL MOTORS CORP.

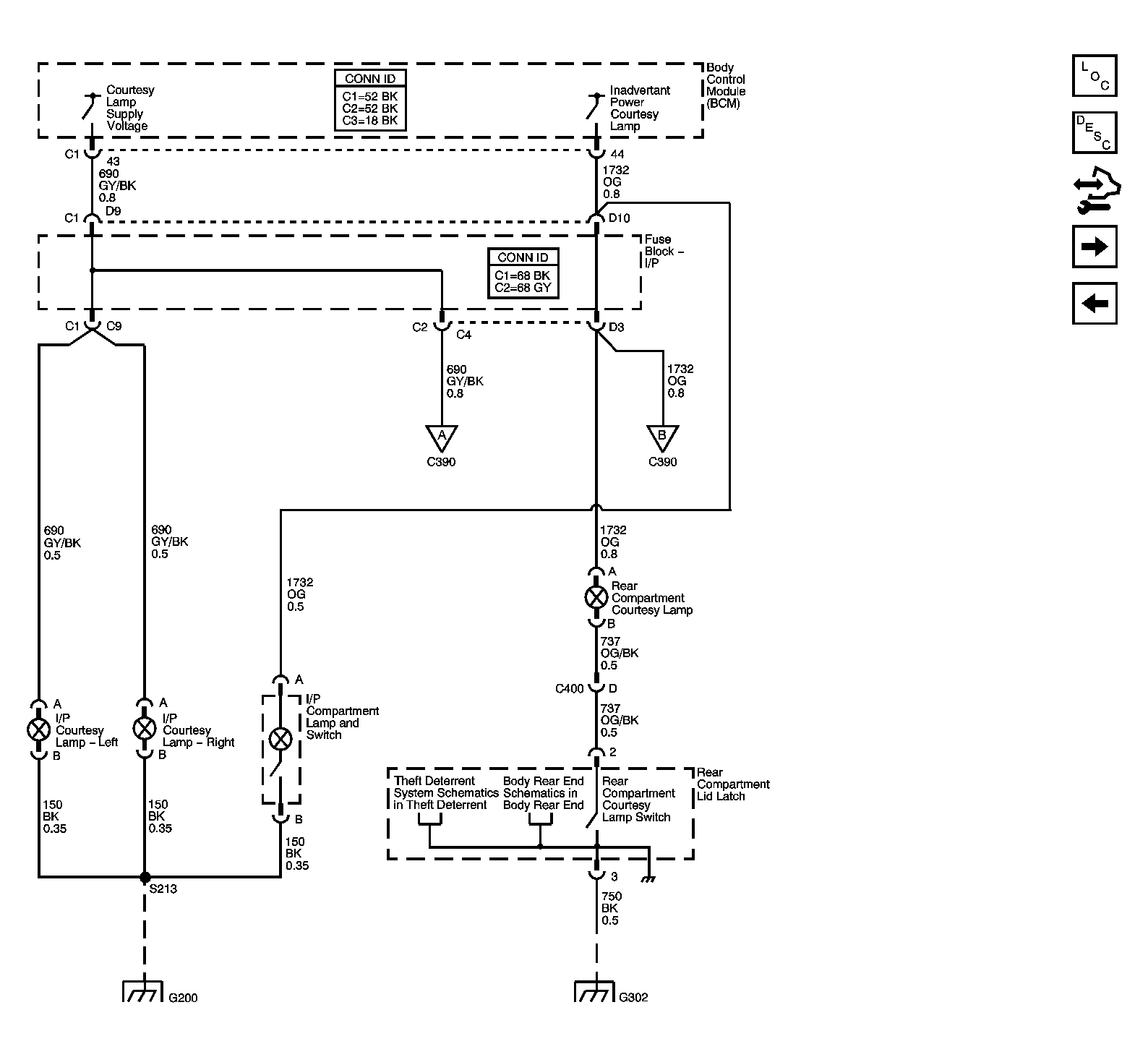

Fig 2: Interior Lights Schematics (Courtesy Lamps)
GM1457847Courtesy of GENERAL MOTORS CORP.

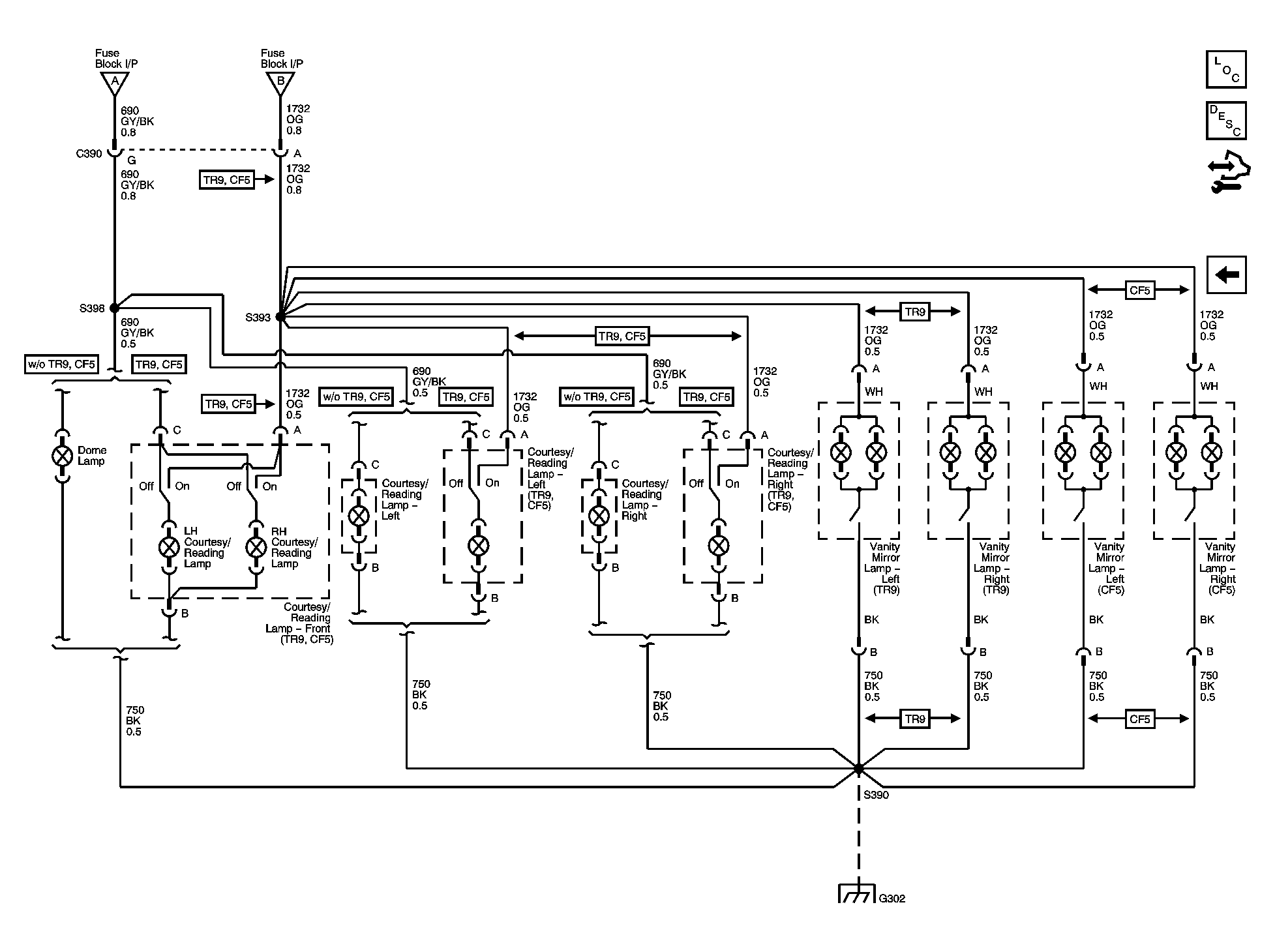

Fig 3: Interior Lights Schematics (Overhead Lighting)
GM1457848Courtesy of GENERAL MOTORS CORP.
