SIR Schematics

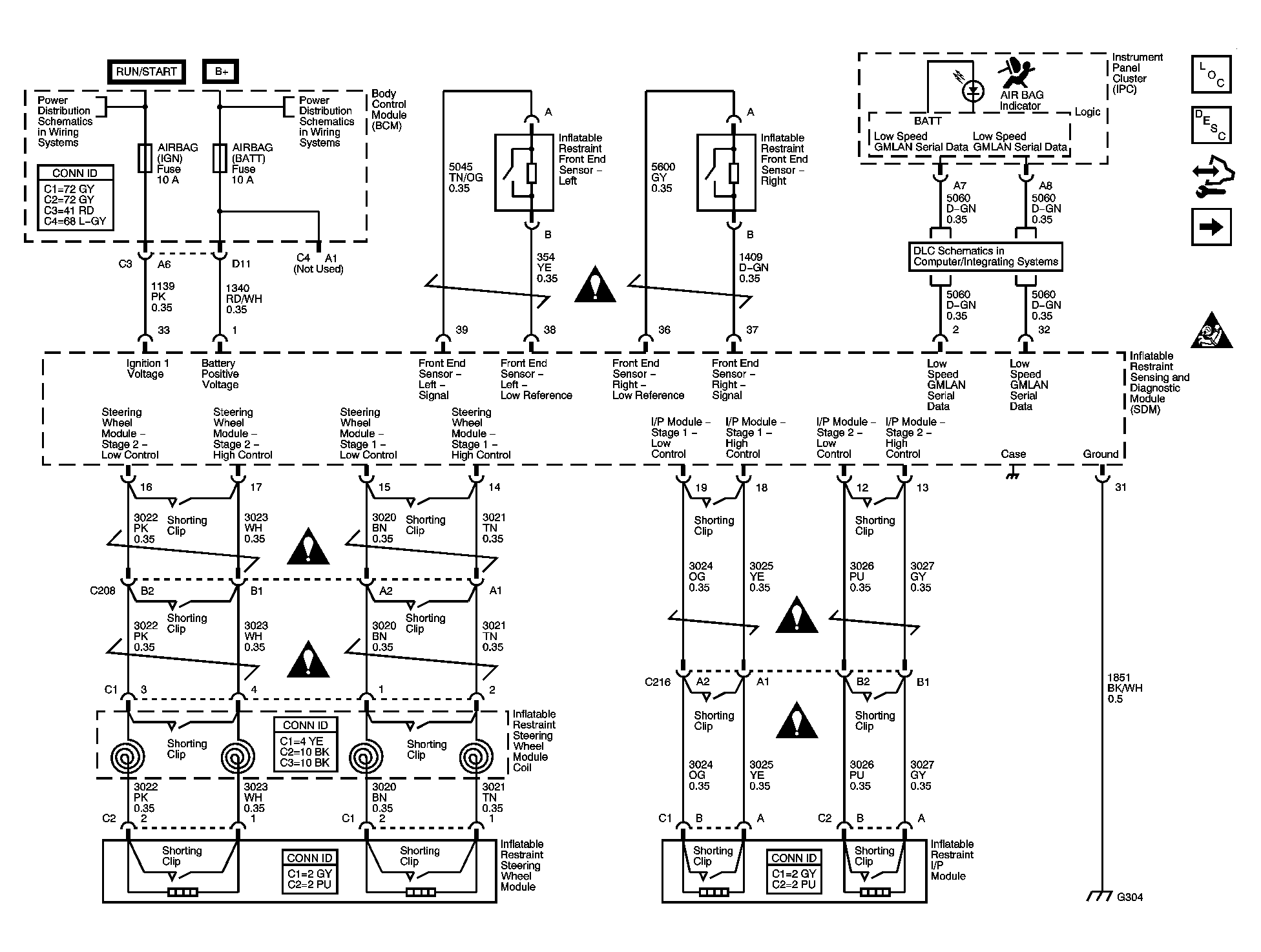

Fig 1: Power, Ground, Module, Sensors and Indicator
GM1461926Courtesy of GENERAL MOTORS CORP.

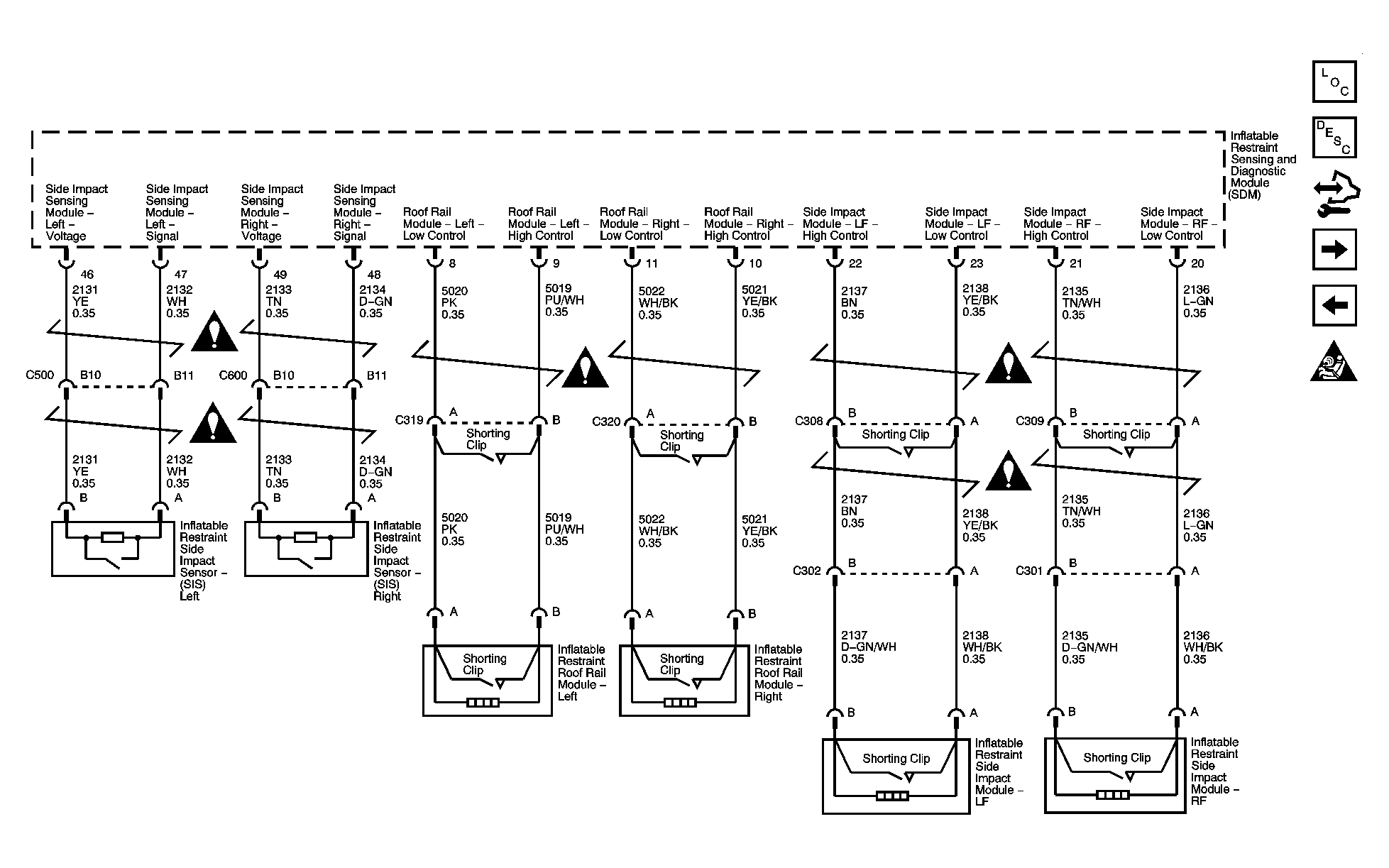

Fig 2: Impact Modules and Sensors - AY0
GM1461927Courtesy of GENERAL MOTORS CORP.

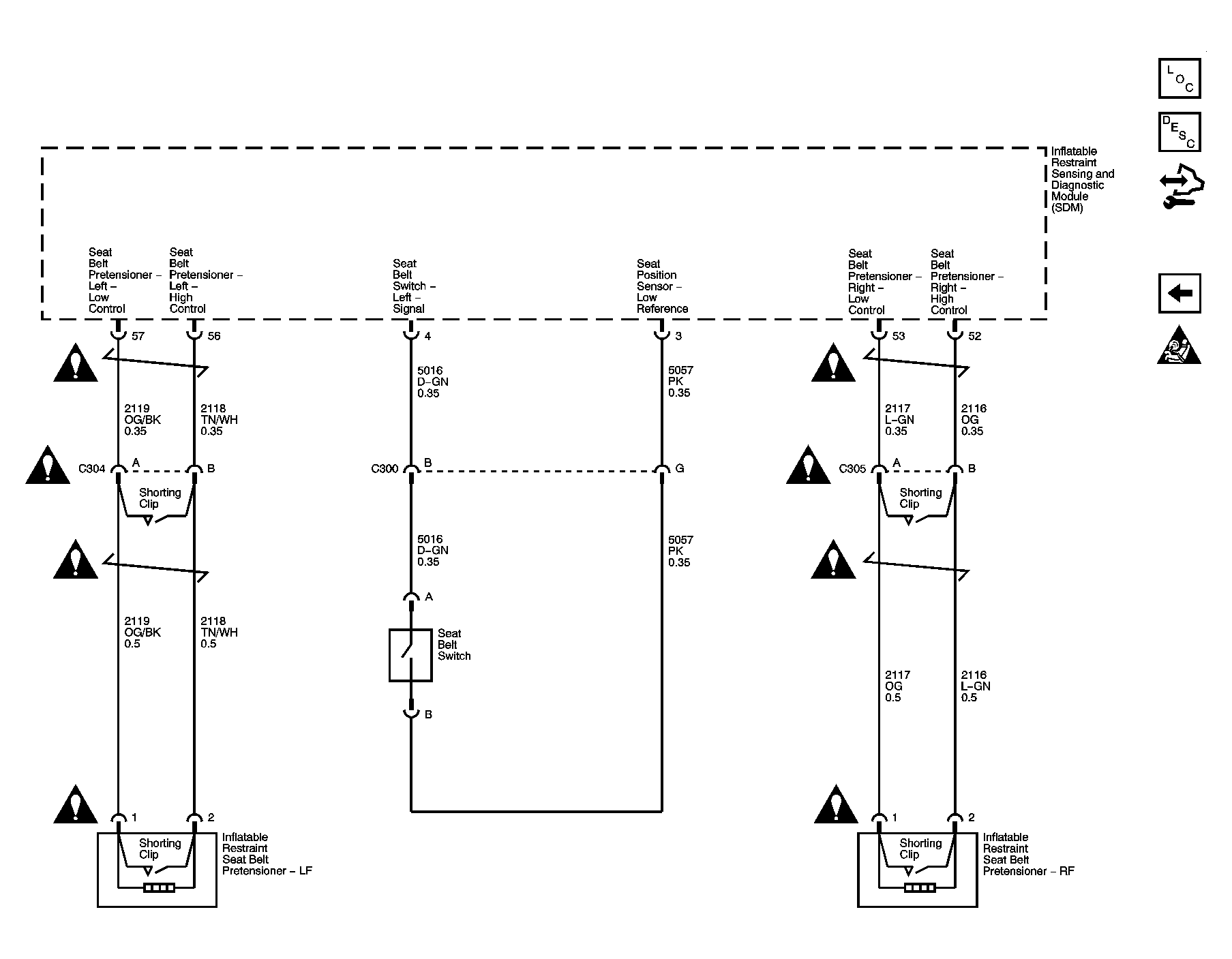

Fig 3: Seat Belt Pretensioners and Seat Belt Switch
GM1461928Courtesy of GENERAL MOTORS CORP.
