HVAC Component Views

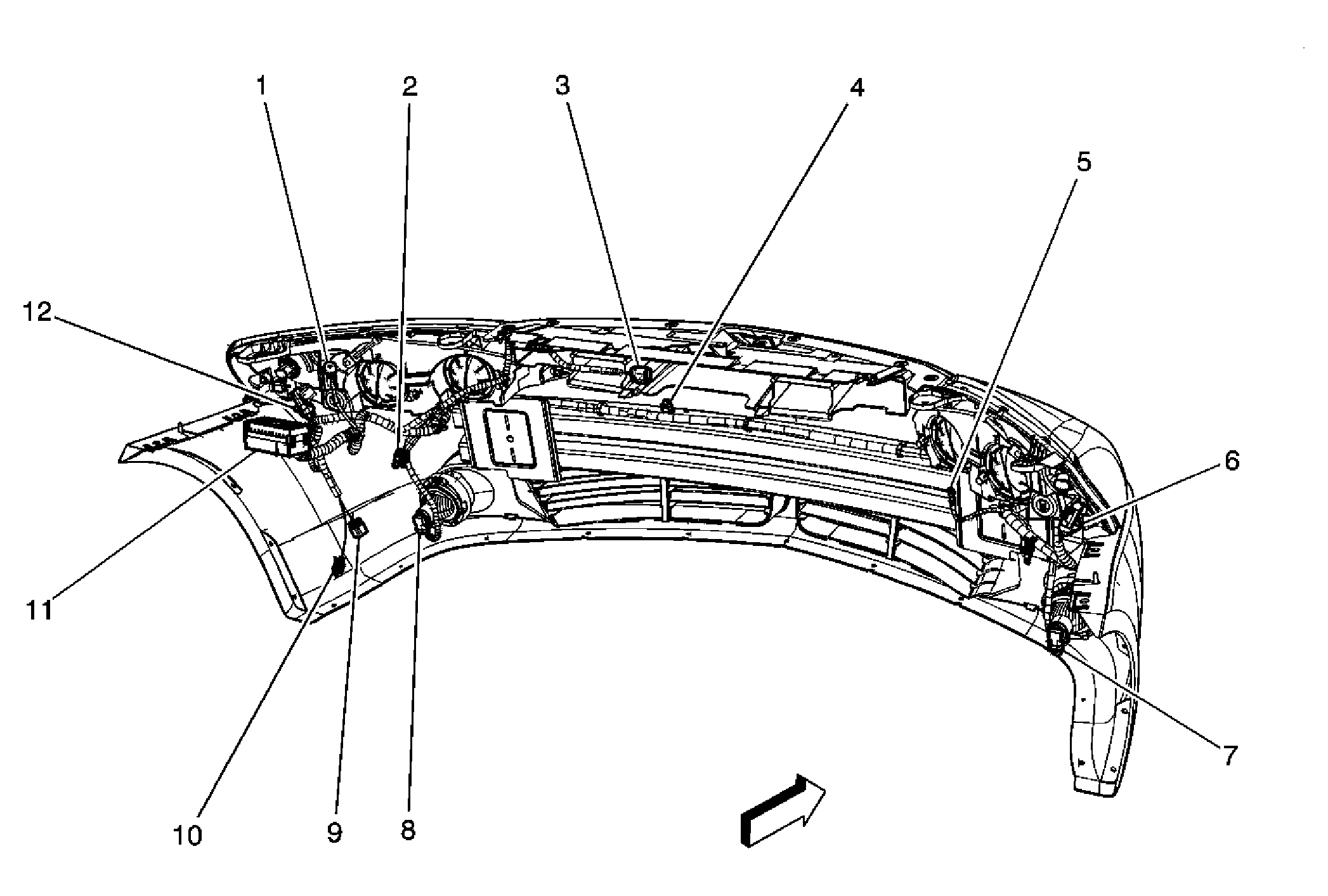

Fig 1: Forward Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	Horn Assembly
3	Hood Ajar Switch (AP3)
4	Ambient Air Temperature Sensor
5	G102
6	C110 Forward Lamp Harness to Headlamp - RH
7	Fog Lamp - RF
8	Fog Lamp - LF
9	Windshield Washer Fluid Pump
10	Windshield Washer Fluid Level Switch
11	Fuse Block - Underhood C3
12	C109 Forward Lamp Harness to Headlamp - LH

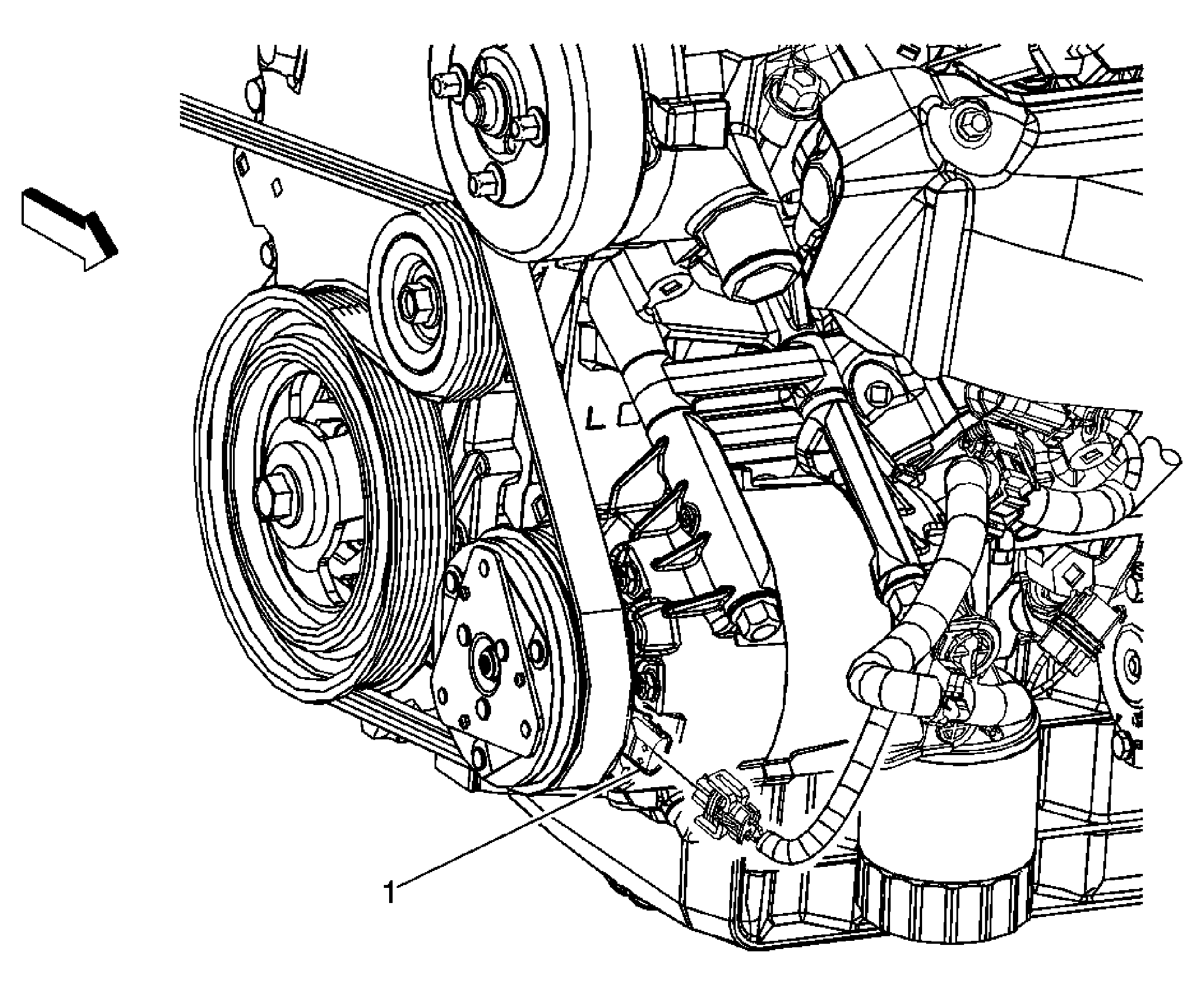

Fig 2: Lower Right Front of Engine Component Views - LX9

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor Clutch

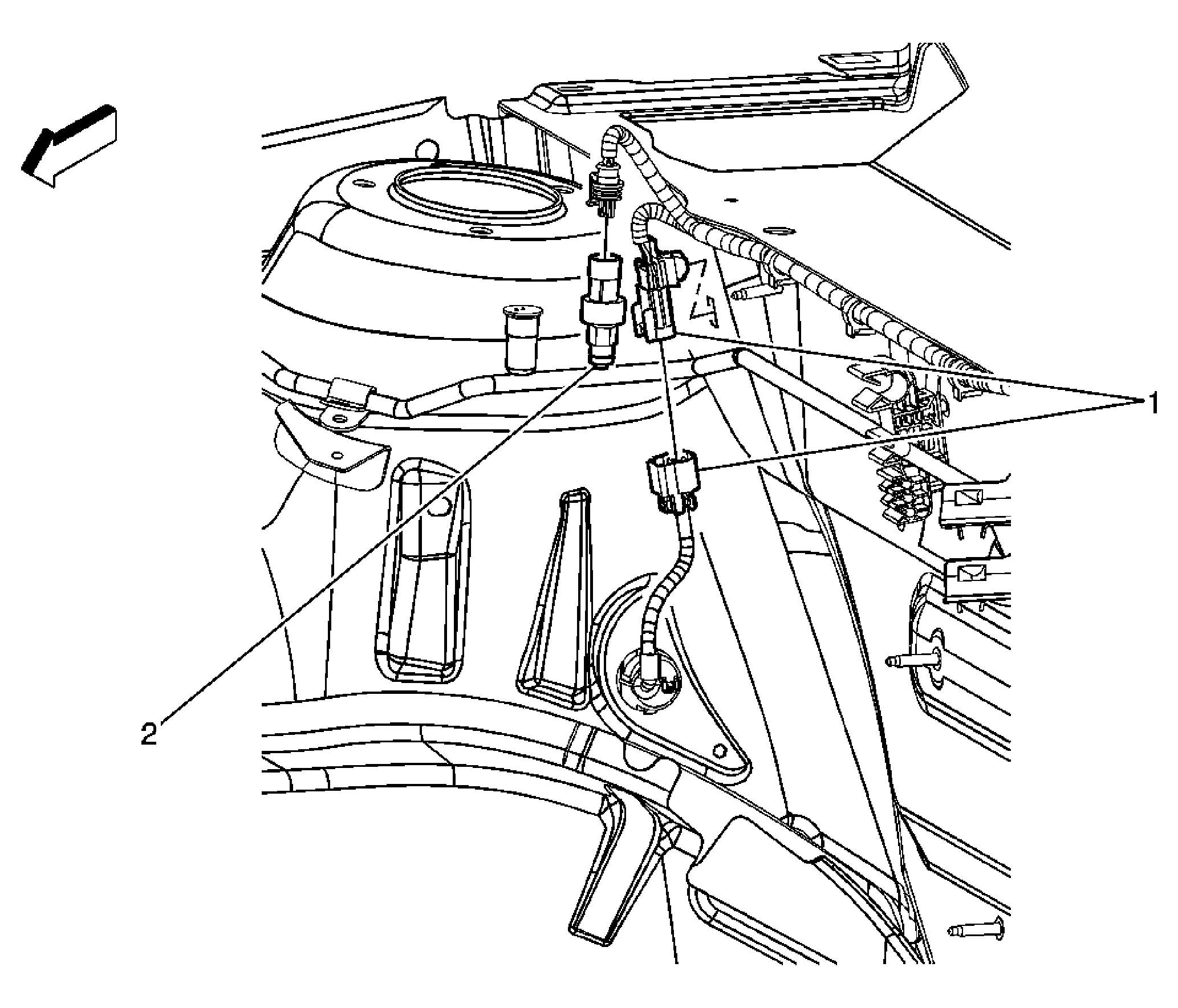

Fig 3: Right Rear of Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C102 (C101 Similar)
2	A/C Refrigerant Pressure Sensor

Fig 4: Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right
5	Windshield Wiper/Washer Switch
6	Ignition Switch
7	Ambient Light Sensor
8	Hazard Switch
9	Radio
10	Inflatable Restraint I/P Module
11	Rear Window Defogger Switch
12	Traction Control Switch (NW7/NW9)
13	Cigar Lighter
14	A/C Request Switch
15	HVAC Control Module
16	Inflatable Restraint Steering Wheel Module
17	Fog Lamp Switch
18	I/P Dimmer Switch
19	Adjustable Pedals Position Switch

Fig 5: Left Side of HVAC Case

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accelerator Pedal Position (APP) Sensor
2	Adjustable Pedals Actuator (JF4)
3	Air Temperature Actuator

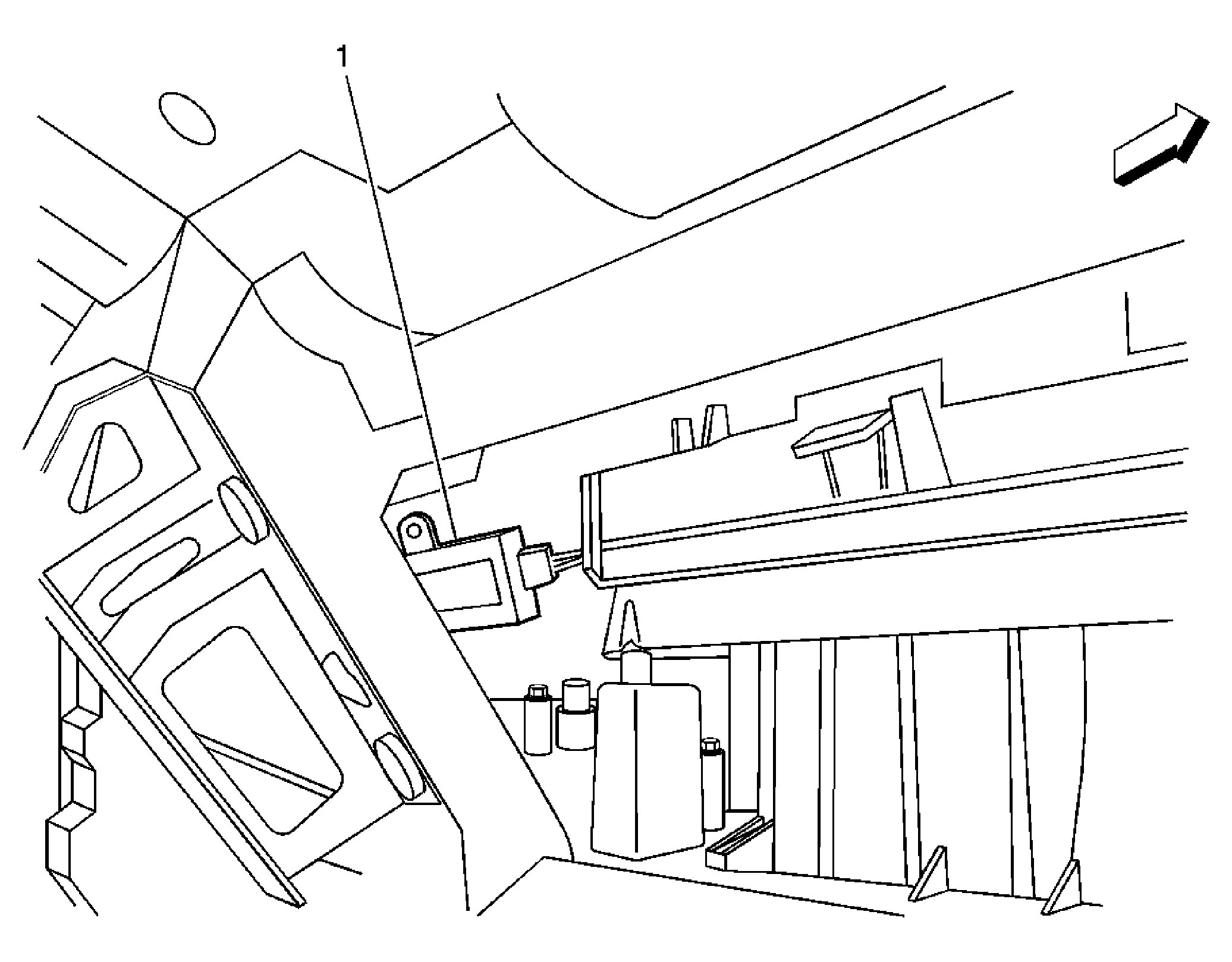

Fig 6: Behind Instrument Panel Compartment Left Side of HVAC Case Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator

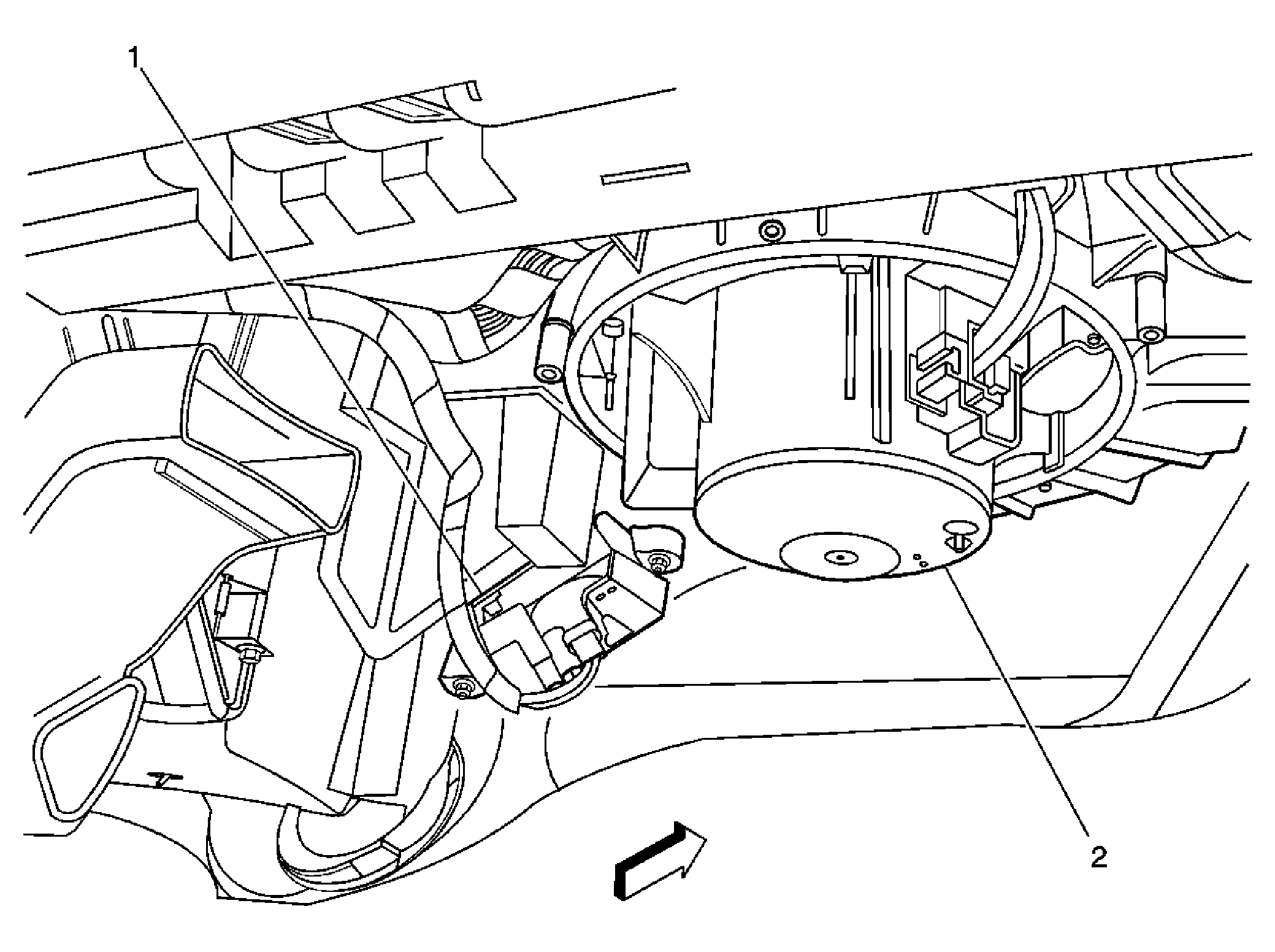

Fig 7: Above Right Front Footwell Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Resistor Assembly
2	Blower Motor

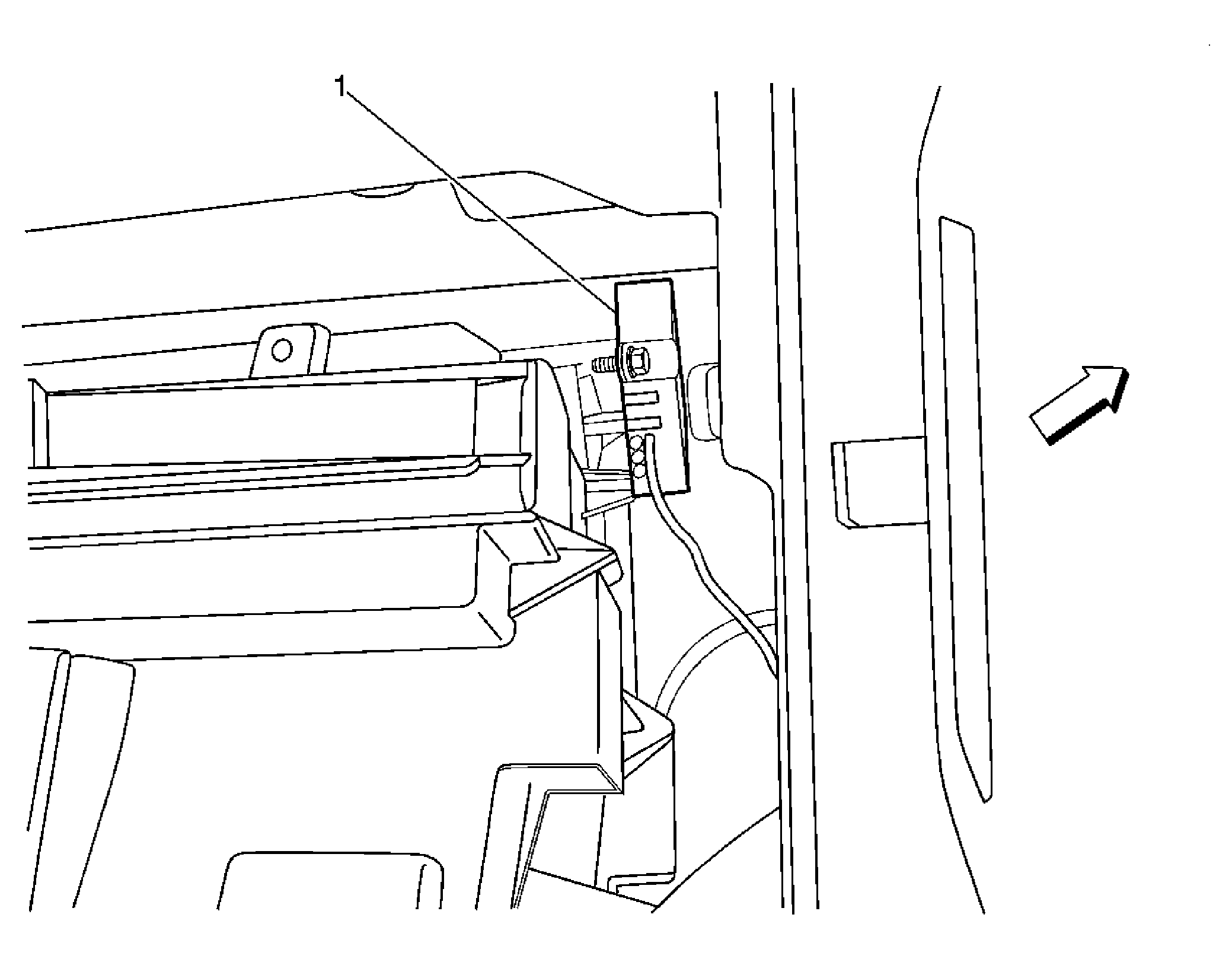

Fig 8: Right Side of HVAC Case Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Recirculation Actuator
