Harness Routing Views

Fig 1: Forward Lamp
GM1470400Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G101
2 Horn Assembly
3 Hood Ajar Switch (AP3)
4 Ambient Air Temperature Sensor
5 G102
6 C110 Forward Lamp Harness to Headlamp - RH
7 Fog Lamp - RF
8 Fog Lamp - LF
9 Windshield Washer Fluid Pump
10 Windshield Washer Fluid Level Switch
11 Fuse Block - Underhood C3
12 C109 Forward Lamp Harness to Headlamp - LH

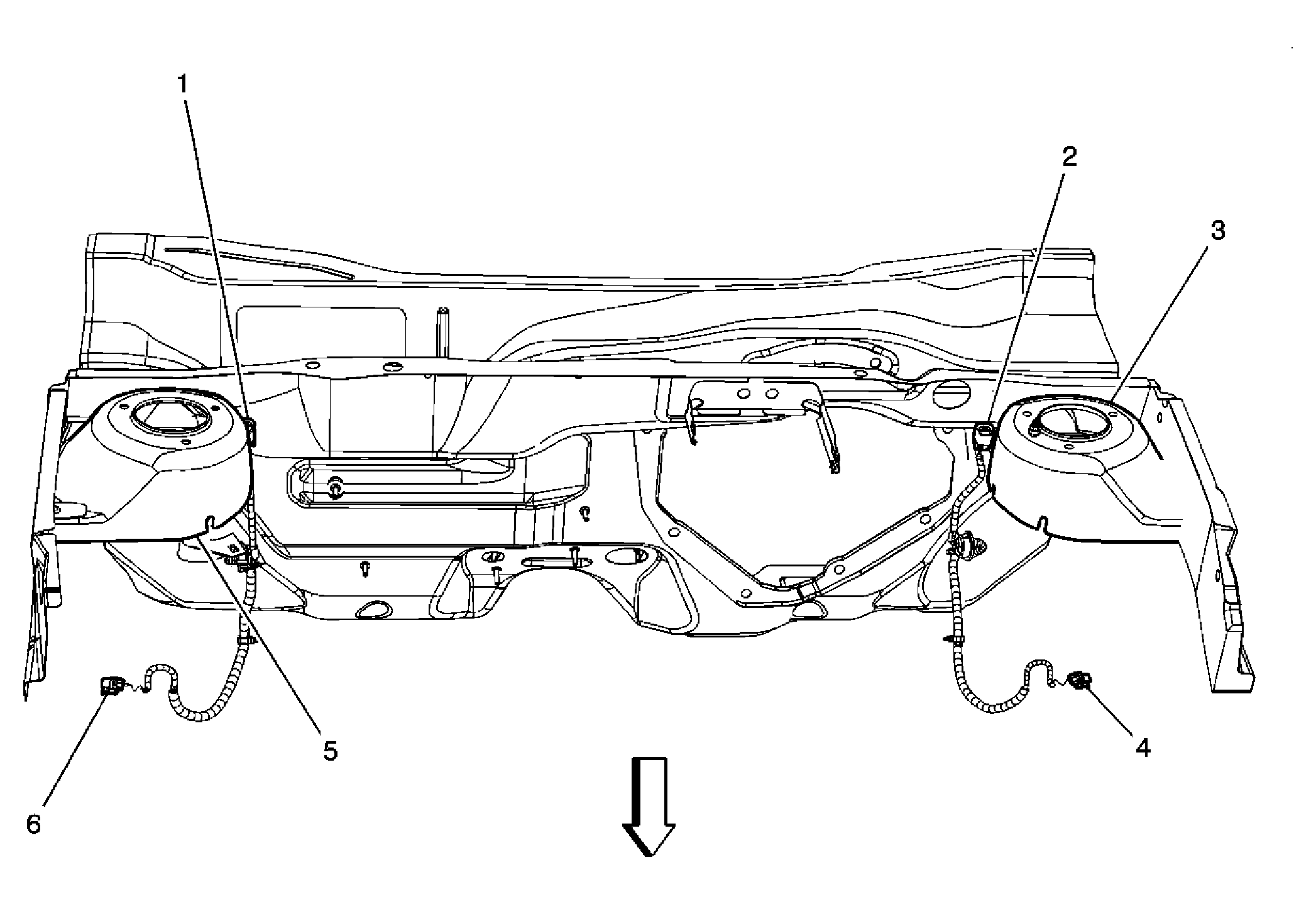

Fig 2: Front ABS Harnesses
GM1469960Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C102
2 C101
3 LF Strut Tower
4 Wheel Speed Sensor (WSS) - LF Connector
5 RF Strut Tower
6 Wheel Speed Sensor (WSS) - RF Connector

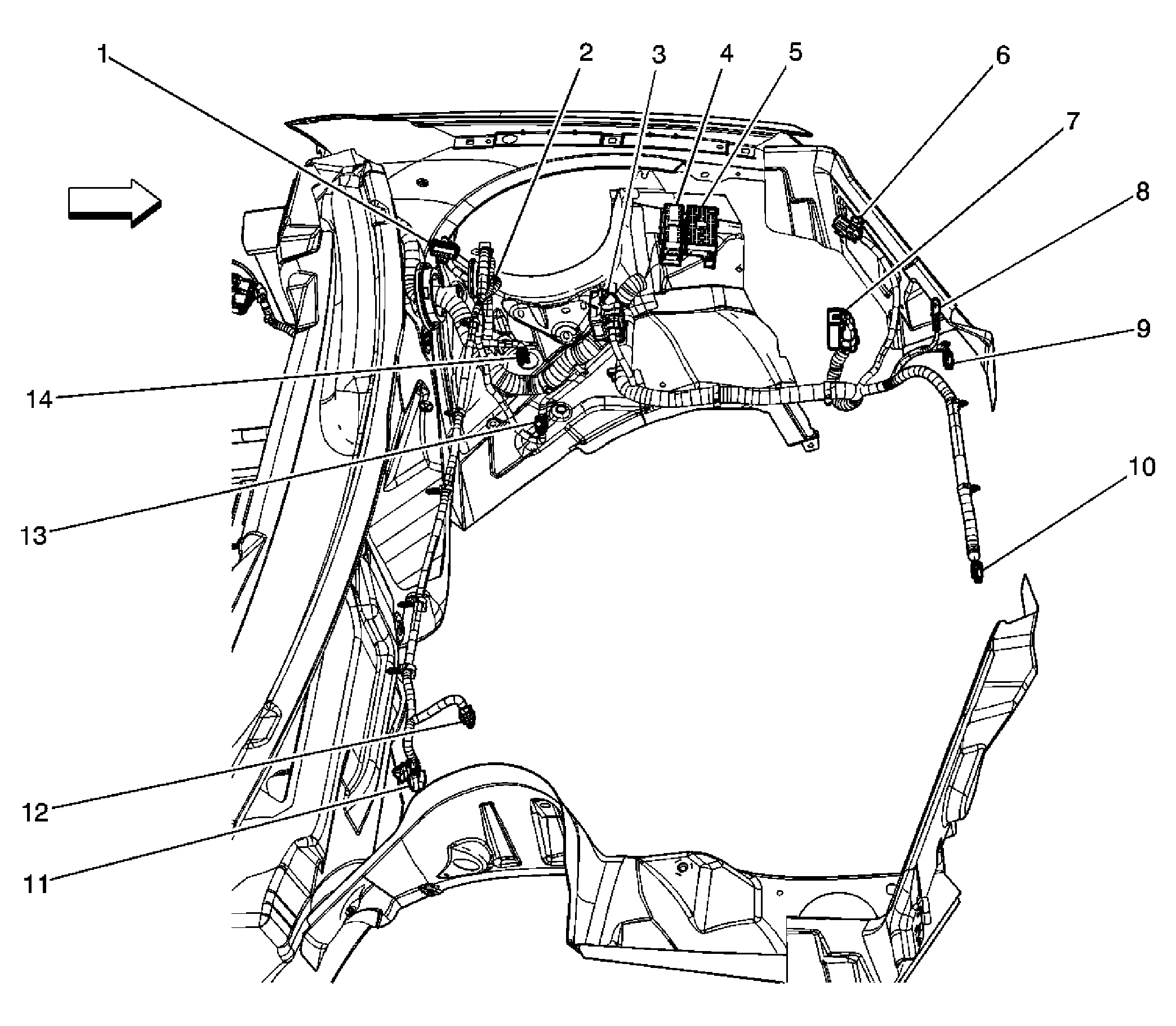

Fig 3: Body Harness Engine Compartment
GM1470404Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Wiper Motor Assembly
2 C101 Body Harness to Wheel Speed Sensor (WSS) Harness - LF
3 Electronic Brake Control Module (EBCM) (JL9)
4 Fuse Block - Underhood C4
5 Fuse Block - Underhood C2
6 C108 Body Harness to Engine Harness
7 Powertrain Control Module (PCM) C1
8 G109
9 Inflatable Restraint Front End Discriminating Sensor - Left
10 Inflatable Restraint Front End Discriminating Sensor - Right
11 C102 Body Harness to Wheel Speed Sensor (WSS) Jumper Harness - RF
12 A/C Refrigerant Pressure Sensor
13 Coolant Level Switch
14 Brake Fluid Level Switch

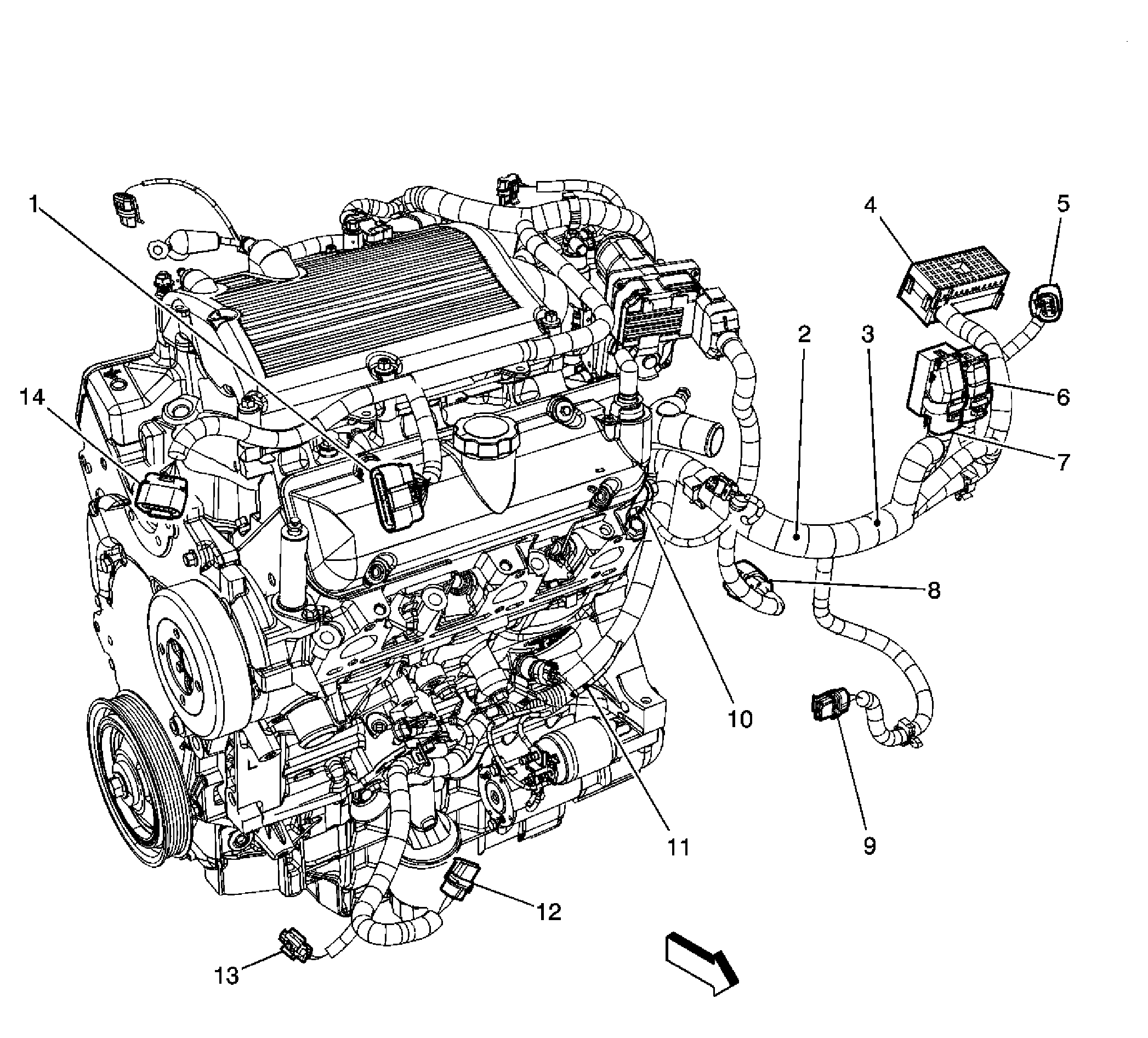

Fig 4: Engine Front
GM1469967Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C130
2 S119
3 S118
4 Fuse Block - Underhood C1
5 C108
6 Powertrain Control Module (PCM) C3
7 Powertrain Control Module (PCM) C2
8 C100
9 Cooling Fan - Left Connector
10 G105
11 S111
12 Cooling Fan - Right Connector
13 A/C Compressor Clutch Connector
14 Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor Connector

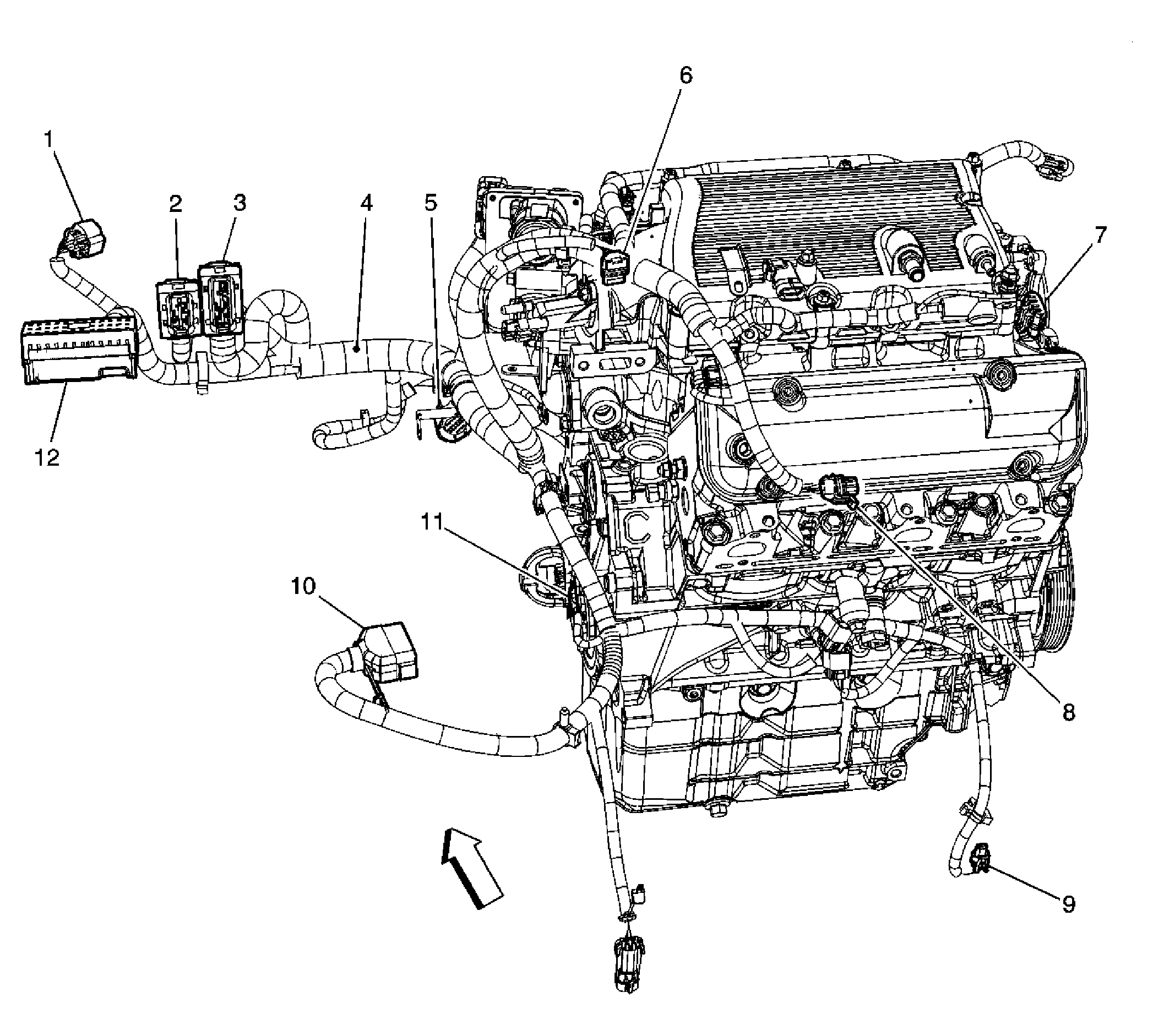

Fig 5: Engine Rear
GM1469980Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C108
2 Powertrain Control Module (PCM) C3
3 Powertrain Control Module (PCM) C2
4 S118
5 C100
6 Exhaust Gas Recirculation (EGR) Valve Connector
7 Generator Connector
8 Heated Oxygen Connector (HO2S) Bank 1 Sensor 1 Connector
9 Vehicle Speed Sensor (VSS) Connector
10 Park/Neutral Position (PNP) Switch Connector
11 G106
12 Fuse Block - Underhood C1

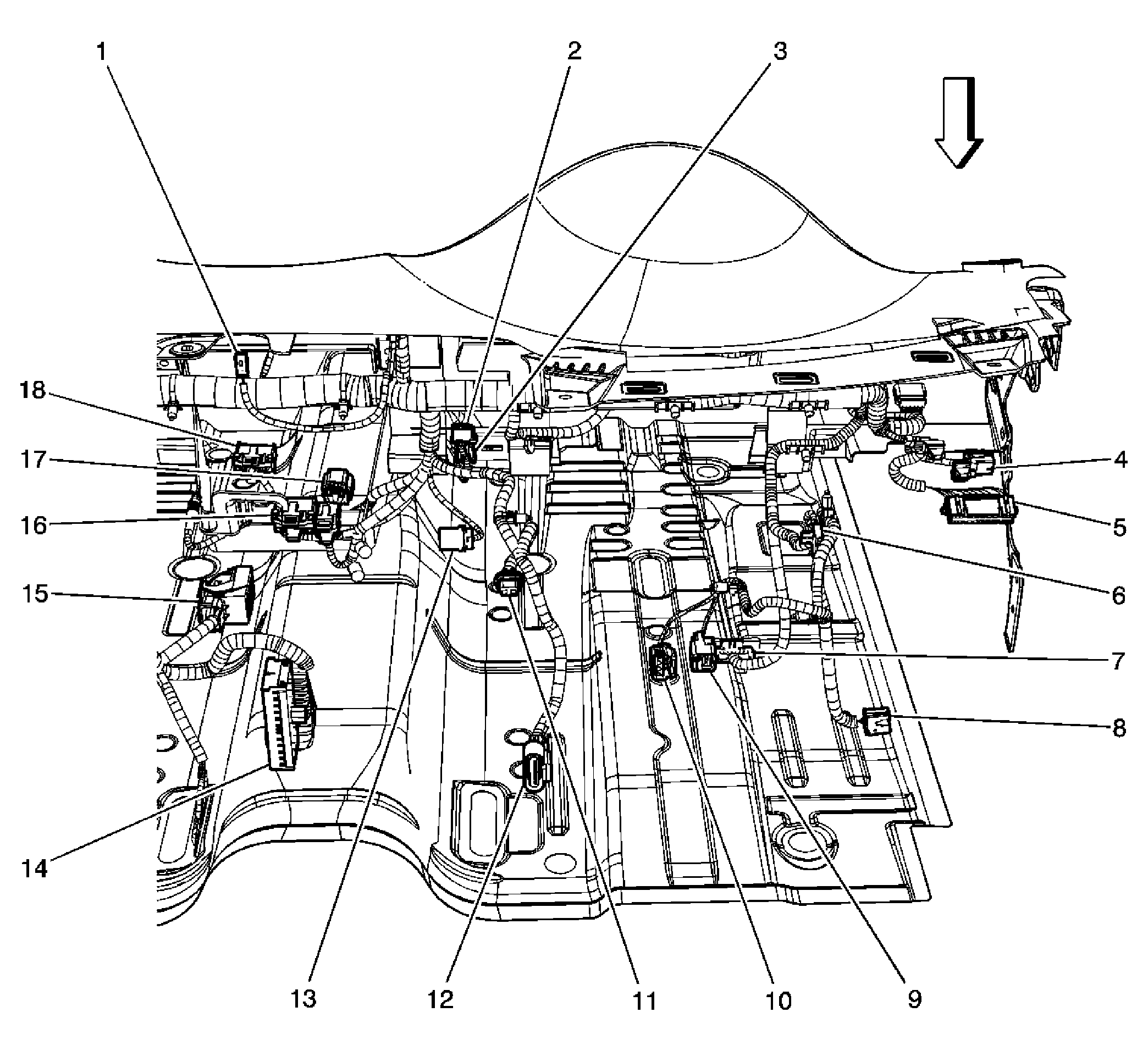

Fig 6: I/P Harness Left Side of Console
GM1470402Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ambient Light Sensor
2 Theft Deterrent Control Module
3 Ignition Switch
4 C216 I/P Harness to Inflatable Restraint I/P Module Harness
5 C206 I/P Harness to Body Harness
6 Adjustable Pedal Control Module
7 Data Link Connector (DLC)
8 Power Steering Control Module
9 Brake Pedal Position Sensor
10 Adjustable Pedal Position Sensor
11 Adjustable Accelerator Pedal Position Motor
12 Accelerator Pedal Position (APP) Sensor
13 Air Temperature Actuator
14 Body Control Module (BCM) C3
15 Body Control Module (BCM) C2
16 Radio Connectors
17 HVAC Control Module C2
18 HVAC Control Module C1

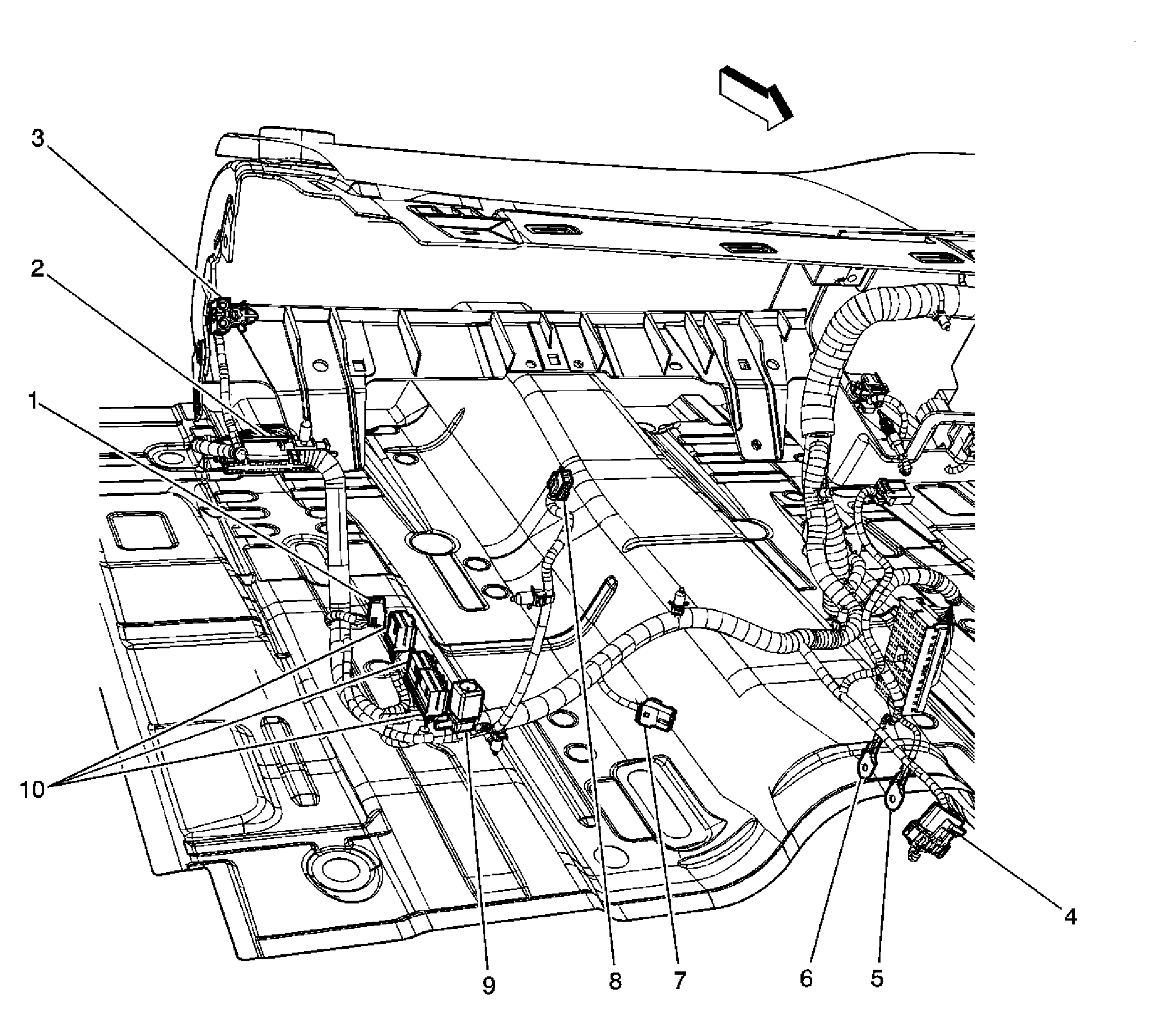

Fig 7: I/P Harness Right Side of Console
GM1470401Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 GPS Coax - to the VCIM
2 C207 I/P Harness to Body Harness
3 C291 I/P to Antenna Pigtail
4 Blower Motor Resistor Assembly
5 G203
6 G201
7 Blower Motor
8 Recirculation Actuator
9 Cell Phone Coax - to the VCIM
10 Vehicle Communication Interface Module (VCIM) Connectors

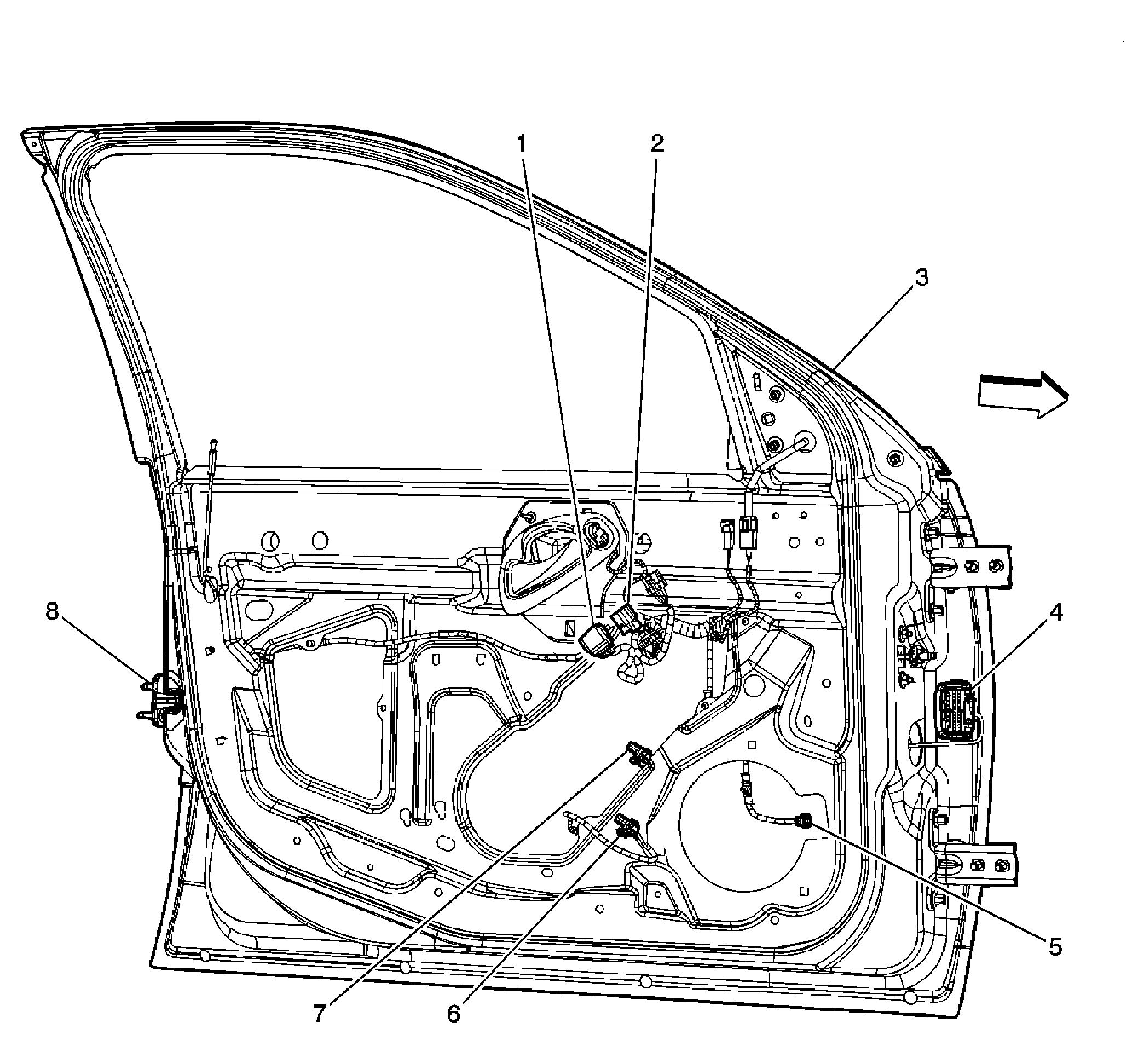

Fig 8: Driver Door
GM1469942Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Switch - Driver C1
2 Window Switch - Driver C2
3 Door Frame
4 C500
5 Speaker - LF Door
6 Rear Compartment Lid Release Switch Connector
7 Window Motor Connector
8 Door Latch Assembly

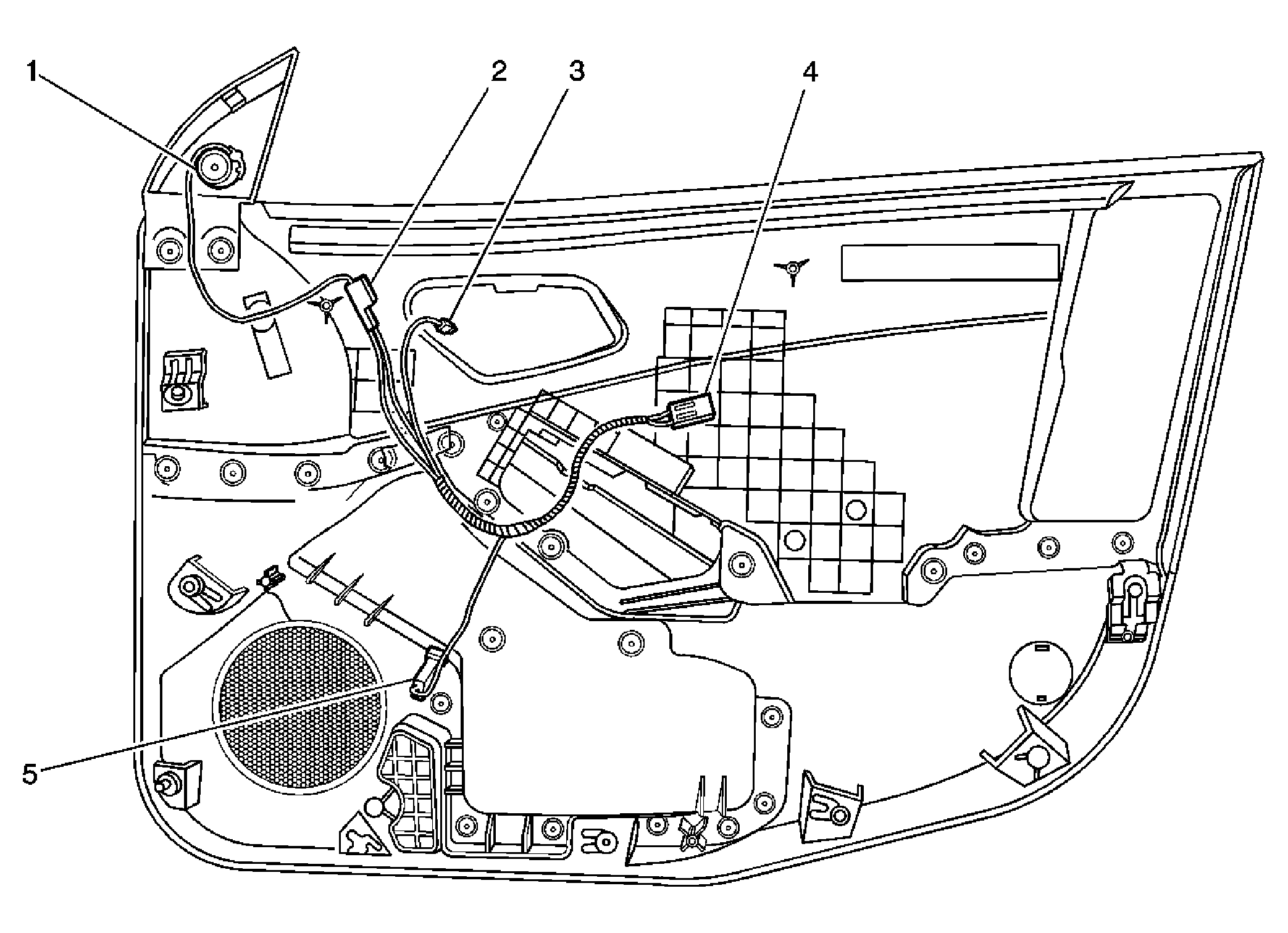

Fig 9: Left Front Door Trim Pad
GM1567355Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - LF Door Tweeter
2 Speaker to Door Trim Pad Harness Connector
3 Door Lock Switch - Driver
4 C501
5 Rear Compartment Lid Release Switch - Interior

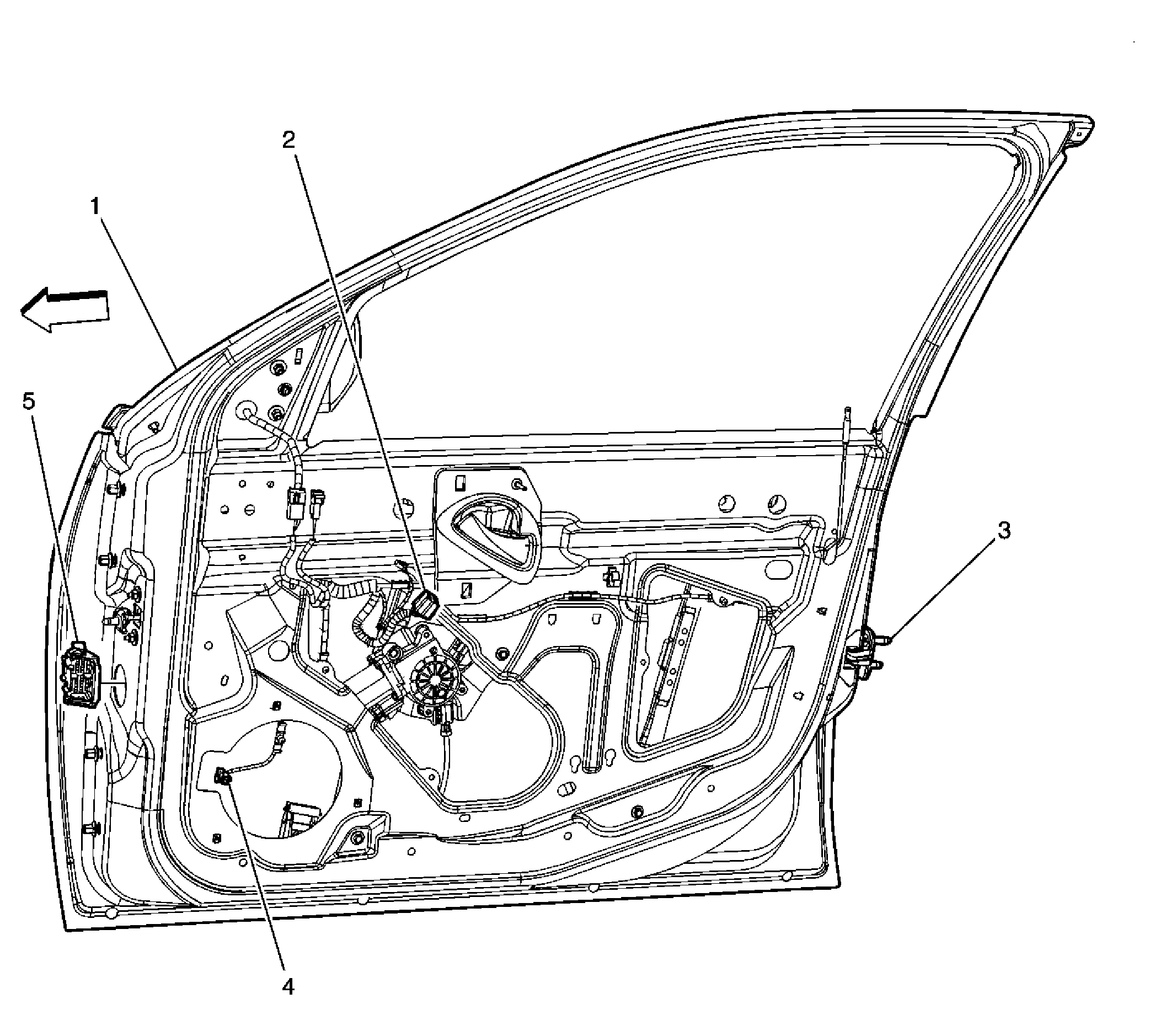

Fig 10: Front Passenger Door
GM1469936Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Window Switch - Passenger
3 Door Latch Assembly
4 Speaker - RF Door Connector
5 C600

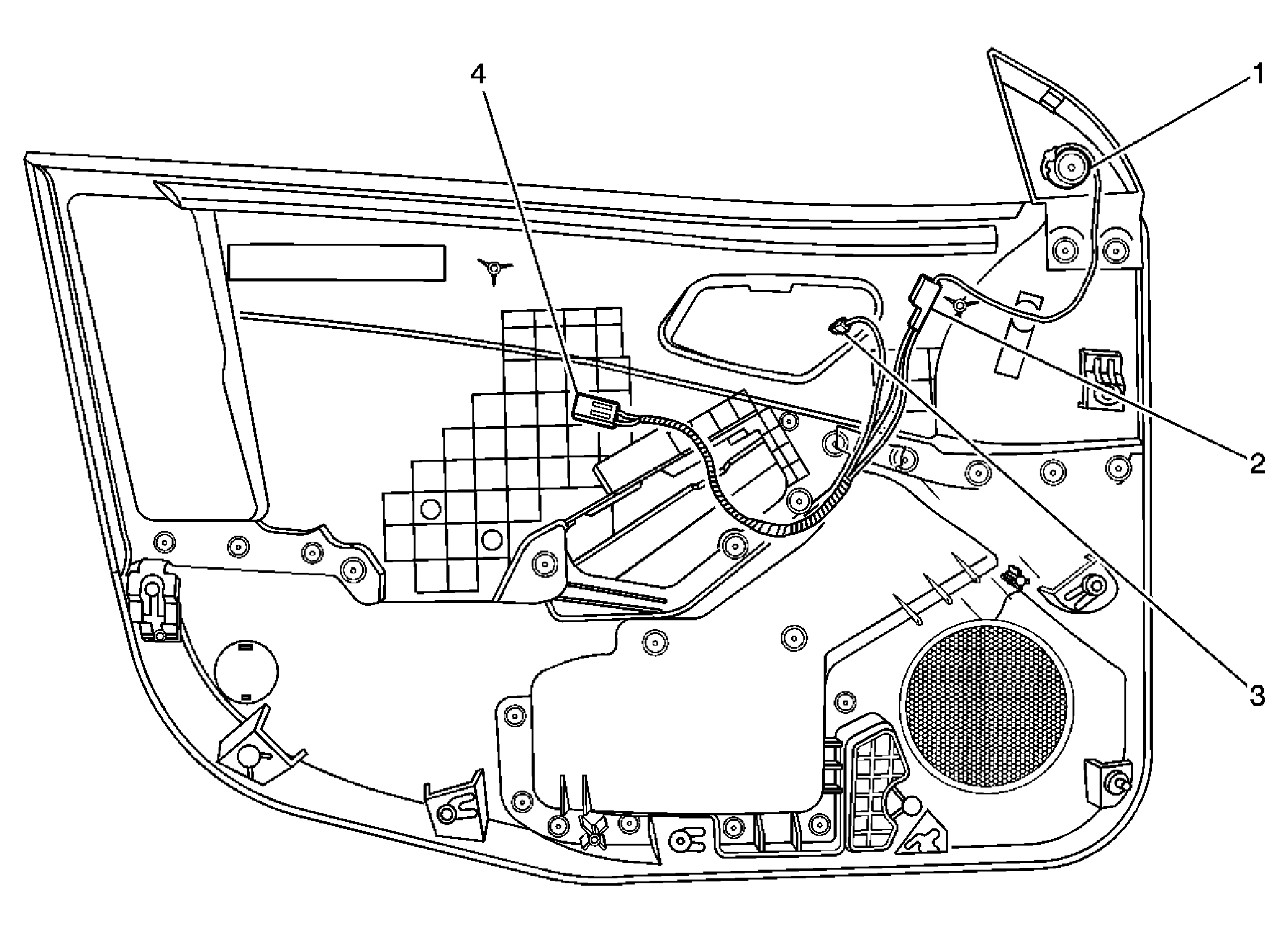

Fig 11: Right Front Door Trim Pad
GM1567356Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - RF Door Tweeter
2 Speaker to Door Trim Pad Harness Connector
3 Door Lock Switch - Passenger
4 C601

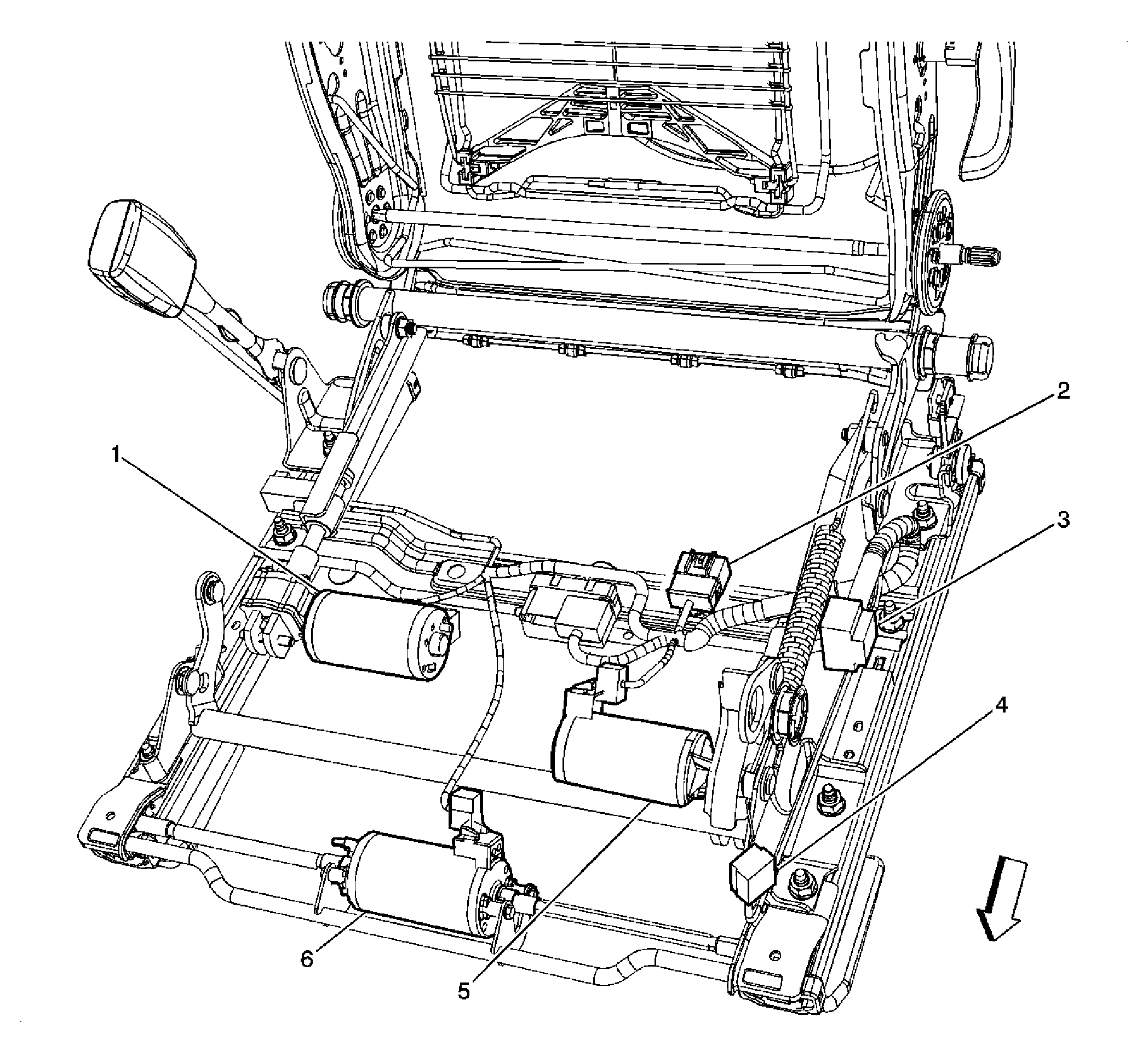

Fig 12: Driver Seat
GM1469963Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Rear Vertical Motor
2 C300
3 Seat Adjuster Switch - Driver
4 Heated Seat Switch Connector
5 Seat Front Vertical Motor
6 Seat Horizontal Motor

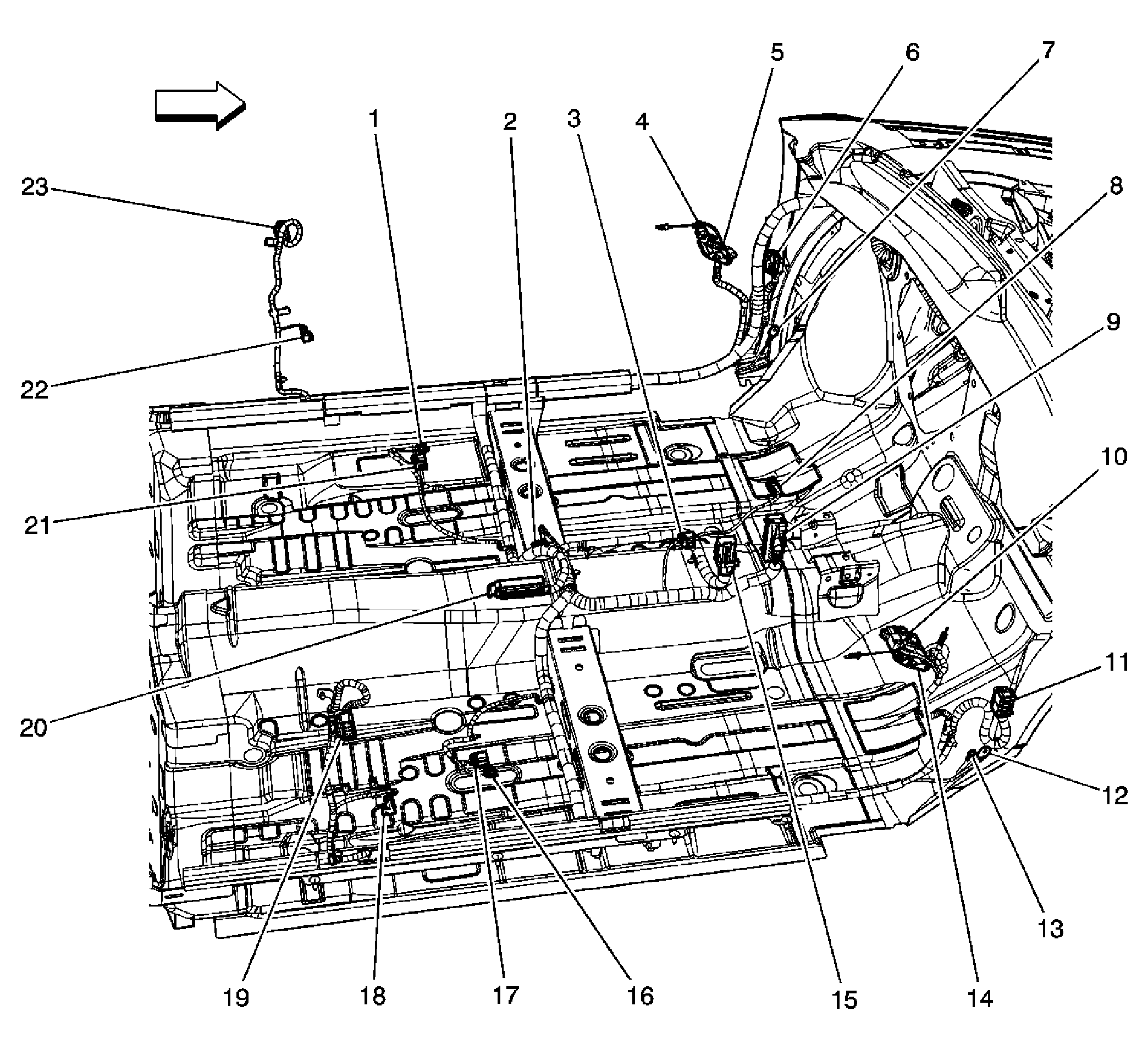

Fig 13: Body Harness Front Compartment
GM1470406Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C308 Body Harness to Driver Seat Inflatable Restraint Module
2 Park Brake Switch
3 A/T Shift Lock Control Assembly
4 C208 Body Harness to Inflatable Restraint Steering Wheel Module
5 C206 Body Harness to I/P Harness
6 C500 Body Harness to Driver Door Harness
7 G303
8 C214 Body Harness to Console Harness
9 Body Control Module (BCM) C3
10 C208 Body Harness to Inflatable Restraint Side Impact Sensor (SIS)
11 C203 Coax Cable - AM/FM
12 C600 Body Harness to Passenger Door Harness
13 G305
14 G304
15 C206 Body Harness to I/P Harness
16 Body Control Module (BCM) C1
17 C309 Body Harness to Passenger Seat Inflatable Restraint Module
18 C300 Body Harness to Passenger Seat Harness or C311 Body Harness to Passenger Seat Harness
19 Seat Belt Pretensioner - RF
20 C800 Body Harness to Right Rear Door Harness
21 Inflatable Restraint Sensing and Diagnostic Module (SDM)
22 C300 Body Harness to Driver Seat Harness
23 Seat Belt Pretensioner - LF
24 C700 Body Harness to Left Rear Door Harness

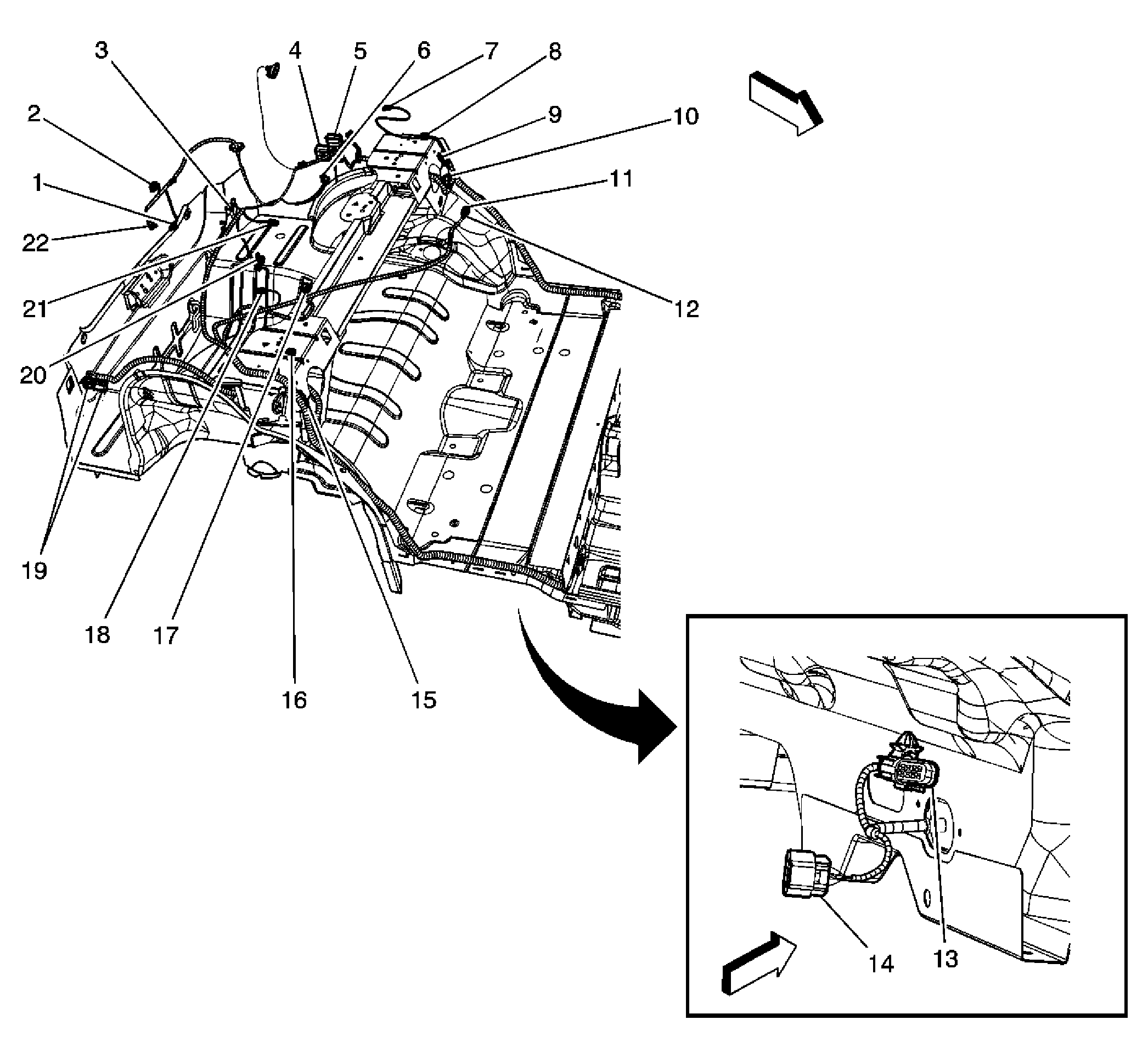

Fig 14: Body Harness Rear Compartment
GM1470407Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Compartment Lid Release Switch
2 Center High Mounted Stop Lamp (CHMSL)
3 Rear Compartment Courtesy Lamp
4 Fuse Block - Rear C4
5 Fuse Block - Rear C1
6 Speaker - LR
7 C319 Body Harness to Roof Rail Inflatable Restraint Module - LH (AY0)
8 Rear Window Defogger Grid C1
9 G302
10 C351 Body Harness to Headliner Harness (UE1)
11 Antenna Amplifier Module C1
12 Coax AM/FM
13 C413 Body Harness to Fuel Tank Harness
14 C403 Body Harness to Wheel Speed Sensor (WSS) Jumper Harness - RR/LR
15 G301
16 C320 Body Harness to Roof Rail Inflatable Restraint Module - RH (AY0)
17 Digital Radio Receiver (U2K)
18 Rear Window Defogger Grid C2
19 Audio Amplifier Connectors (U85)
20 Speaker - RR
21 Remote Control Door Lock Receiver (RCDLR) (AU0)
22 Rear Compartment Lid Pulldown Actuator

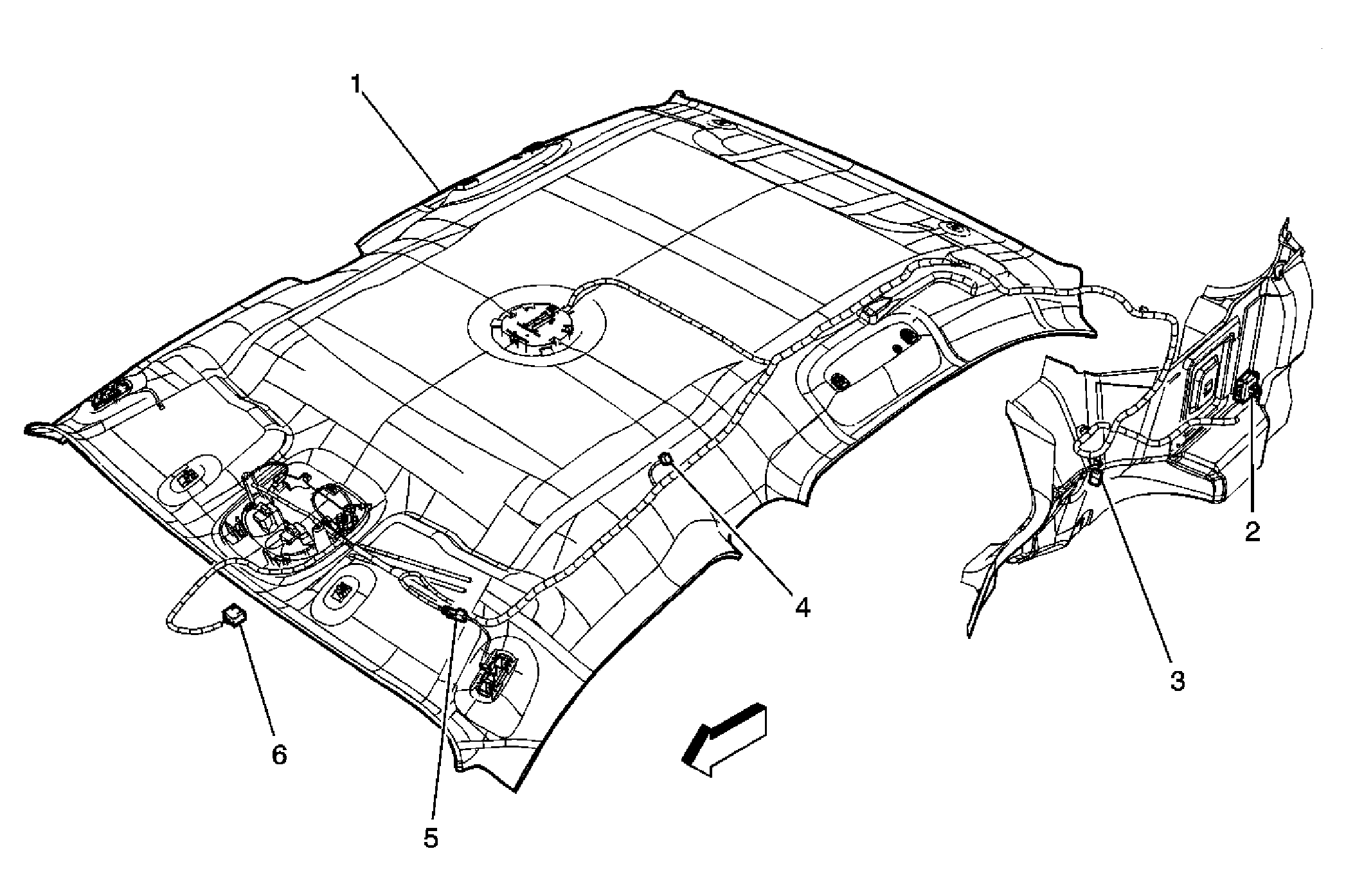

Fig 15: Headliner Harness (w/o CF5)
GM1469985Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner
2 Fuse Block - Rear C3
3 C351 (UE1)
4 C415 (C3Y)
5 Vanity Mirror Lamp - Left Connector
6 Inside Rearview Mirror Connector

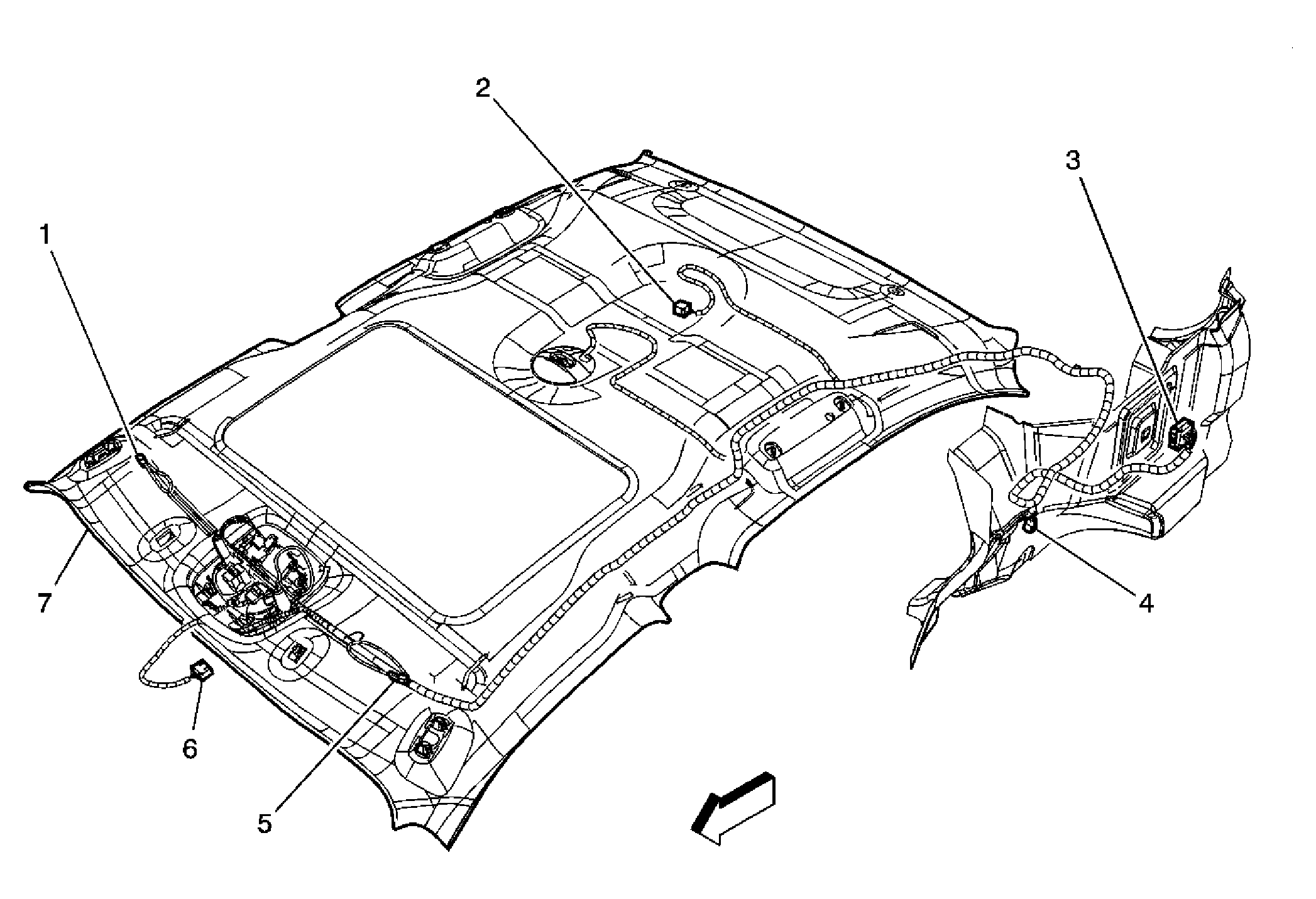

Fig 16: Headliner Harness (CF5)
GM1469989Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vanity Mirror Lamp - Right Connector
2 Sunroof Module Connector (CF5)
3 Fuse Block - Rear C3
4 C351 (UE1)
5 Vanity Mirror Lamp - Left Connector
6 Inside Rearview Mirror Connector
7 Headliner

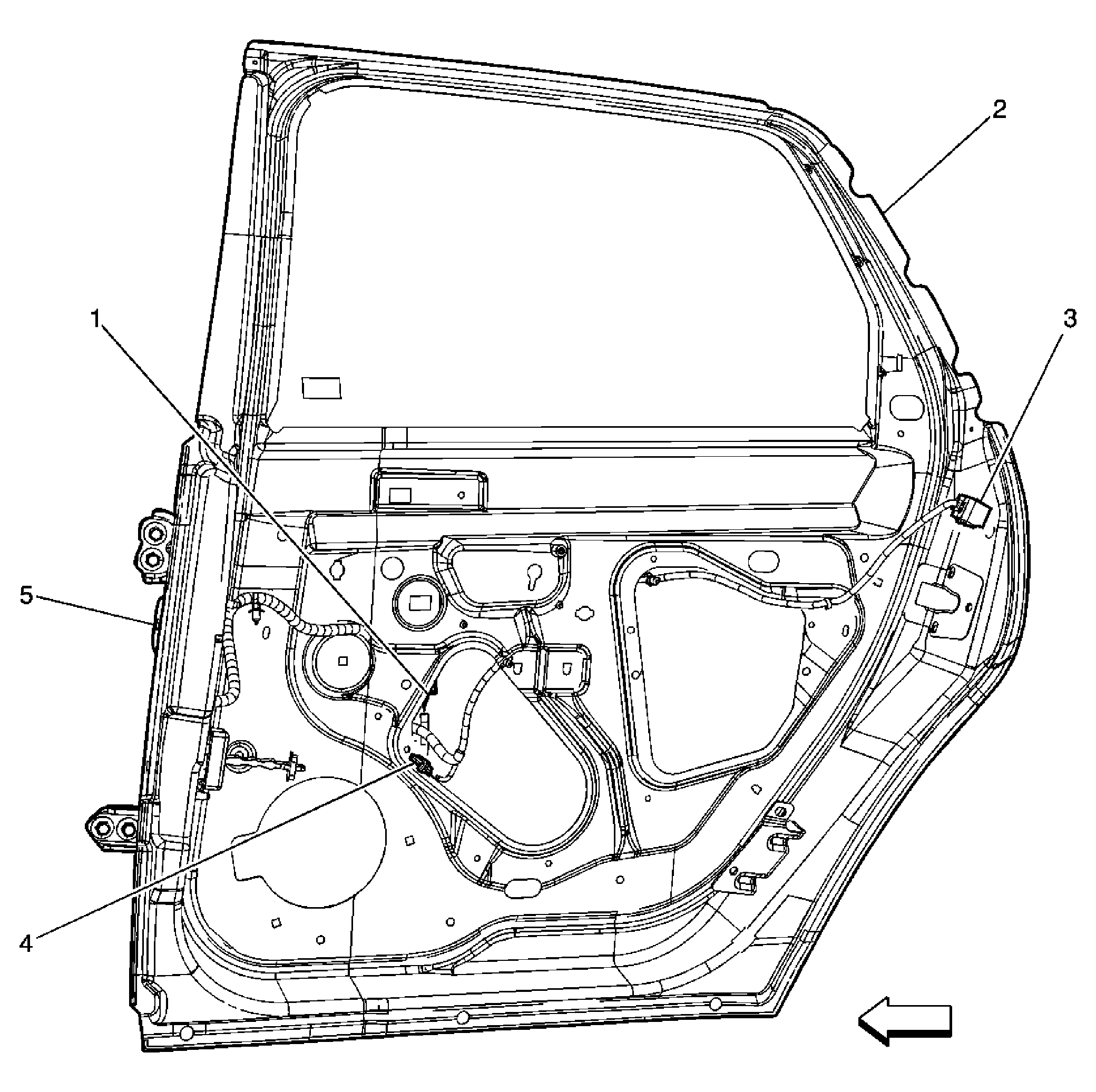

Fig 17: LR Door
GM1470013Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Motor Connector
2 Door Frame
3 Door Latch Assembly Connector
4 Speaker Connector
5 C700

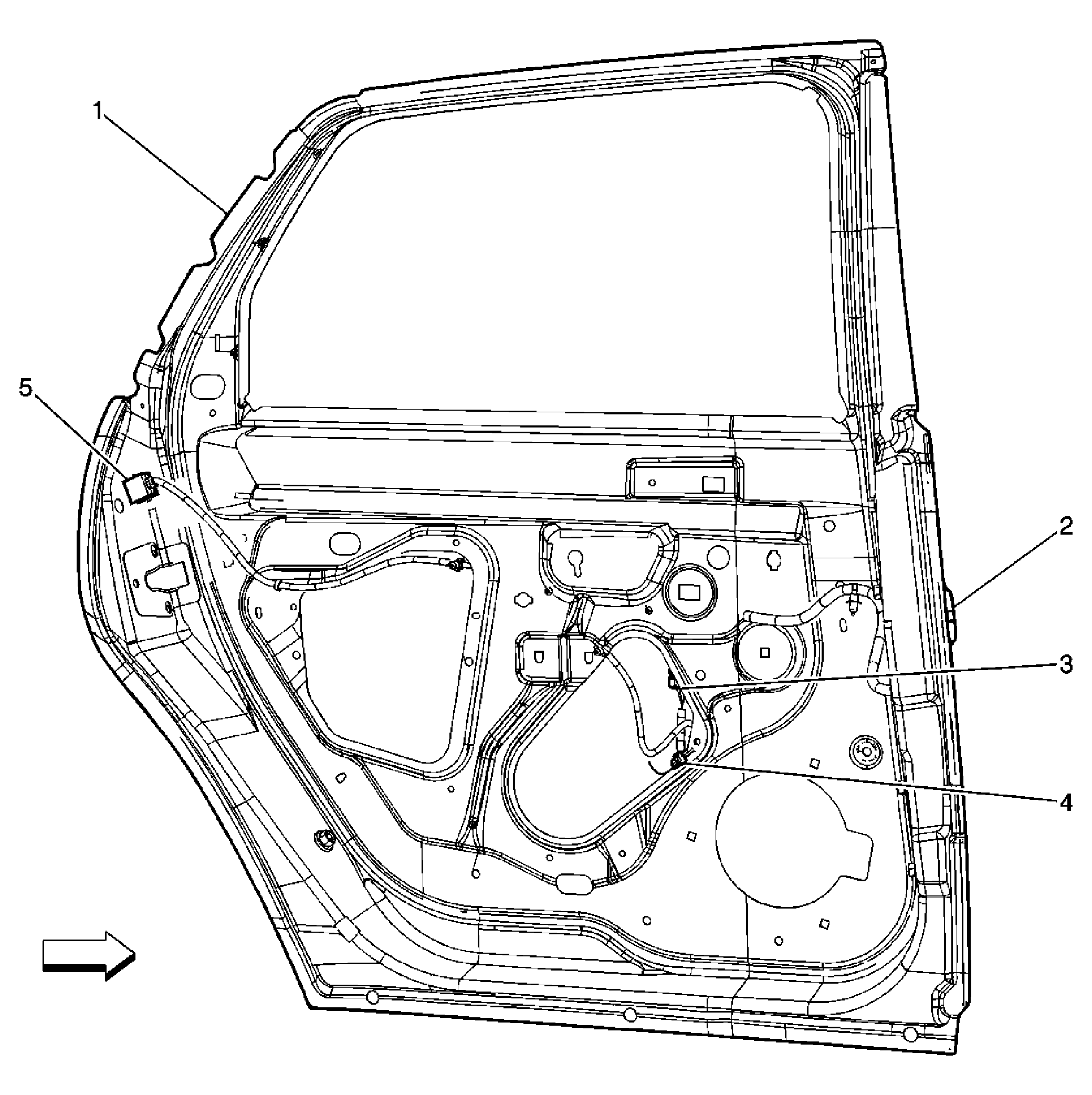

Fig 18: RR Door
GM1469993Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 C800
3 Window Motor Connector
4 Speaker Connector
5 Door Latch Assembly Connector

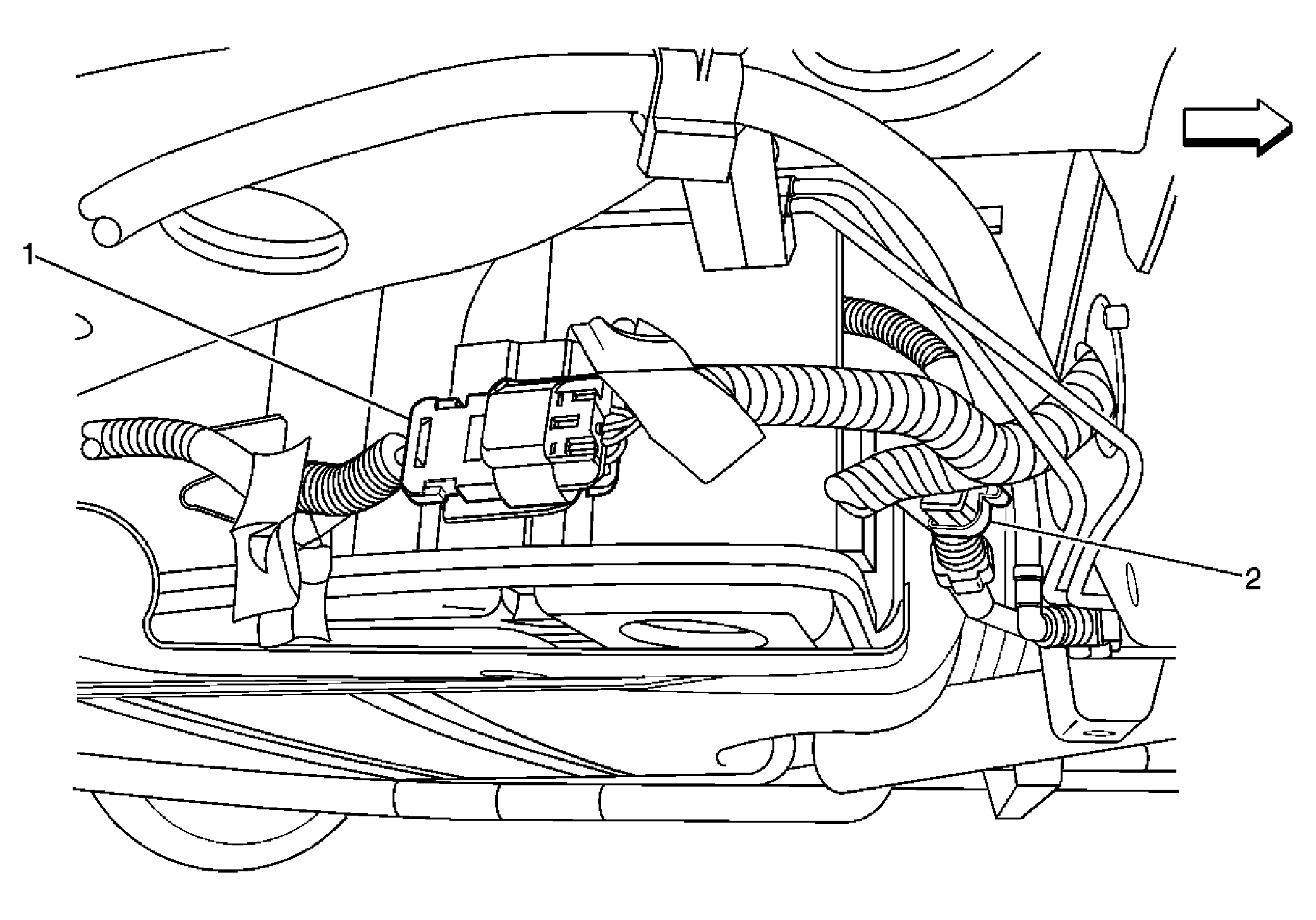

Fig 19: Under Vehicle Forward of RR Wheel Harness Routing View
GM1263945Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C403
2 C413
Fig 20: Rear Fascia
GM1470409Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C402 Rear Lamp Harness to RR Tail Lamp Harness
2 License Lamp Connector
3 G401
4 G403
5 C401 Rear Lamp Harness to LR Tail Lamp Harness
6 Rear Junction Block C1
