Parking Brake Lever Bezel Replacement

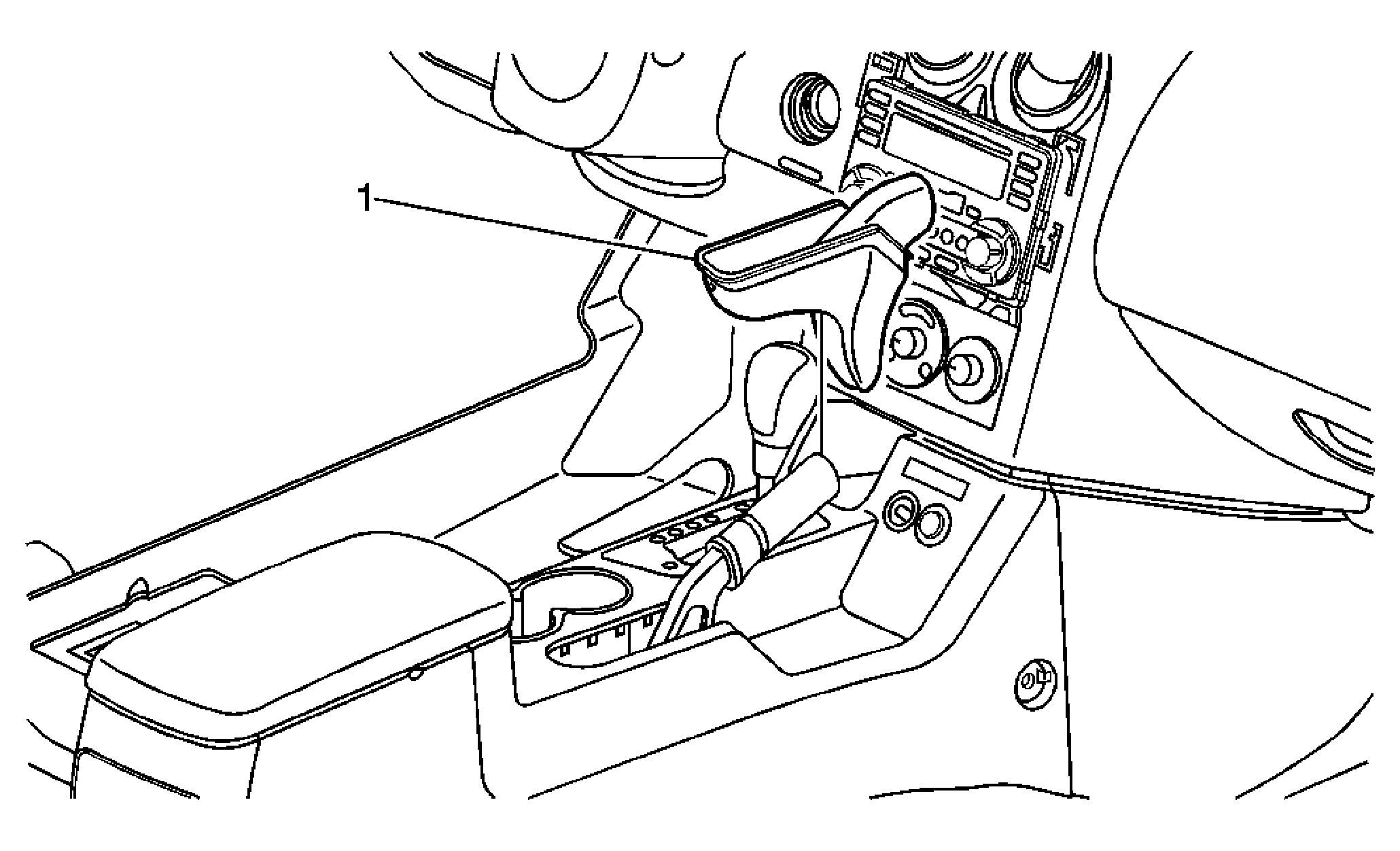

Fig 1: View Of Parking Brake Lever Bezel

Courtesy of GENERAL MOTORS CORP.

Parking Brake Lever Bezel Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Bezel Assembly, Park Brake Tip:  Apply the park brake. Use a plastic trim tool to release the retainer at the rear edge of the bezel. Slide the bezel and boot assembly over the park brake lever.
