Power Sunroof Schematics
Power Sunroof Schematics

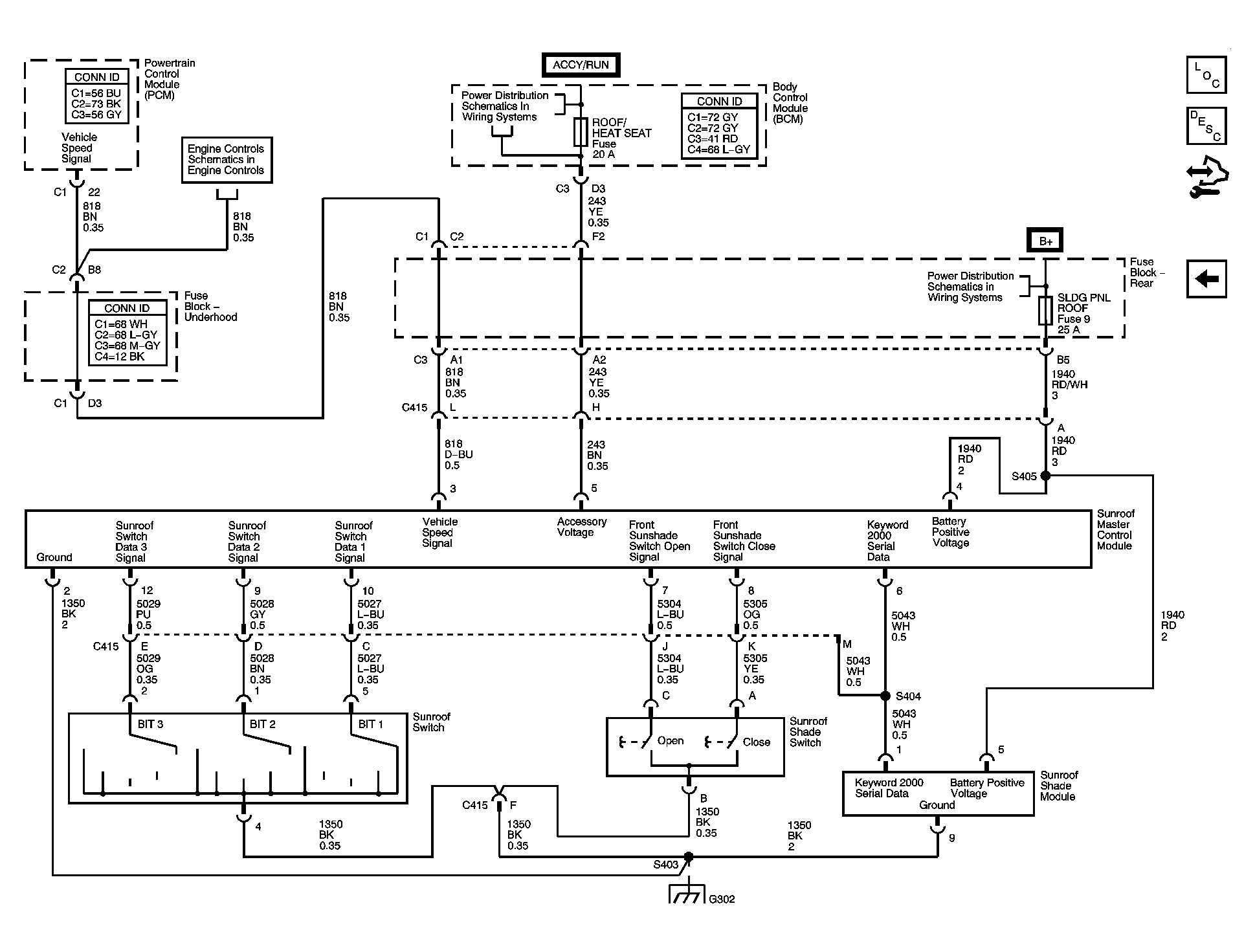

Fig 1: Power Sunroof Schematic (CF5)
Courtesy of GENERAL MOTORS CORP.

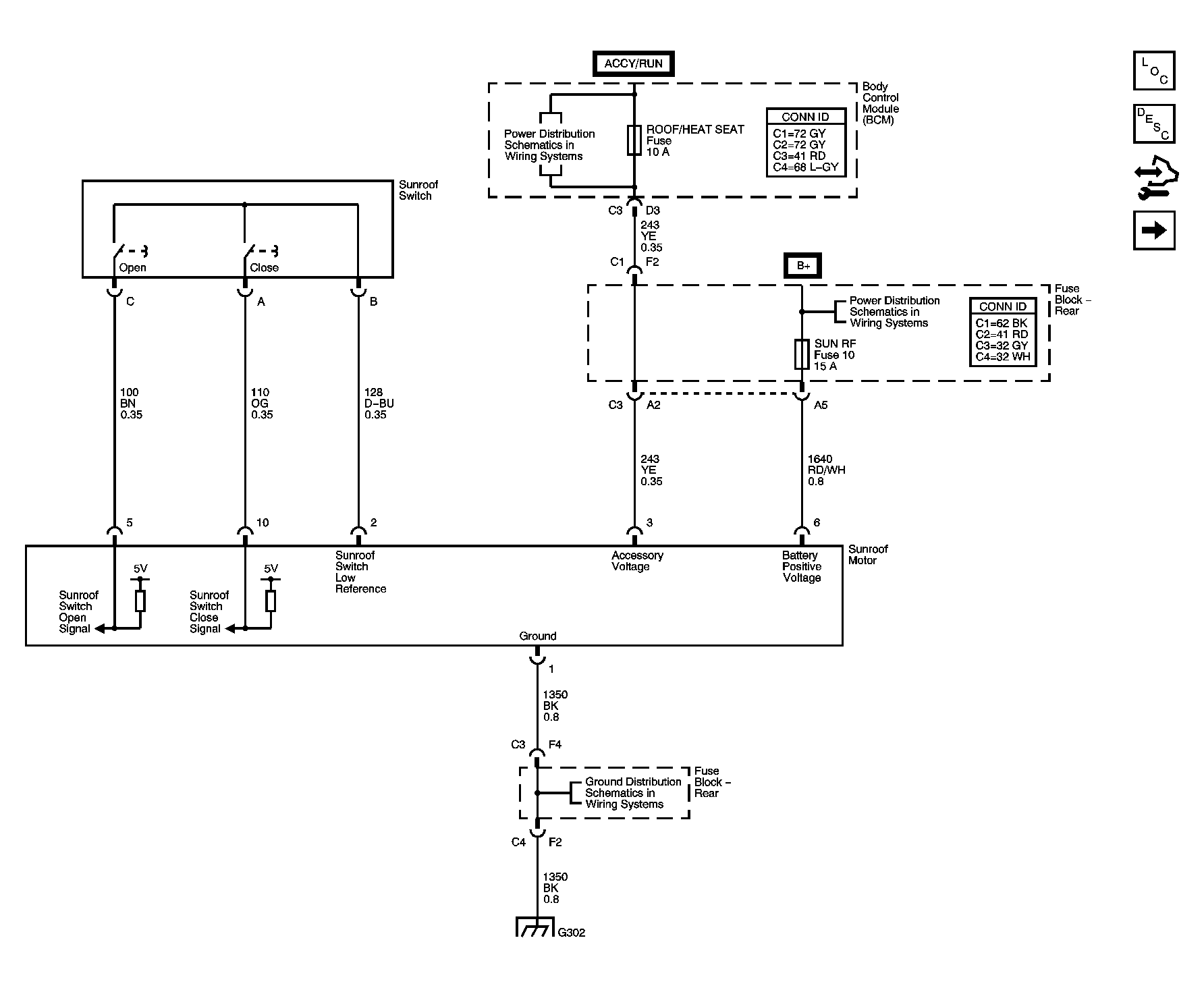

Fig 2: Power Sunroof Schematic (C3Y)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
