Power Roof Systems Component Views

Fig 1: Forward Overhead

GM1508891

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - LF
2	Cellular Microphone (UE1)
3	Sunroof Switch (CF5/C3Y)
4	Courtesy/Reading Lamp - RF
5	Dome/Reading Lamp (w/o C3Y)
6	Sunroof (CF5/C3Y)
7	Vanity Mirror Lamp - Right
8	Inside Rearview Mirror
9	OnStar Keypad (UE1)
10	Vanity Mirror Lamp - Left

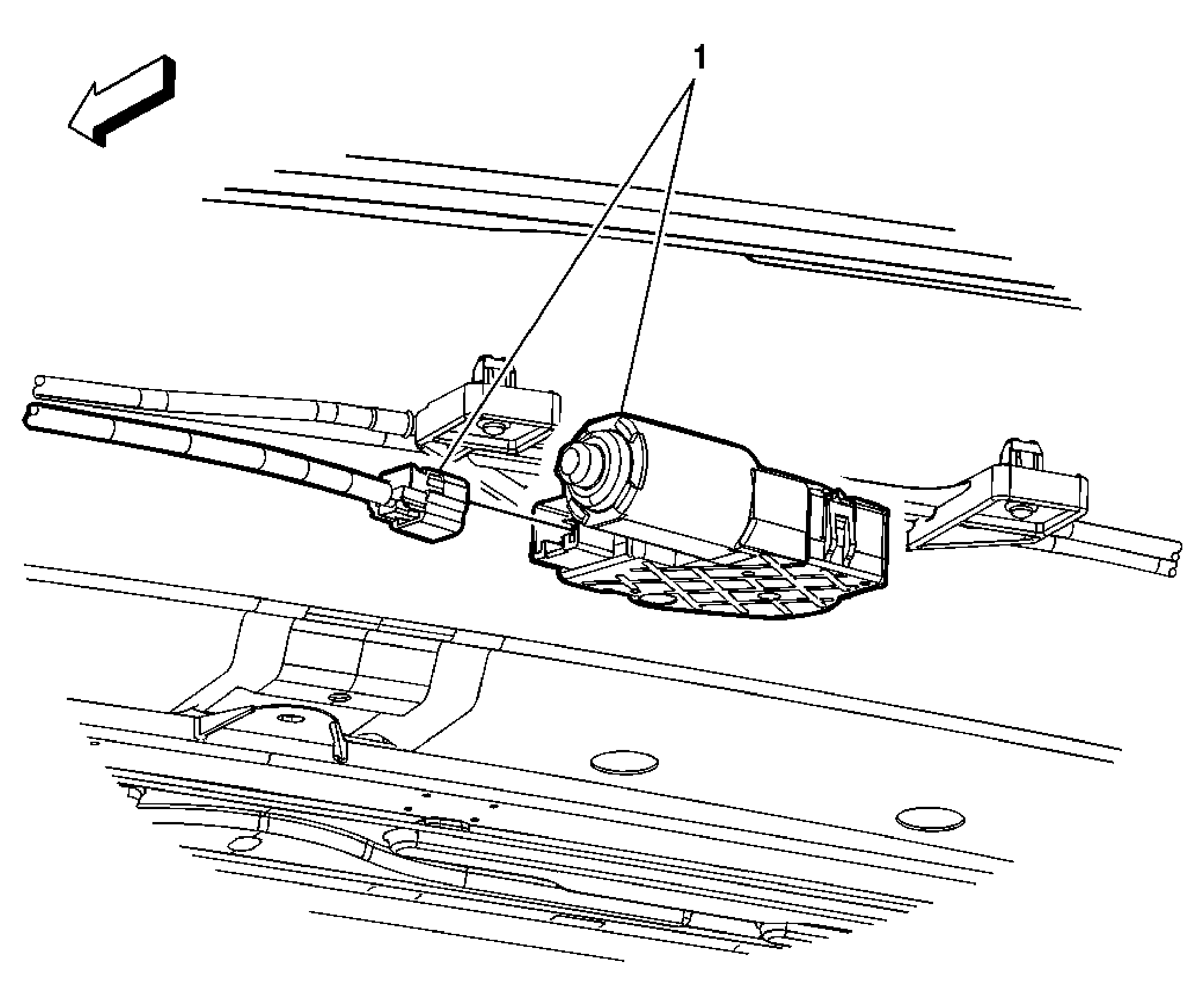

Fig 2: View Of Rear of Sunroof (CF5)

GM1266757

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Control Module

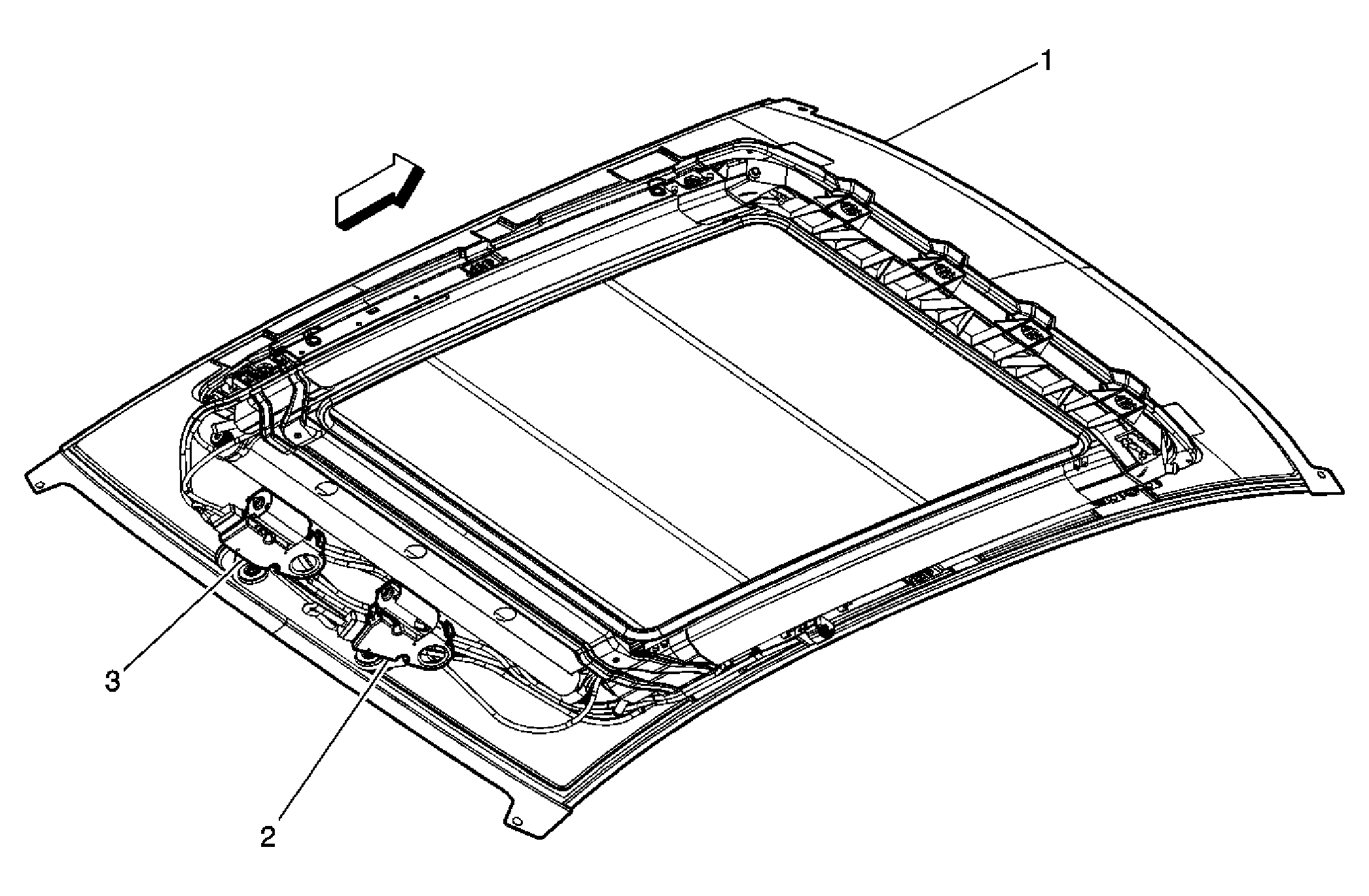

Fig 3: Sunroof Assembly (C3Y)

GM1552110

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Assembly
2	Sunroof Shade Module
3	Sunroof Control Module
