Driver Seat Schematics

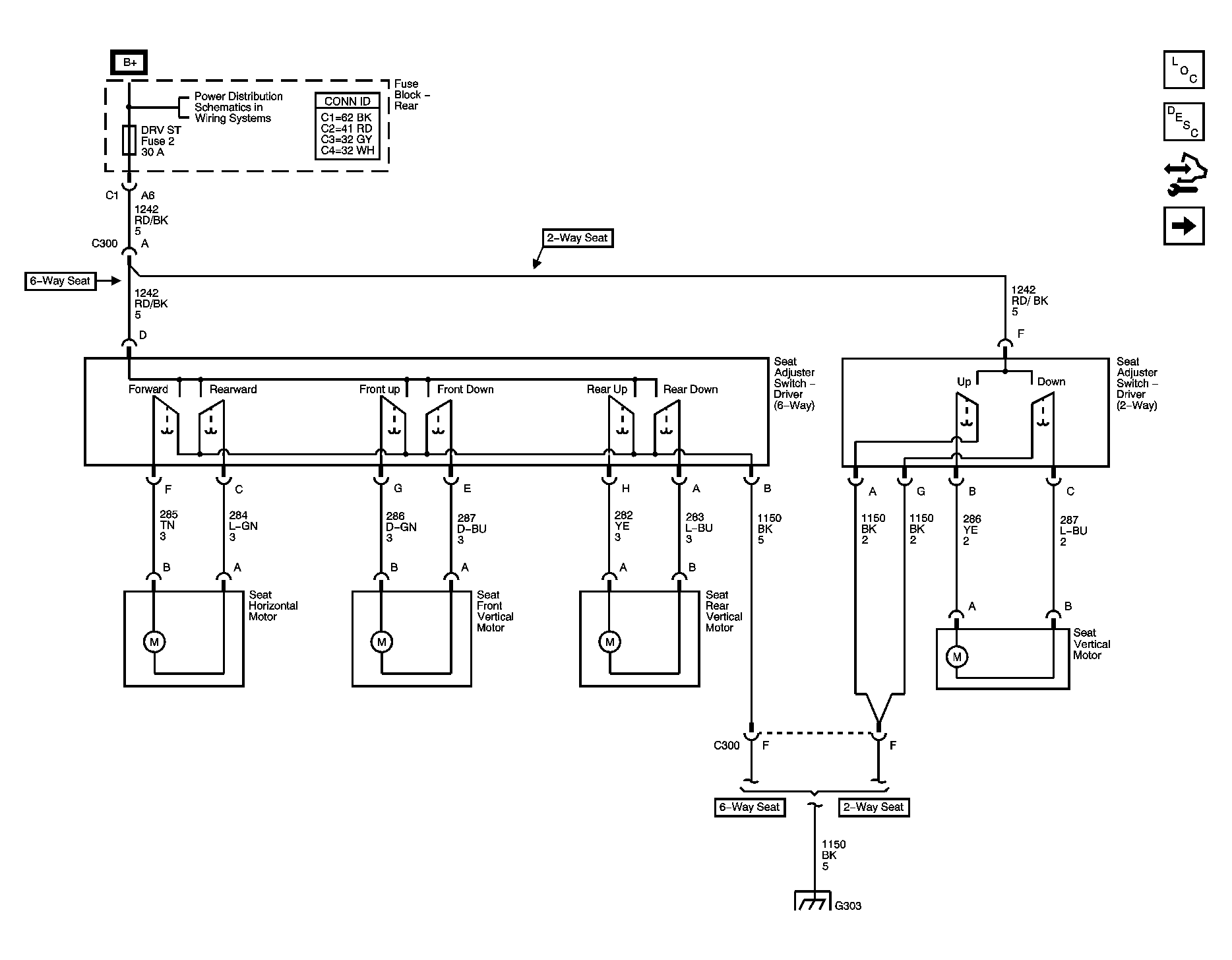

Fig 1: Power Driver Seat

GM1483215

Courtesy of GENERAL MOTORS CORP.

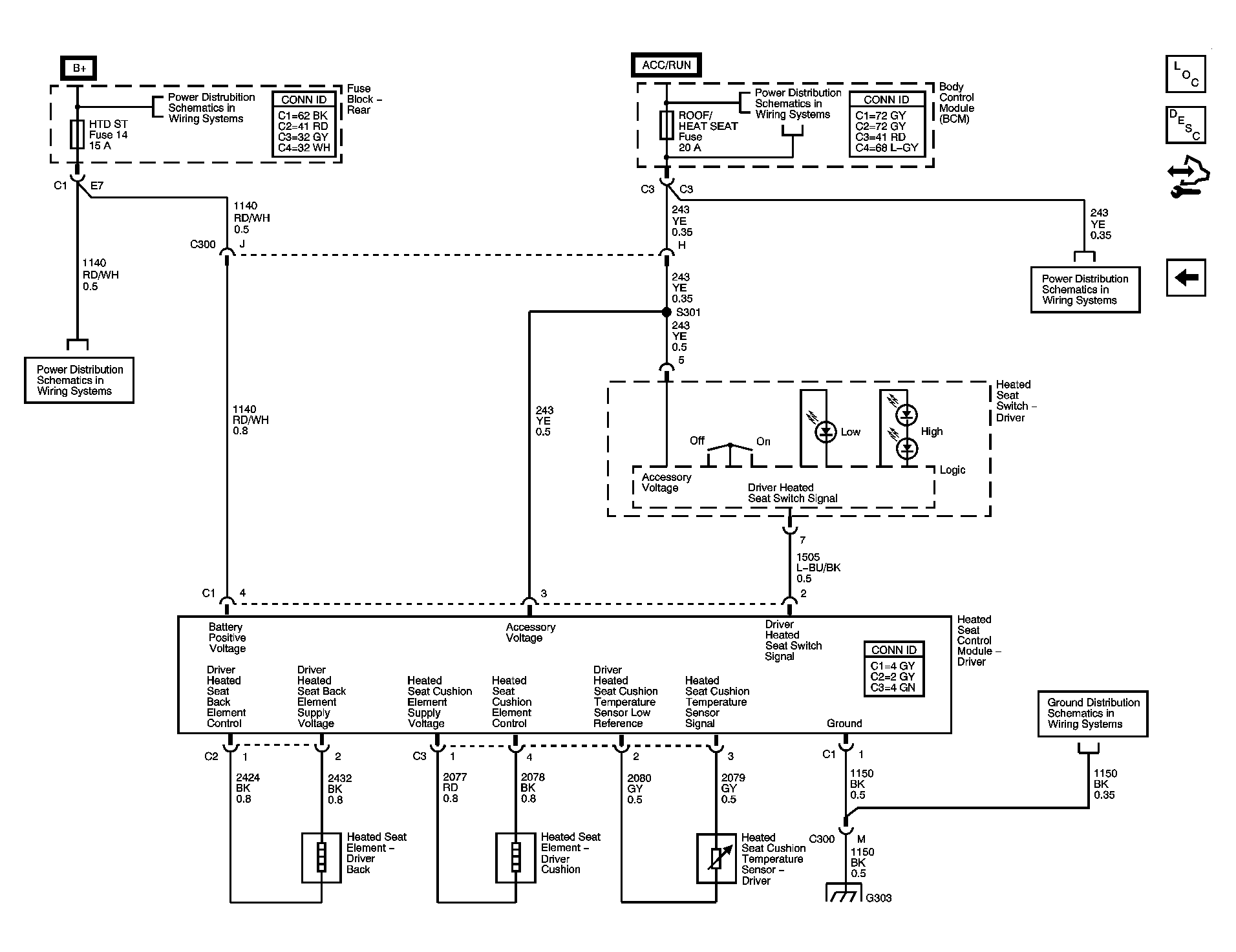

Fig 2: Heated Driver Seat

GM1483219

Courtesy of GENERAL MOTORS CORP.
