Body Rear End Component Views

Fig 1: Left Front Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Driver
2	Outside Rearview Mirror - Driver
3	Outside Rearview Mirror - Switch
4	Speaker - LF Door Tweeter (UZ6)
5	Window Switch - Driver
6	Speaker - LF Door
7	Rear Compartment/Liftgate Release Switch
8	Window Motor - Driver
9	Door Latch Assembly - Driver

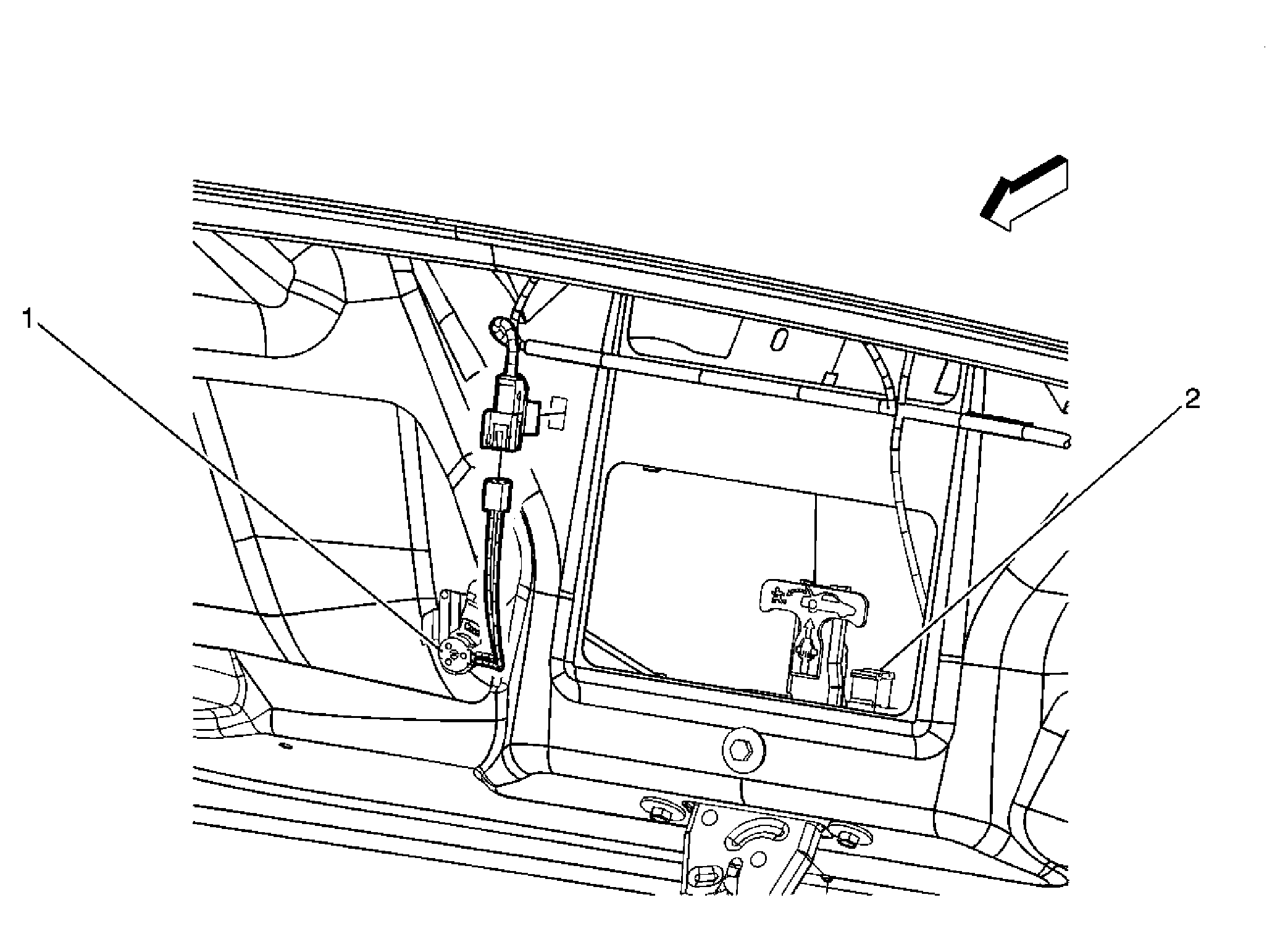

Fig 2: Body Rear End Component Views - Rear of Rear Compartment Lid - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Switch - Exterior
2	Rear Compartment Lid Latch
