Theft Deterrent System Schematics
Theft Deterrent System Schematics

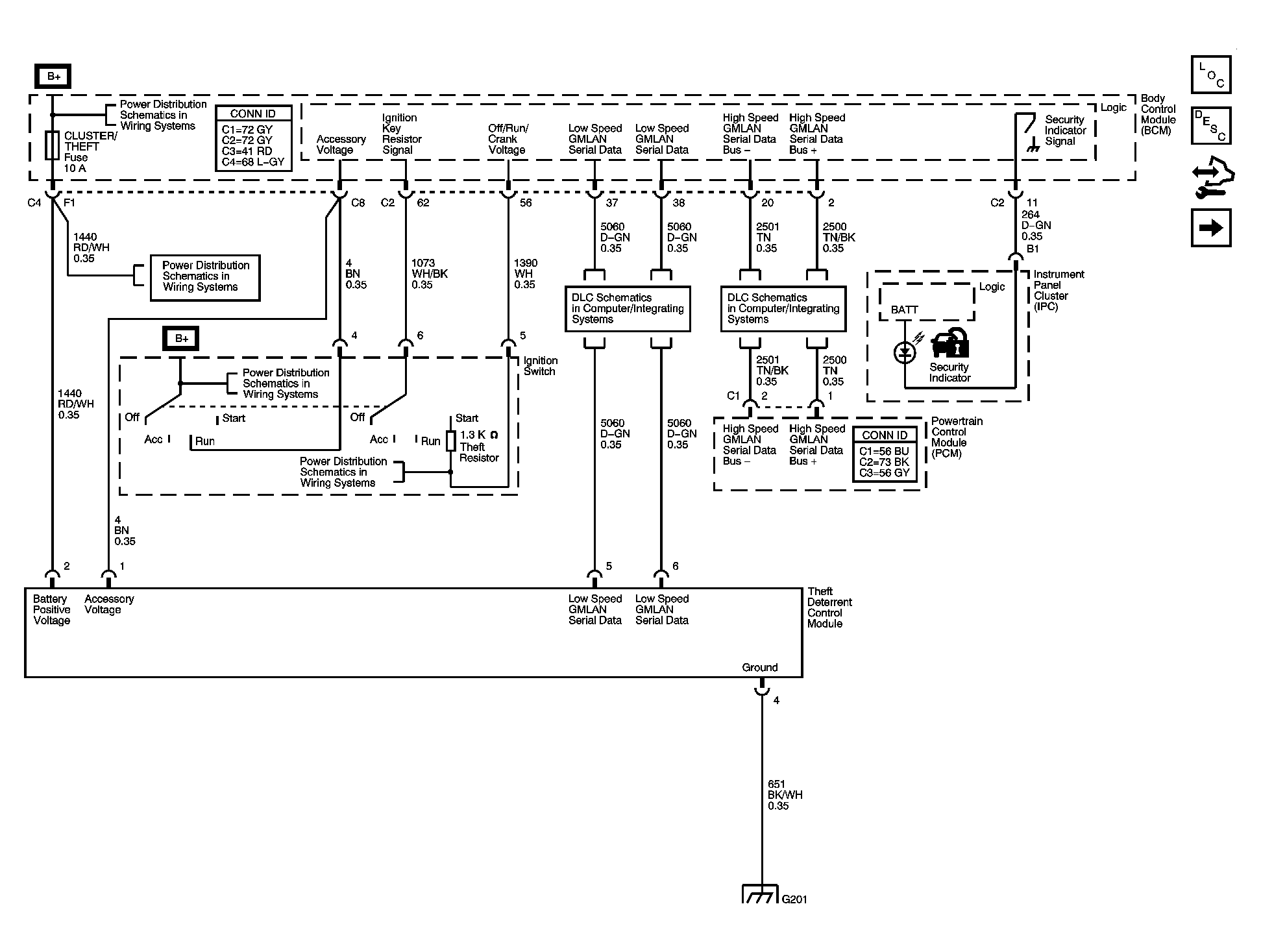

Fig 1: Vehicle Theft Deterrent (VTD) System
Courtesy of GENERAL MOTORS CORP.

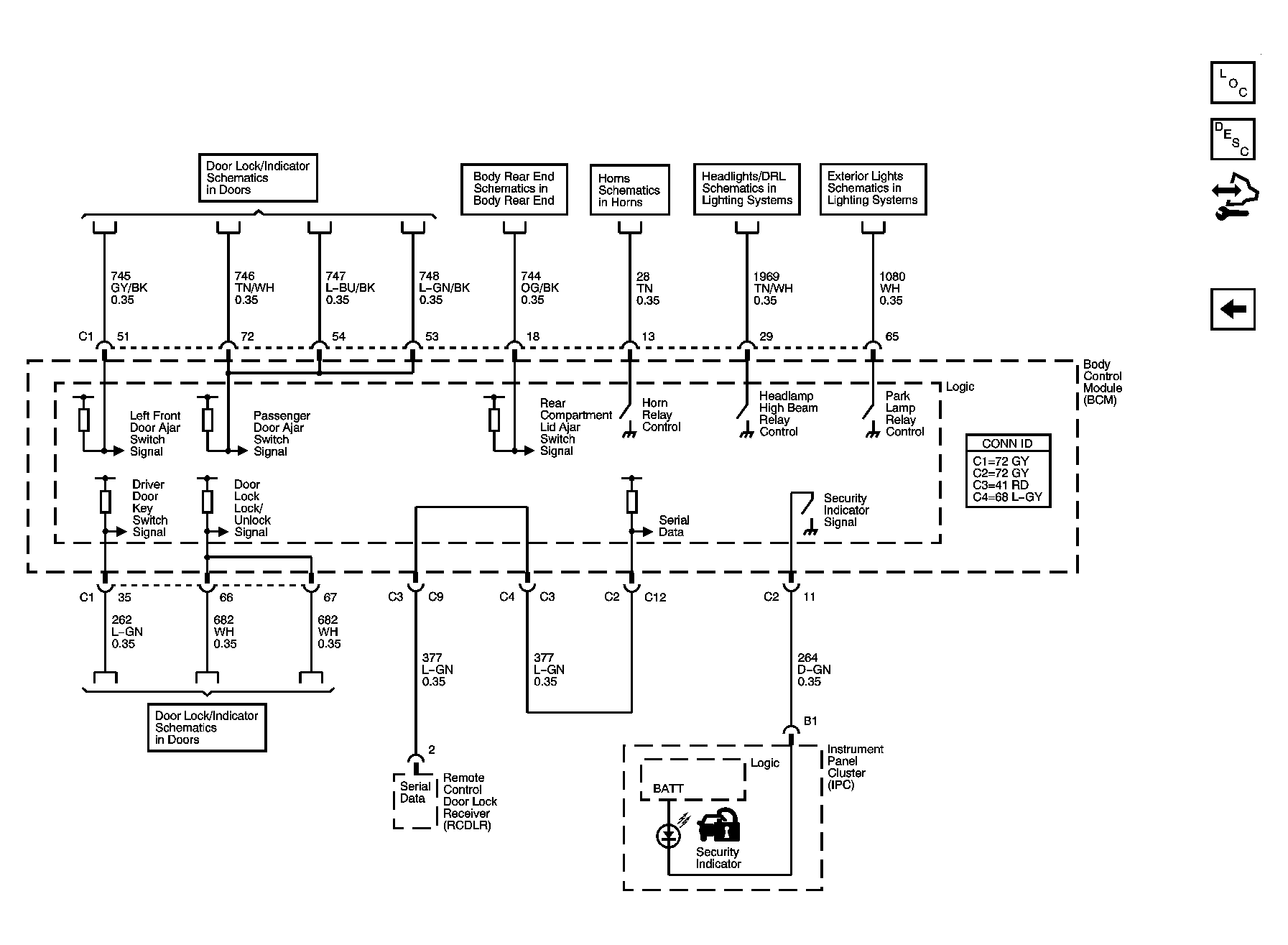

Fig 2: Content Theft Deterrent (CTD) System
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
