Interior Lights Schematics

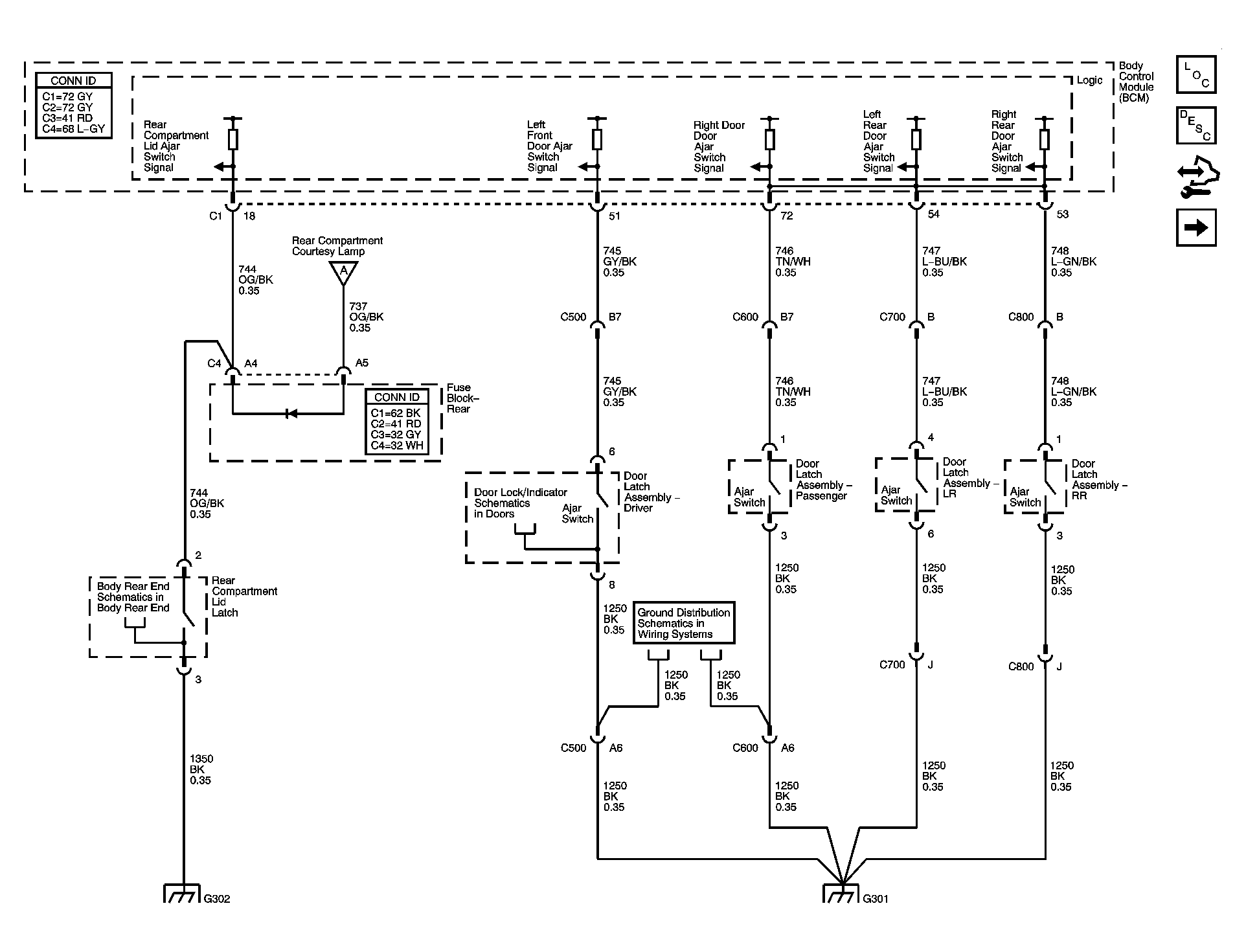

Fig 1: Inputs

GM1471023

Courtesy of GENERAL MOTORS CORP.

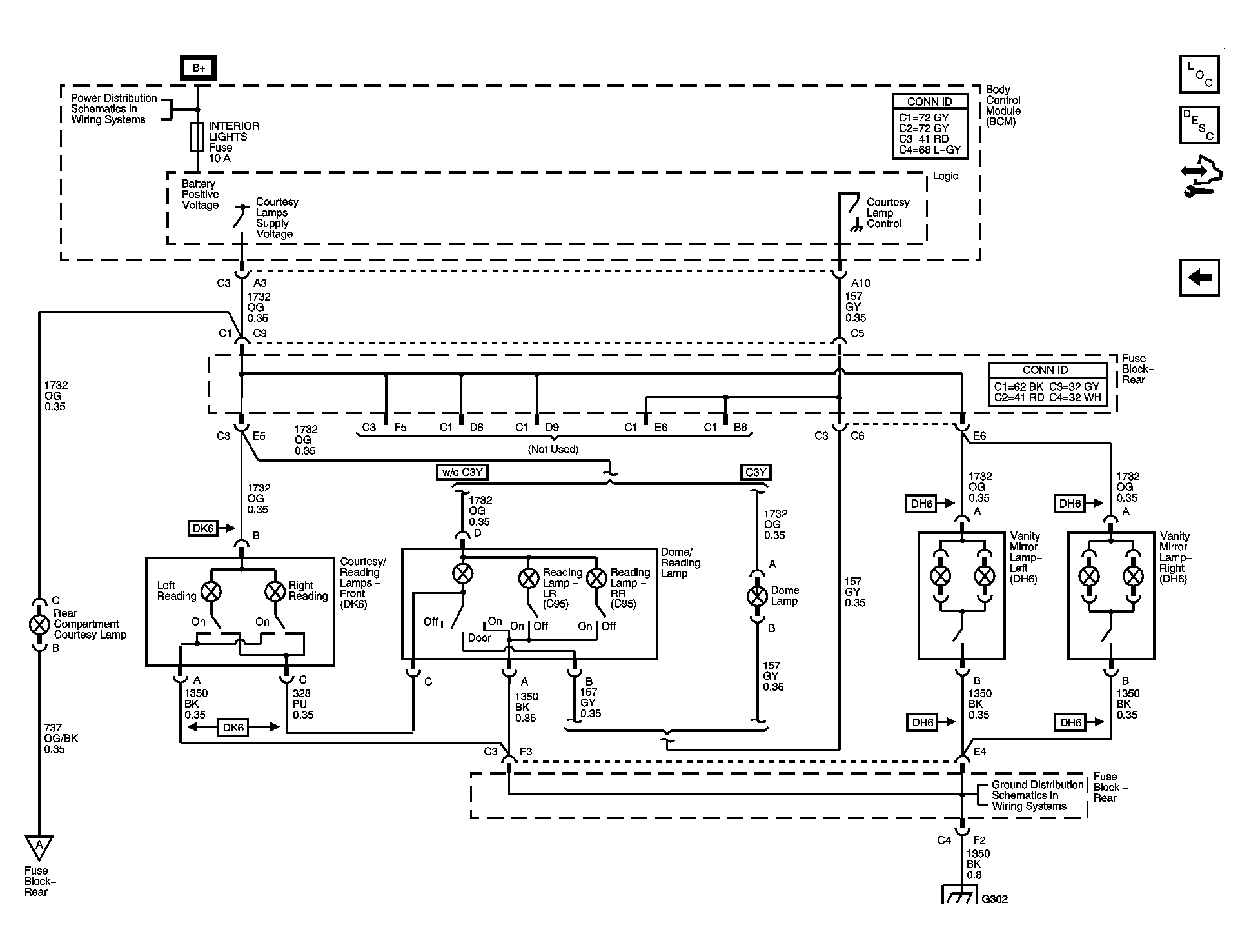

Fig 2: Outputs

GM1471027

Courtesy of GENERAL MOTORS CORP.
