Interior Lights Dimming Schematics

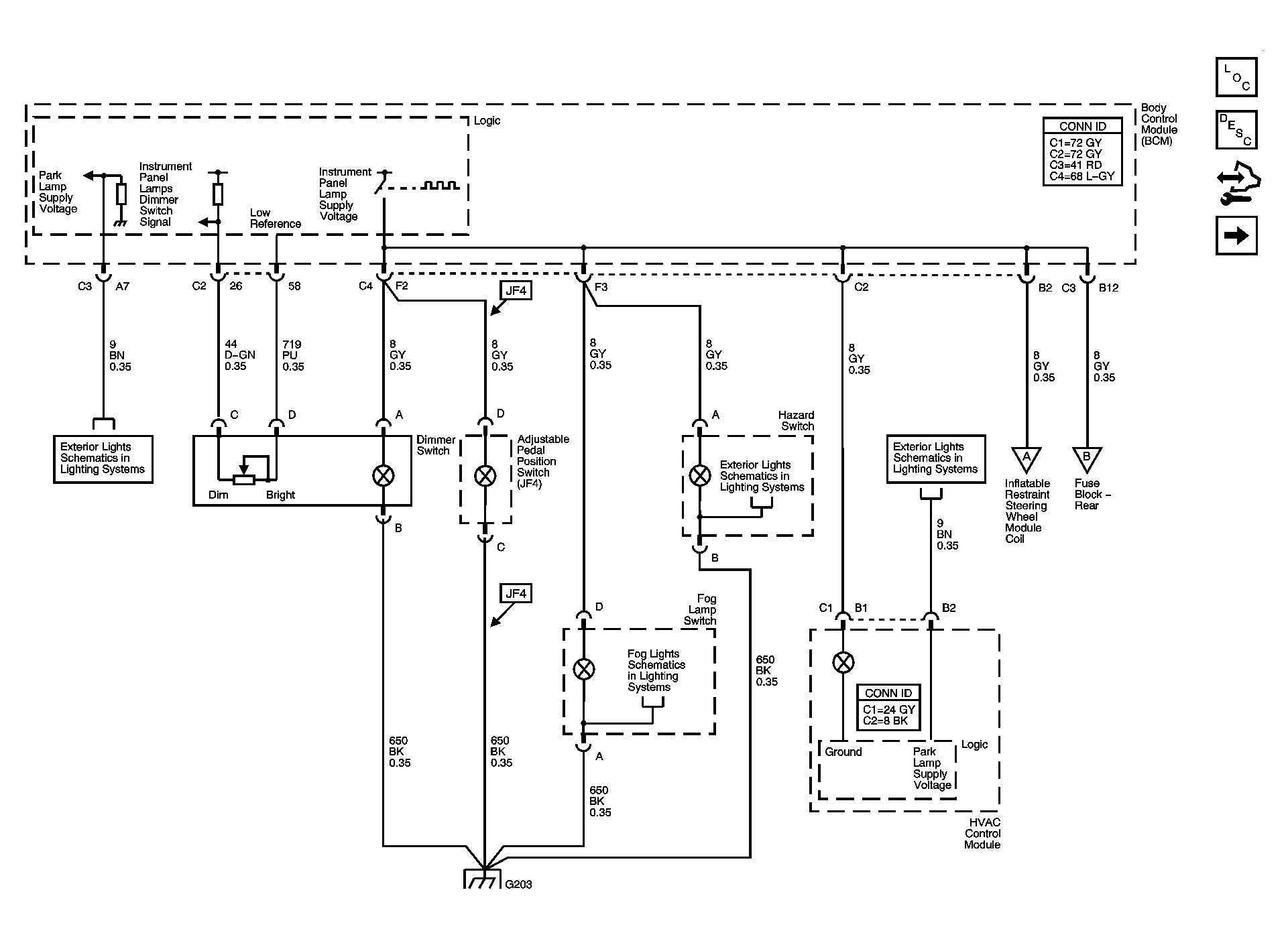

Fig 1: Dimmer Switch Inputs
GM1471235Courtesy of GENERAL MOTORS CORP.

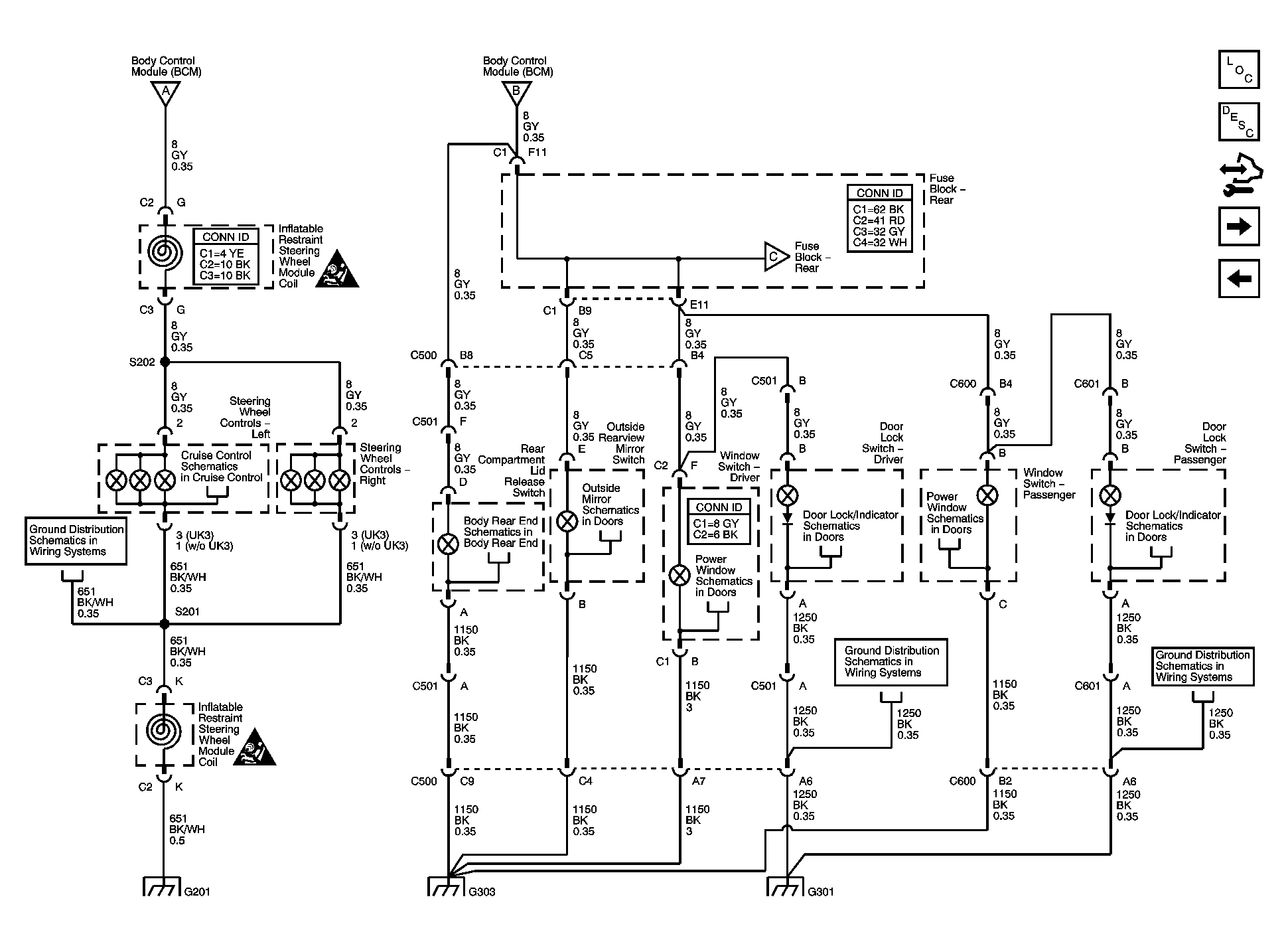

Fig 2: Steering Wheel and Doors
GM1471237Courtesy of GENERAL MOTORS CORP.

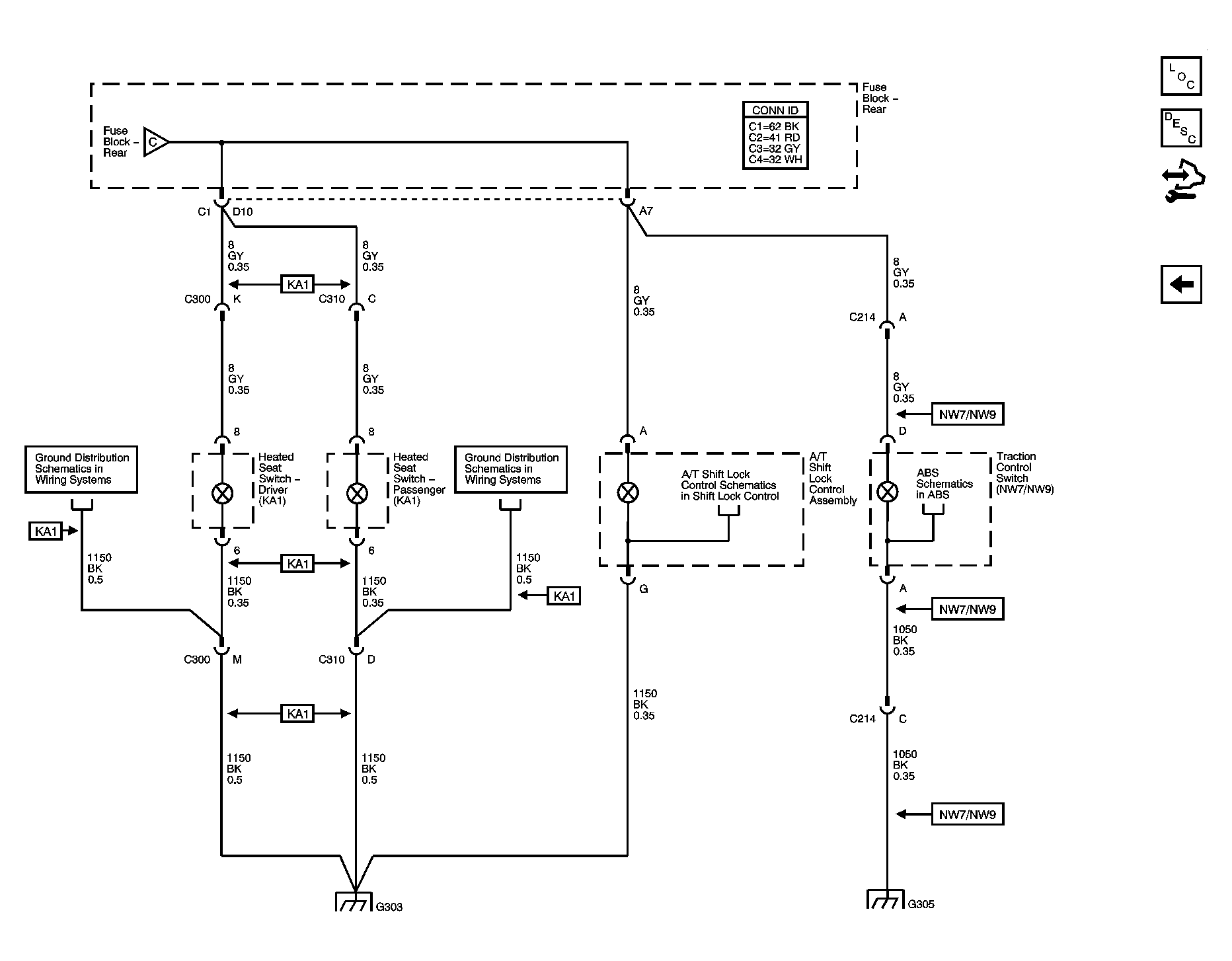

Fig 3: Seats and Center Console
GM1471239Courtesy of GENERAL MOTORS CORP.
