Exterior Lights Schematics

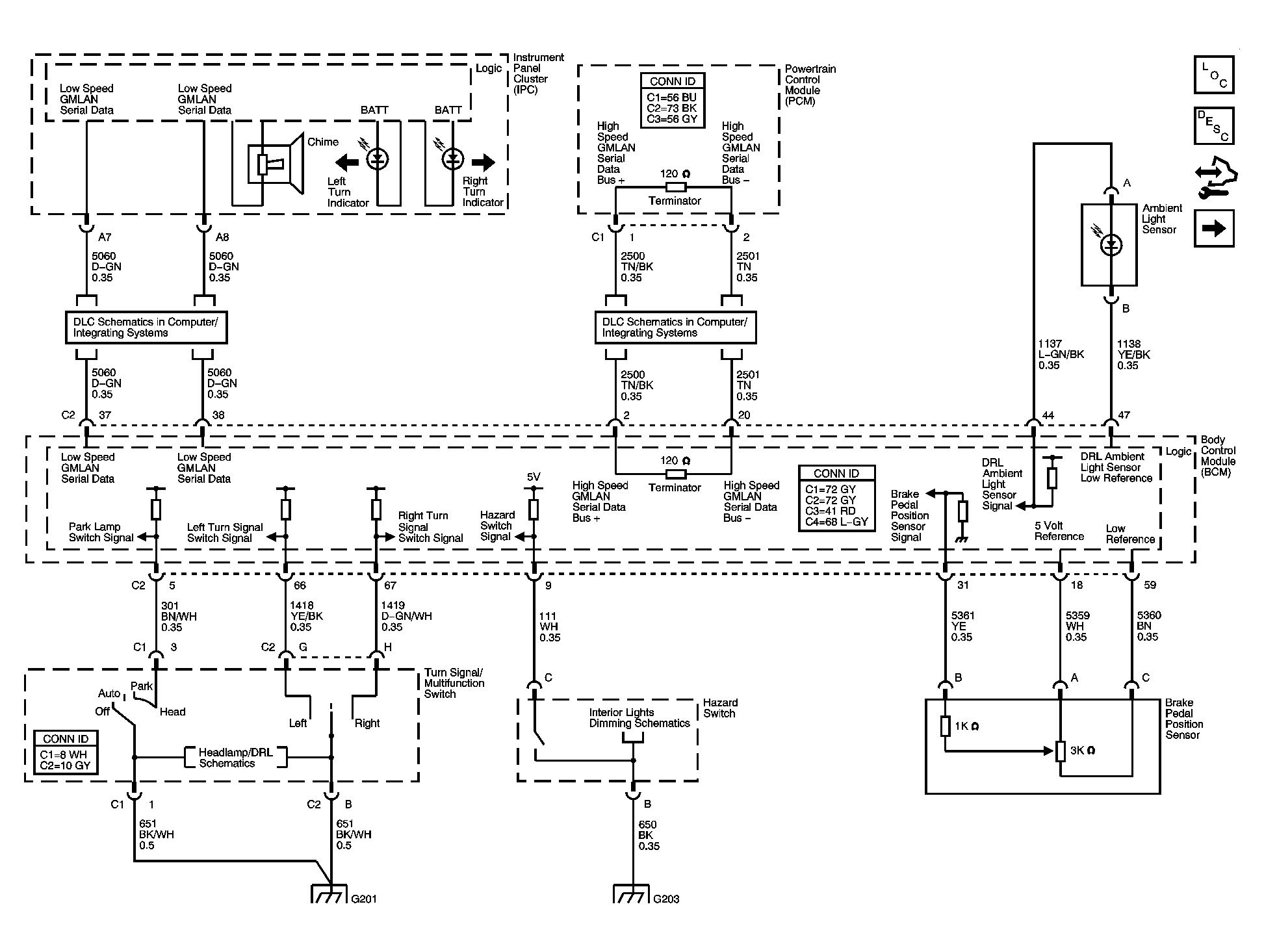

Fig 1: Inputs
GM1475570Courtesy of GENERAL MOTORS CORP.

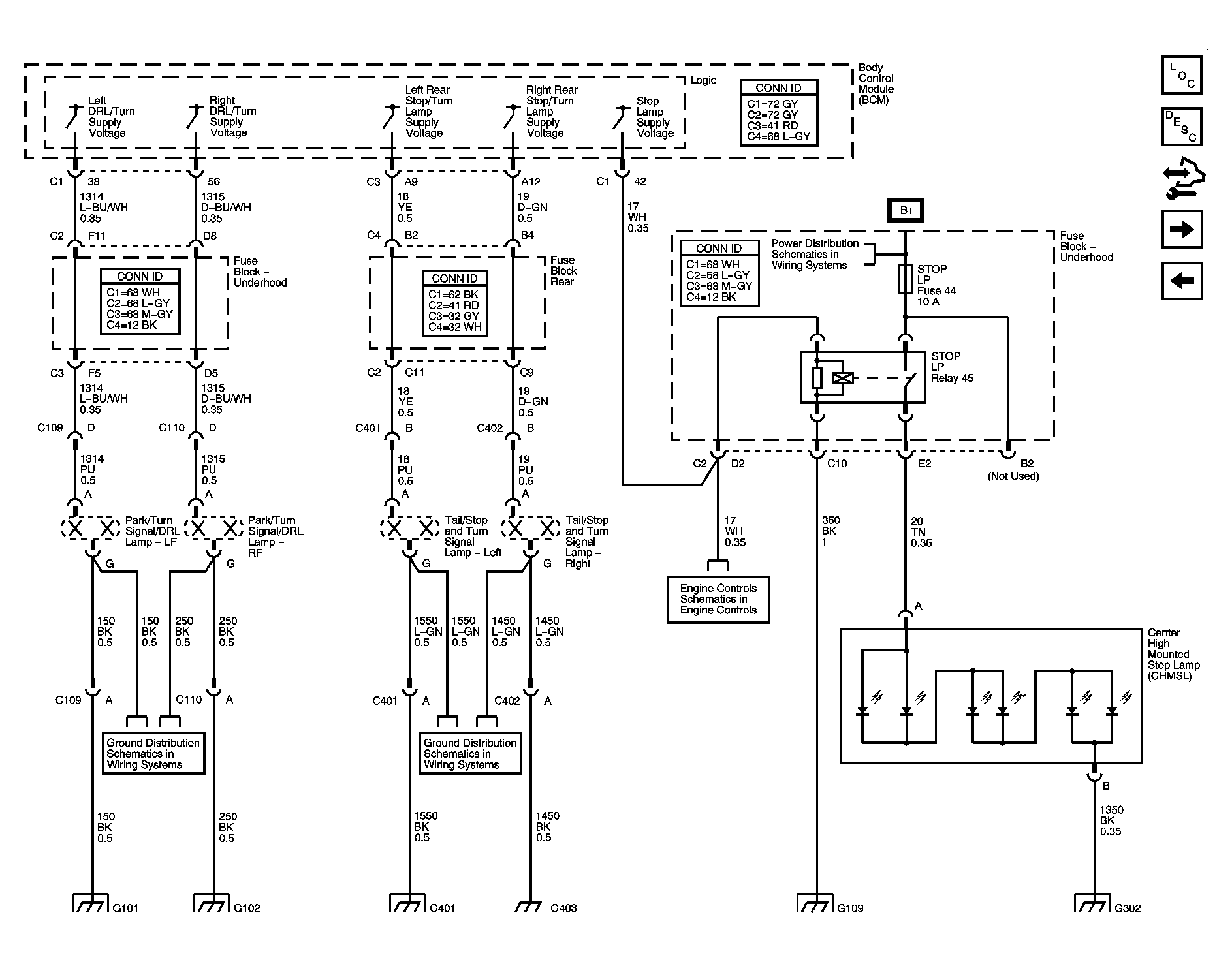

Fig 2: Turn Signal, Hazard, DRL and Stop Lamps
GM1475571Courtesy of GENERAL MOTORS CORP.

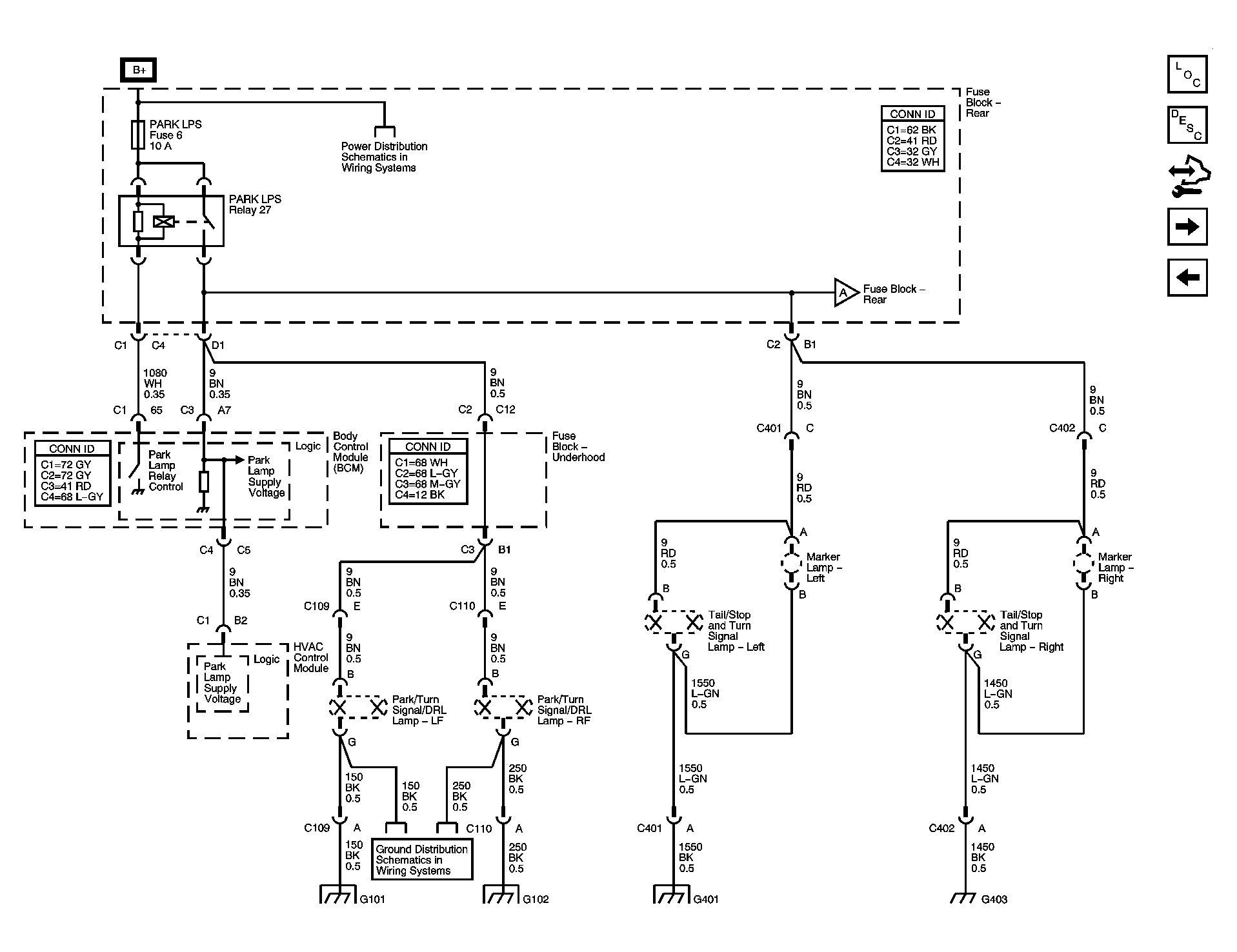

Fig 3: Park Lamps
GM1475573Courtesy of GENERAL MOTORS CORP.

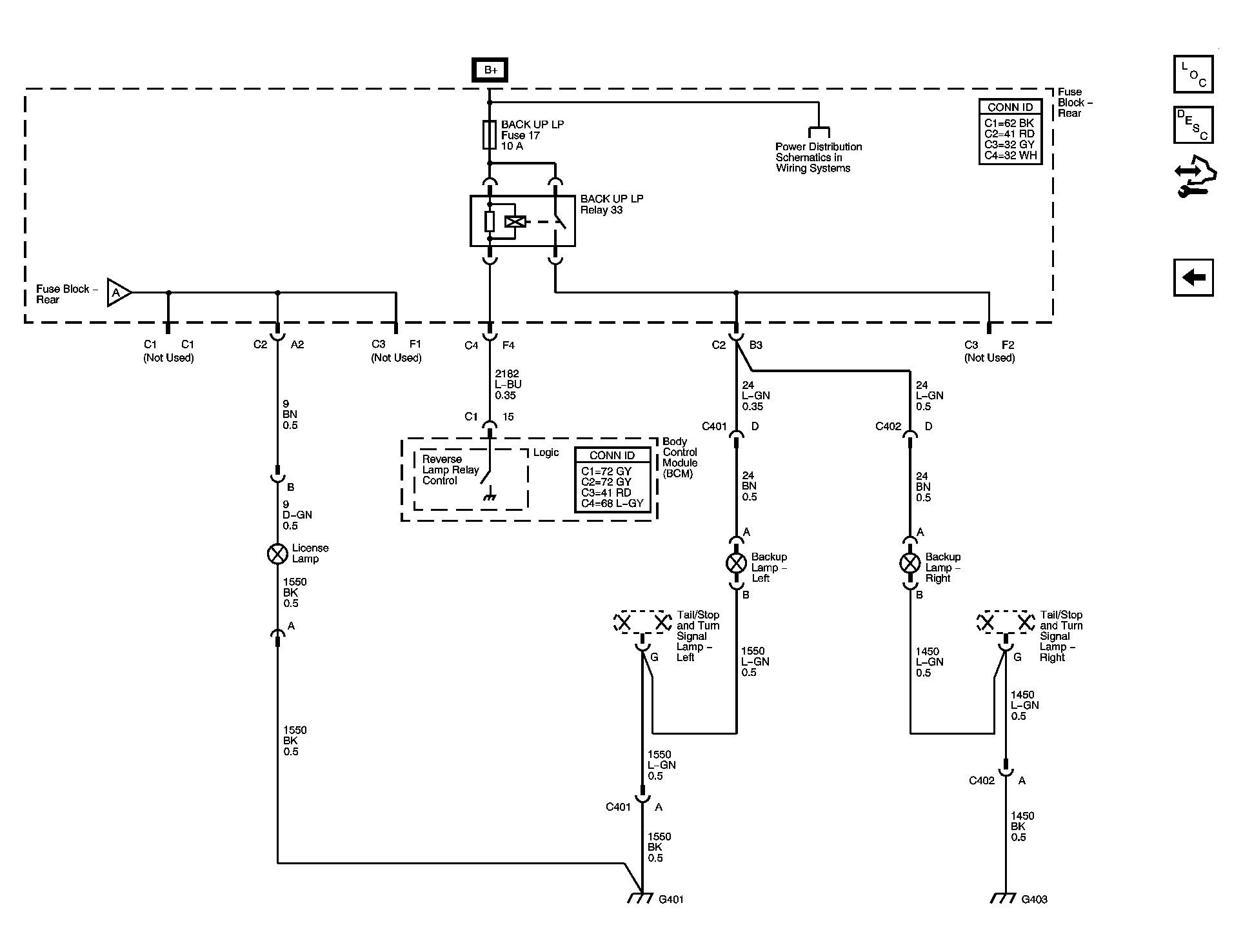

Fig 4: Park Lamps and Backup Lamps
GM1475576Courtesy of GENERAL MOTORS CORP.
