Radio/Audio System Schematics

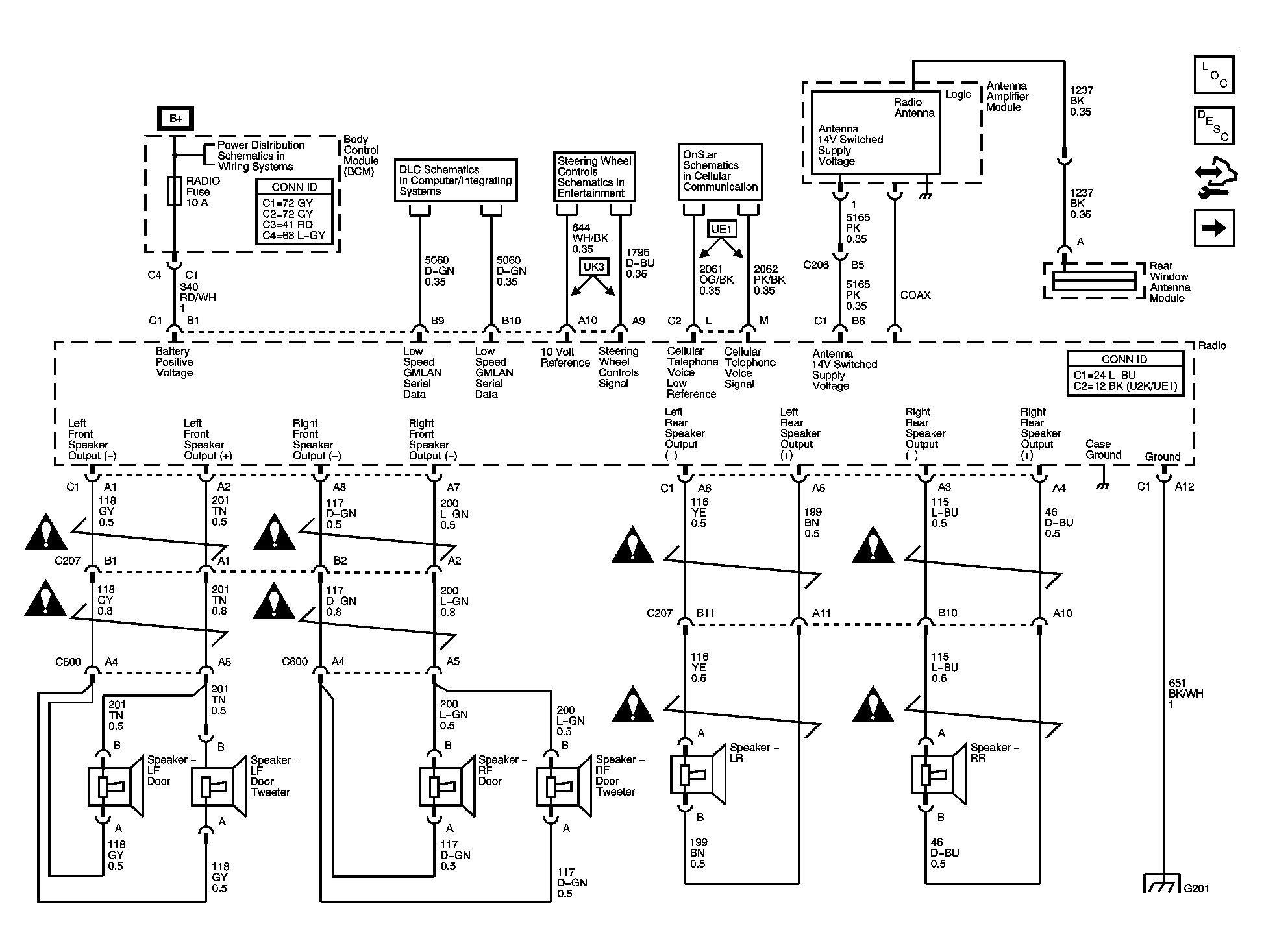

Fig 1: Radio w/UZ6 Speaker System
GM1482683Courtesy of GENERAL MOTORS CORP.
Fig 2: Radio w/U85 Speaker System - 1 of 2
GM1482690Courtesy of GENERAL MOTORS CORP.

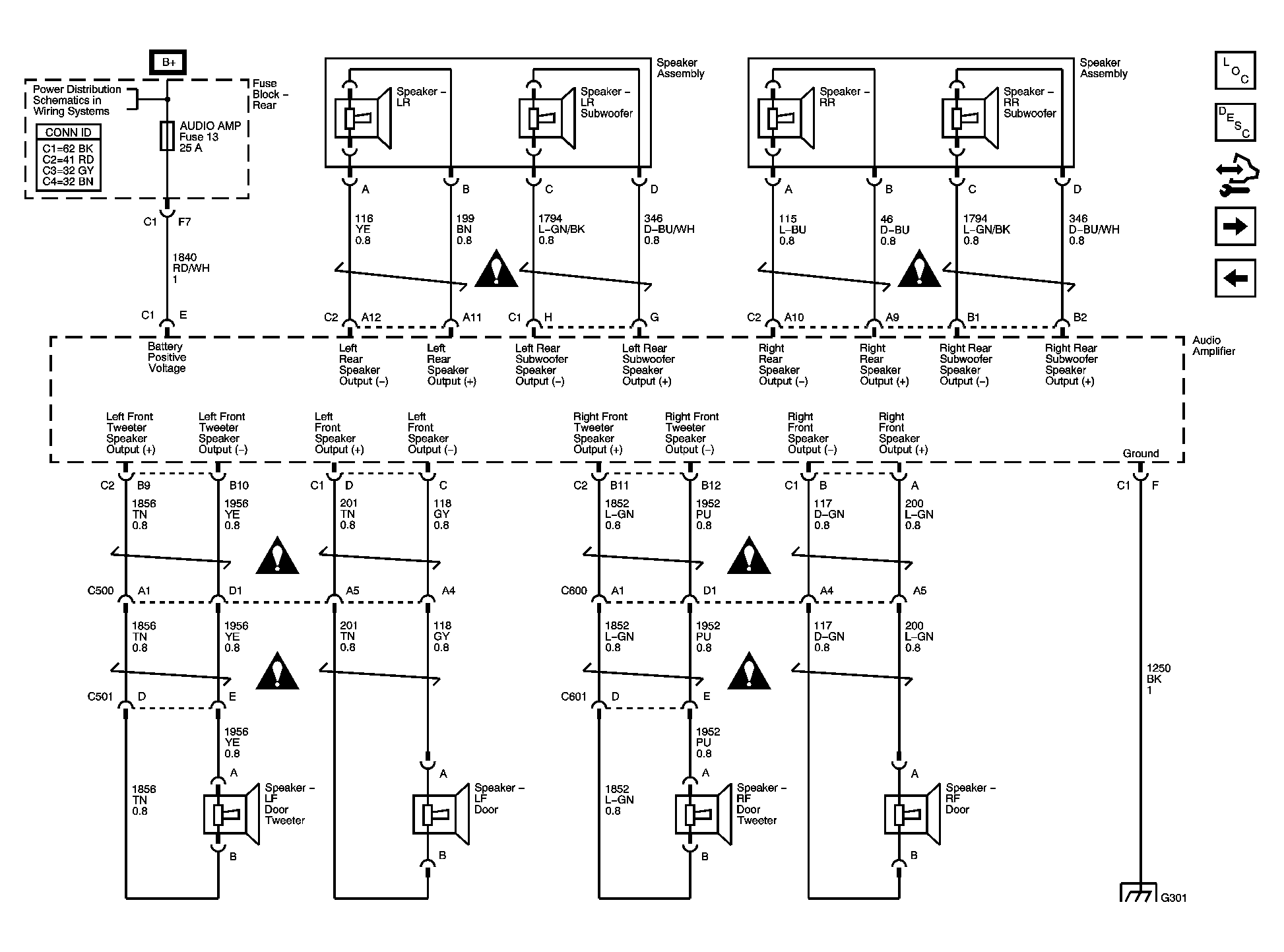

Fig 3: Radio w/U85 Speaker System - 2 of 2
GM1482724Courtesy of GENERAL MOTORS CORP.

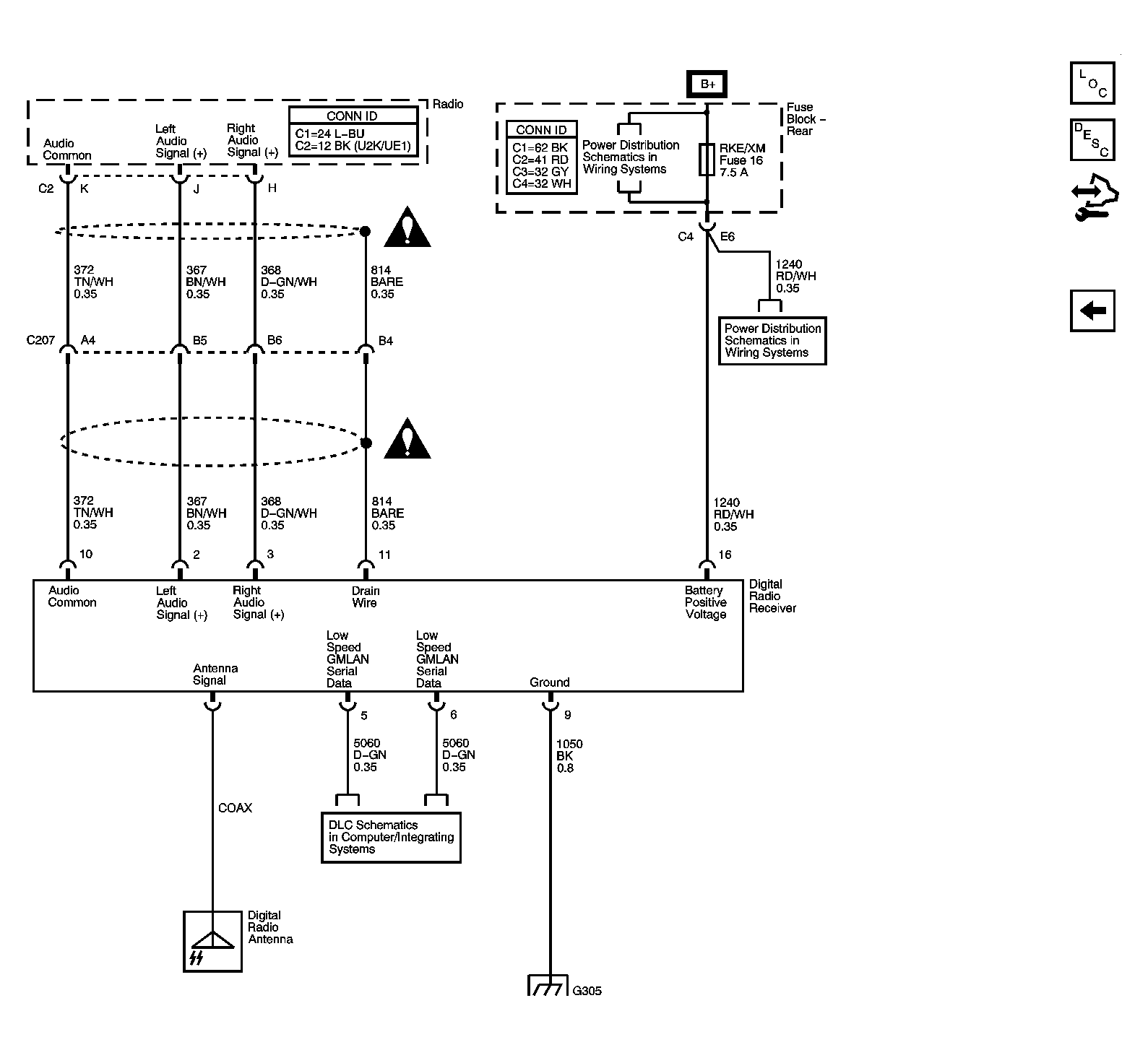

Fig 4: Digital Radio Receiver (U2K)
GM1482752Courtesy of GENERAL MOTORS CORP.
