Receiver Replacement - Digital Radio (Sedan)

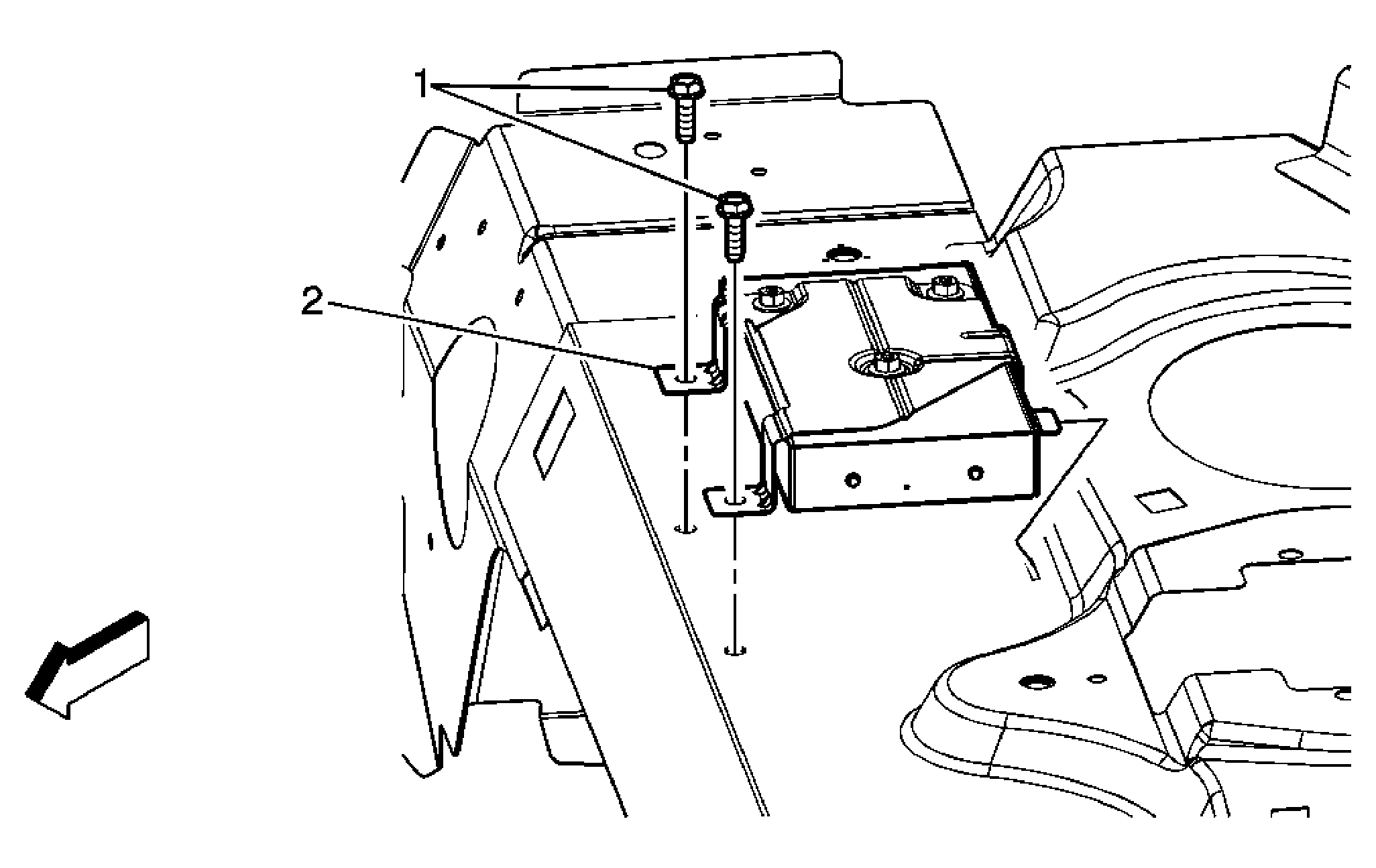

Fig 1: Replacing Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the rear widow shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf . Program the digital radio receiver after replacement. Refer to Control Module References .
1	Bolt, Digital Radio Receiver Assembly (Qty: 2) Tighten: 10 N.m (89 lb in)
2	Receiver Assembly, Digital Radio Tip: Do not swap digital radio receivers between vehicles. Swapping digital receivers between vehicles will activate the digital radio Theftlock, XM Theftlock will be displayed.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the rear widow shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf .
Program the digital radio receiver after replacement. Refer to Control Module References .

Bolt, Digital Radio Receiver Assembly (Qty: 2)

Tighten: 10 N.m (89 lb in)

Receiver Assembly, Digital Radio
Tip: Do not swap digital radio receivers between vehicles. Swapping digital receivers between vehicles will activate the digital radio Theftlock, XM Theftlock will be displayed.
