Bracket Replacement - Console Floor

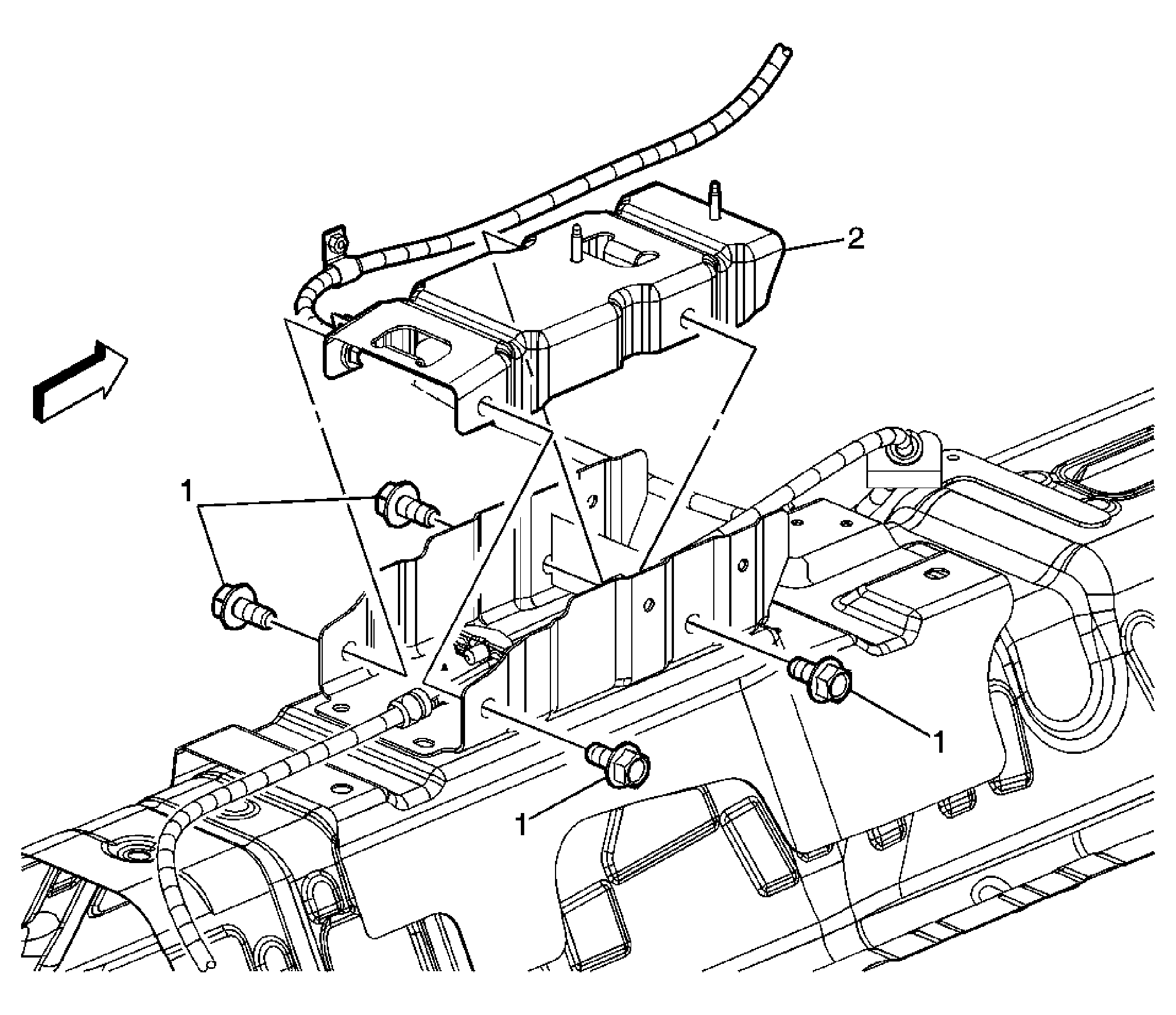

Fig 1: View Of Console Floor Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front floor console. Refer to Console Replacement .
1	Bolt, Front Floor Console (Qty: 4) Tighten: 9 N.m (80 lb in)
2	Bracket Assembly, Front Floor Console
