Instrument Panel, Gages, and Console Component Views

Fig 1: Lower Left Front of Engine - LX9

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Oil Pressure (EOP) Switch
2	Starter
3	Starter Solenoid
4	Knock Sensor (KS) 2

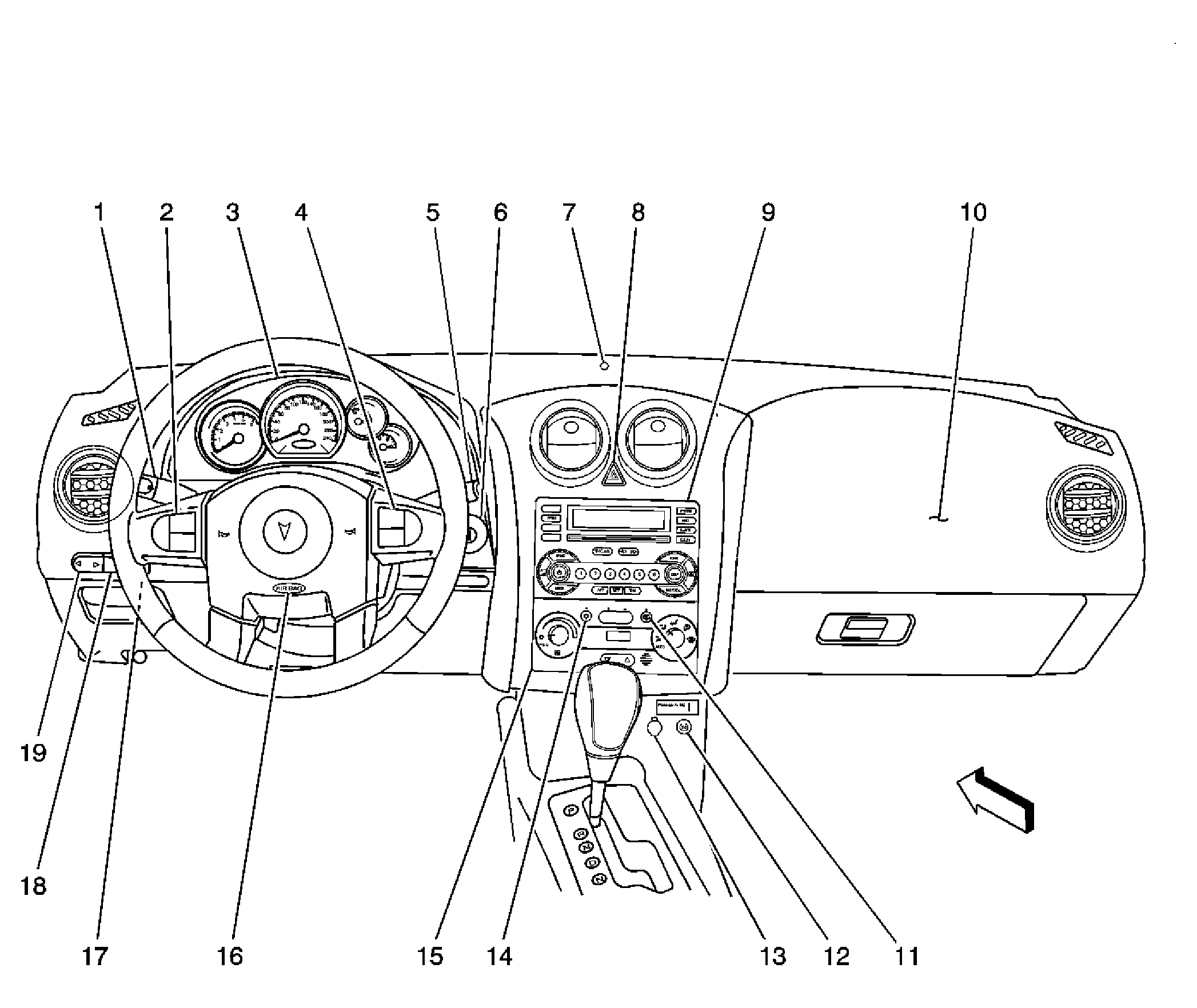

Fig 2: Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right
5	Windshield Wiper/Washer Switch
6	Ignition Switch
7	Ambient Light Sensor
8	Hazard Switch
9	Radio
10	Inflatable Restraint I/P Module
11	Rear Window Defogger Switch
12	Traction Control Switch (NW7/NW9)
13	Cigar Lighter
14	A/C Request Switch
15	HVAC Control Module
16	Inflatable Restraint Steering Wheel Module
17	Fog Lamp Switch
18	I/P Dimmer Switch
19	Adjustable Pedals Position Switch

Fig 3: Top of Fuel Tank

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Pressure (FTP) Sensor, Connector
2	Fuel Pump and Sender Assembly
3	Fuel Pump and Sender Assembly Connector
4	Fuel Tank
