DTC P1860 (3.4L): Notes

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

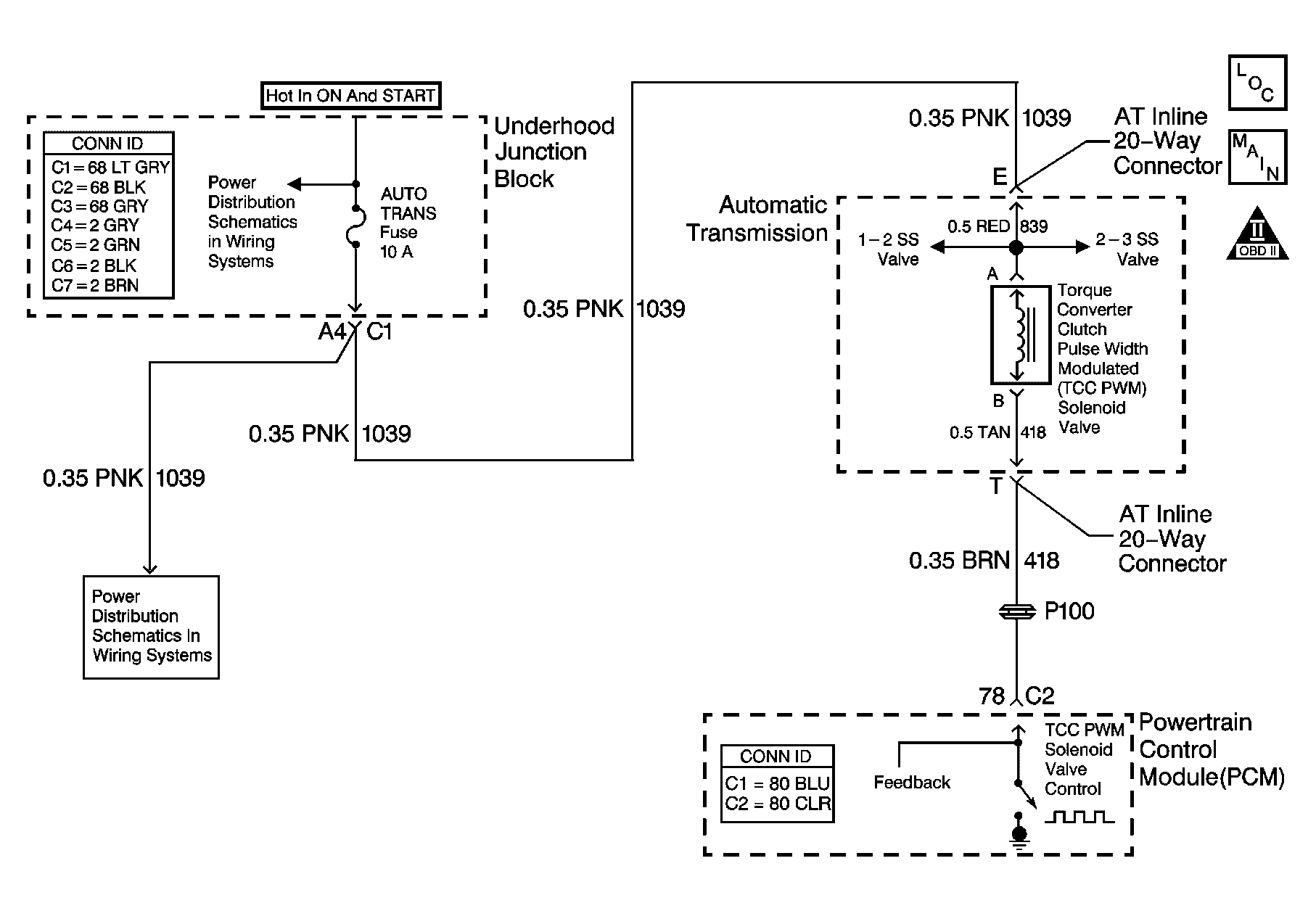

Fig 1: DTC P1860 Circuit (3.4L)
GM1278634Courtesy of GENERAL MOTORS CORP.
