DTC P1860 (2.2L): Notes

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

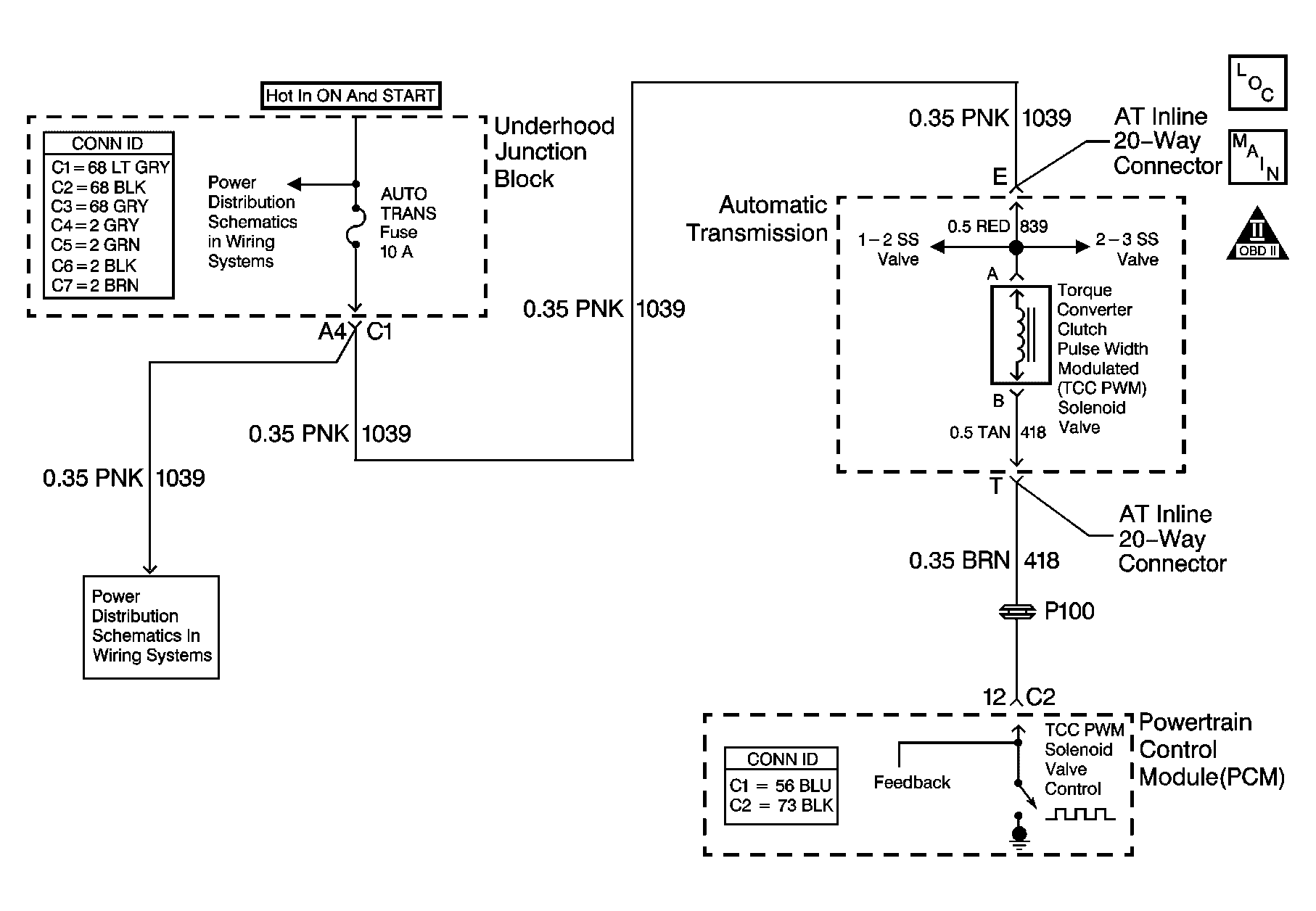

Fig 1: DTC P1860 Circuit (2.2L)
GM1278633Courtesy of GENERAL MOTORS CORP.
