Instrument Cluster Schematics

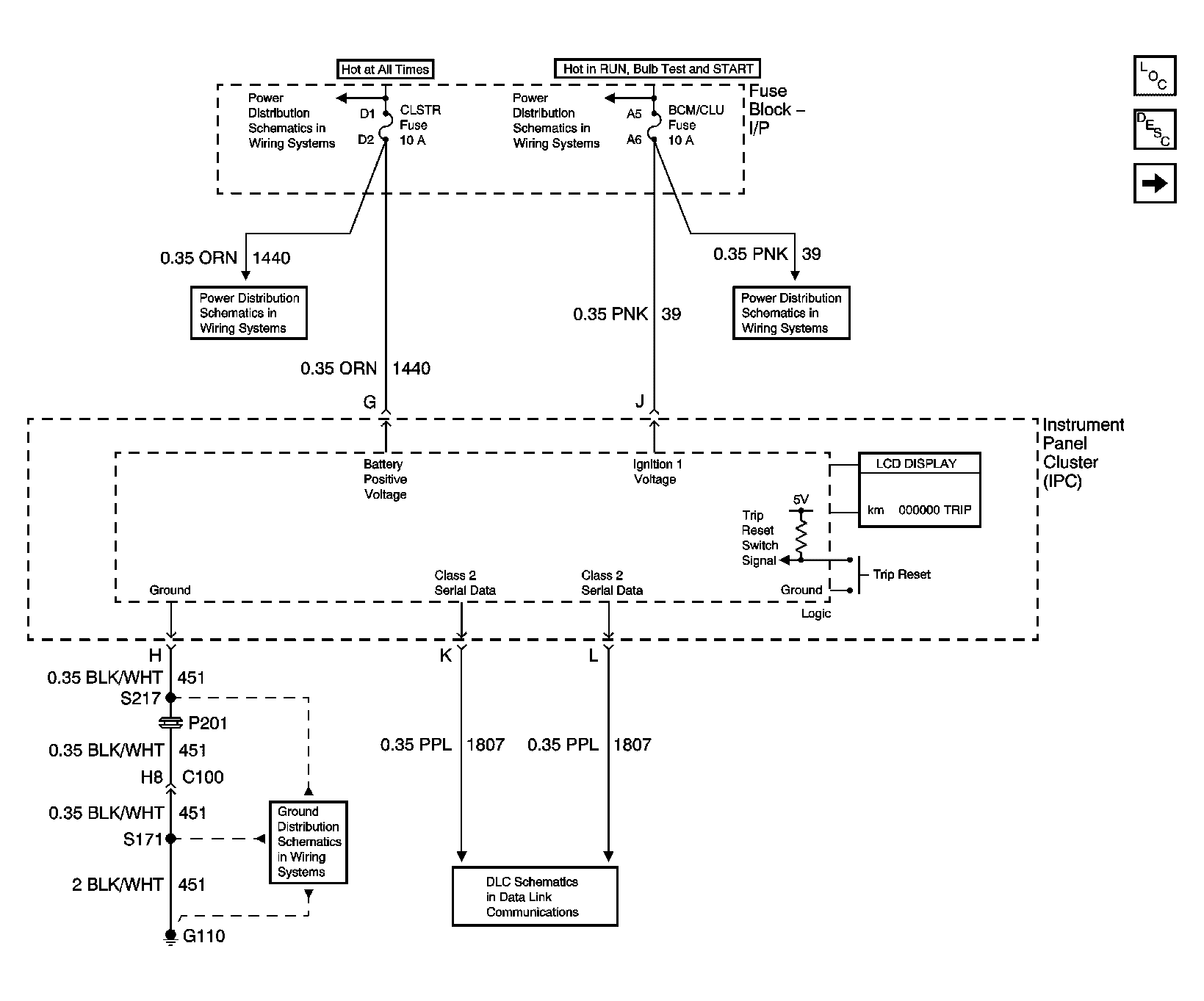

Fig 1: Power, Ground & Serial Data Schematic
GM787943Courtesy of GENERAL MOTORS CORP.

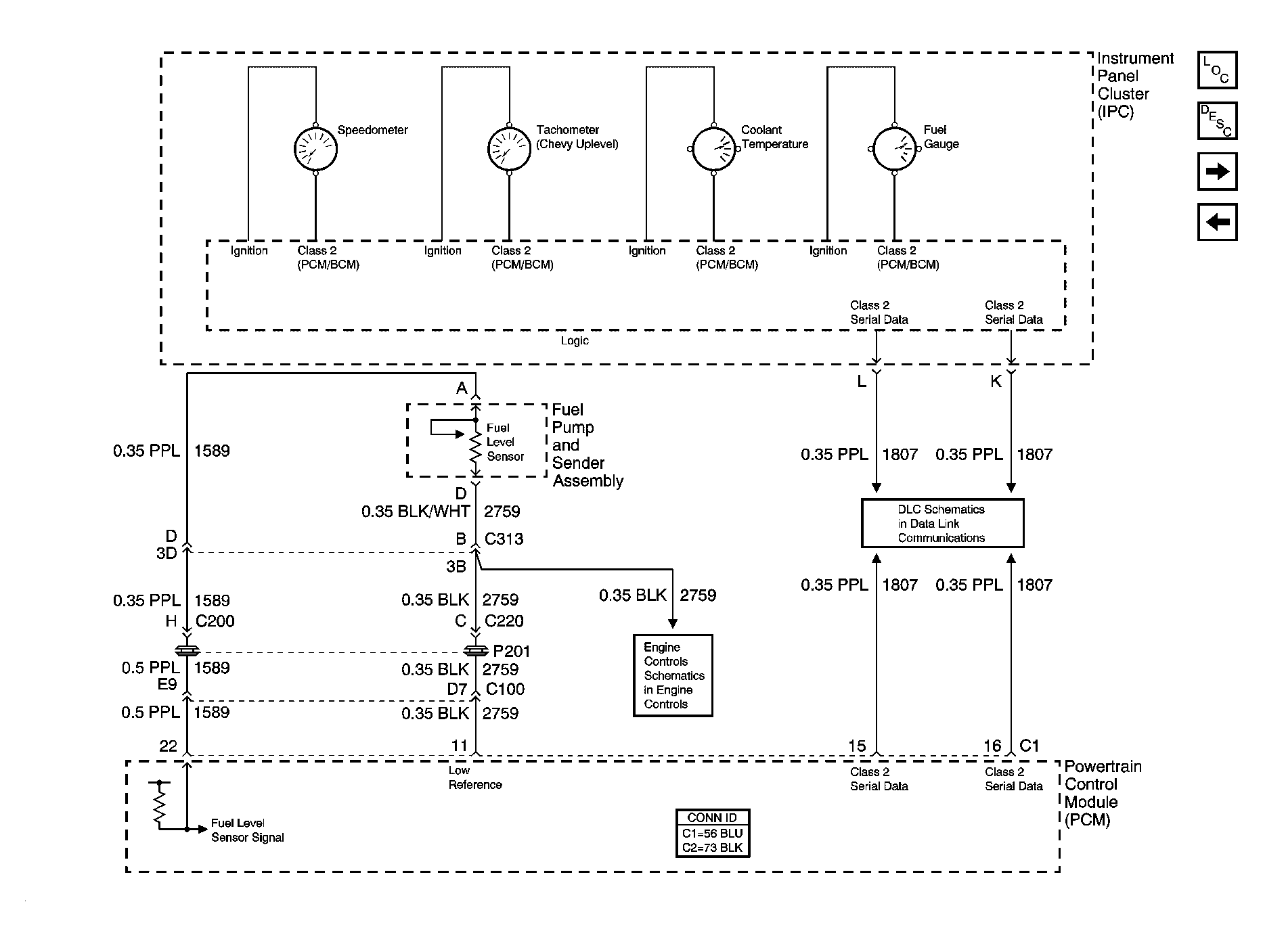

Fig 2: Gages Schematic
GM860499Courtesy of GENERAL MOTORS CORP.

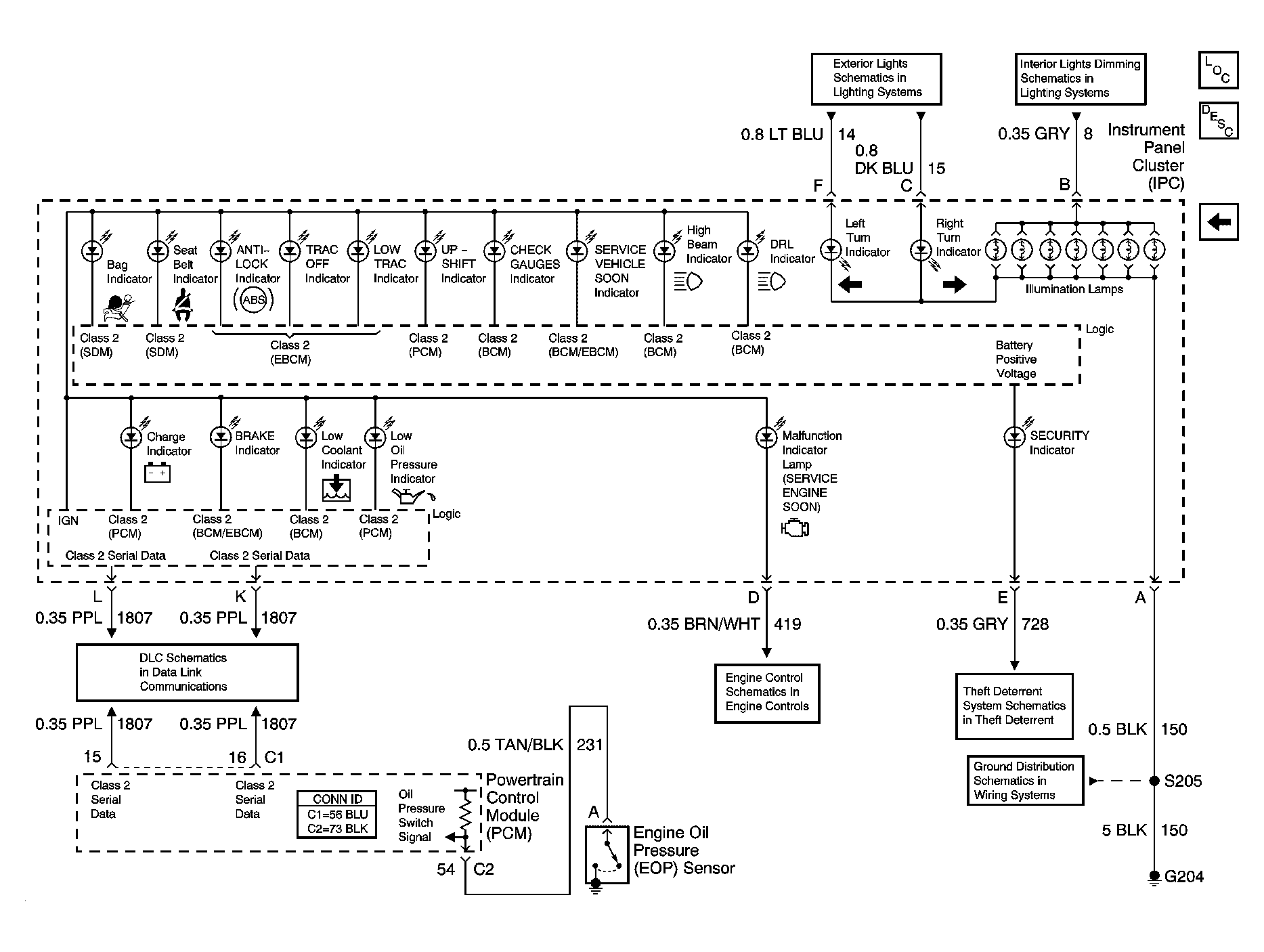

Fig 3: Indicator Lights & EOP Schematic
GM860502Courtesy of GENERAL MOTORS CORP.
