Installation Procedure

  1. Install the I/P trim pad (2) to the I/P carrier.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.

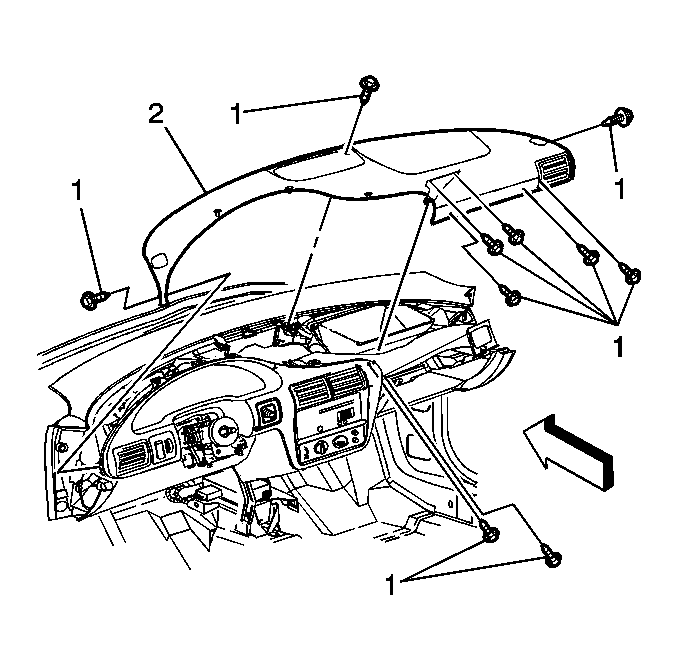

    Fig 1: Installing I/P Trim Pad Screws (Chevrolet)
    GM1228176Courtesy of GENERAL MOTORS CORP.
  2. Install the I/P trim pad screws (1).

    Tighten:  Tighten the screws to 2.3 N.m (20 lb in).

  3. Close the I/P compartment door.
  4. Align the outer trim covers locating tabs into the I/P carrier.

    Press the cover into the I/P carrier until fully engaged.

  5. Install the defroster grille to the I/P trim pad.
  6. Install the defroster grille screw.

    Tighten:  Tighten the screw to 2.3 N.m (20 lb in).

  7. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 and SIR Disabling and Enabling Zone 5 in SIR.
