Installation Procedure

  1. Connect the electrical connector (1) to the I/P cluster (5).

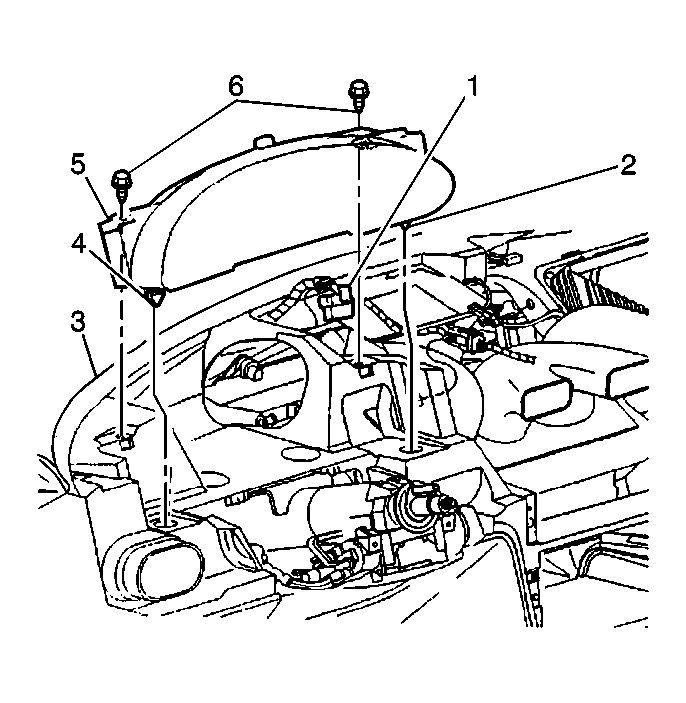

    Fig 1: Connecting (I/P) Cluster Electrical Connector (Chevrolet)
    GM288305Courtesy of GENERAL MOTORS CORP.
  2. Position the I/P cluster retainer tabs (4) into the I/P (3).
  3. Install the instrument panel cluster (5) to the I/P (3).
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the I/P cluster screws (6).

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  5. Install the I/P cluster trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster (Chevrolet) .
