Installation Procedure

  1. Position the right I/P trim panel (3) to the I/P (2).
    2. NOTE: Refer toFastener Notice in Cautions and Notices.

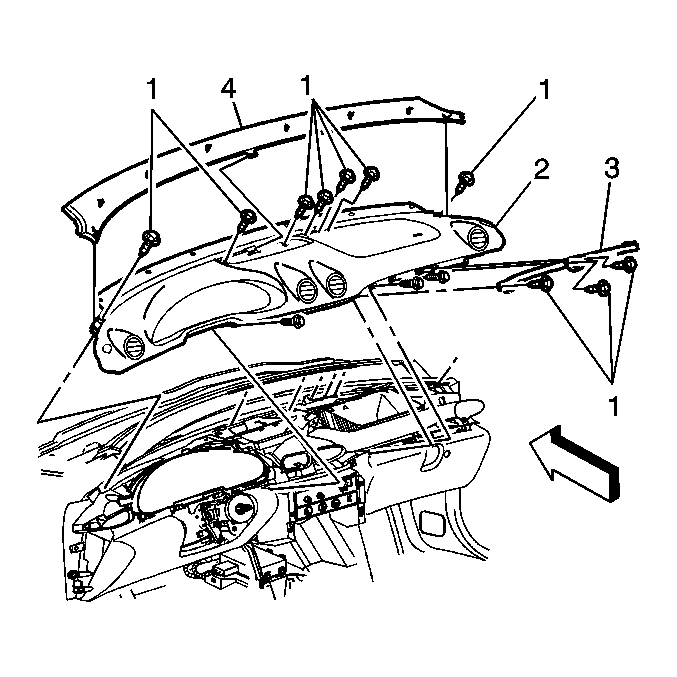

    Fig 1: Installing RH I/P Trim Panel Screws
    GM834451Courtesy of GENERAL MOTORS CORP.
  2. Install the right I/P trim screws (1).

    Tighten:  Tighten the screws to 2.3 N.m (20 lb in).

  3. Install the I/P accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory (Pontiac)  or Trim Plate Replacement - Instrument Panel (I/P) Accessory (Chevrolet) .
  4. Close the I/P compartment door.
