Ground Distribution Schematics

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

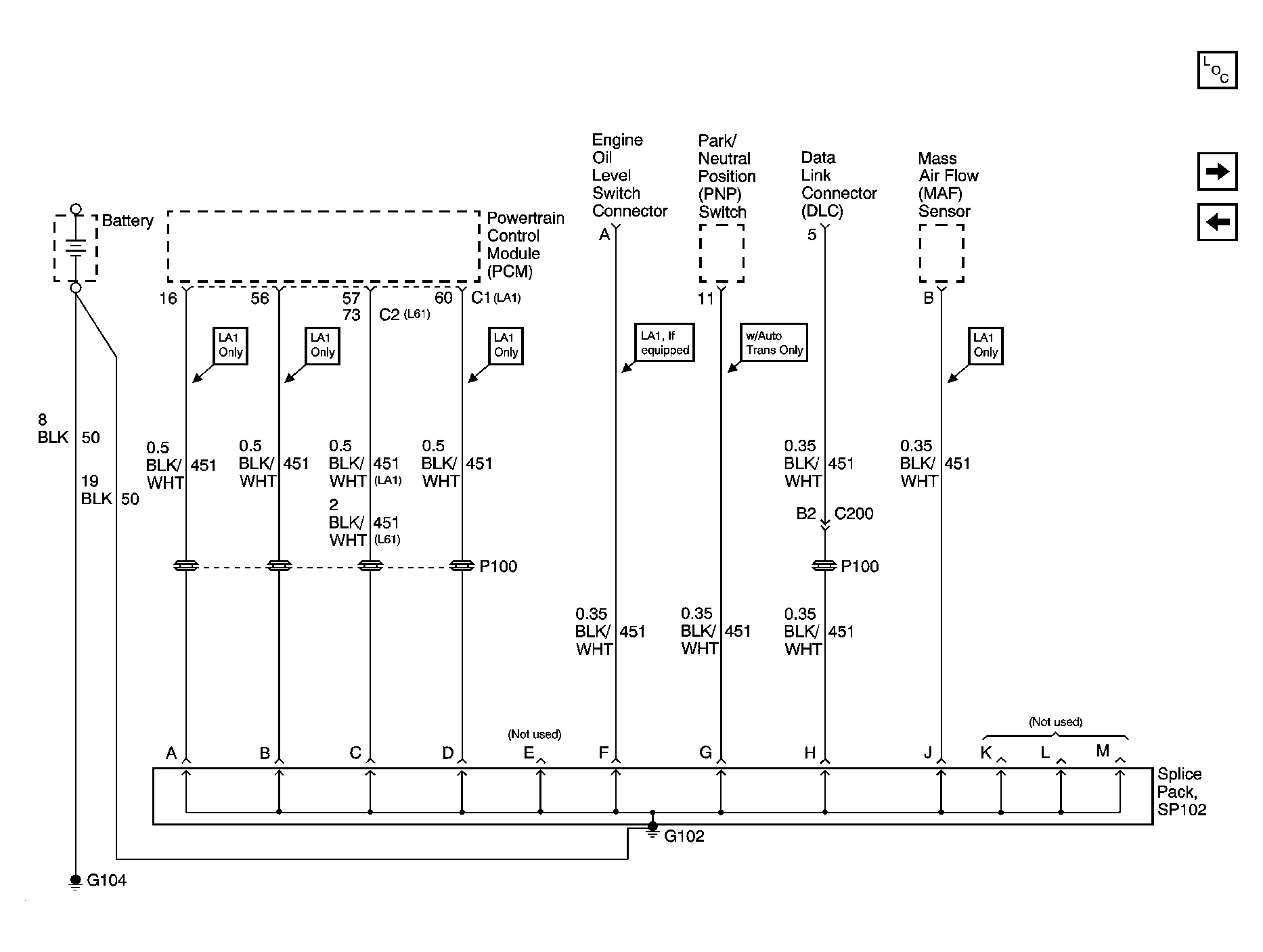

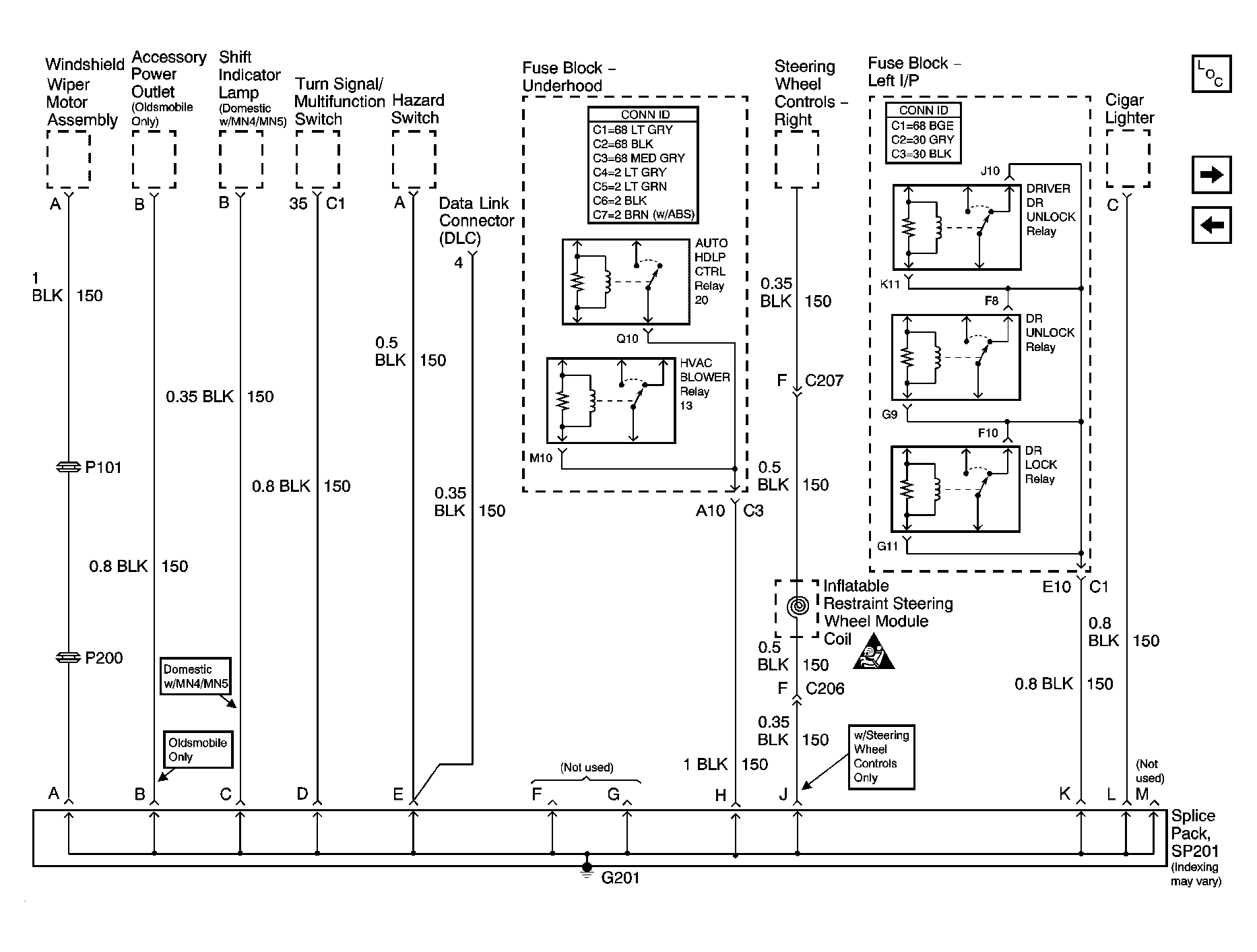

Fig 1: G101 Schematic - Pontiac

Courtesy of GENERAL MOTORS CORP.

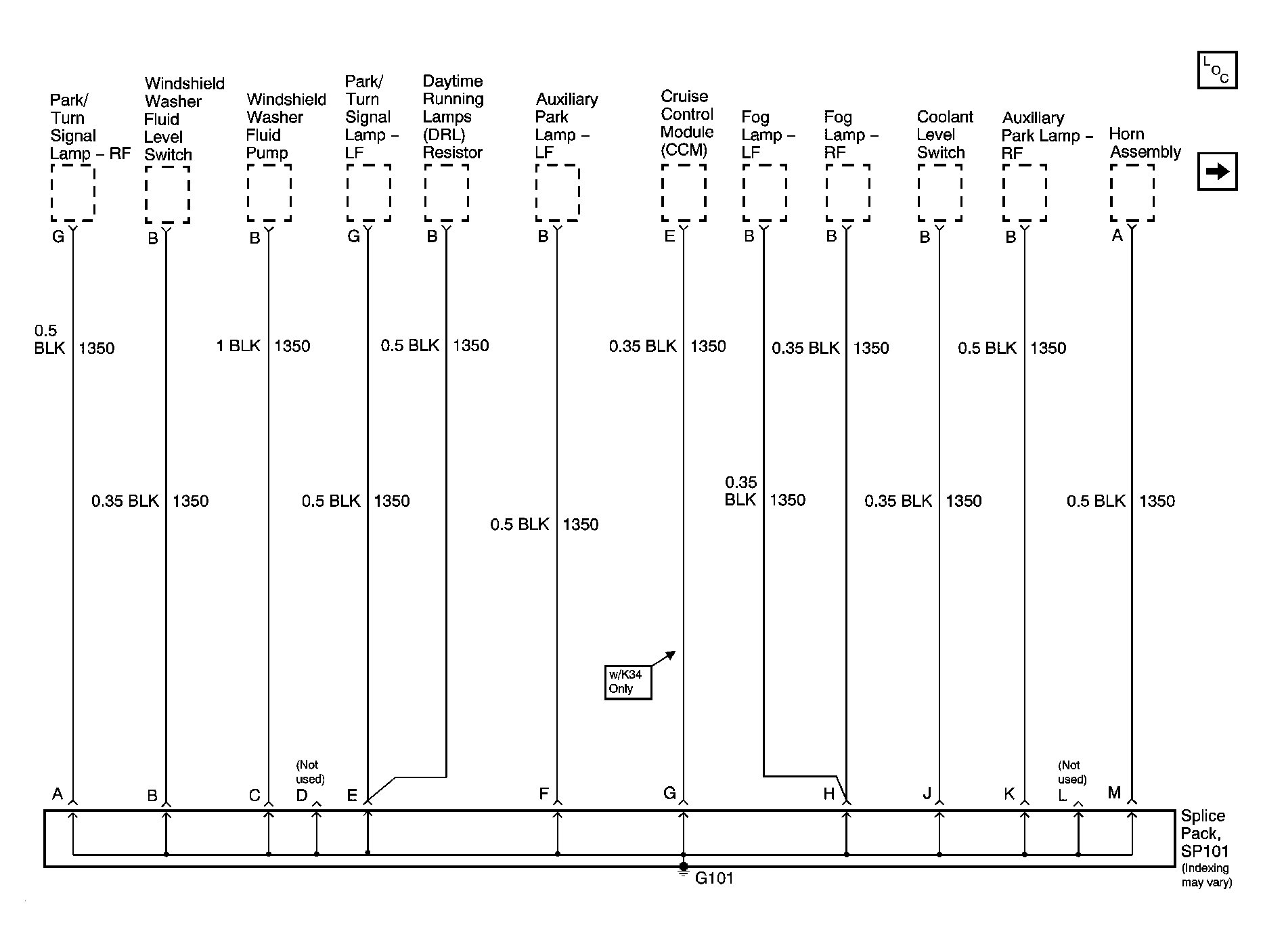

Fig 2: G101 Schematic - Oldsmobile

Courtesy of GENERAL MOTORS CORP.

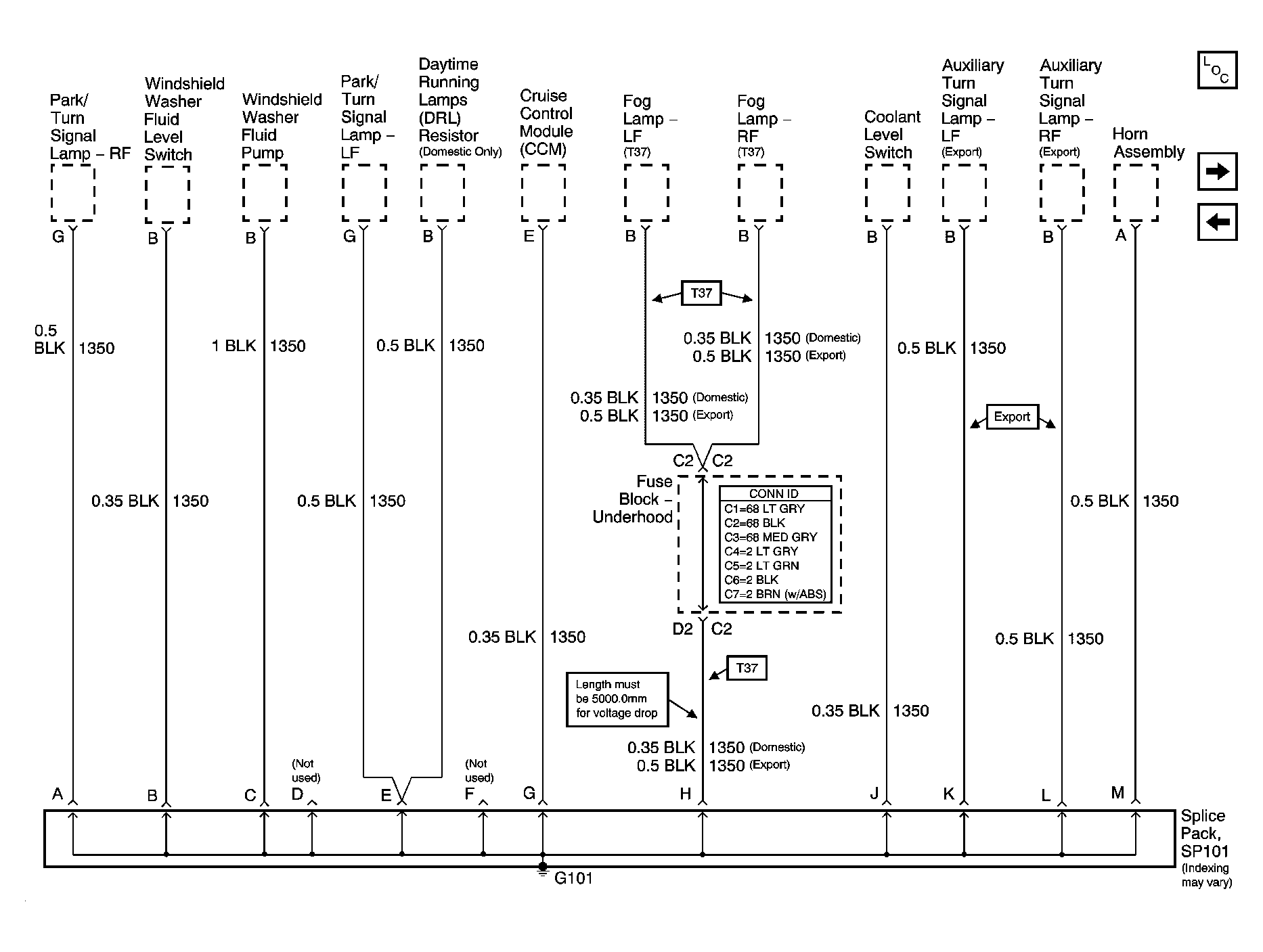

Fig 3: G102 & G104 Schematic

Courtesy of GENERAL MOTORS CORP.

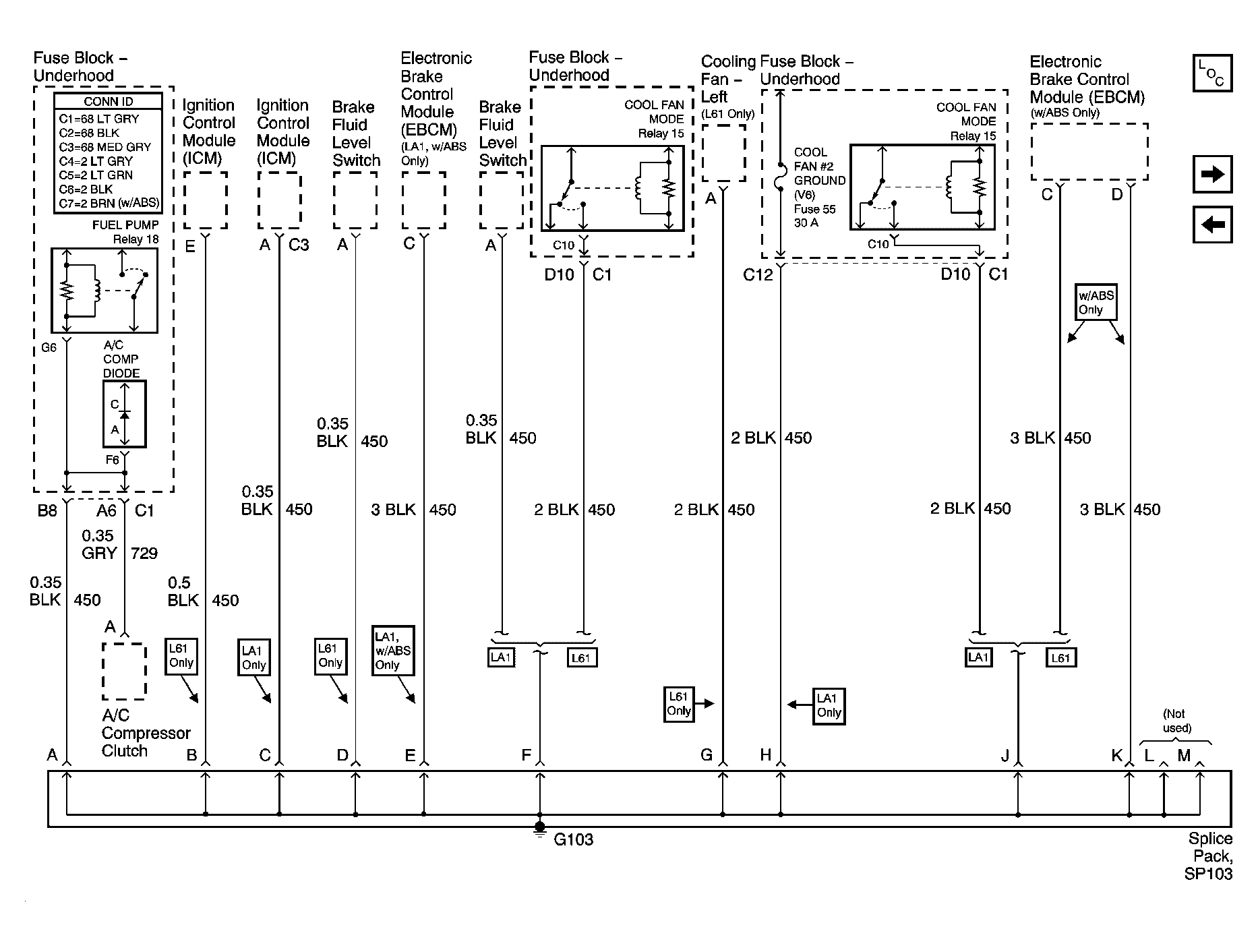

Fig 4: G103 & G105 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: G106 Schematic - Export Only

Courtesy of GENERAL MOTORS CORP.

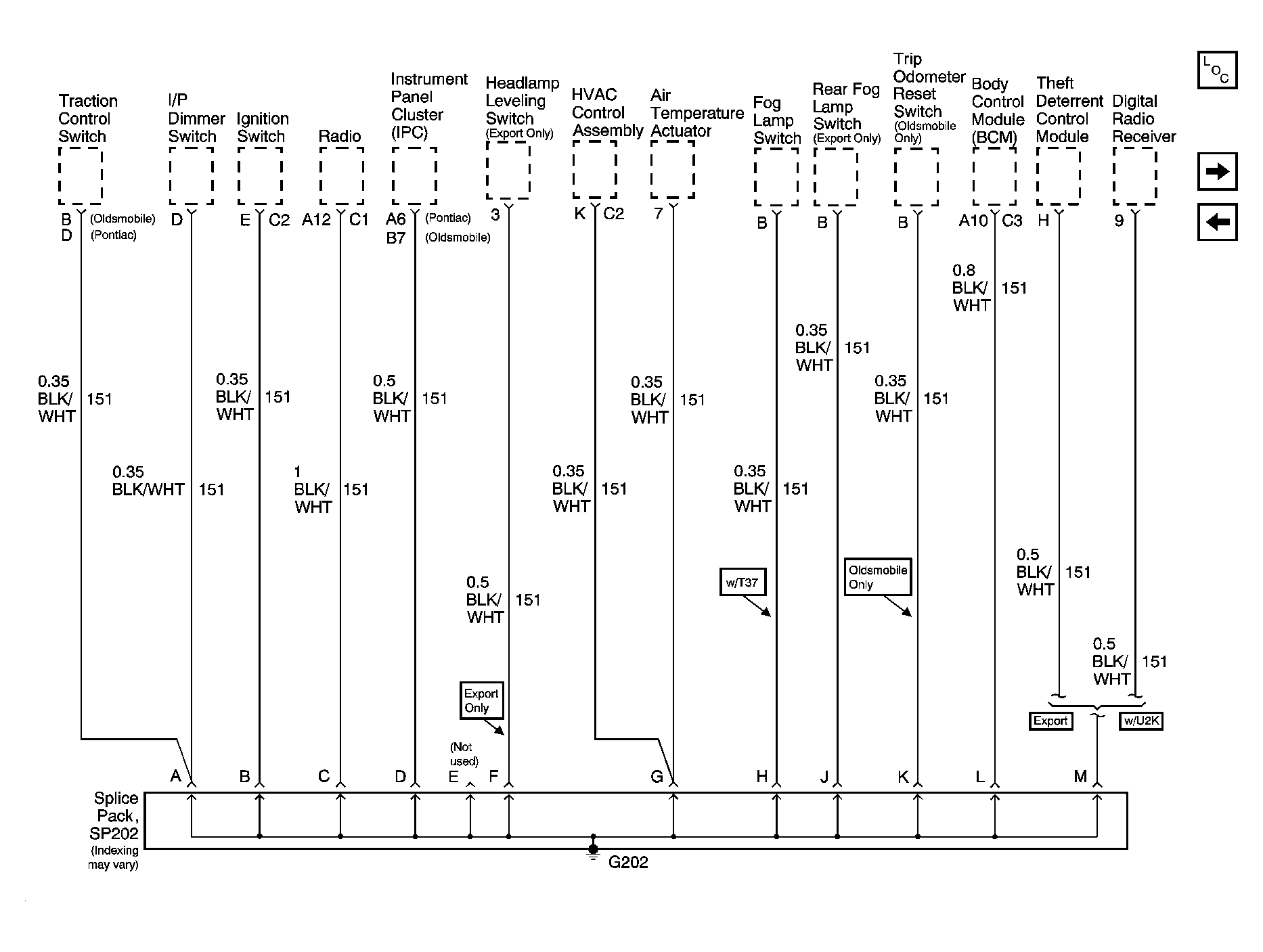

Fig 6: G201 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: G202 Schematic

Courtesy of GENERAL MOTORS CORP.

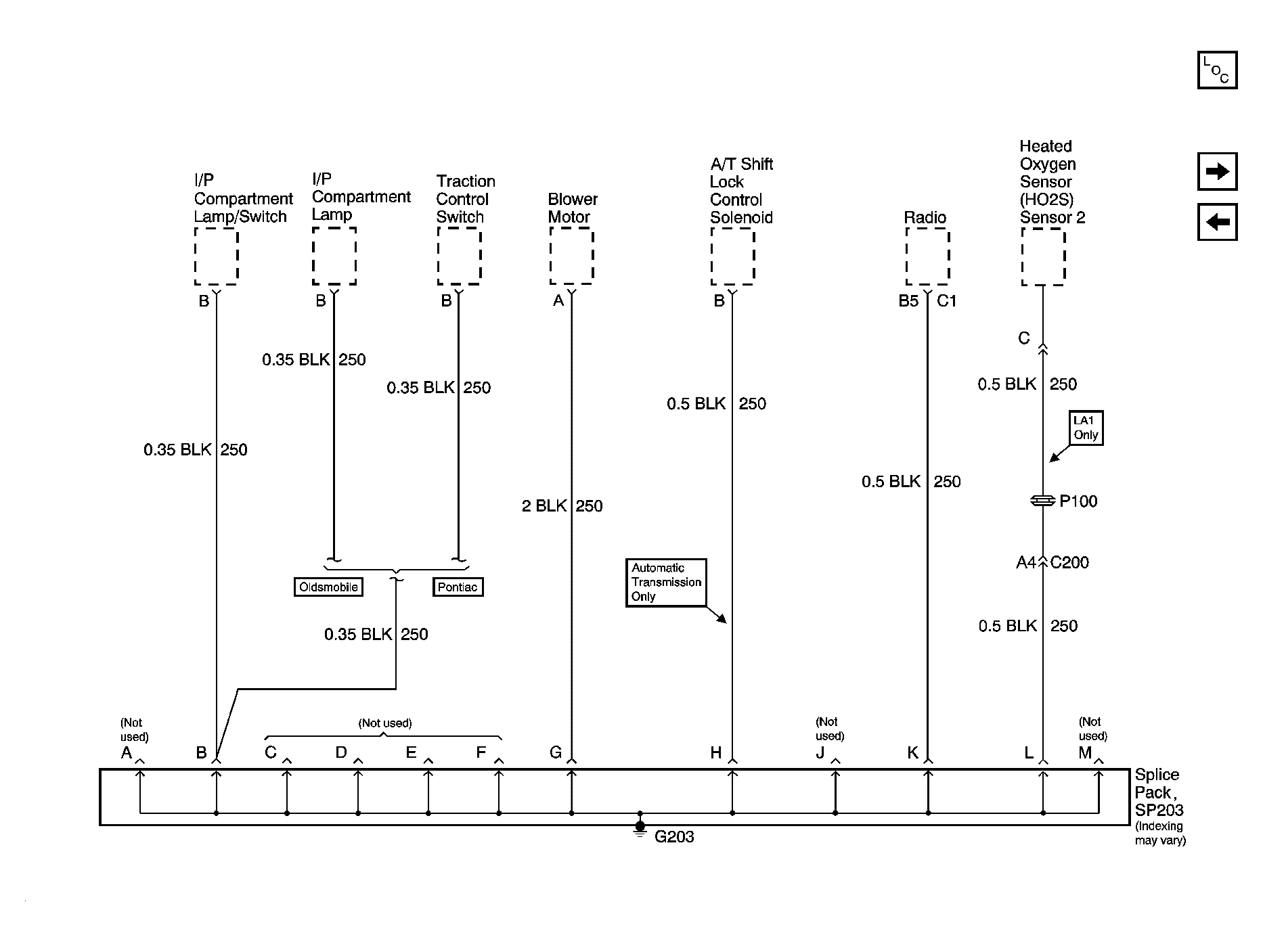

Fig 8: G203 Schematic

Courtesy of GENERAL MOTORS CORP.

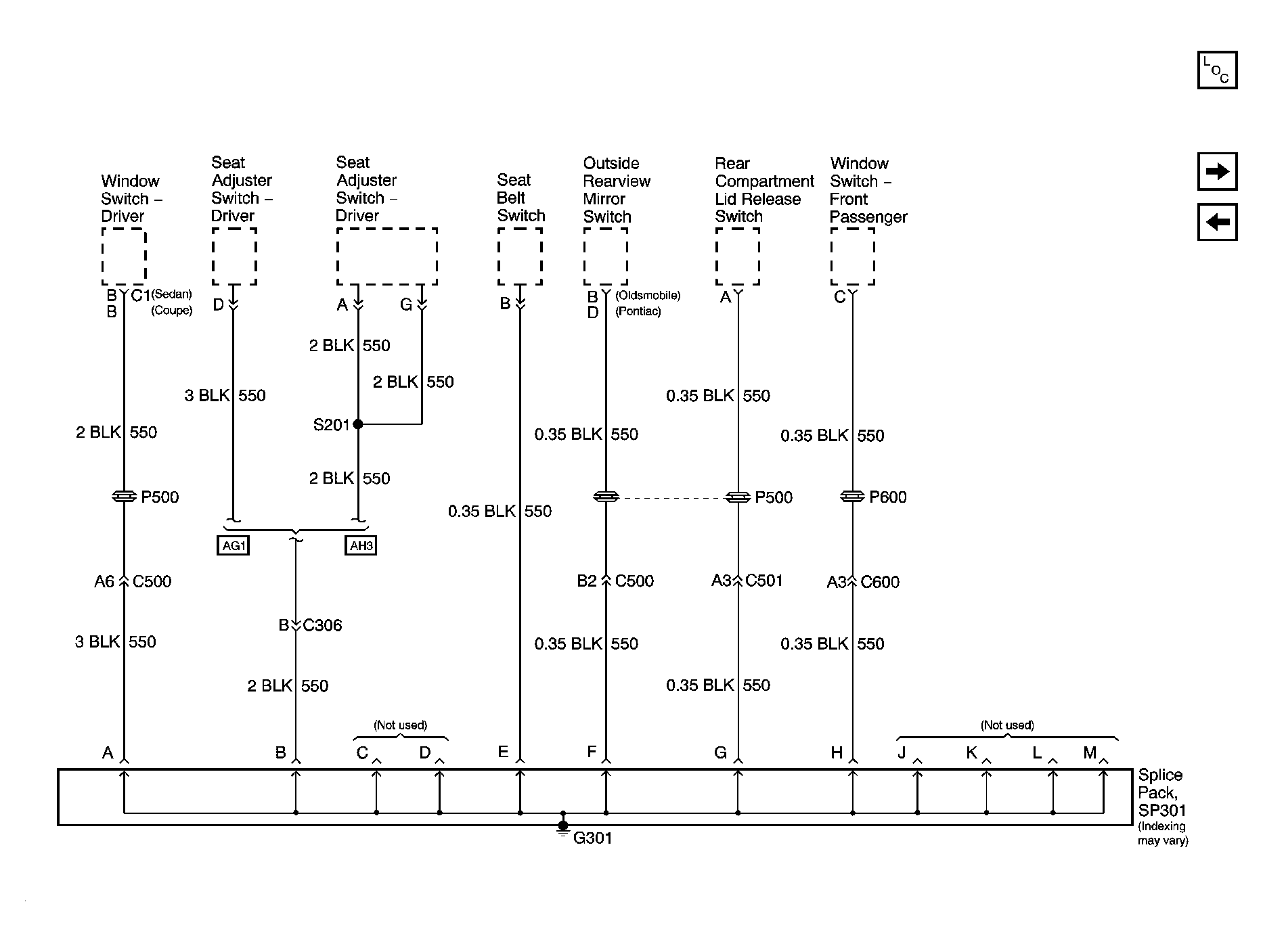

Fig 9: G301 Schematic

Courtesy of GENERAL MOTORS CORP.

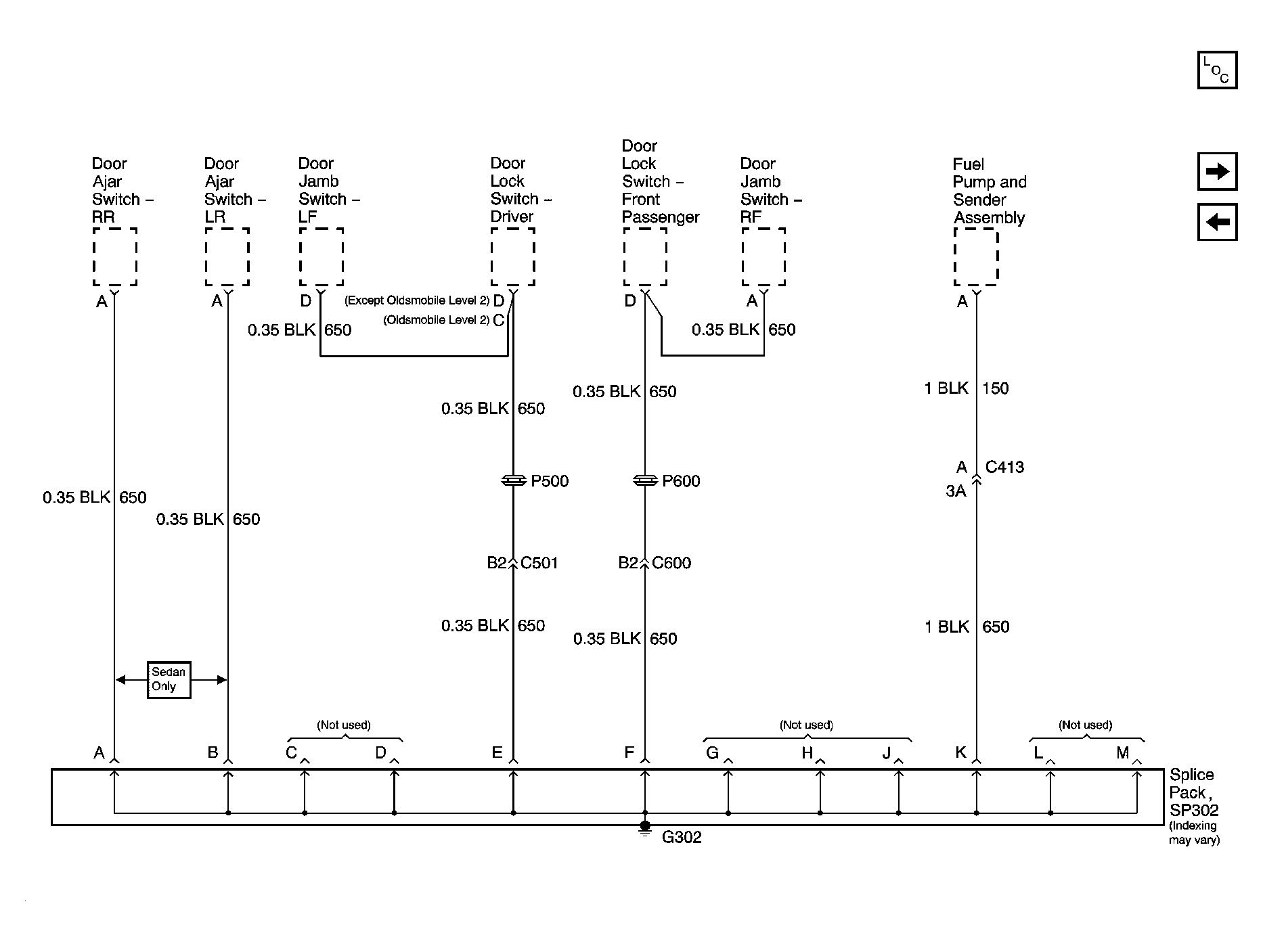

Fig 10: G302 Schematic

Courtesy of GENERAL MOTORS CORP.

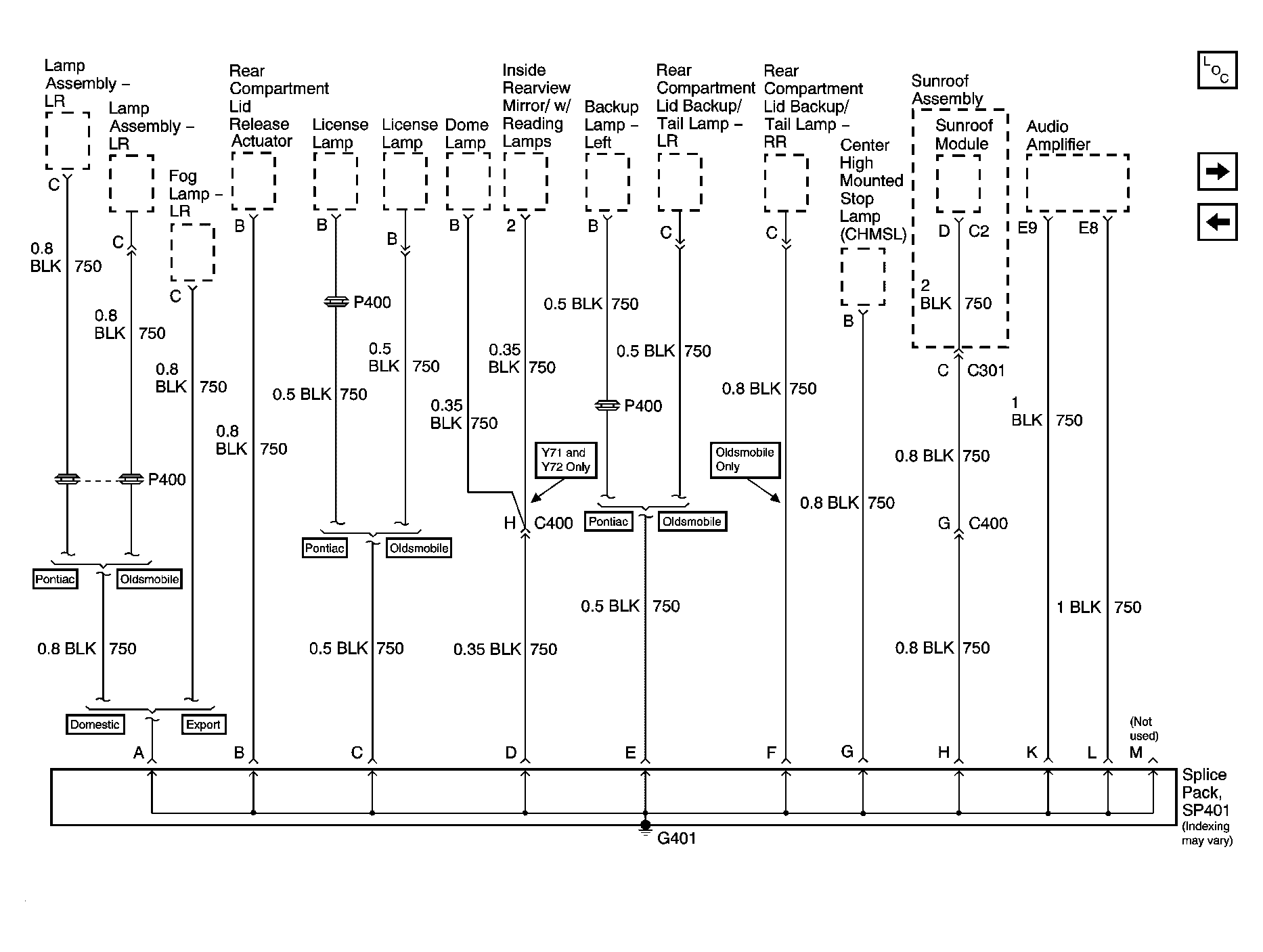

Fig 11: G401 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: G402 Schematic

Courtesy of GENERAL MOTORS CORP.
