DTC P0724 (3.4L): Notes

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

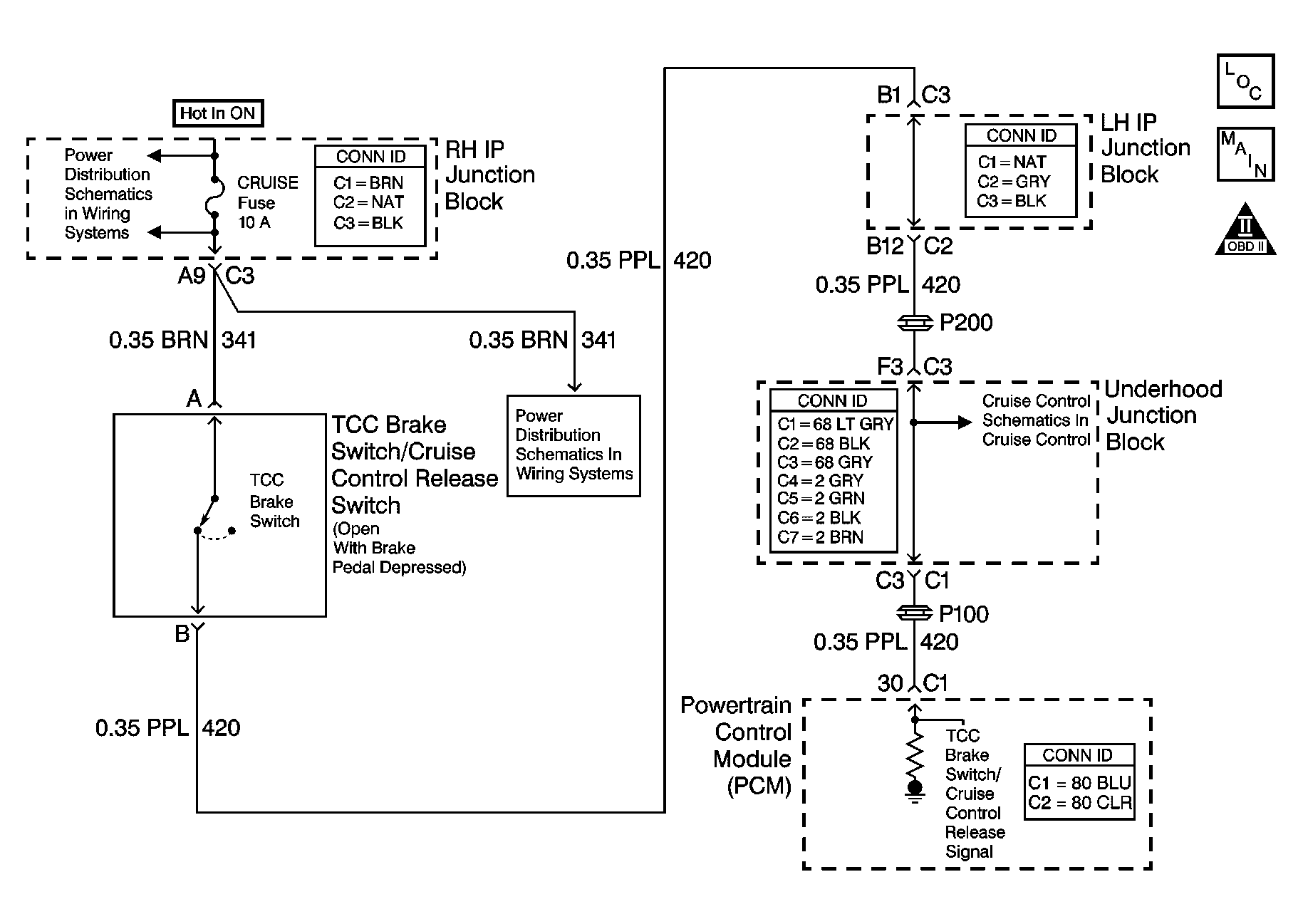

Fig 1: TCC Brake Switch Circuit (3.4L)
GM1278456Courtesy of GENERAL MOTORS CORP.
