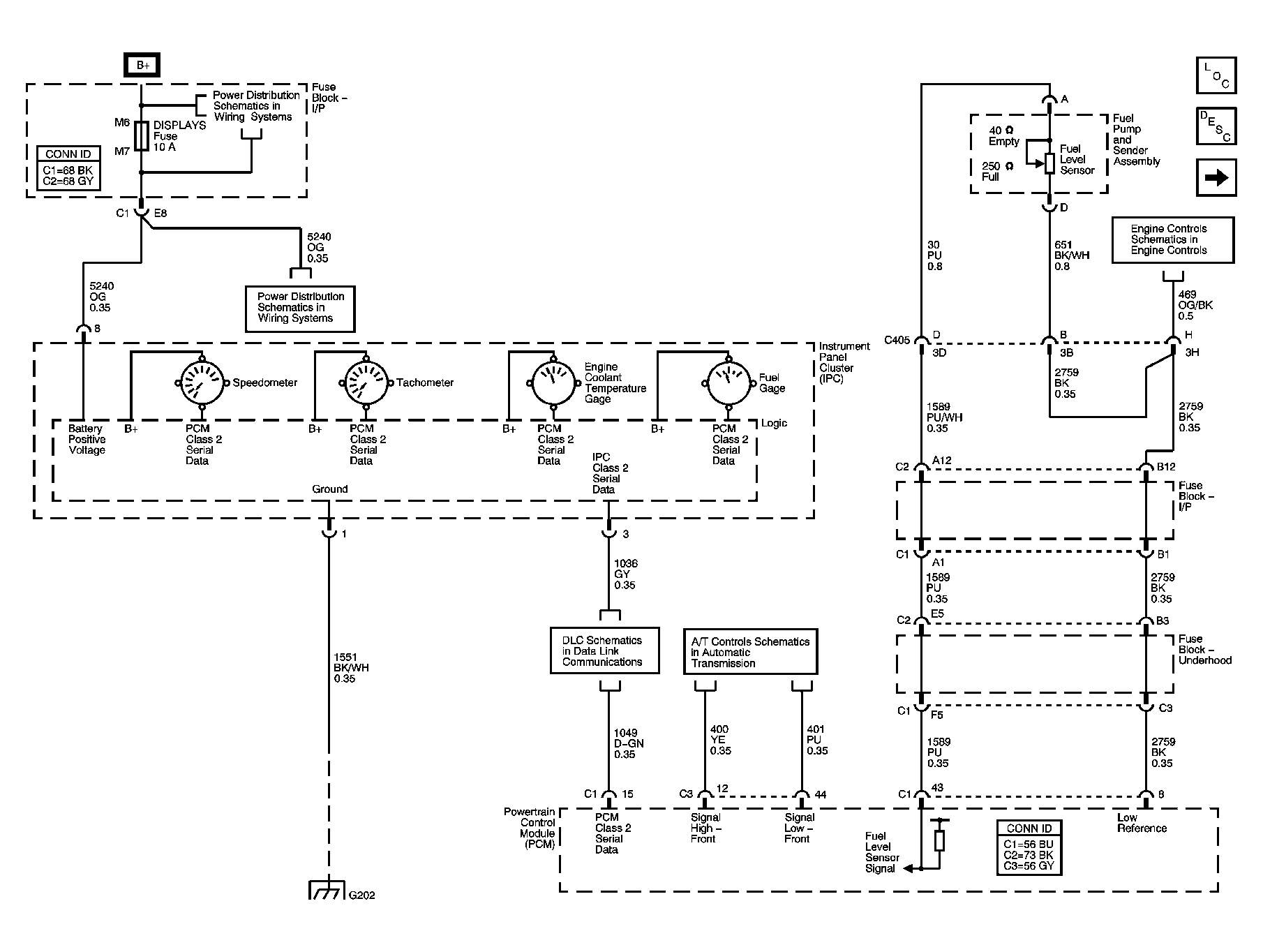

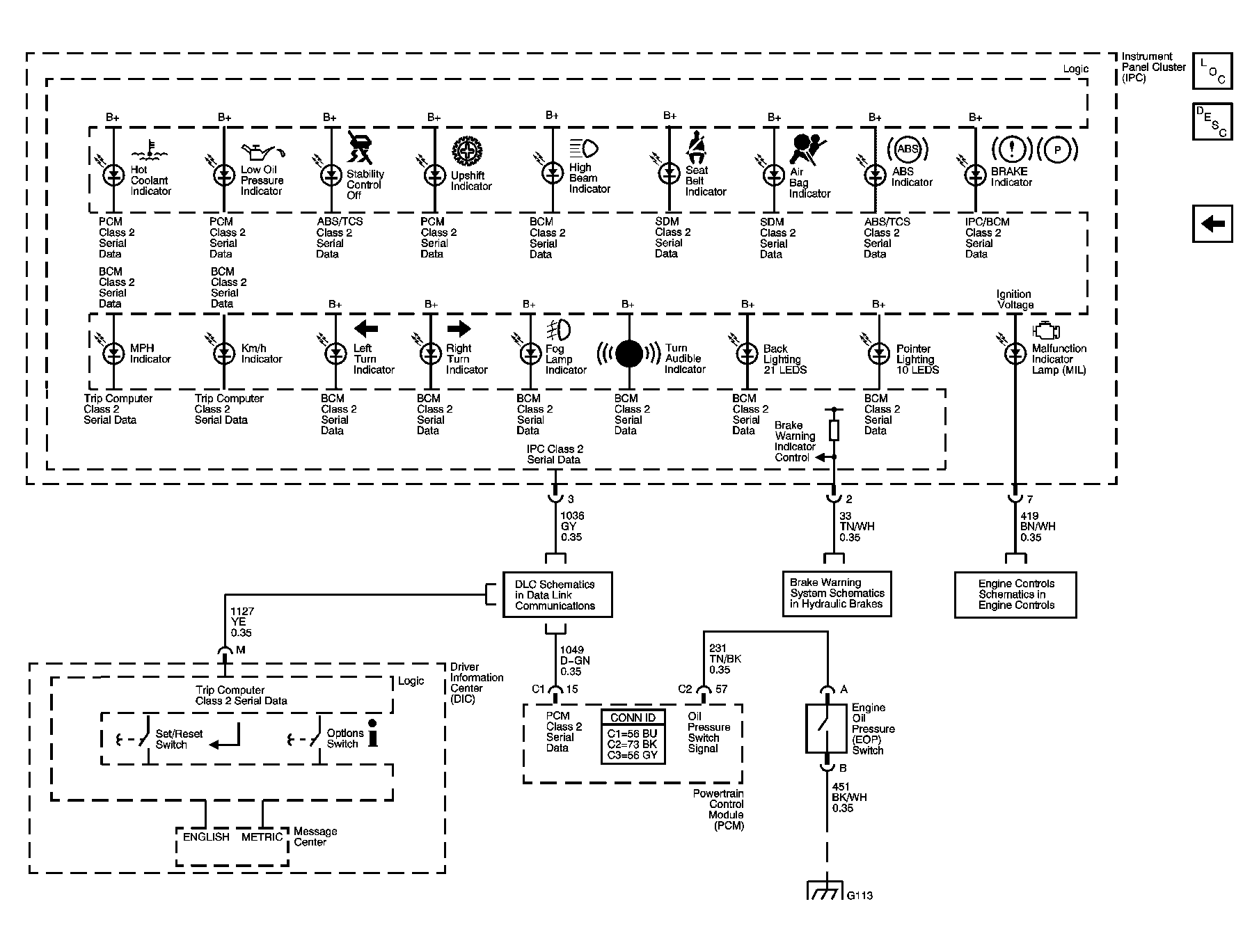

Home >> Pontiac >> 2004 >> Grand Prix GTP >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays, Gauges And Console >> Schematic and Routing Diagrams >> Instrument Cluster Schematics
