Installation Procedure

  1. Align the headlamp dimmer switch to the I/P cluster trim plate.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the headlamp dimmer switch screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

    3. Fig 1: Headlamp Dimmer Switch Screws
    GM928662Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the headlamp dimmer switch.
  4. Align the locating pins and the retainers on the I/P cluster trim plate with the openings in the I/P.
  5. Push in the I/P cluster trim plate at each of the retainer locations. Verify that the retainers are completely engaged.
  6. Return the steering wheel to the original position.
  7. Install the steering column filler. Refer to Steering Column Filler Replacement .
  8. Install the I/P accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory .

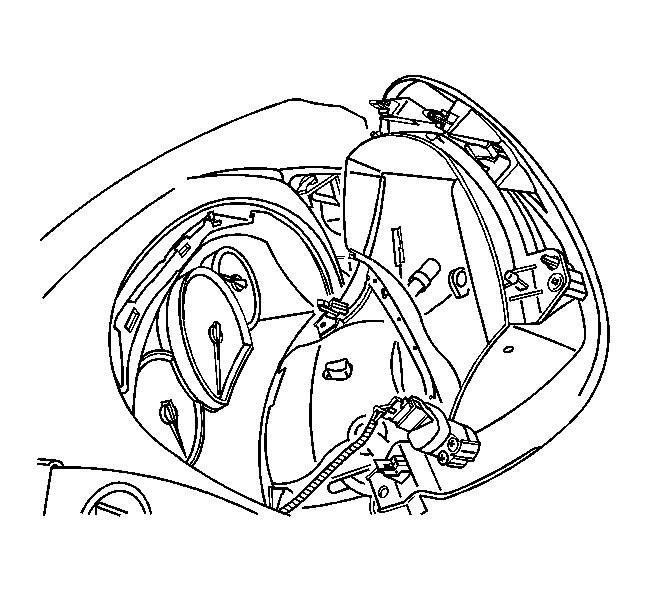

    9. Fig 2: View Of I/P Accessory Trim Plate
    GM928956Courtesy of GENERAL MOTORS CORP.
  9. Install the ignition switch bezel.
    10. Fig 3: Identifying Ignition Cylinder Bezel
    GM910510Courtesy of GENERAL MOTORS CORP.
