Removal Procedure

  1. Remove the left instrument panel (I/P) fuse block access hole cover.

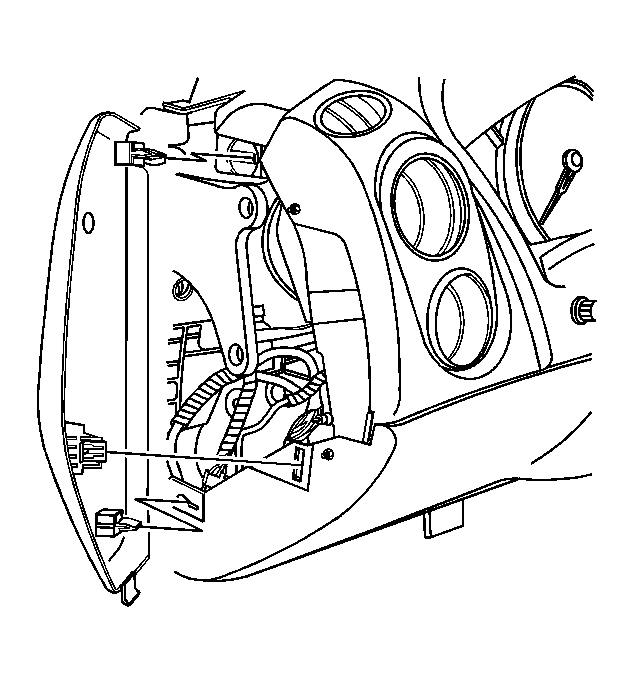

    2. Fig 1: View Of Left Instrument Panel Outer Trim Cover
    GM929251Courtesy of GENERAL MOTORS CORP.
  2. Use a plastic trim tool to remove the ignition switch bezel.
    3. Fig 2: Identifying Ignition Cylinder Bezel
    GM910510Courtesy of GENERAL MOTORS CORP.
  3. Pull the I/P accessory trim plate rearward slightly for access to the I/P steering column opening filler panel. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory .
    4. Fig 3: I/P Accessory Trim Plate
    GM928809Courtesy of GENERAL MOTORS CORP.
  4. Disengage the data link connector (DLC) retainers. Remove the DLC from the I/P trim pad.
    5. Fig 4: View Of DLC Retainers
    GM929296Courtesy of GENERAL MOTORS CORP.
  5. Remove the I/P steering column opening filler screws (1, 2, 3).

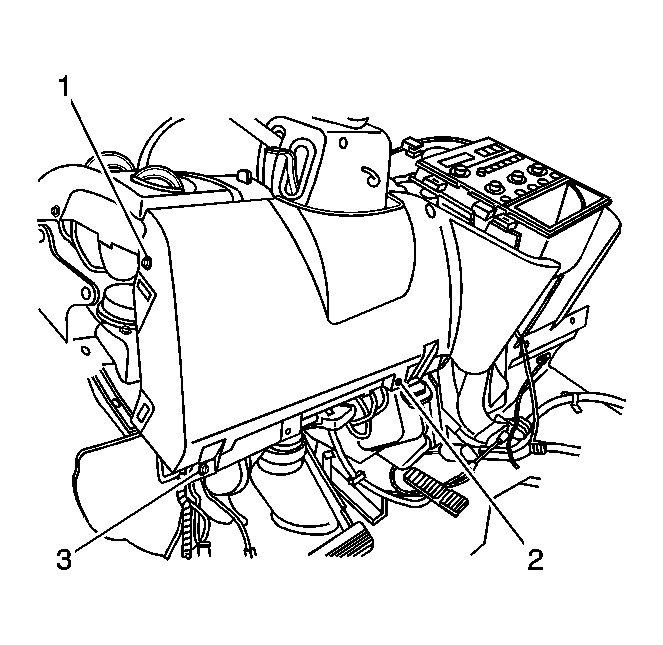

    6. Fig 5: I/P Steering Column Opening Filler Screws
    GM1205496Courtesy of GENERAL MOTORS CORP.
  6. Pull the steering column filler panel rearward to disengage the retainers. Remove the steering column opening filler panel.
    7. Fig 6: I/P Steering Column Opening Filler
    GM928912Courtesy of GENERAL MOTORS CORP.
