Installation Procedure

  1. Install the harness retainer to the knee bolster. Verify that the harness is not pinched between the bolster bracket and the I/P carrier cross car beam.

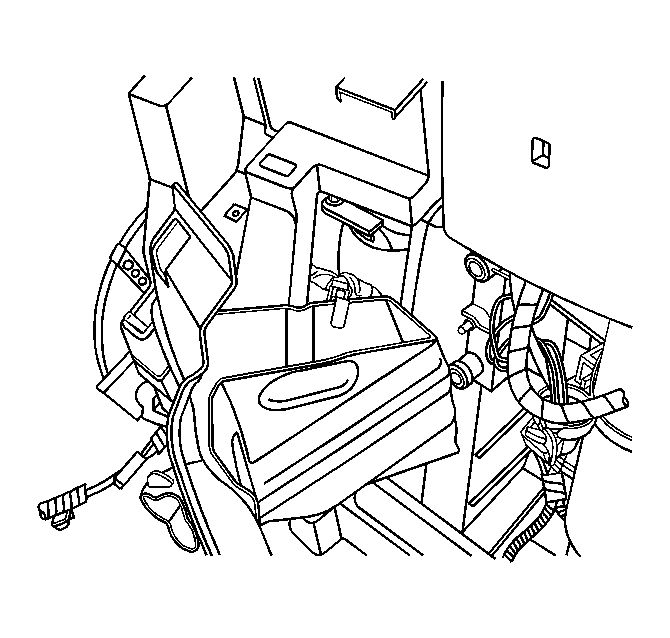

    2. Fig 1: Harness Retainer & Driver Side Knee Bolster
    GM928918Courtesy of GENERAL MOTORS CORP.
  2. Align the knee bolster to the I/P.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Start the bolts by hand to avoid cross threading. Install the knee bolster bolts to the I/P carrier cross car beam.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

    4. Fig 2: Left Knee Bolster Bolts
    GM929383Courtesy of GENERAL MOTORS CORP.
  4. Install the knee bolster screws at the I/P lower trim panel.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

    5. Fig 3: Left Knee Bolster Screws
    GM928866Courtesy of GENERAL MOTORS CORP.
  5. Install the steering column filler. Refer to Steering Column Filler Replacement .
  6. Install the I/P accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory .
  7. Install the ignition switch bezel.
    8. Fig 4: Identifying Ignition Cylinder Bezel
    GM910510Courtesy of GENERAL MOTORS CORP.
