Installation Procedure

  1. Connect the electrical connector to the instrument cluster.
  2. Align the instrument cluster to the I/P.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the instrument cluster screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

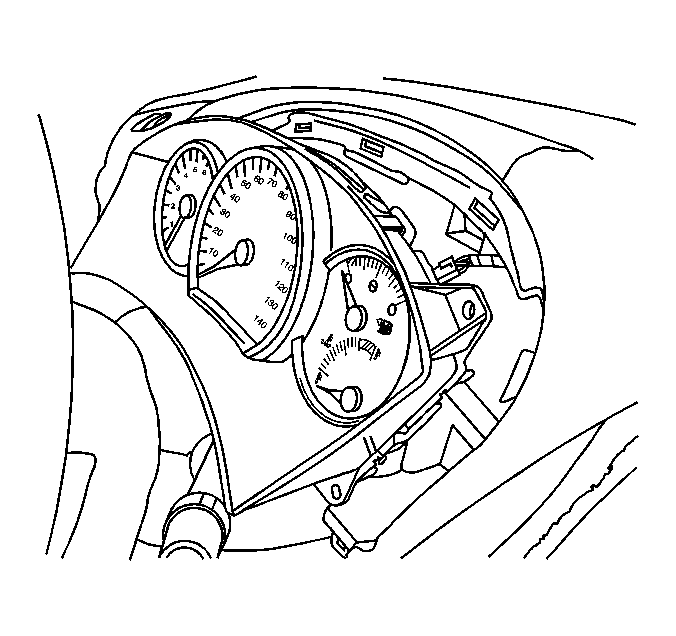

    4. Fig 1: View Of Instrument Cluster
    GM928746Courtesy of GENERAL MOTORS CORP.
  4. Install the I/P cluster trim plate. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster .
