Installation Procedure

  1. Align the I/P compartment to the I/P.
    2. Fig 1: View Of I/P Compartment
    GM929257Courtesy of GENERAL MOTORS CORP.
  2. Install the I/P compartment lamp switch to the opening in the I/P compartment.
    3. Fig 2: I/P Compartment Lamp Switch
    GM1202641Courtesy of GENERAL MOTORS CORP.
  3. Connect the I/P compartment lamp switch electrical connector.
  4. Install the wiring harness retainers to the rear of the I/P compartment.
    5. Fig 3: Installing Wiring Harness Retainers
    GM1204796Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Align the I/P compartment to the I/P trim pad. Install the I/P compartment screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb ft).

    6. Fig 4: I/P Compartment Screws
    GM929431Courtesy of GENERAL MOTORS CORP.
  6. Align the I/P inboard trim plate retainers to the slots in the I/P carrier. Press the trim plate to engage the retainers.
    7. Fig 5: I/P Inboard Trim Plate
    GM929399Courtesy of GENERAL MOTORS CORP.
  7. Install the I/P accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory .
  8. If the I/P compartment is equipped with a dampener engage the door stop using the following procedure:
    1. Press the upper door stop (2) toward the center of the vehicle.
    2. Rotate the door up to the compartment.
    9. Fig 6: View Of Upper Door Stop
    GM1332713Courtesy of GENERAL MOTORS CORP.
  9. If the I/P compartment is not equipped with a dampener, engage the door stop as shown.
    10. Fig 7: View Of I/P Compartment Door Stop
    GM929422Courtesy of GENERAL MOTORS CORP.
  10. Close the I/P compartment.
  11. Position the I/P outboard trim plate retainers to the slots in the I/P carrier.

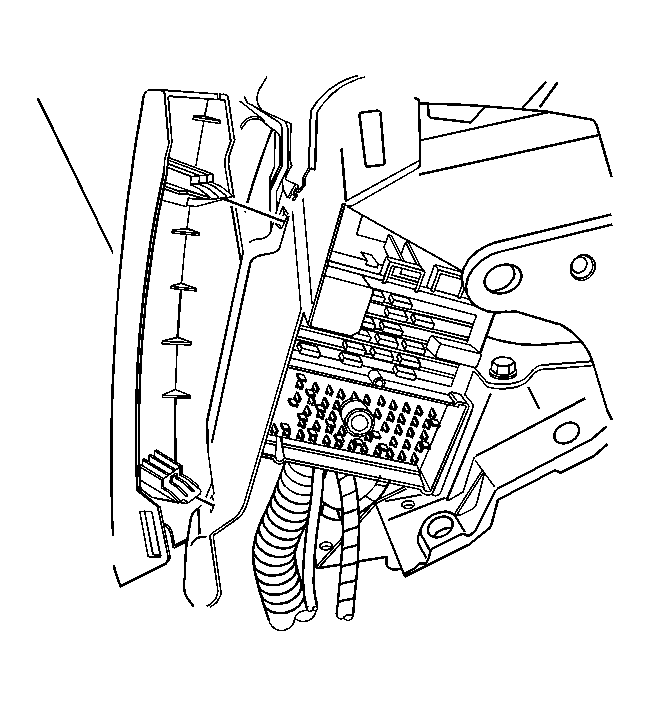

    12. Fig 8: I/P Trim Plate (Glove Box Outboard)
    GM929385Courtesy of GENERAL MOTORS CORP.
  12. Install the I/P trim plate by pressing the panel straight into the I/P carrier.
  13. Align the right I/P compartment access hole cover to the I/P trim pad. Press the cover to the trim.
    14. Fig 9: Right I/P Compartment Access Hole Cover
    GM1203017Courtesy of GENERAL MOTORS CORP.
