Instrument Panel, Gages, and Console Component Views

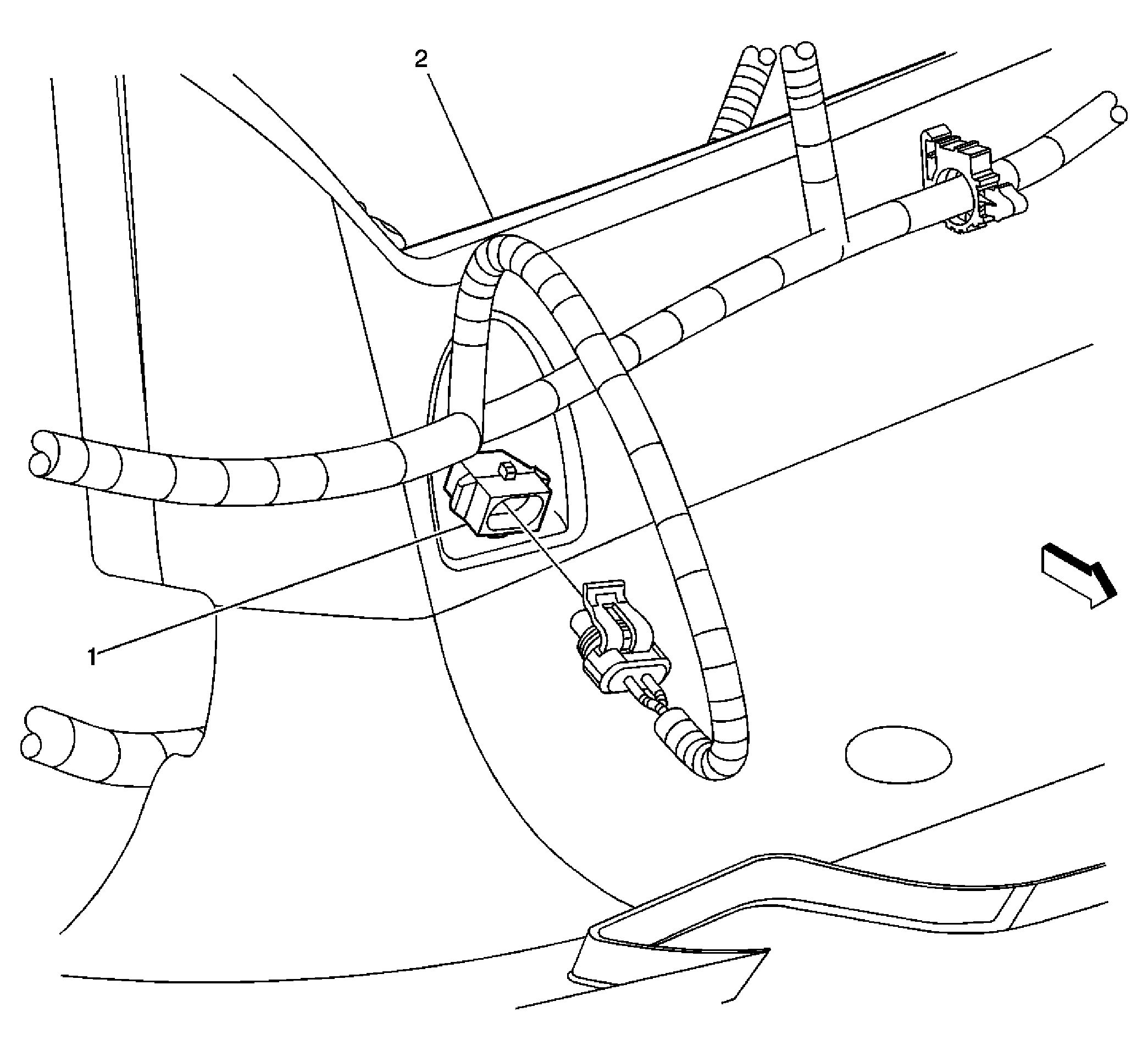

Fig 1: Front of the Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor
2	Radiator Baffle

Fig 2: Lower Front of the Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Fig 3: Lower Right Side of the Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C125
2	Engine Oil Pressure (EOP) Switch
3	Vehicle Speed Sensor (VSS)

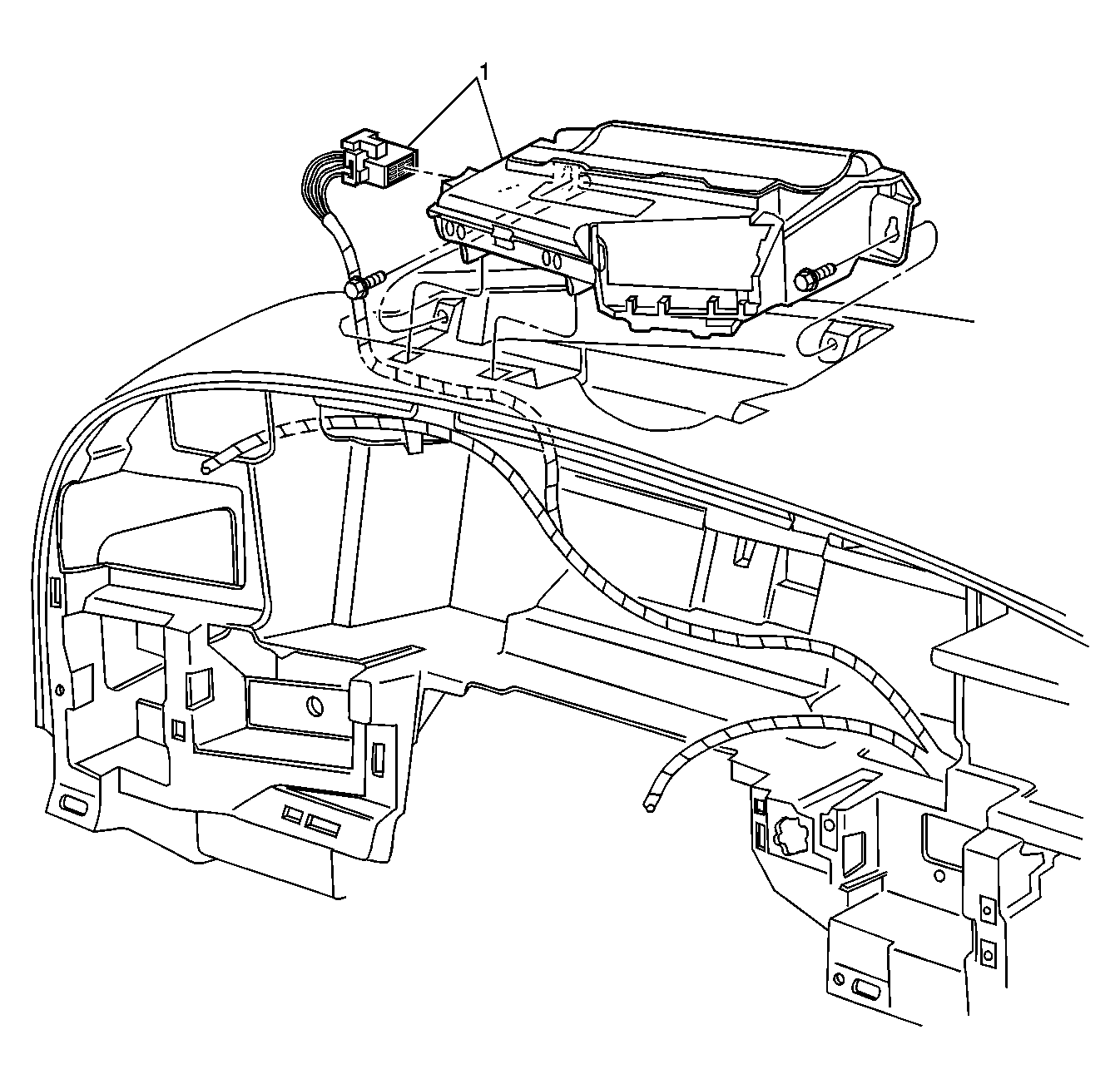

Fig 4: Top Left Side of I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Head up Display (HUD)

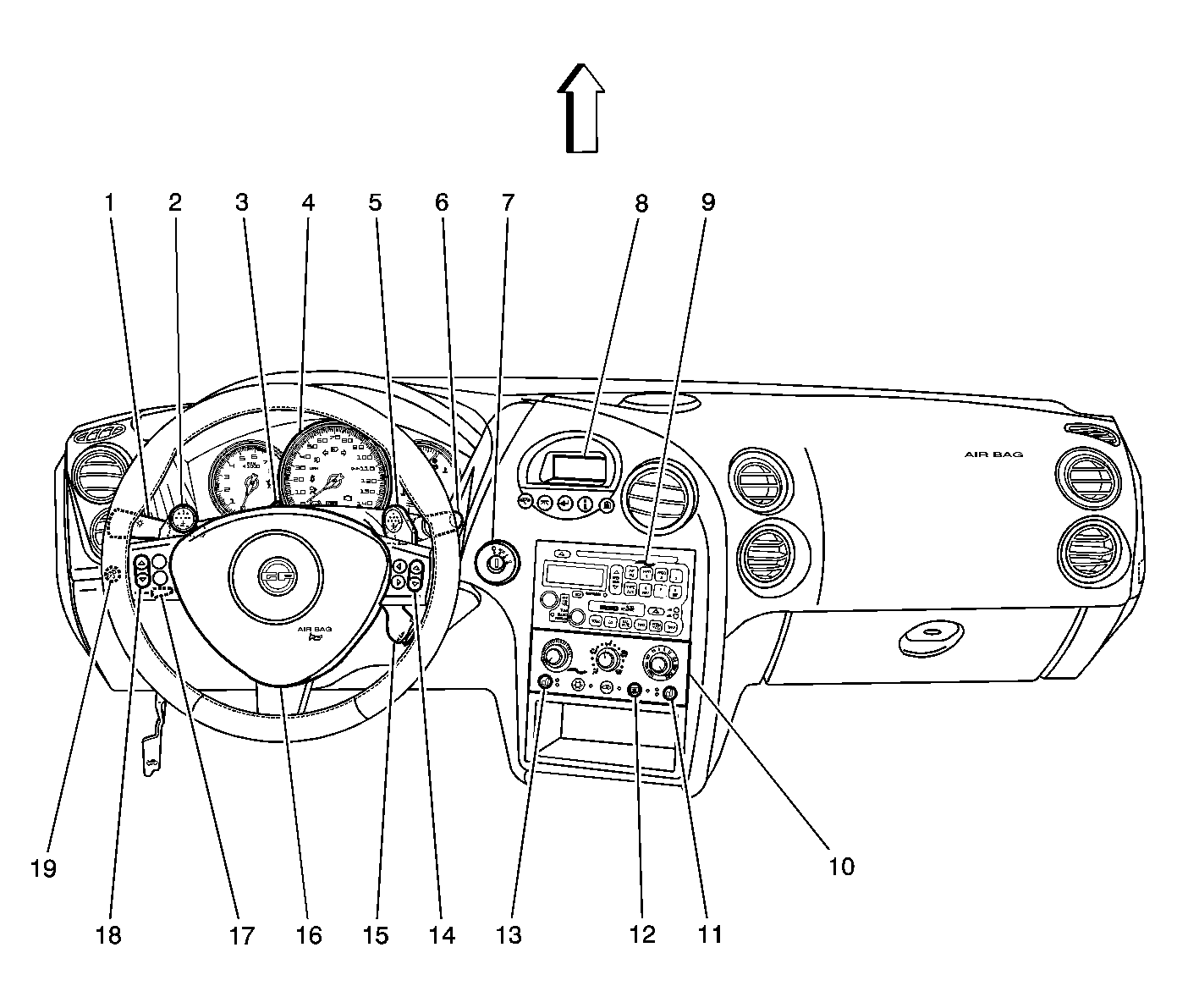

Fig 5: Left Side of the I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Turn Signal Lever
2	TAP Shift Switch - Left
3	Hazard Warning Switch
4	Instrument Panel Cluster (IPC)
5	TAP Shift Switch - Right
6	Windshield Wiper/Washer Switch
7	Ignition Switch
8	Driver Information Center (DIC)
9	Radio
10	HVAC Control Module
11	Heated Seat Switch - Front Passenger
12	Rear Defogger Switch
13	Heated Seat Switch - Driver
14	Steering Wheel Controls - Right
15	Cruise Control Switch
16	Inflatable Restraint Steering Wheel Module
17	Tilt Steering Wheel Lever
18	Steering Wheel Controls - Left
19	Interior Lamp Switch

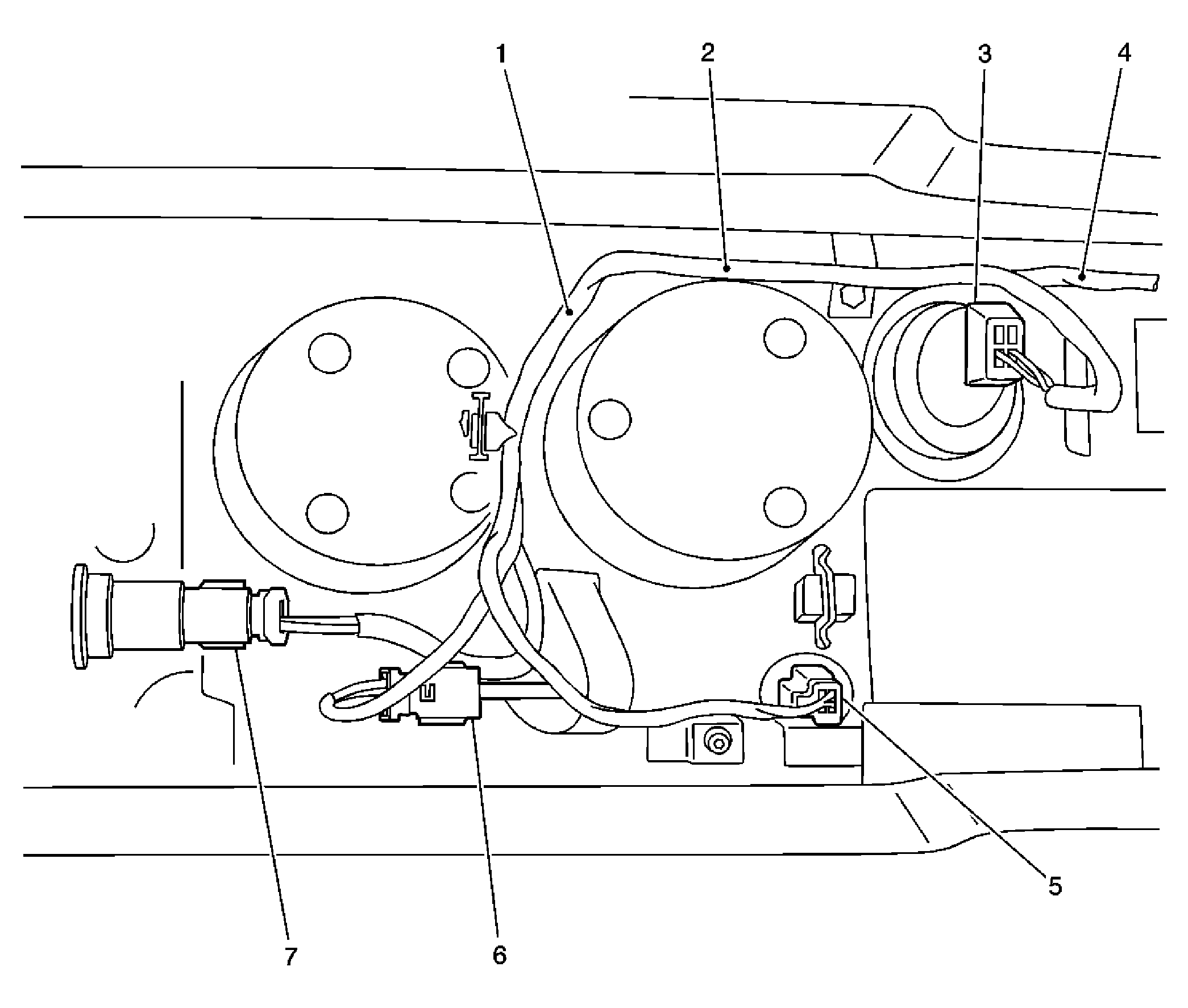

Fig 6: Under the Floor Console Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S238
2	S231
3	Head Up Display (HUD) Switch
4	S374
5	Traction Control Switch
6	Accessory Power Outlet - Front
7	Accessory Power Outlet - Rear

Fig 7: Fuel Pump and Sender Assembly Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Line Quick Connector
2	Fuel Pump
3	Base Plate
4	Fuel Strainer
5	Fuel Level Sensor
6	Springs
7	Fuel Tank Pressure (FTP) Sensor

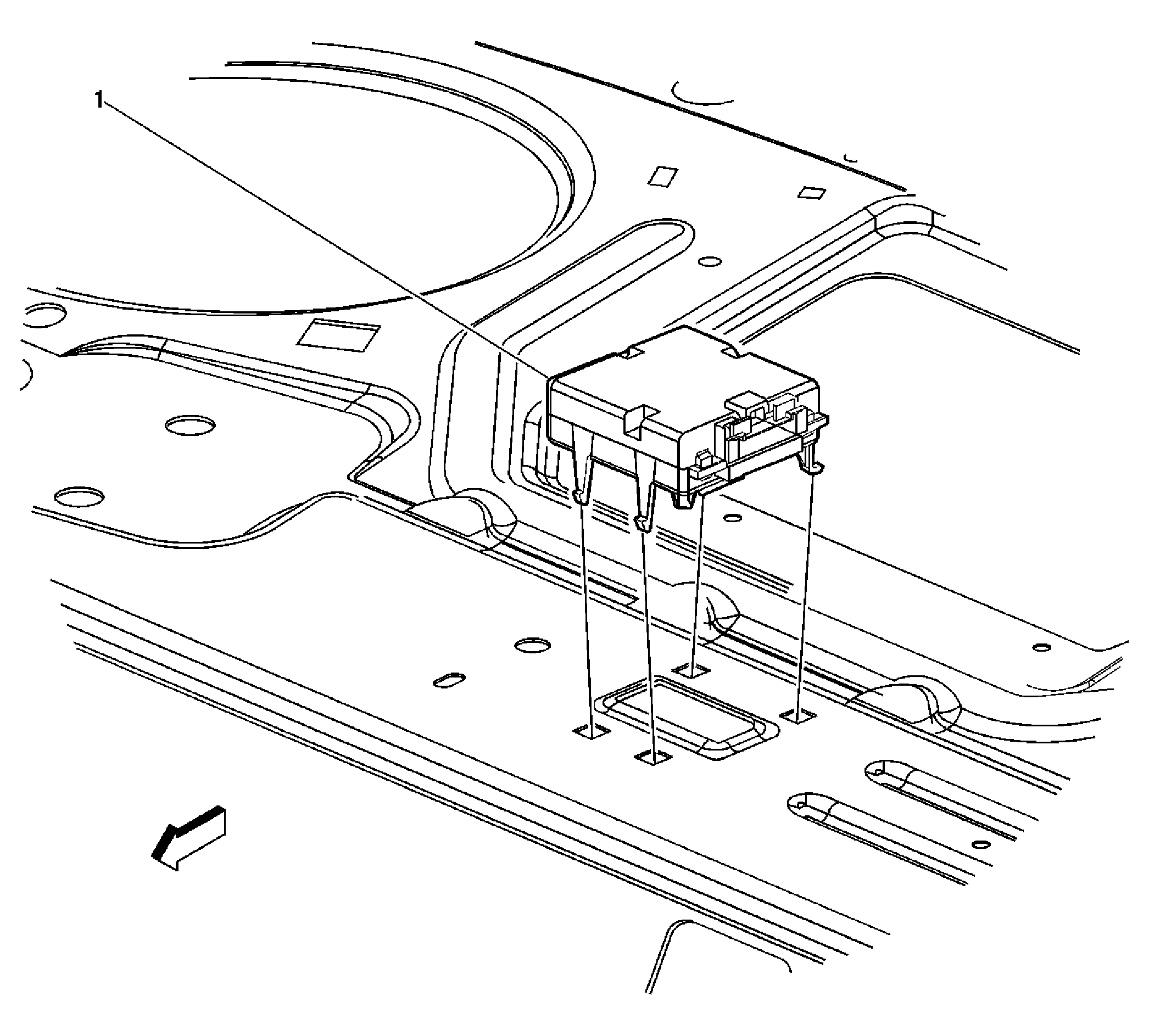

Fig 8: Rear Window Shelf Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Compass Module
