Instrument Cluster Schematics

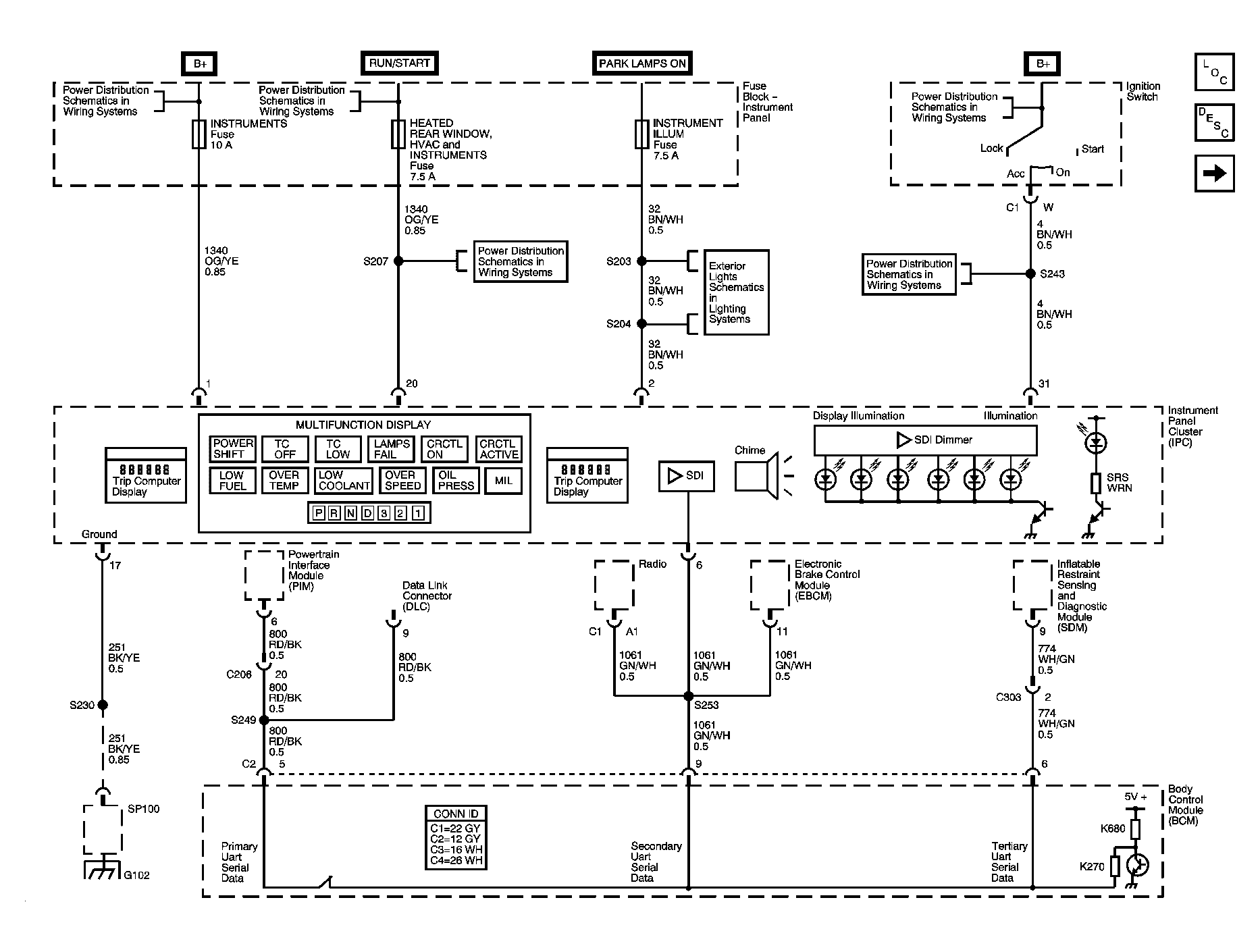

Fig 1: Instrument Panel Cluster (IPC) Power and Ground, Serial Data
GM1357146Courtesy of GENERAL MOTORS CORP.

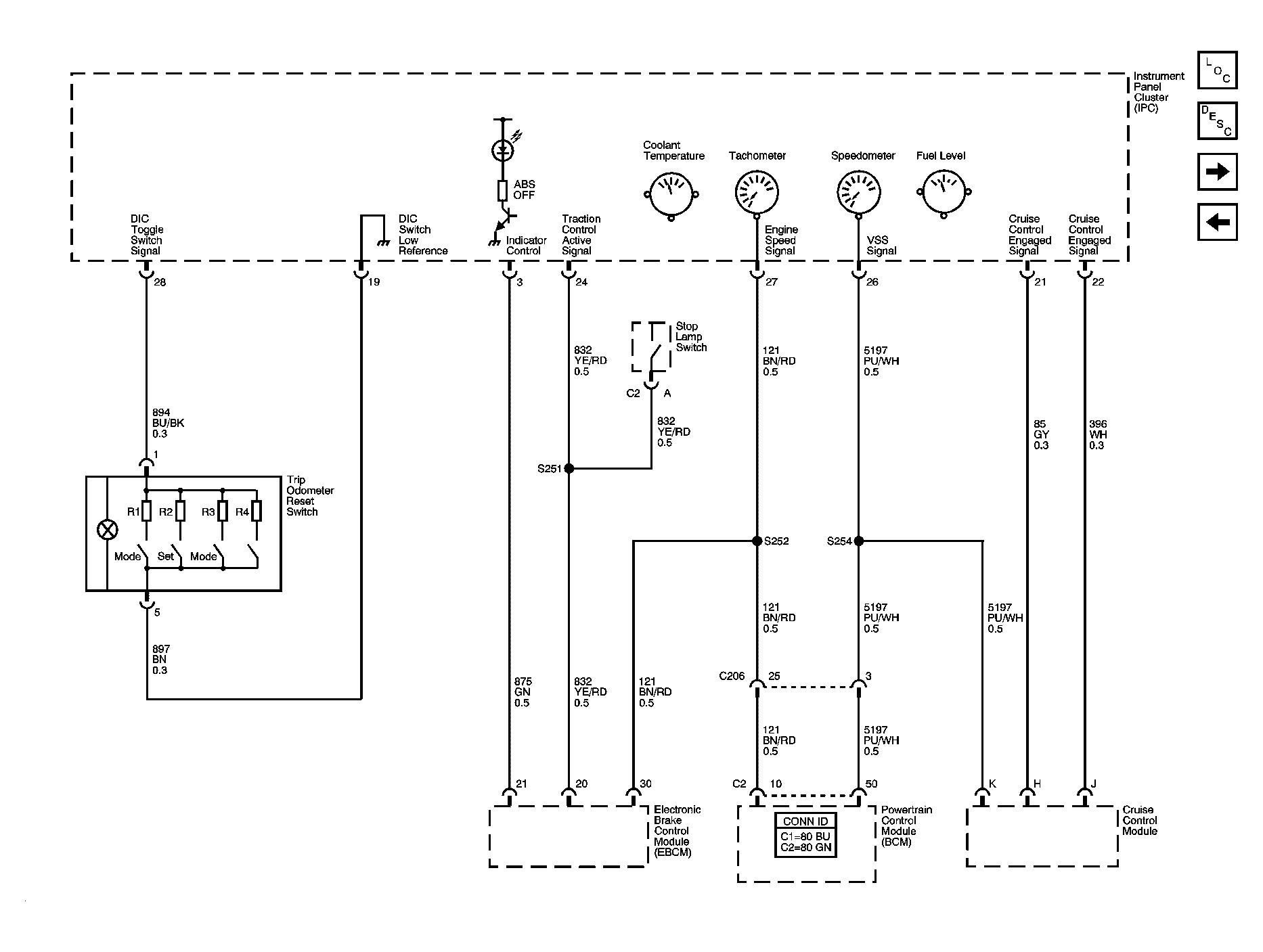

Fig 2: Trip Odometer, ABS Off, Cruise Control, Fuel, ECT Indicators, Speedometer, Tachometer
GM1357147Courtesy of GENERAL MOTORS CORP.

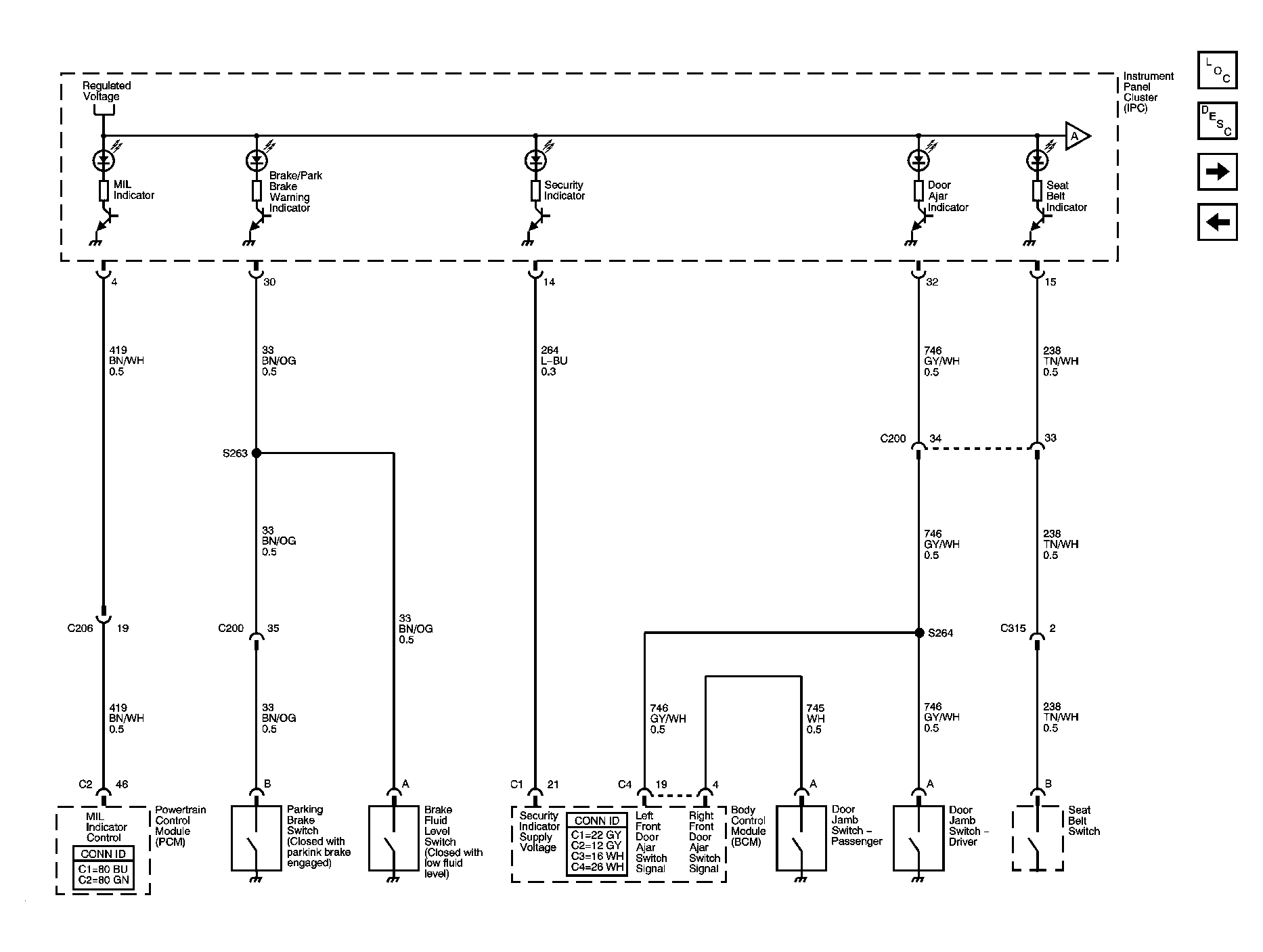

Fig 3: MIL, Brake, SCR, Door Ajar, Seat Belt Indicators
GM1357148Courtesy of GENERAL MOTORS CORP.

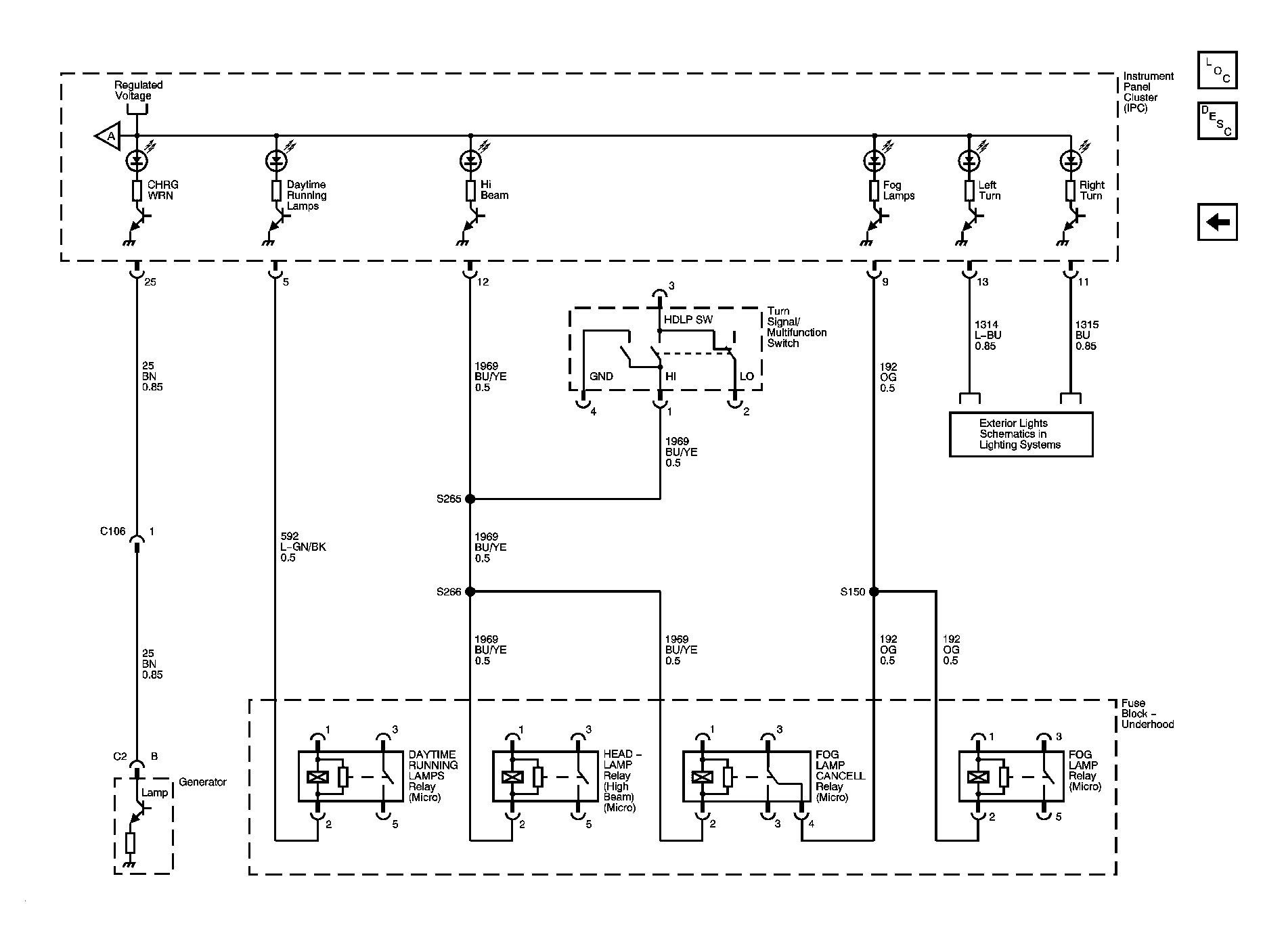

Fig 4: Charge, DRL, Hi Beam, Fog Lamps, Turn Indicators
GM1357149Courtesy of GENERAL MOTORS CORP.
