Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable.

    Important:  The multifunction alarm module is located under the instrument panel on the drivers side.

  2. Remove the screws from the junction block and position the junction block in order to gain access to the multifunction alarm module.
  3. Disconnect the multifunction alarm module electrical connector.
  4. Disconnect the multifunction alarm module (1) from the rear of the junction block (2).

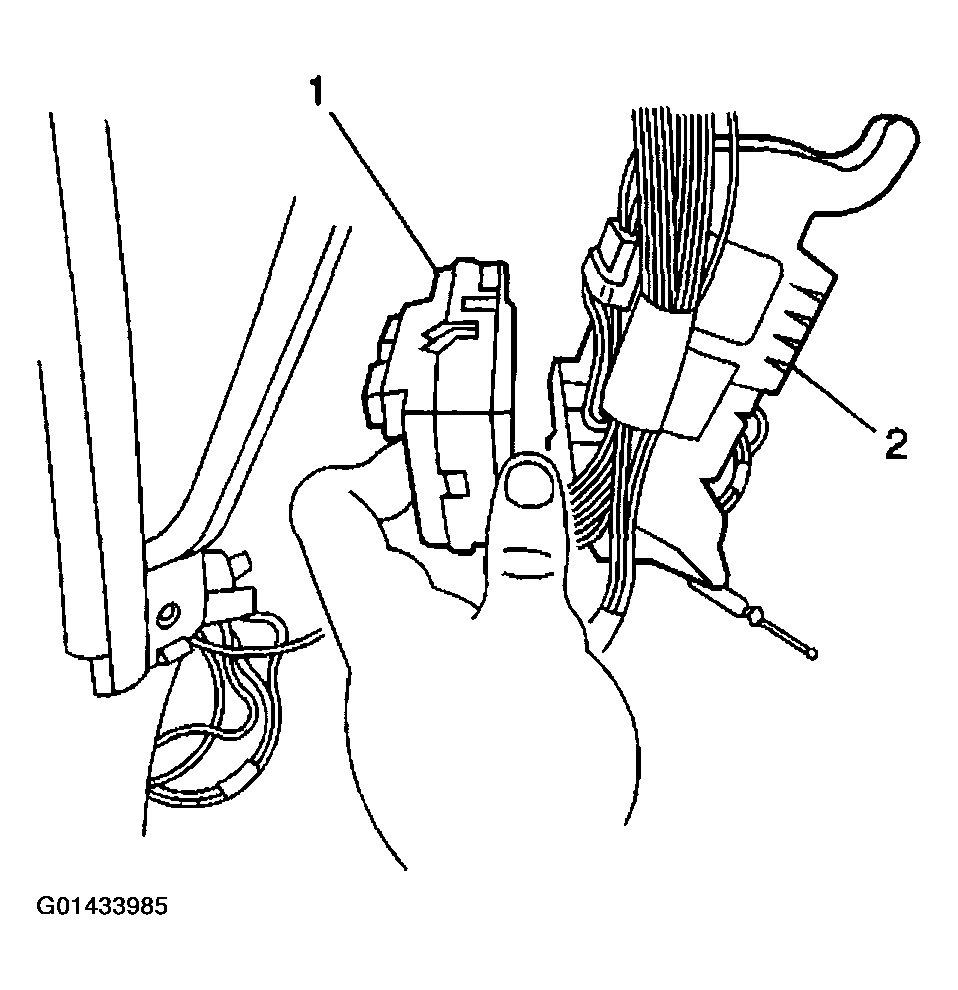

    Fig 1: Disconnecting Multifunction Alarm Module From Rear Of Junction Block
    G01433985Courtesy of GENERAL MOTORS CORP.
