Installation Procedure

  1. Install the instrument panel compartment (2) to the instrument panel. Secure the compartment until the lower tabs engage (4).
  2. Compress each side of the I/P compartment, until the upper tabs (1) engage.
  3. Install the screw (3).
  4. Close the instrument panel compartment door.

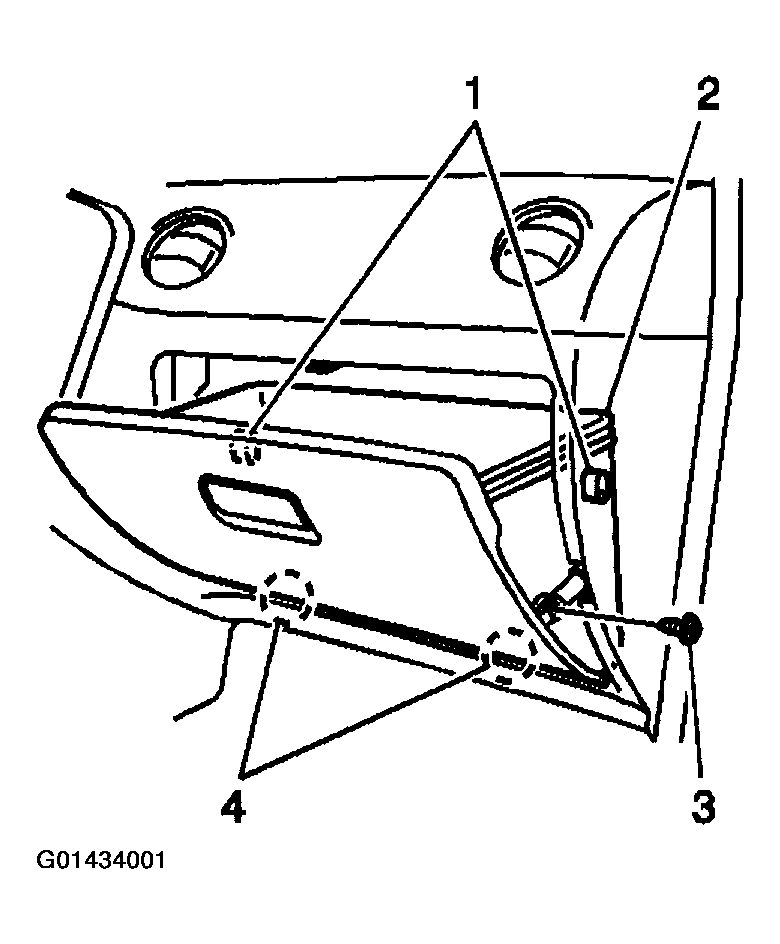

    Fig 1: Installing Instrument Panel Compartment
    G01434001Courtesy of GENERAL MOTORS CORP.
