Installation Procedure

Important:  The cigar lighter element housing will not seat correctly if the grooves are not lined up with the grooves on the front floor console trim plate.

1. Install the cigar lighter element housing (2) to the front floor console trim plate.
2. Install the cigar lighter housing rear retainer (1) to the cigar element housing (2).
3. Install the cigar lighter element (3) to the cigar lighter element housing (2).
4. Install the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE

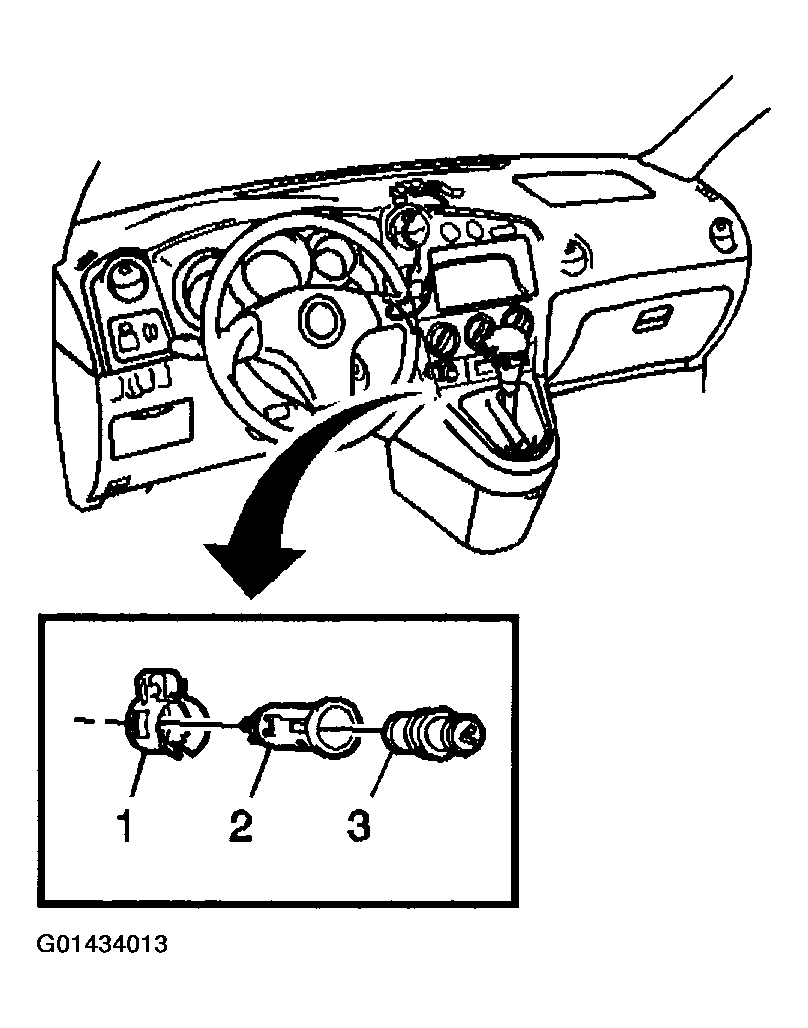

   Fig 1: Installing Cigar Lighter Assembly Components

   Courtesy of GENERAL MOTORS CORP.
