Instrument Panel, Gages, and Console Connector End Views

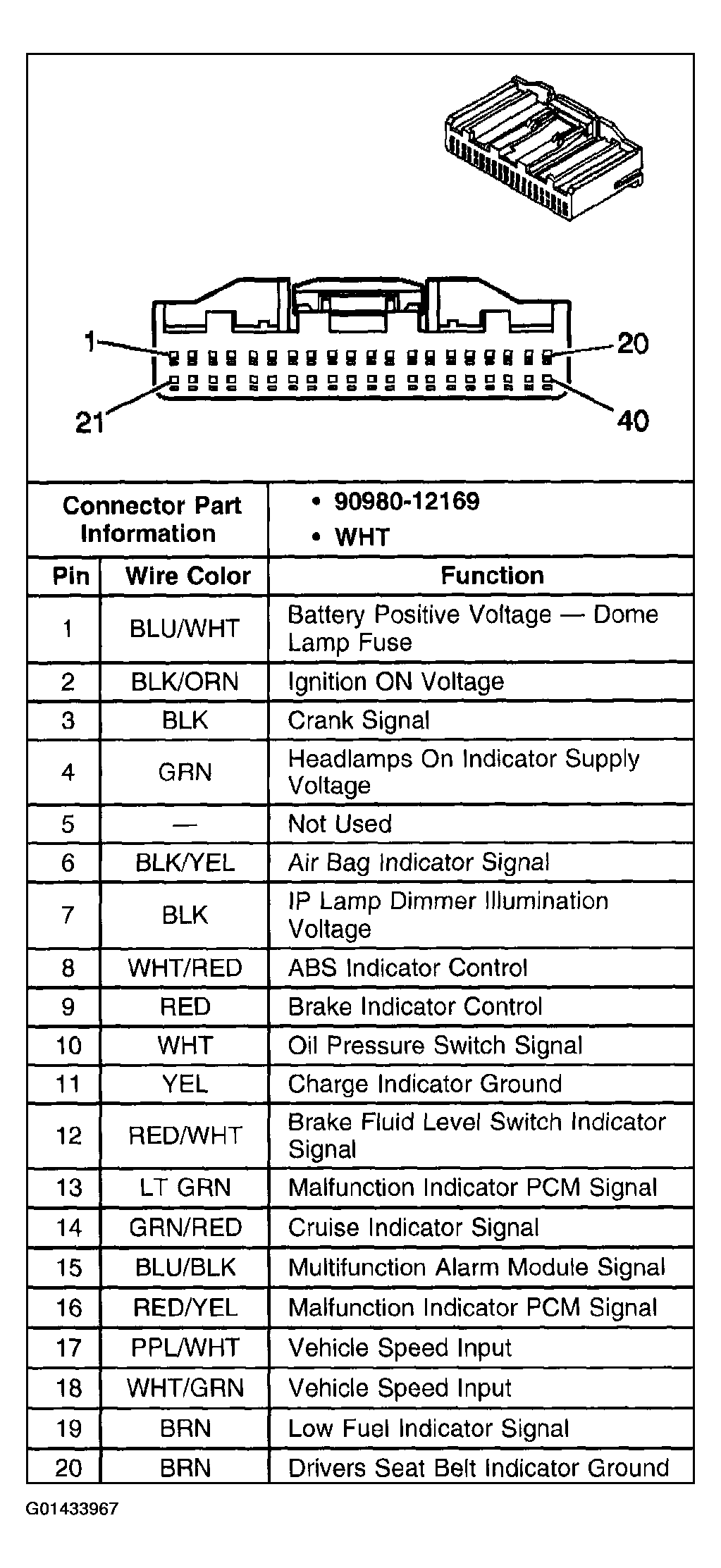

Fig 1: Identifying Instrument Cluster Assembly Connector And Pin Function Specifications (1 Of 2)
G01433967Courtesy of GENERAL MOTORS CORP.

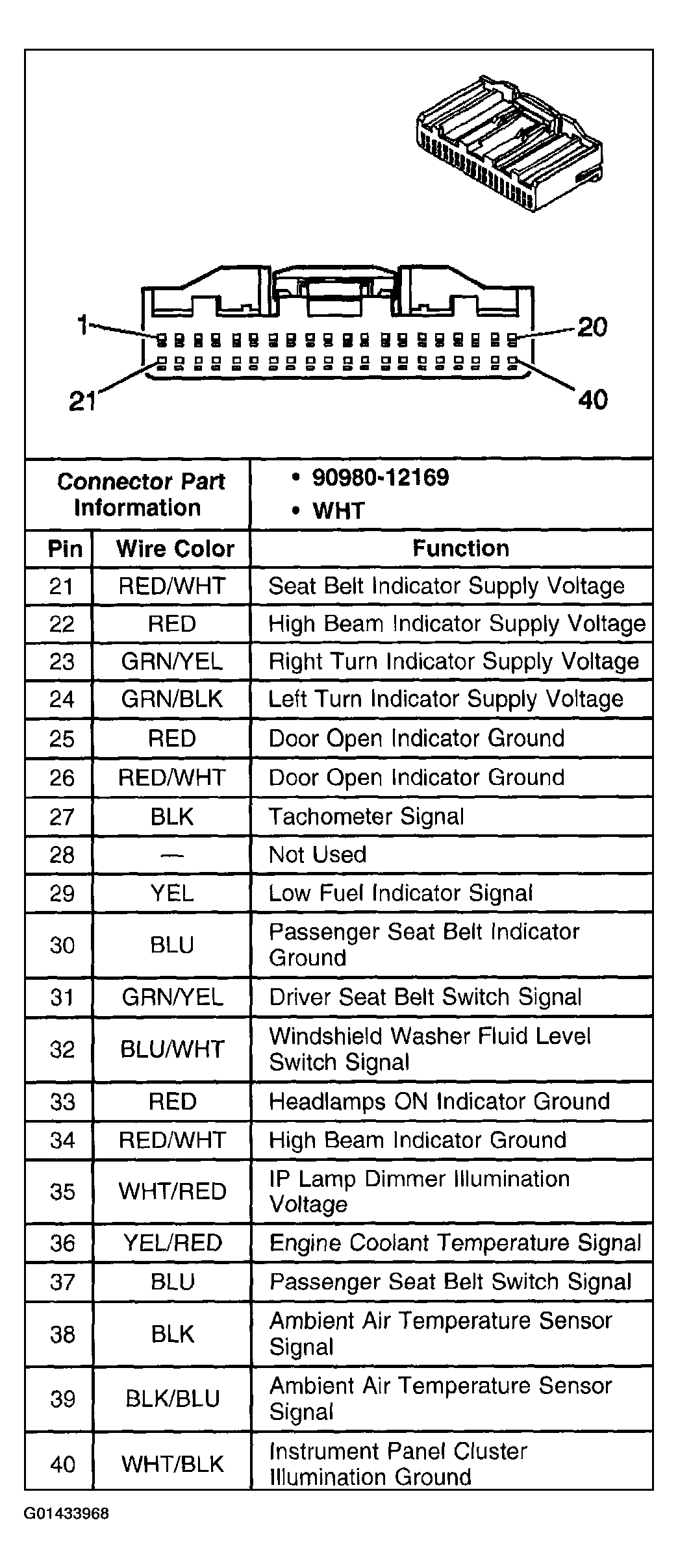

Fig 2: Identifying Instrument Cluster Assembly Connector And Pin Function Specifications (2 Of 2)
G01433968Courtesy of GENERAL MOTORS CORP.
