Instrument Panel, Gages, and Console Connector End Views

Fig 1: Identifying Instrument Panel, Gages, And Console Connector End Views - Instrument Panel Cluster (IPC)
G01559202Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Instrument Panel, Gages, And Console Connector End Views - Engine Oil Pressure Sensor
G01559203Courtesy of GENERAL MOTORS CORP.

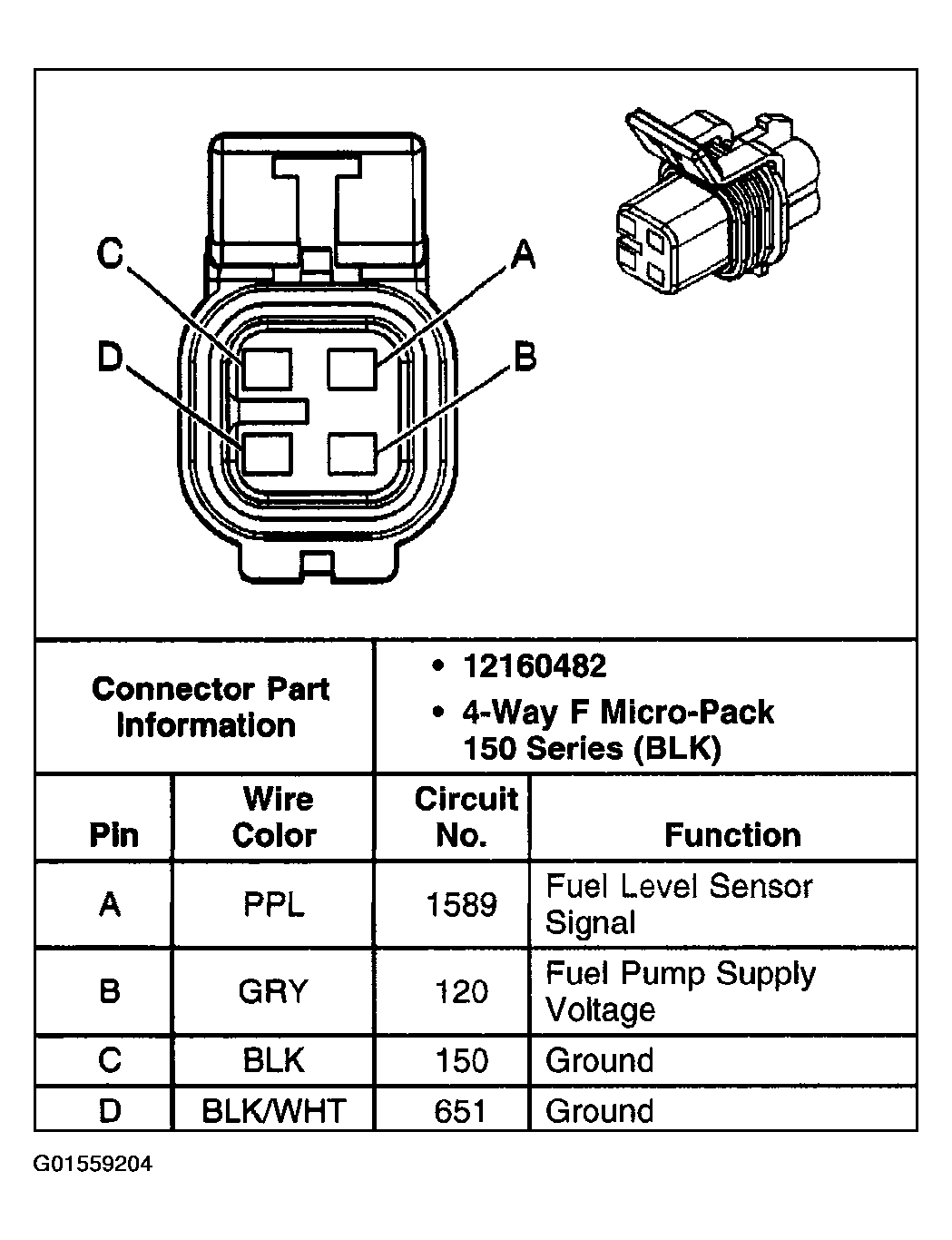

Fig 3: Identifying Instrument Panel, Gages, And Console Connector End Views - Fuel Pump And Sender Assembly
G01559204Courtesy of GENERAL MOTORS CORP.
