Rear Window Release Inoperative

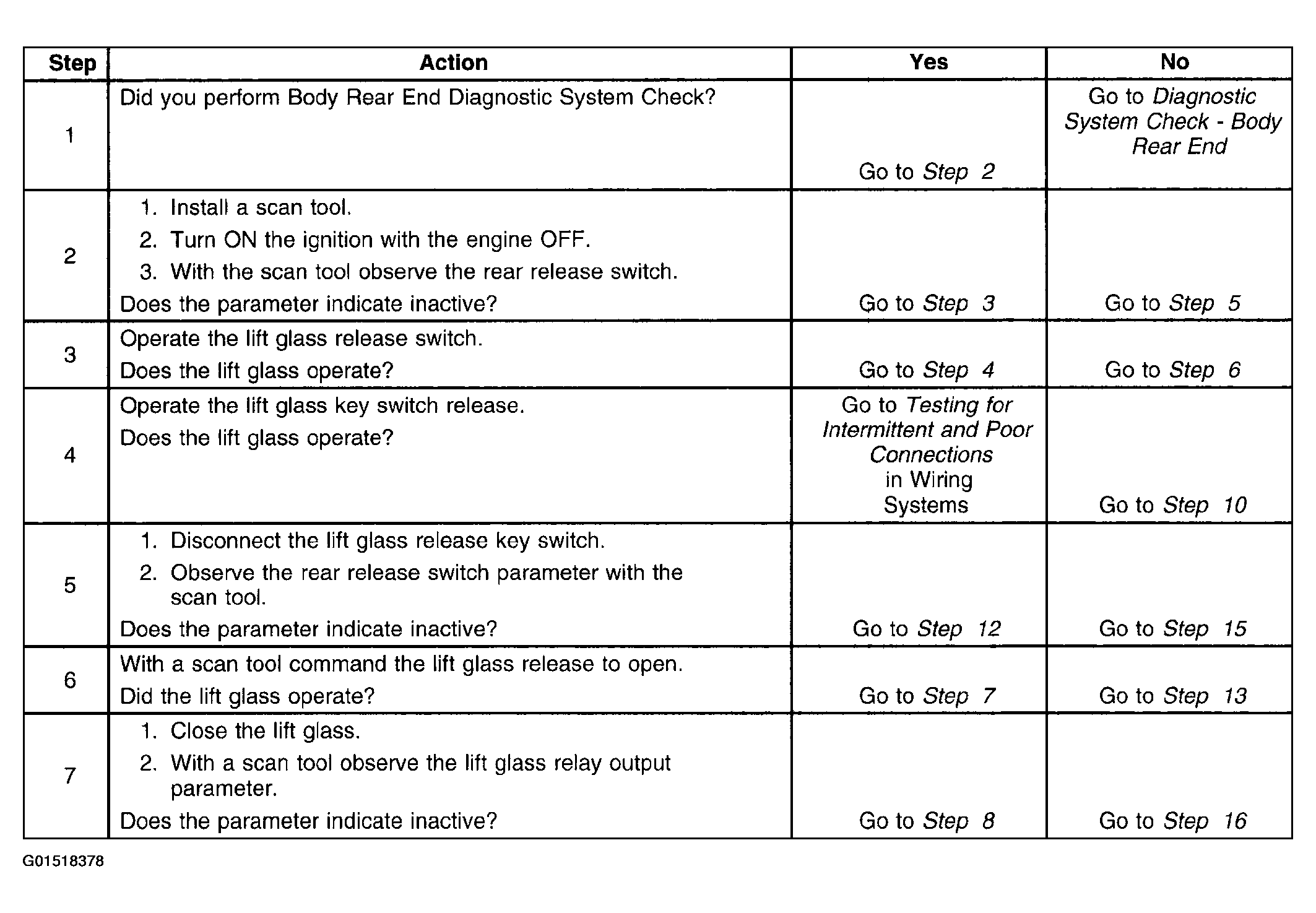

Fig 1: Rear Window Release Inoperative Diagnosis (Step 1-7)
G01518378Courtesy of GENERAL MOTORS CORP.

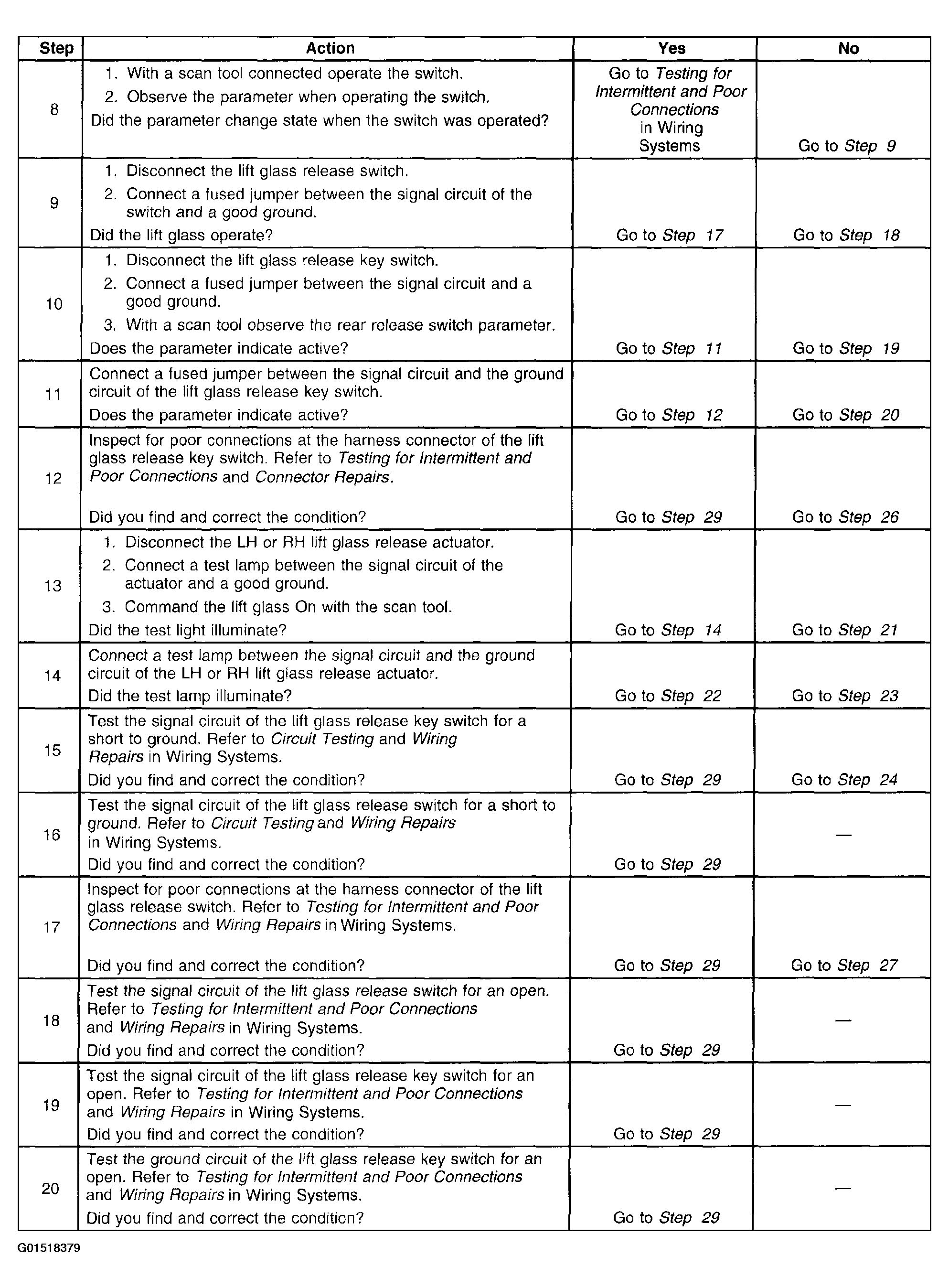

Fig 2: Rear Window Release Inoperative Diagnosis (Step 8-20)
G01518379Courtesy of GENERAL MOTORS CORP.

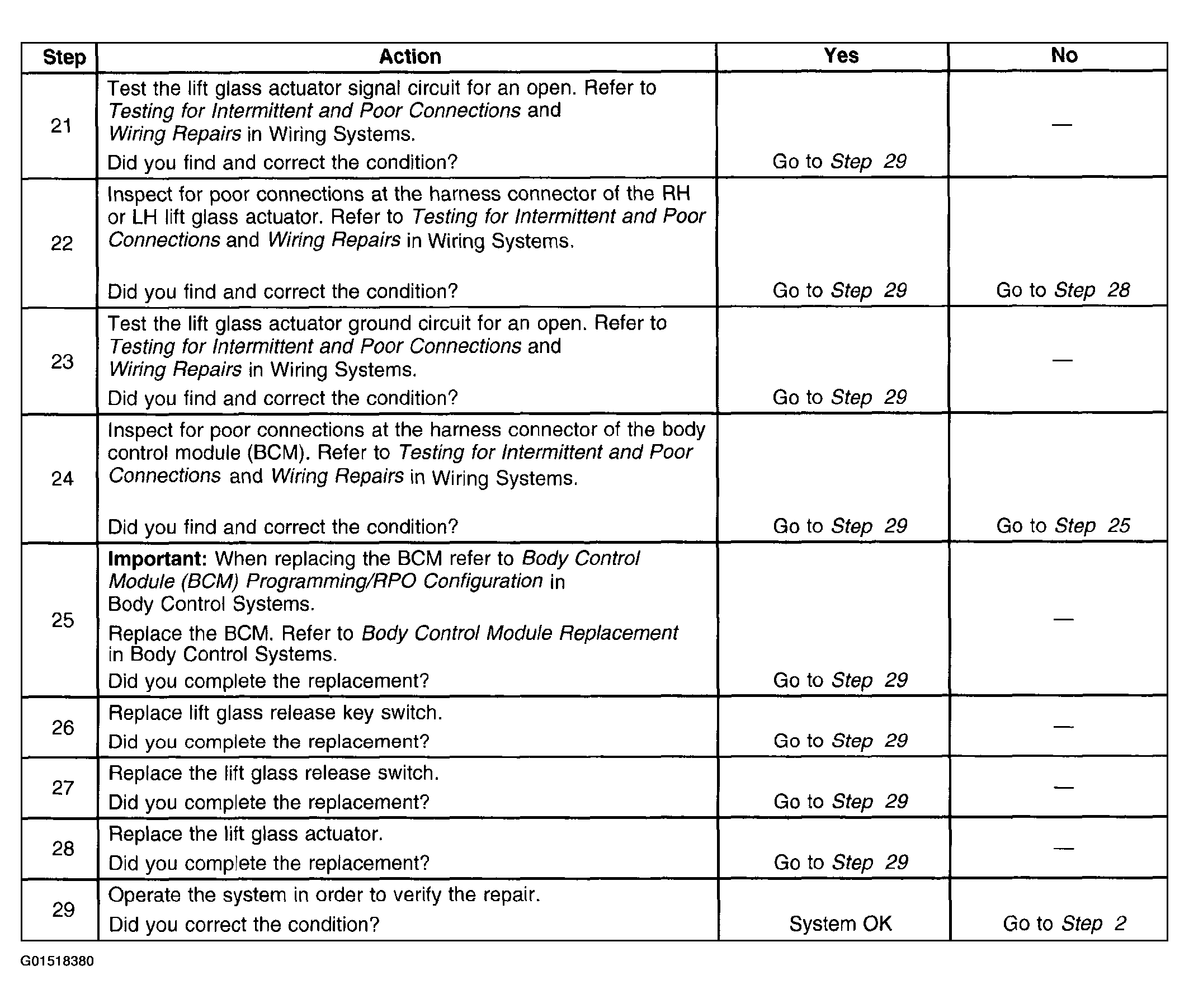

Fig 3: Rear Window Release Inoperative Diagnosis (Step 21-29)
G01518380Courtesy of GENERAL MOTORS CORP.
