Removal Procedure

  1. Remove the screws from the rear wheel opening molding.
  2. Pull the upper edge of the rear wheel opening molding out, to release the retainers.
  3. A thin, plastic flat-bladed tool may be used between the molding and the body to help release the wheel opening molding retainers.
  4. Remove the rear wheel opening molding from the vehicle.

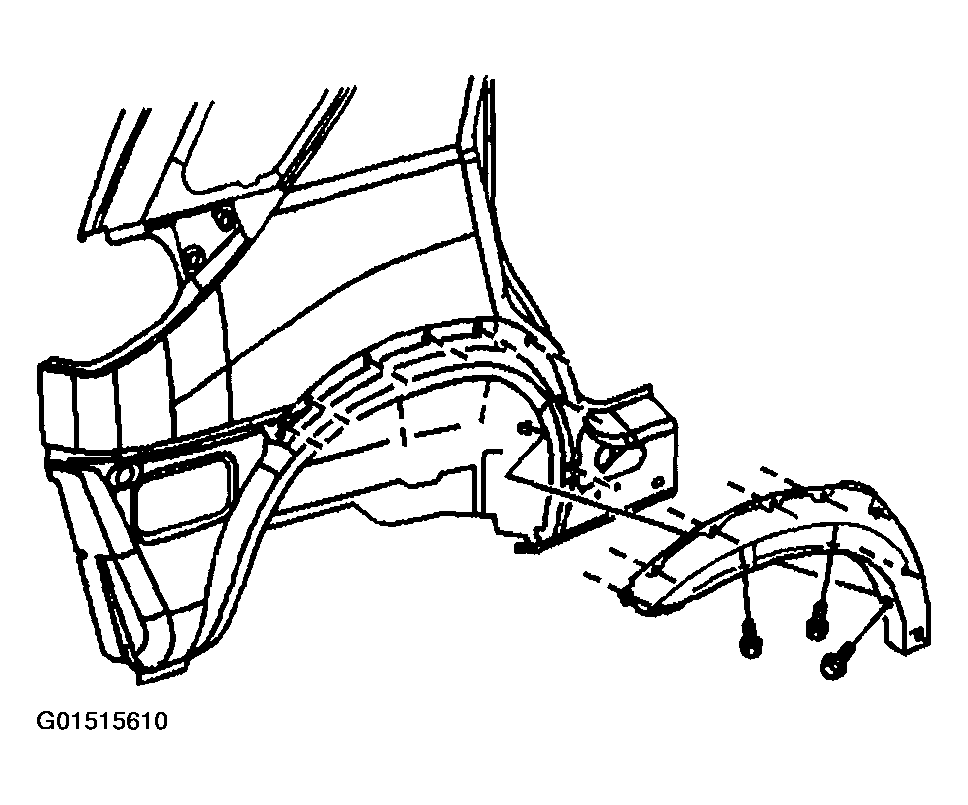

    Fig 1: Removing Rear Wheel Opening Molding
    G01515610Courtesy of GENERAL MOTORS CORP.
