Installation Procedure

  1. Align the I/P cluster trim plate to the instrument panel retainers.

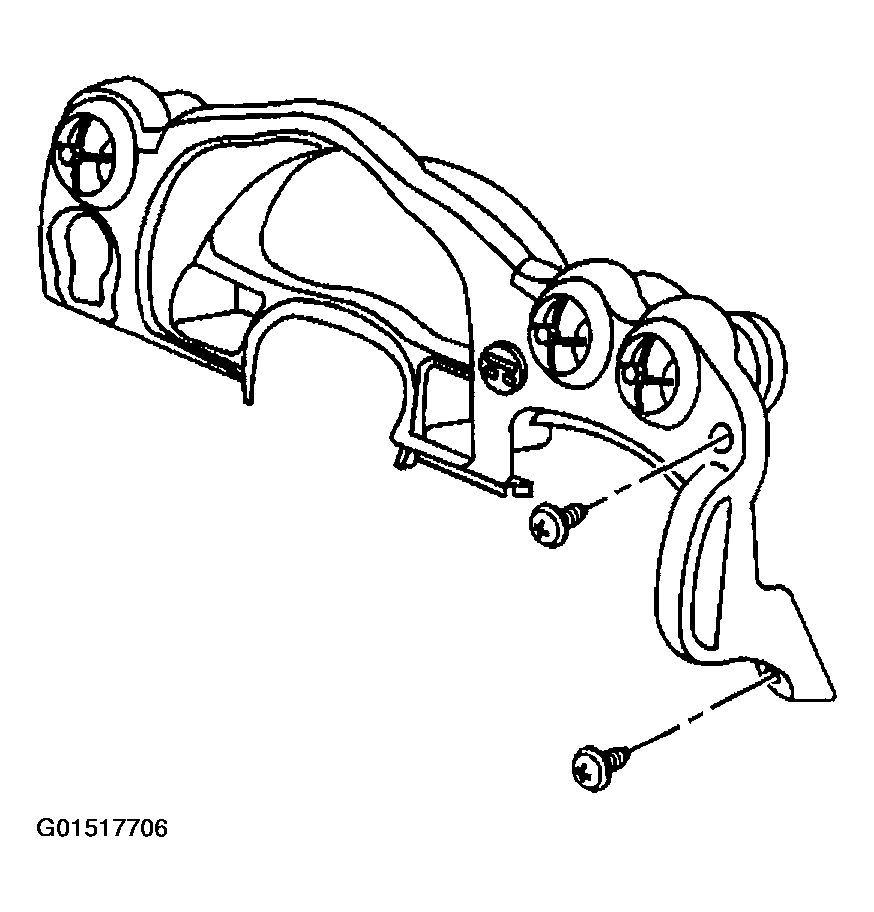

    Fig 1: Aligning I/P Cluster Trim Plate To Instrument Panel Retainers
    G01517706Courtesy of GENERAL MOTORS CORP.
  2. Connect the DIC to the I/P cluster trim plate panel.
  3. Install the I/P cluster trim plate.

    Press into place until fully seated.

  4. Install the screws to the I/P cluster trim plate at the assist handle.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  5. Install the knee bolster panel. Refer to KNEE BOLSTER REPLACEMENT  .
  6. Tighten the bolts which secure the steering column bracket.

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

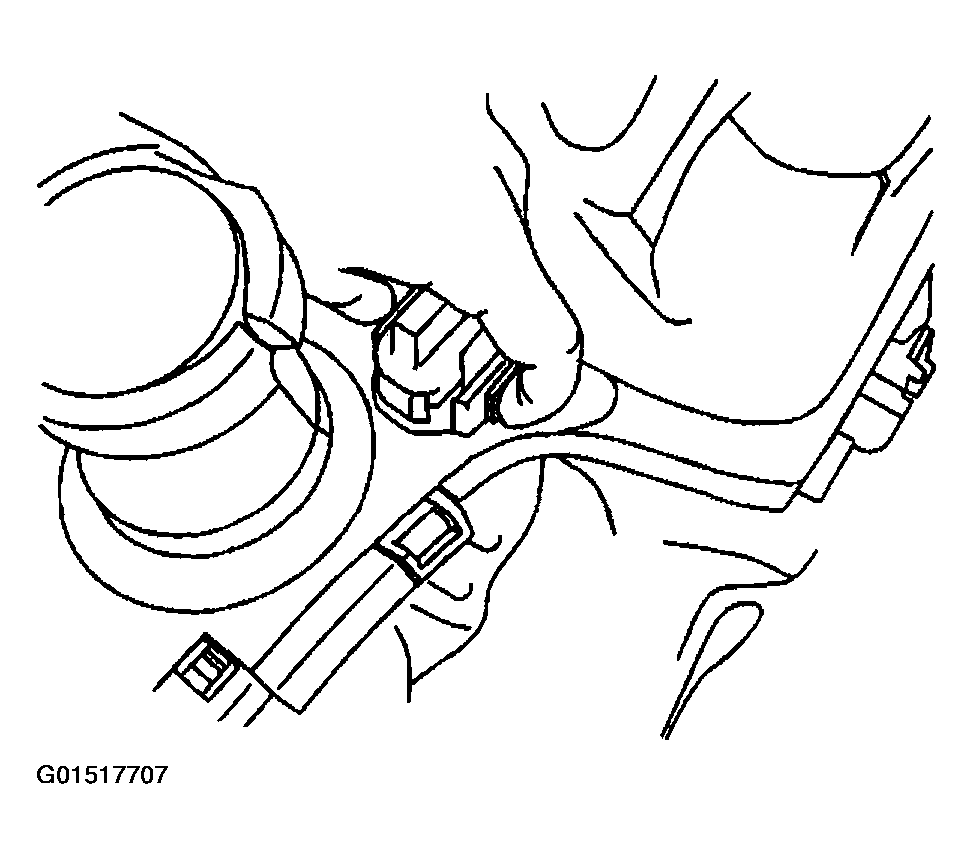

    Fig 2: Installing I/P Cluster Trim Plate
    G01517707Courtesy of GENERAL MOTORS CORP.
