Installation Procedure

  1. Connect the electrical connectors to the I/P cluster.
  2. Install the I/P cluster.
  3. Install the screws to the I/P cluster.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the I/P cluster trim plat bezel. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (AZTEK)  or TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (RENDEZVOUS)  .
  5. Calibrate the electronic compass. Refer to ELECTRONIC COMPASS CALIBRATION  .

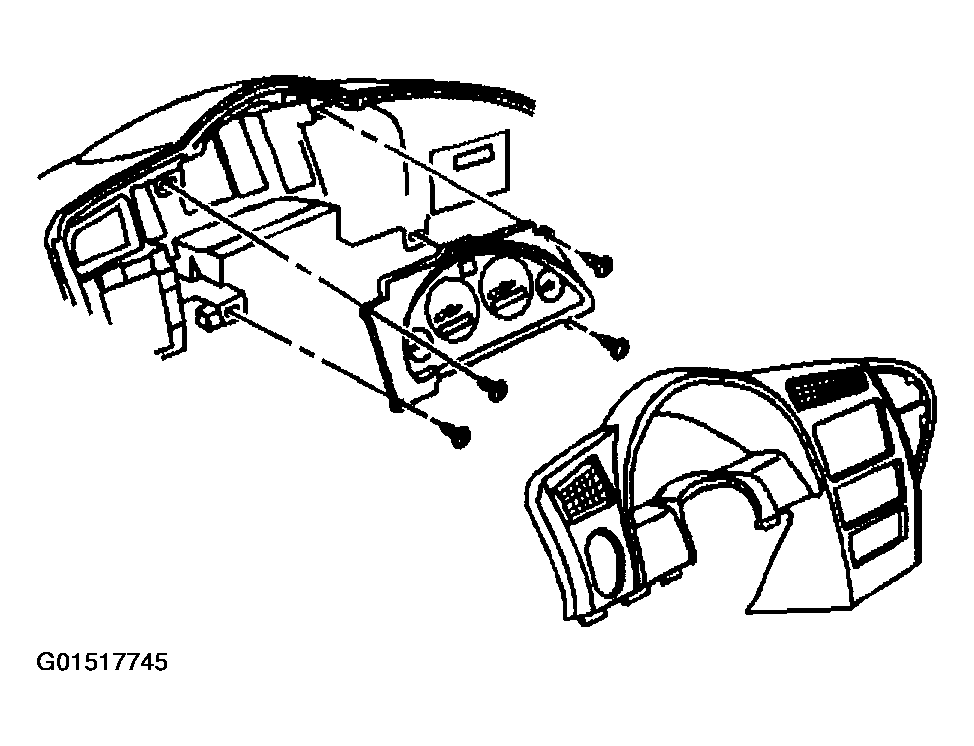

    Fig 1: Installing I/P Cluster
    G01517745Courtesy of GENERAL MOTORS CORP.
