Removal Procedure

  1. Remove the power accessory port socket by placing one side of J 42059 into the tab window and angle the other side into the opposite tab window. Pull the power accessory port socket straight out.
  2. Remove J 42059 from the power accessory port socket.

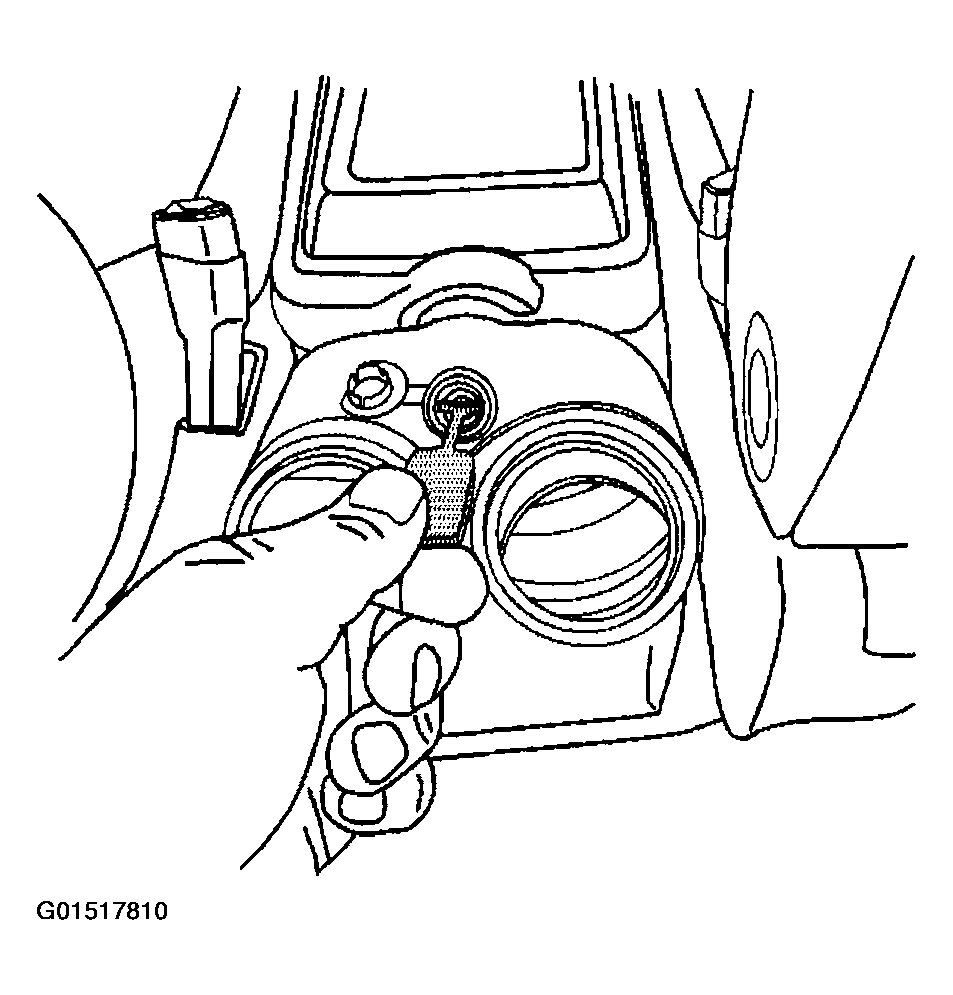

    Fig 1: Removing Power Accessory Port Socket
    G01517810Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the front floor console power accessory port.

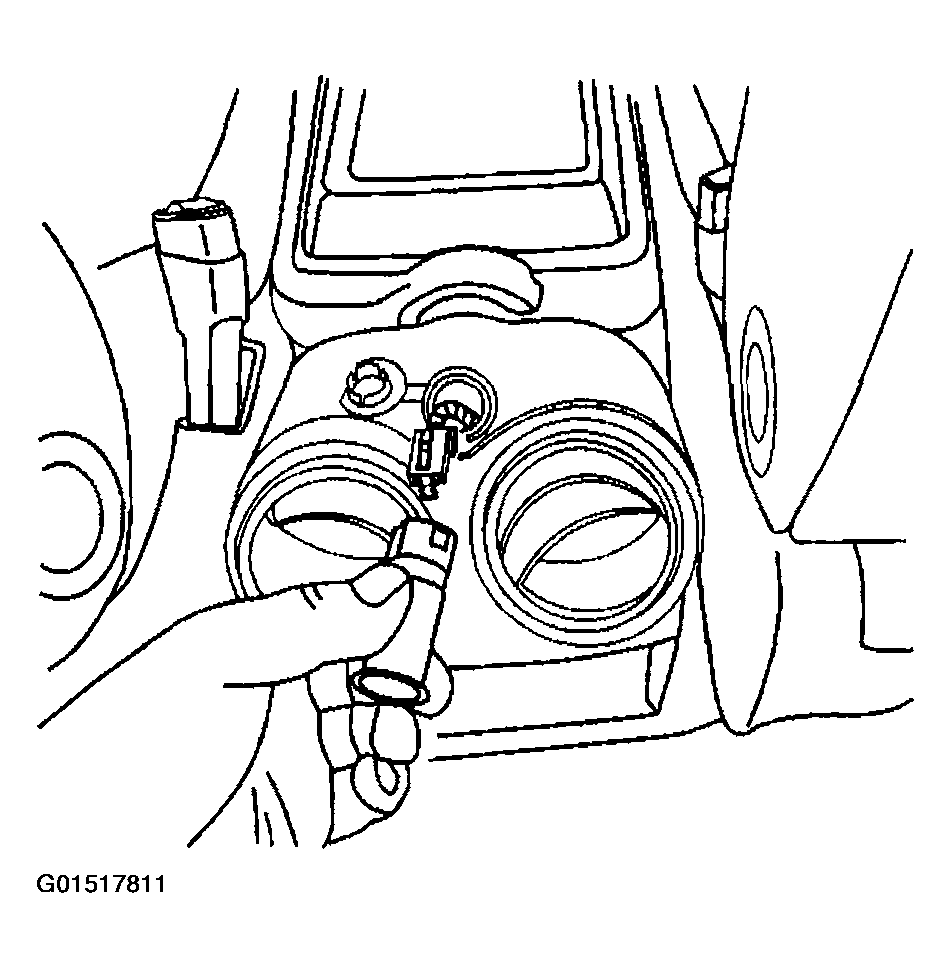

    Fig 2: Disconnecting Electrical Connector From Front Floor Console Power Accessory Port
    G01517811Courtesy of GENERAL MOTORS CORP.
  4. Remove the power accessory port retainer using your index finger and pulling out.

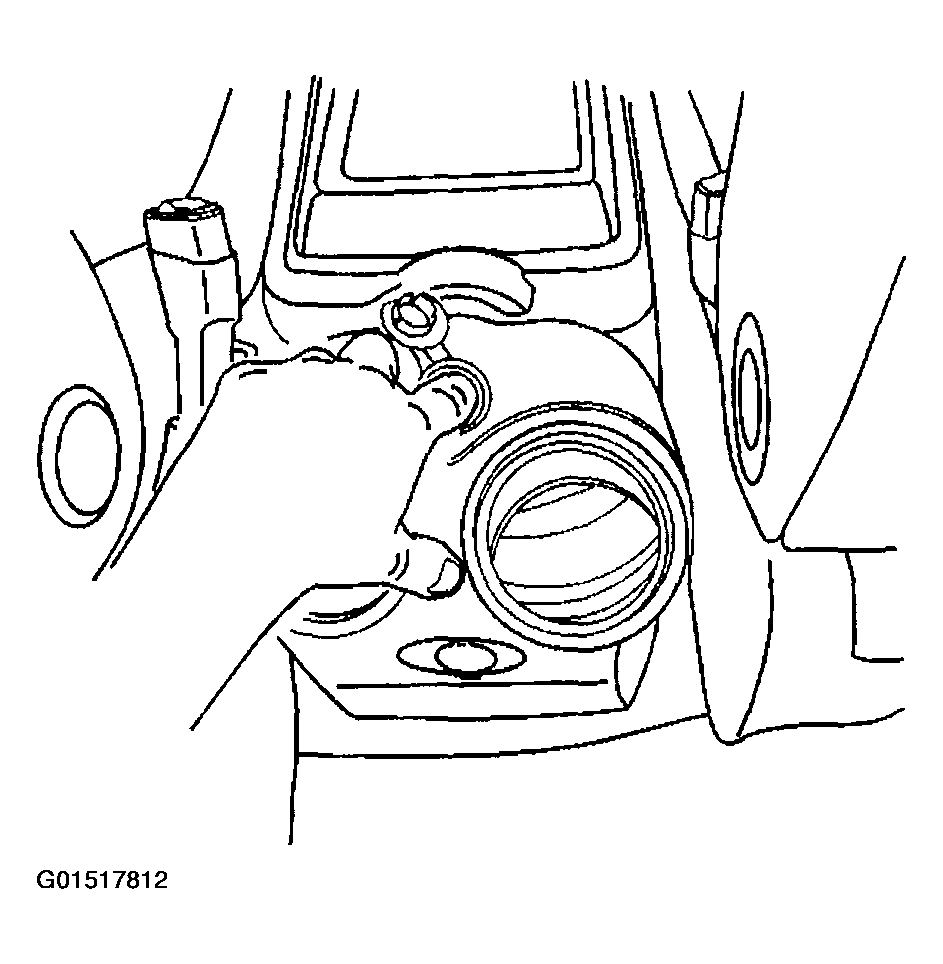

    Fig 3: Removing Power Accessory Port Retainer
    G01517812Courtesy of GENERAL MOTORS CORP.
