Removal Procedure

  1. Remove the 12 volt power supply fuse.
  2. Remove the 12 volt power supply socket by placing one side of the "T" portion of the tool J 42059  into the tab window and then the other should be angled into the opposite tab window, then pull the 12 volt power supply socket straight out.
  3. Remove the tool from the 12 volt power supply socket.

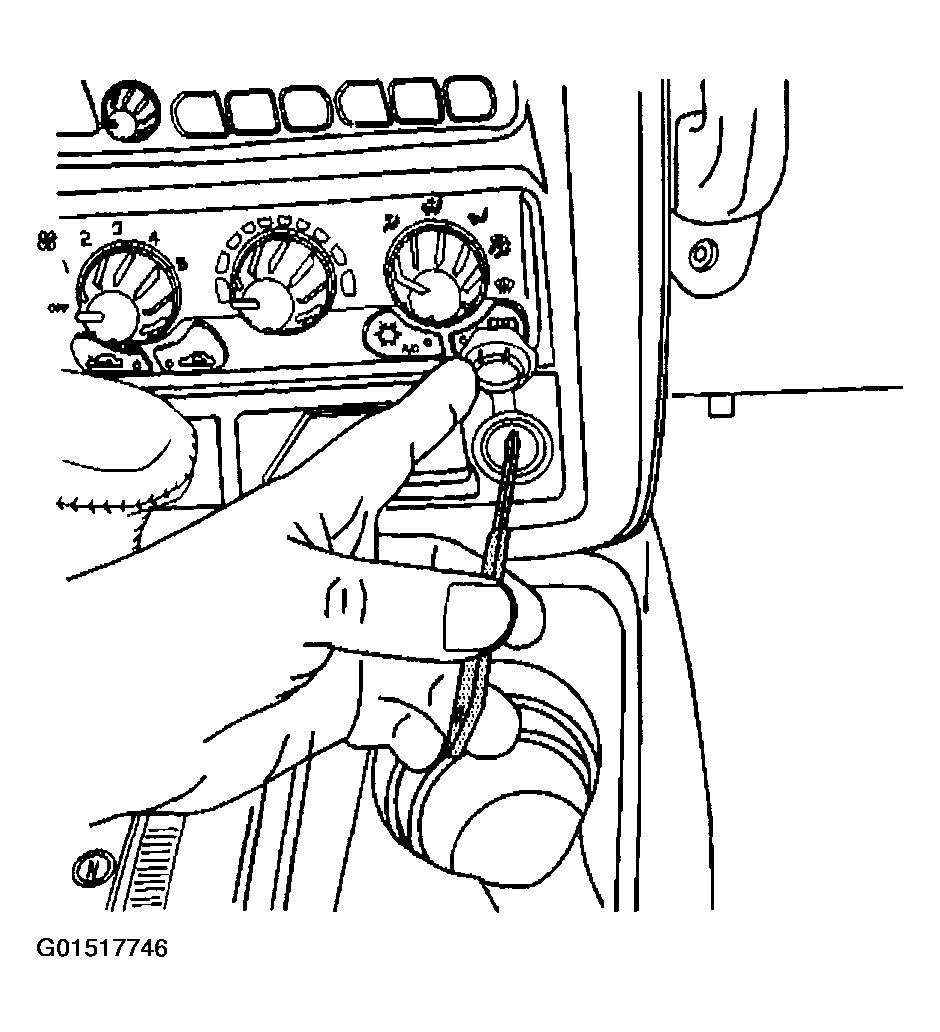

    Fig 1: Removing Power Supply Socket
    G01517746Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the instrument panel 12 volt power supply.

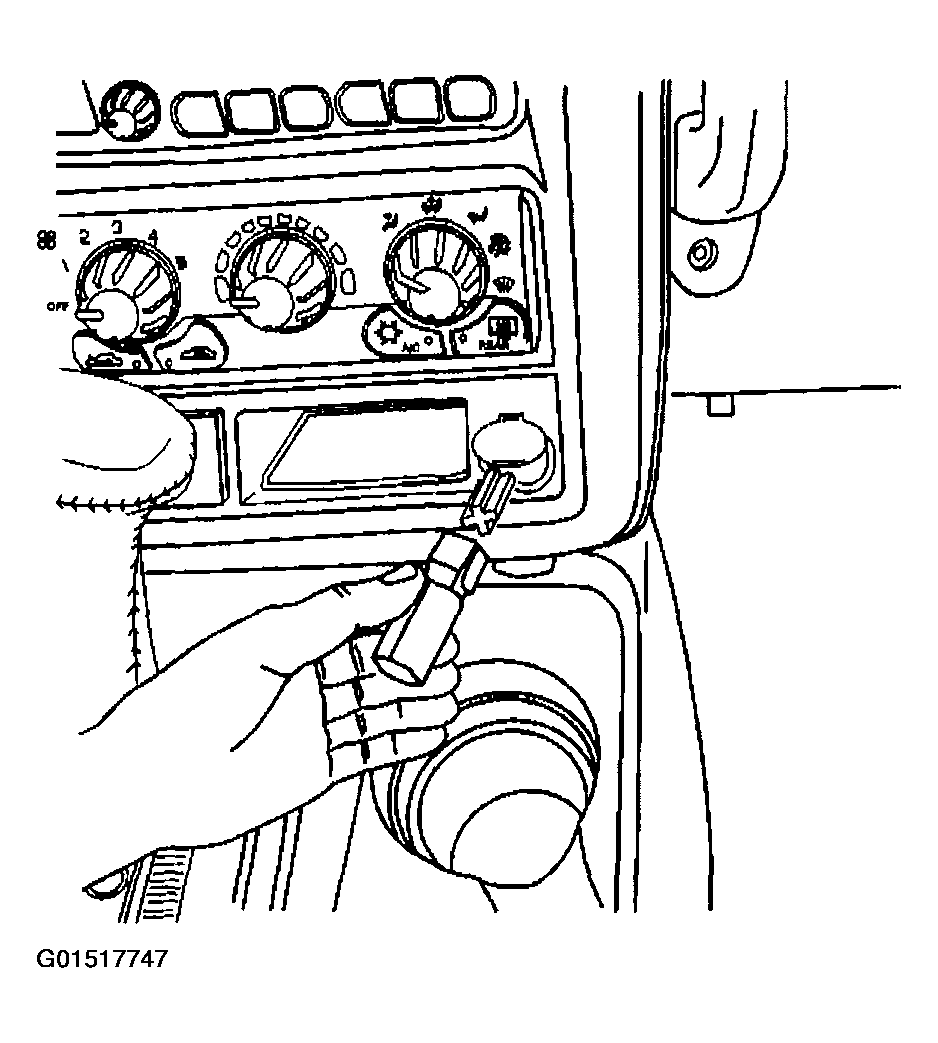

    Fig 2: Disconnecting Electrical Connector From Instrument Panel Power Supply
    G01517747Courtesy of GENERAL MOTORS CORP.
  5. Remove the 12 volt power supply retainer using your index finger and pulling out.

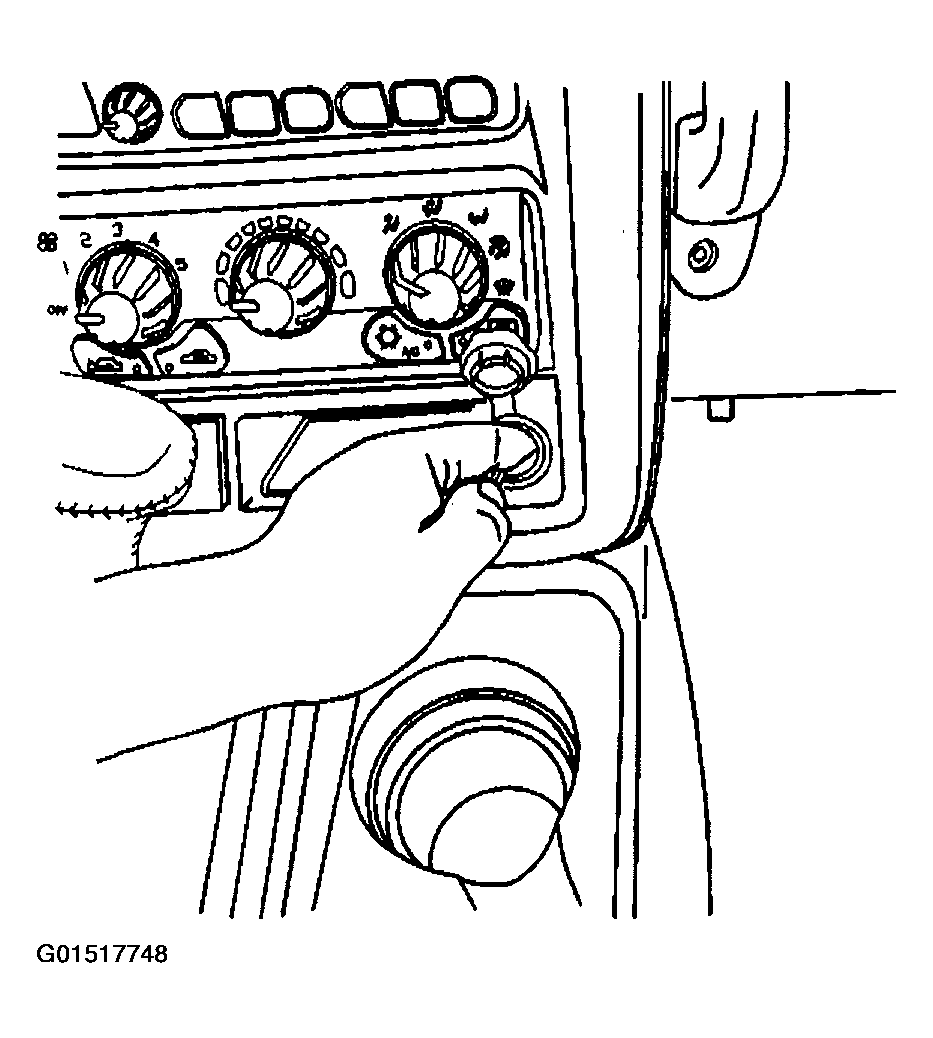

    Fig 3: Removing Power Supply Retainer
    G01517748Courtesy of GENERAL MOTORS CORP.
