Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Verify that the DTC is current or history by attempting to operate the seat adjuster motor for which the code is set.
  2. 3. Tests the adjuster motor supply circuits for proper operation.

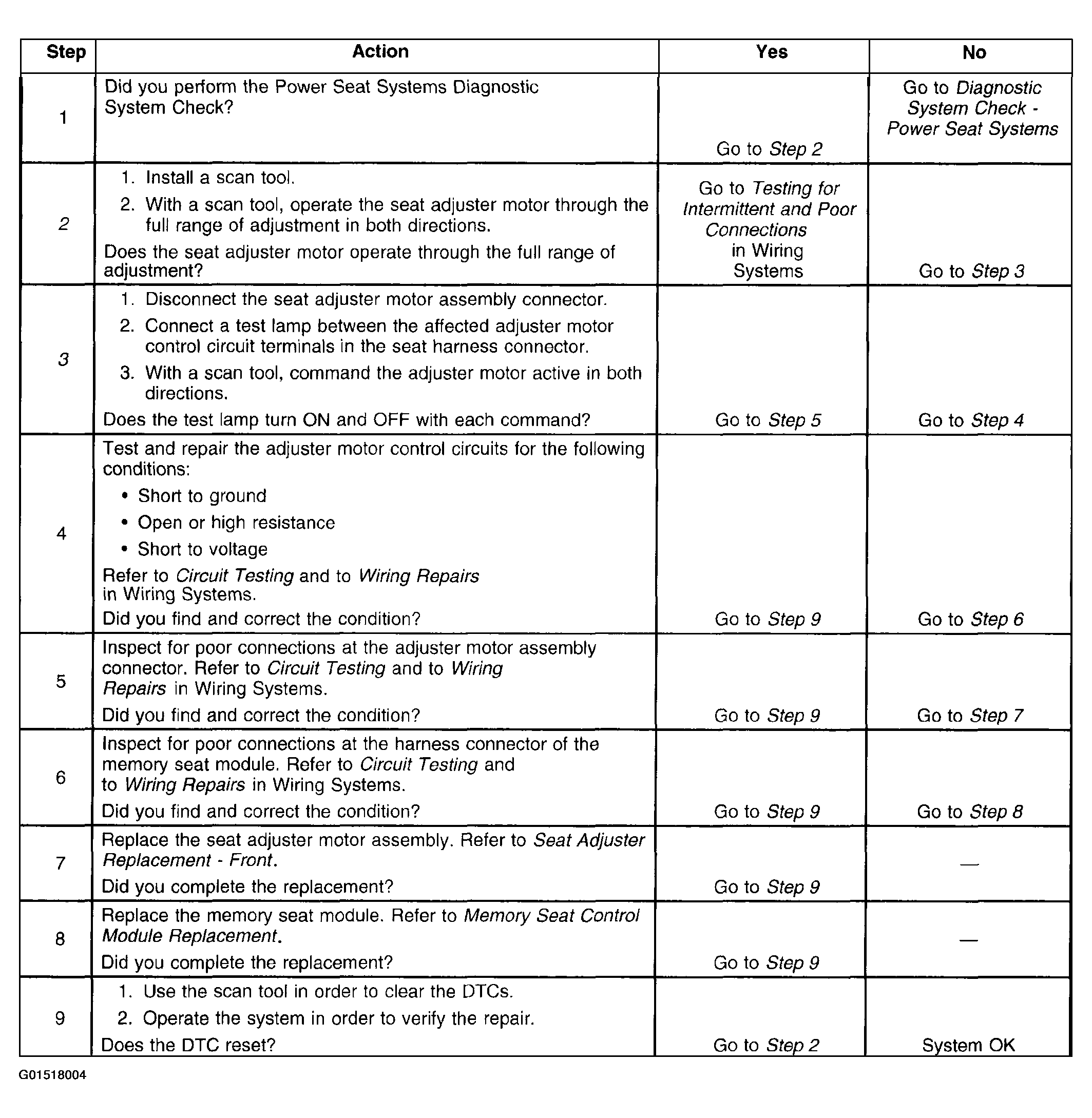

    Fig 1: DTC B1770, B1775, B1780, B1785, B1790, B1805 Or B2415 Diagnosis
    G01518004Courtesy of GENERAL MOTORS CORP.
