Removal Procedure

  1. Open the rear door.
  2. Pull the upper edge of the rear door body side molding out, to release the retainers.
  3. A thin, plastic flat-bladed tool may be used between the door and the molding to help release the retainers.

    Remove the rear door body side molding from the door.

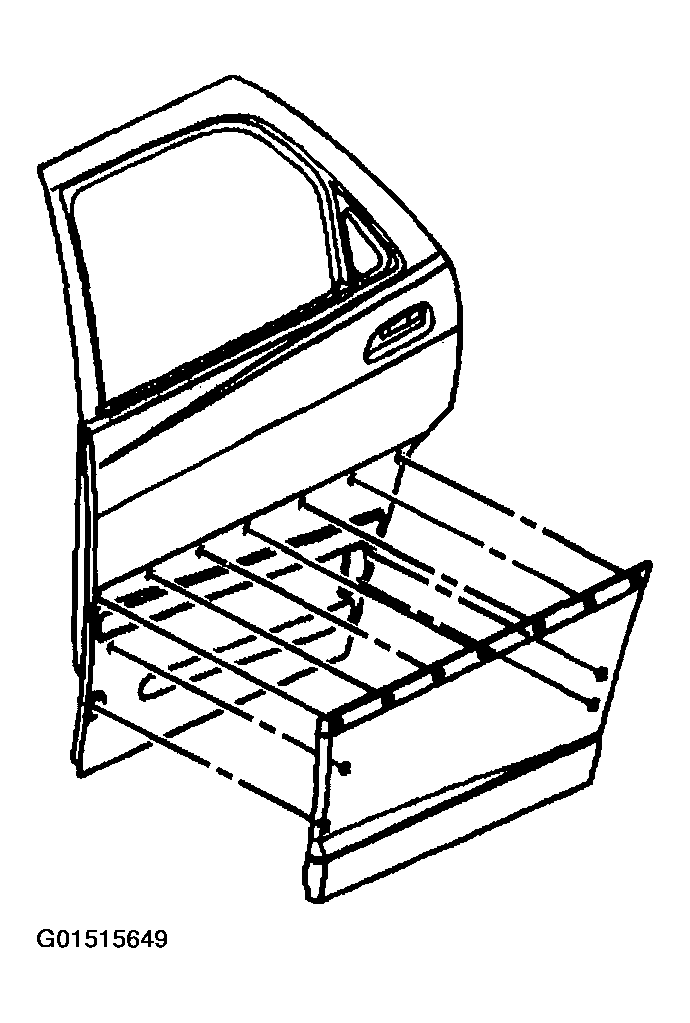

    Fig 1: Removing Rear Door Body Side Molding
    G01515649Courtesy of GENERAL MOTORS CORP.
  4. Drill a small hole into the center of the center retainer pins of the lower support retainer.

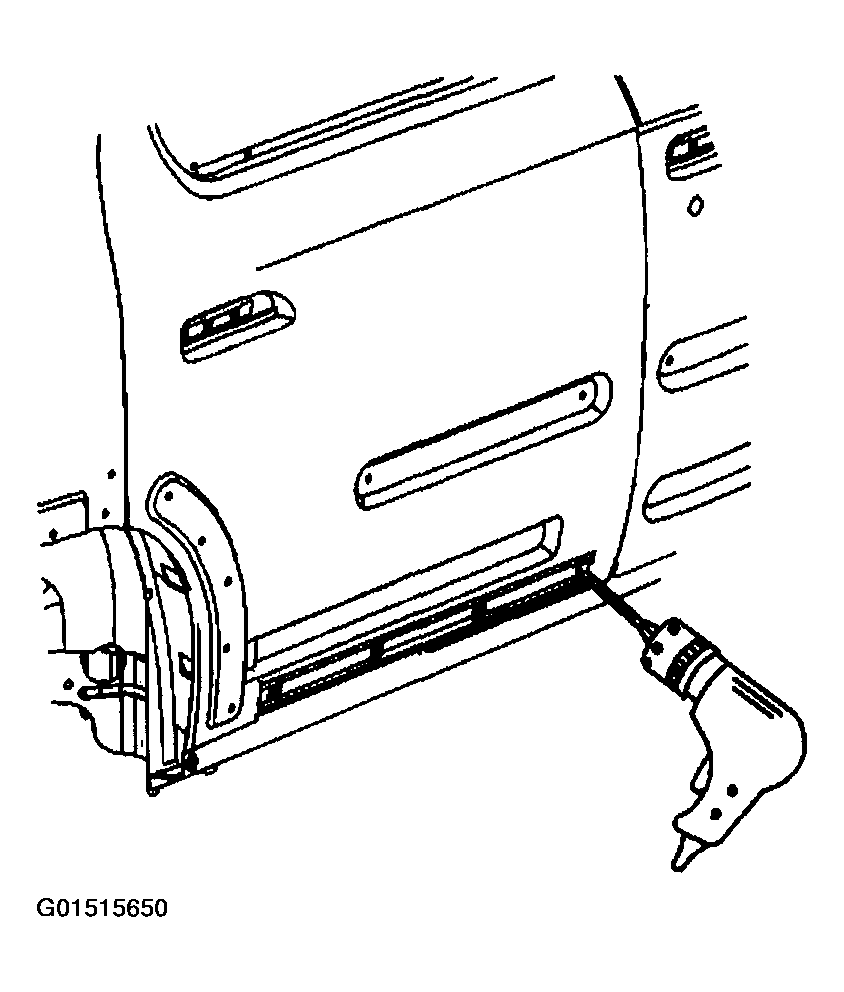

    Fig 2: Drilling Hole Into Center Of Center Retainer Pins
    G01515650Courtesy of GENERAL MOTORS CORP.
  5. Install a small screw into the hole in the center retainer pin.
  6. Remove the center retainer pin using small pliers and pulling out the center retainer pin.
    Fig 3: Removing Center Retainer Pin
    G01515651Courtesy of GENERAL MOTORS CORP.
  7. Remove the rear door body side molding lower support from the door.
    Fig 4: Removing Rear Door Body Side Molding Lower Support
    G01515652Courtesy of GENERAL MOTORS CORP.
